Datasheet - XA 6/21.5Y.M.A.P Microbalance

Code:

WL-112-1000

Verification

2 years warranty

Datasheet

Maximum capacity [Max]

6 / 21 g

Minimum load

0,1 mg

Readability [d]

1 / 2 µg

Verification unit [e]

1 mg

Tare range

-21 g

Minimum weight (USP)

2,6 mg

Minimum weight (U=1%, k=2)

0,26 mg

Standard repeatability [Max]

3,5 µg

Standard repeatability [5% Max]

1,3 µg

Permissible repeatability [Max]

5 µg

Permissible repeatability [5% Max]

2 µg

Linearity

±9 µg

Eccentric load deviation

15 µg

Sensitivity time drift

1×10⁻⁶/Year×Rt

Stabilization time

~ 3,5 s

Adjustment

internal (automatic)

Leveling system

automatic – Reflex Level System

OIML Class

Display

10″ graphic colour touchscreen

Weighing chamber doors

automatic

Protection class

IP 43

Delivery components

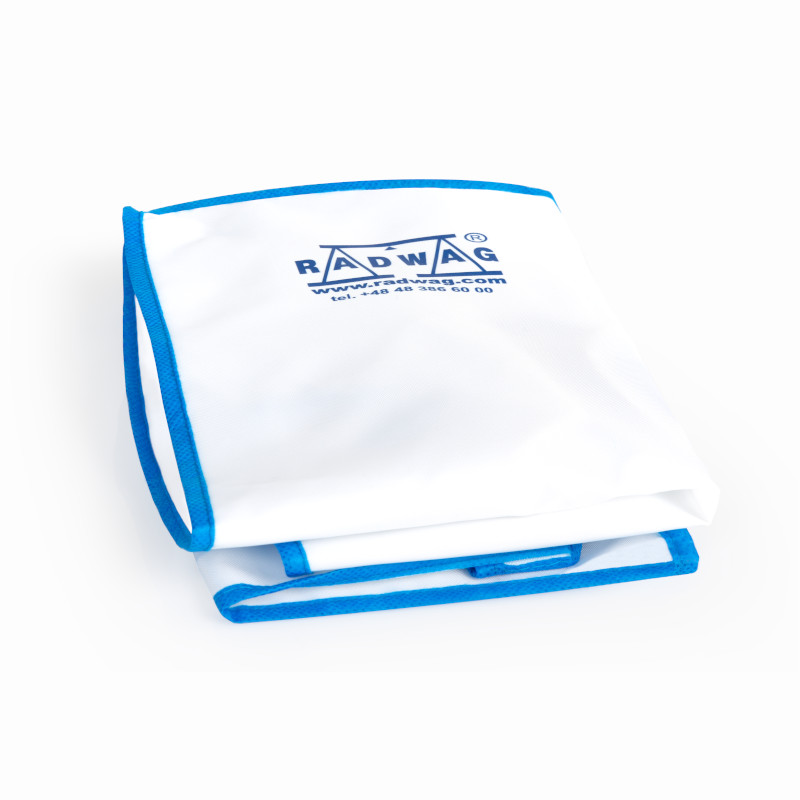

Microbalance, weighing pan, weighing pan shield, power supply, automatic pipette calibration adapter: (base, bottom ring, glass vessel, pipette calibration adapter, evaporation ring, weighing pan, glass lid, mechanical closing cover, protecting screw), brush, fabric dust cover.

Communication interface

2×USB-A, USB-C, RS 232 (COM3), HDMI, Ethernet, Wi-Fi^®, Hotspot

Power supply

Adapter: 100 – 240V AC 50/60Hz 1A Max; 15V DC 2,4A
Balance: 12 – 15V DC 1,6A max; 10 – 19W*

Operating temperature

+10 – +40 °C

Operating temperature change rate

±0,3 °C / 1 h (±1 °C / 8 h)

Relative humidity

40% – 80%

Relative humidity change rate

±1% / h (±4% / 8 h)

Weighing chamber dimensions

199×170×217 mm

Capacity

11 ml

Weighing pan dimensions

ø26 mm

Packaging dimensions W x D x H

750×492×595 mm

Net weight

14,5 kg

Gross weight

20 kg

Overview

XA 6/21.5Y.M.A.P Microbalance
for Pipettes Calibration

XA 5Y.M.A.P Microbalances are designed to calibrate single-channel pipettes from 0.5 µl. Pipette calibration means checking whether the pipette draws as much as it should, and thus whether the measurement result is within the permissible error. XA 5Y.M.A.P Microbalances have the same features as the XA 5Y.M.A Microbalances, but since they are dedicated to pipette calibration, they are additionally equipped with an automatic pipette calibration adapter, including a pipette calibration adapter, an evaporation ring and a glass vessel (we have listed all the components of the calibration adapter below, next to the datasheet).

Fully Antistatic Weighing Chamber

The XA 5Y.M.A.P Microbalances has a built-in antistatic ionizer and an automatically opened weighing chamber. The built-in antistatic ionizer neutralizes the electrostatic charge of the sample during each weighing procedure, that is, each time the chamber is opened. The automatically opened weighing chamber is controlled by gestures, i.e. non-contact.

Do you need a balance that not only determines weight with impressive accuracy, but also performs a digital audit, responds to your voice commands and sends you light messages?

If so, learn about the functionality of the ELLIPSIS series of balances:

Digital Weighing Auditor

Ensures that your balance is ready for use. It enables air buoyancy compensation in real-time. What is more, it informs about the need for a balance inspection or a periodic audit of the balance’s accuracy and sensitivity.

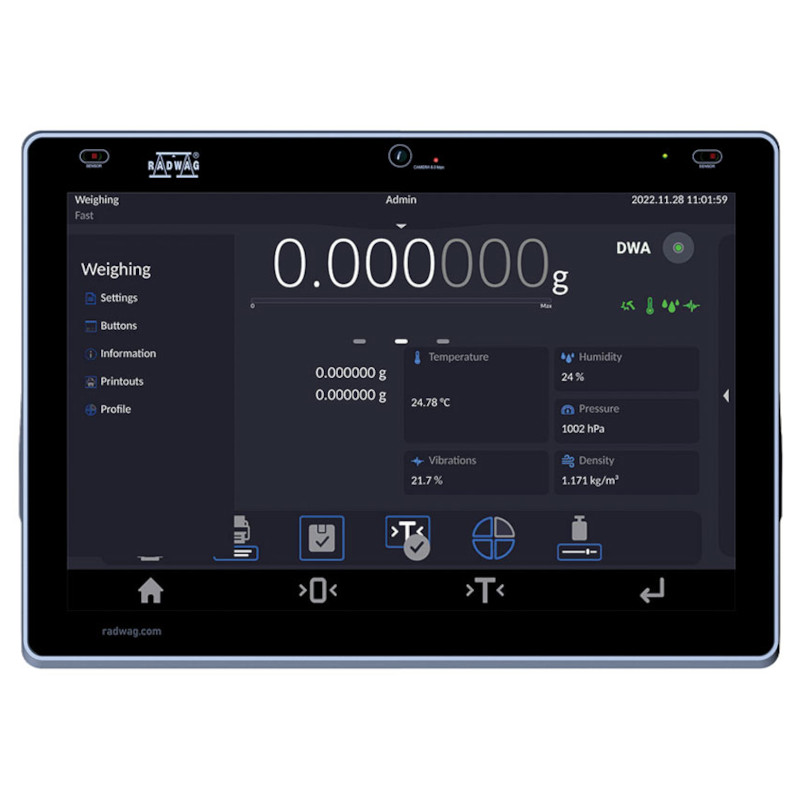

10-Inch Display

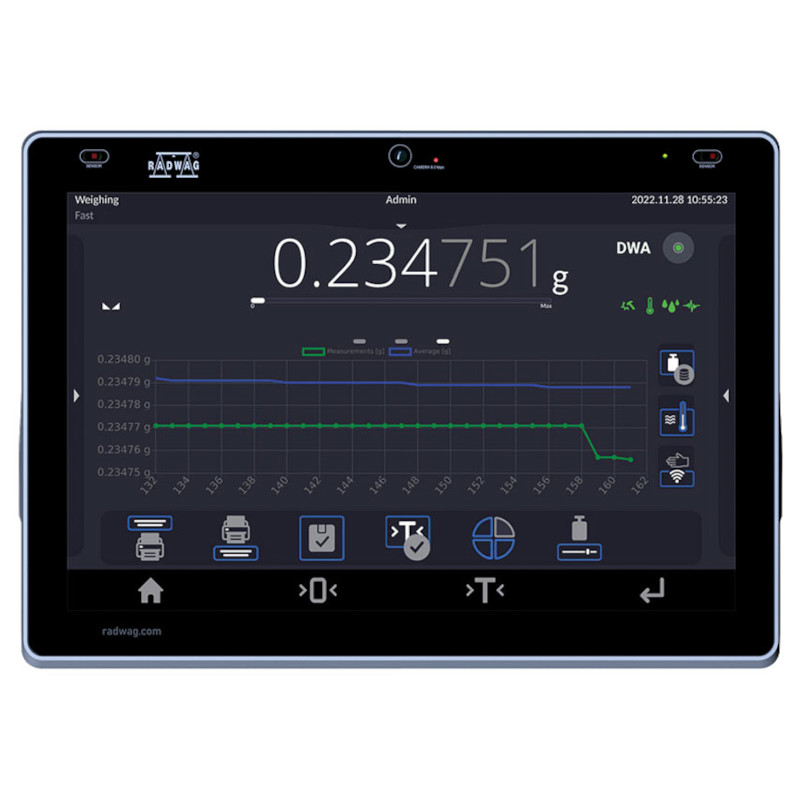

Bigger screen – 10’’ – means more information in one place. On the new ELLIPSIS terminal, you will see up to 3 screens, widgets, graphs, statuses, notes, handy measurement history.

Ambient Light – An Innovative Way for the Balance to Communicate With the User

The light colour will tell you about status, process results, procedures, or alerts.

Uncompromising User Verification

For the first time ever, the balance will verify the user using a password, RFID card, fingerprint reader, facial recognition mechanism, or any combination of these.

Hotspot

Use the balance on any device connected to it. This can be a smartphone, tablet, or computer.

Live Note – Note Down Your Conclusions

It’s the first time you can add a text memo to a measurement series or procedure report. These can be, for example, assumptions, reminders or questions that can be returned to at any time.

RFID

ELLIPSIS works with RFID tags* that can be used to tag your products or formulation ingredients in the database. They can also be used to identify a user.

Handy Library

This is where a series of recent measurements or a report ready for digital signature, according to 21 CFR Part 11, can be found.

Widgets

Prepared to display what you need most at any given moment.

Smart Min Weight

The balance displays whether the value of the weight you want to weigh is below or above the minimum weight threshold.

Automatic Leveling of the Balance ReflexLEVEL System

Instead of manually leveling your scale - level it automatically.
The ReflexLEVEL System saves you time and gives you maximum precision in your measurements.

21 CFR Part 11

Do you work in the pharmaceutical industry? Do you need a digital signature?

We are offering the laboratory balance which as a standalone fully meets the requirements of 21 CFR Part 11/ EU GMP Annex 11.

– Full data security
– Electronic signatures
– Validations
– Electronic records
– Audit trails

Modbus TCP/IP

is one of the most popular communication protocols in industrial automation. Implementing it in the 5Y balances and CY10 scales makes the devices of this series friendly to automation integrators.

A balance or scale in a Modbus system is a slave device and performs tasks specified by the master device which is most often a PLC. Protocol Modbus TCP/IP in the 5Y balances and C10 scales enables, among other things, the realization of mass readout, zeroing and tare functions of the device, as well as tare settings and MIN and MAX thresholds.

Two-point adjustment

Adjacency, which takes place at two measurement points instead of one, improves measurement precision over the full weighing range. And what does this mean for you? More accurate measurement.

* RFID ISO/IEC 14443 Type A, 13.56 MHz
