Datasheet - XA 52.5Y Analytical Balance

Code:

WL-110-0009

Verification

2 years warranty

Datasheet

Maximum capacity [Max]

52 g

Minimum load

1 mg

Readability [d]

0,01 mg

Verification unit [e]

1 mg

Tare range

-52 g

Minimum weight (USP)

10 mg

Minimum weight (U=1%, k=2)

1 mg

Standard repeatability [5% Max]

0,005 mg

Permissible repeatability [5% Max]

0,012 mg

Linearity

±0,03 mg

Eccentric load deviation

0,03 mg

Sensitivity time drift

1×10⁻⁶/Year×Rt

Stabilization time

4 s

Adjustment

internal (automatic)

Leveling system

semi-automatic – LevelSENSING

OIML Class

Display

10″ graphic colour touchscreen

Weighing chamber doors

manual

Protection class

IP 43

Delivery components

Analytical Balance, weighing pan, weighing pan shield, centring ring, bottom cover, brush, fabric dust cover, power supply.

Communication interface

2×USB-A, USB-C, RS 232 (COM3), HDMI, Ethernet, Wi-Fi^®, Hotspot

Power supply

Adapter: 100 – 240V AC 50/60Hz 1A Max; 15V DC 2,4A
Balance: 12 – 15V DC 1,4A max; 9 – 17W*

Operating temperature

+10 – +40 °C

Operating temperature change rate

±0,3 °C / 1 h (±1 °C / 8 h)

Relative humidity

20% – 80%

Relative humidity change rate

±1% / h (±4% / 8 h)

Weighing chamber dimensions

168×160×228 mm

Weighing pan dimensions

ø90 open-work pan + ø85 (option) mm

Packaging dimensions W x D x H

750×492×595 mm

Net weight

12,05 kg

Gross weight

16,15 kg

Overview

XA 52.5Y Analytical Balance

XA 5Y Analytical Balances, as measuring devices renowned for their high readability, high resolution and good repeatability, are key pieces of equipment in pharmaceutical, physical, chemical, biological, medical and many other laboratories.

Why Are the XA 5Y Balances Worthy of Consideration?

Semi-automatic levelling – LevelSENSING System

It tells the user which way he should level the balance. The system guides the user step by step, which minimizes the risk of errors during levelling and significantly reduces the time of this process.

Manually opened weighing chamber

These balances offer a manually opening weighing chamber, which allows easy access to samples and their convenient placement on the balance. Opening the chamber manually allows full control over the weighing process and is ideal for those who need quick access to the sample.

Internal adjustment

A built-in internal adjustment and calibration system ensures automatic adjustment and calibration, which guarantees long-term precision and minimizes the need for manual intervention. As a result, users can rest assured that the balance always performs with the highest readability, regardless of operating conditions.

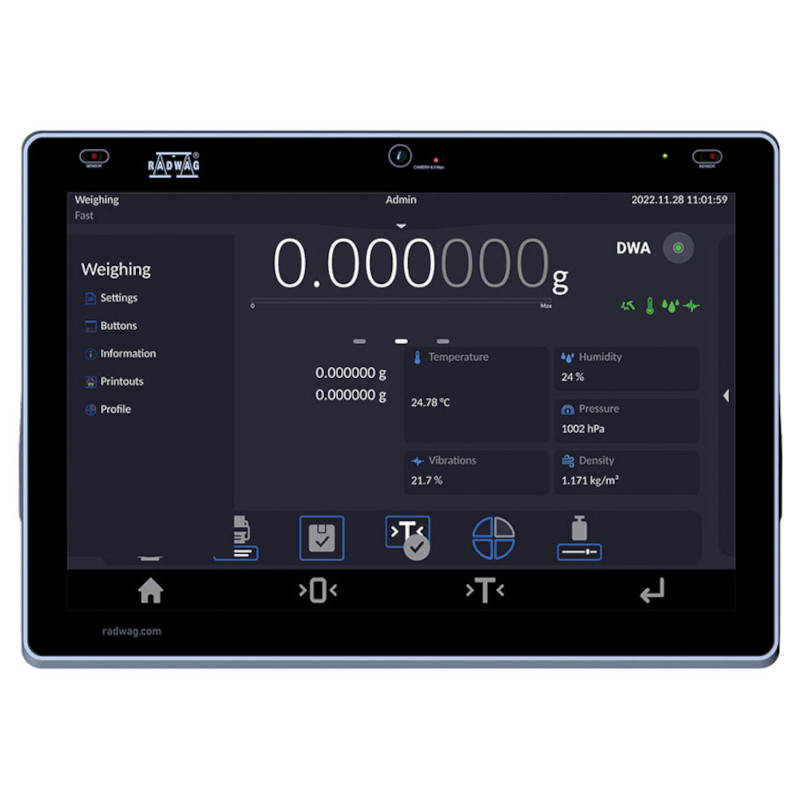

Digital Weighing Auditor

Ensures that your balance is ready for use. It enables air buoyancy compensation in real-time. What is more, it informs about the need for a balance inspection or a periodic audit of the balance’s accuracy and sensitivity.

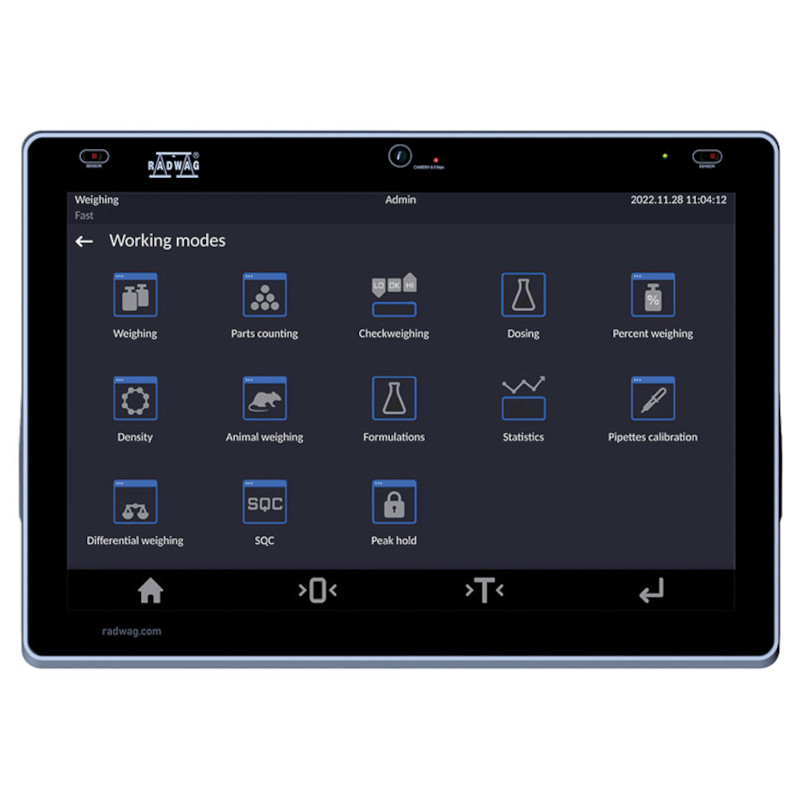

10-Inch Display

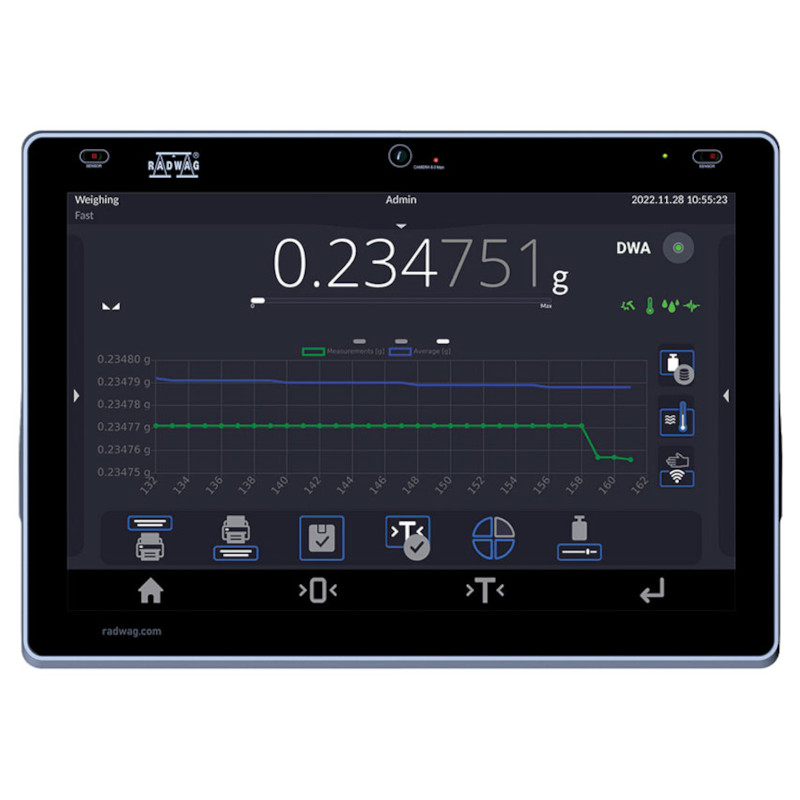

Bigger screen – 10’’ – means more information in one place. On the new ELLIPSIS terminal, you will see up to 3 screens, widgets, graphs, statuses, notes, handy measurement history.

Uncompromising User Verification

For the first time ever, the balance will verify the user using a password, RFID card, fingerprint reader, facial recognition mechanism, or any combination of these.

Ambient Light – one look and everything is clear

The color of the backlight will tell you about status, process results, procedures or alerts. Advanced methods of communication of the balance with the user provide efficiency, transparency and convenience in daily work.

Hotspot

Lack of space in fume cupboard or no access to a weighing terminal? Or do you want to operate the balance remotely? Use the balance on any device connected to it. This can be a smartphone, tablet, or computer.

RFID

ELLIPSIS works with RFID tags* that can be used to tag your products or formulation ingredients in the database. They can also be used to identify a user.

Live Note – Note Down Your Conclusions

It’s the first time you can add a text memo to a measurement series or procedure report. These can be, for example, assumptions, reminders or questions that can be returned to at any time.

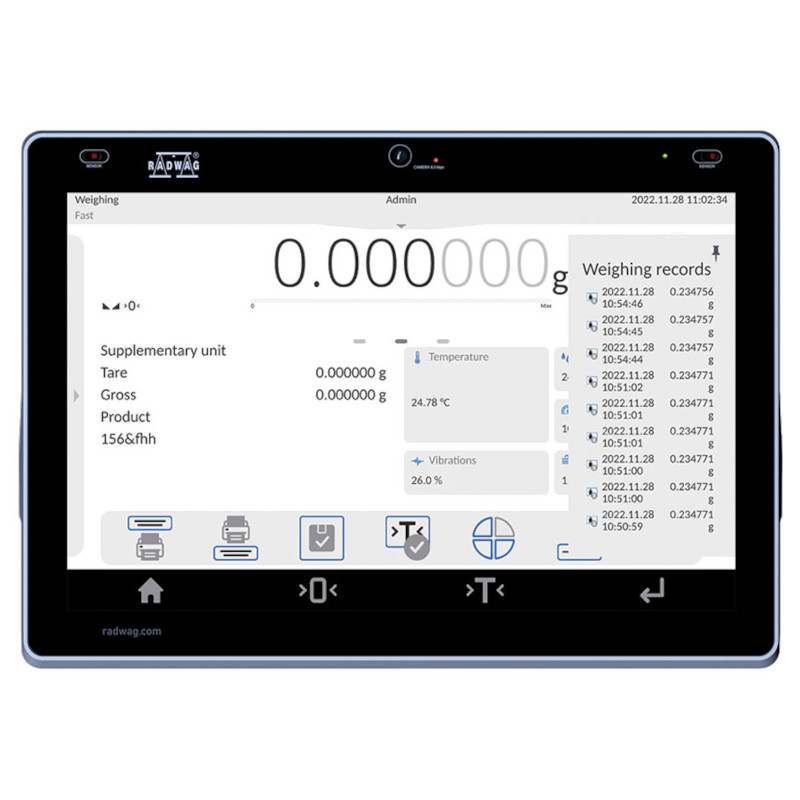

Handy Library

This is where a series of recent measurements or a report ready for digital signature, according to 21 CFR Part 11, can be found.

Widgets

Prepared to display what you need most at any given moment.

Smart Min Weight

The balance displays whether the value of the weight you want to weigh is below or above the minimum weight threshold.

21 CFR Part 11

Do you work in the pharmaceutical industry? Do you need a digital signature?

We are offering the laboratory balance which as a standalone fully meets the requirements of 21 CFR Part 11/ EU GMP Annex 11.

– Full data security

– Electronic signatures
– Validations
– Electronic records
– Audit trails

Modbus TCP/IP

is one of the most popular communication protocols in industrial automation. Implementing it in the 5Y balances and CY10 scales makes the devices of this series friendly to automation integrators.

A balance or scale in a Modbus system is a slave device and performs tasks specified by the master device which is most often a PLC. Protocol Modbus TCP/IP in the 5Y balances and C10 scales enables, among other things, the realization of mass readout, zeroing and tare functions of the device, as well as tare settings and MIN and MAX thresholds.

Two-point adjustment

Adjacency, which takes place at two measurement points instead of one, improves measurement precision over the full weighing range. And what does this mean for you? More accurate measurement.

Under-pan weighing

Weighing instruments purchased after 15th February 2023 will allow under-pan weighing at any time after the purchase. All you need to do is just to order a dedicated hook.

* RFID ISO/IEC 14443 Type A, 13.56 MHz
