XA 110.5Y.A Analytical Balance

This image is for reference only.

close Exit

This image is for reference only.

Availability:

In stock

Estimated shipping date :

15 working days

Price:

11394.00

GBP

with 20% VAT, shipping cost not included

Choose a variant:

XA 110.5Y.A Analytical Balancekeyboard_arrow_down

XA 110.5Y.A Analytical Balance
Max: 110g | d: 0,01mg
XA 120/250.5Y.A Analytical Balance
Max: 120/250g | d: 0,01/0,1mg
XA 210.5Y.A Analytical Balance
Max: 210g | d: 0,01mg
XA 220.5Y.A Analytical Balance
Max: 220g | d: 0,1mg
XA 310.5Y.A Analytical Balance
Max: 310g | d: 0,1mg
XA 52.5Y.A Analytical Balance
Max: 52g | d: 0,01mg
XA 520.5Y.A Analytical Balance
Max: 520g | d: 0,1mg
XA 82/220.5Y.A Analytical Balance
Max: 82/220g | d: 0,01/0,1mg
XA 320.5Y.A Analytical Balance
Max: 320g | d: 0,05mg
XA 121/220.5Y.A Analytical Balance
Max: 121/220g | d: 0,005/0,01mg
XA 41/120.5Y.A Analytical Balance
Max: 41/120g | d: 0,002/0,005mg

Options:

Class I Verification (43.20 GBP)

Compliance with 21 CFR part 11 (542.40 GBP)

Additional fee for Radwag Extended SI (RES level: 0,1,2) module activation (374.40 GBP)

Calibration New Analytical balances d≥0,01mg; max 500g (292.80 GBP)

Pcs.Pcs.

Add to basket

We are near you.
We have been manufacturing weighing devices since 1984.

RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569

Delivery only on the territory of United Kingdom

Code:

WL-110-0002

Buying from the producer is all about the pros

✓ Update as standard

You always get the latest version of the device and software. We are constantly improving our products.

✓ This is priceless

Technical support from the product developers. Who better to know the answers to your questions? Like our Facebooku profile – stay in touch with us.

✓ Smaller carbon footprint

A solidly packaged shipment travels only one way – the one to you.

✓ Long life for your balance

In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory.

✓ The important thing

You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance.

Overview

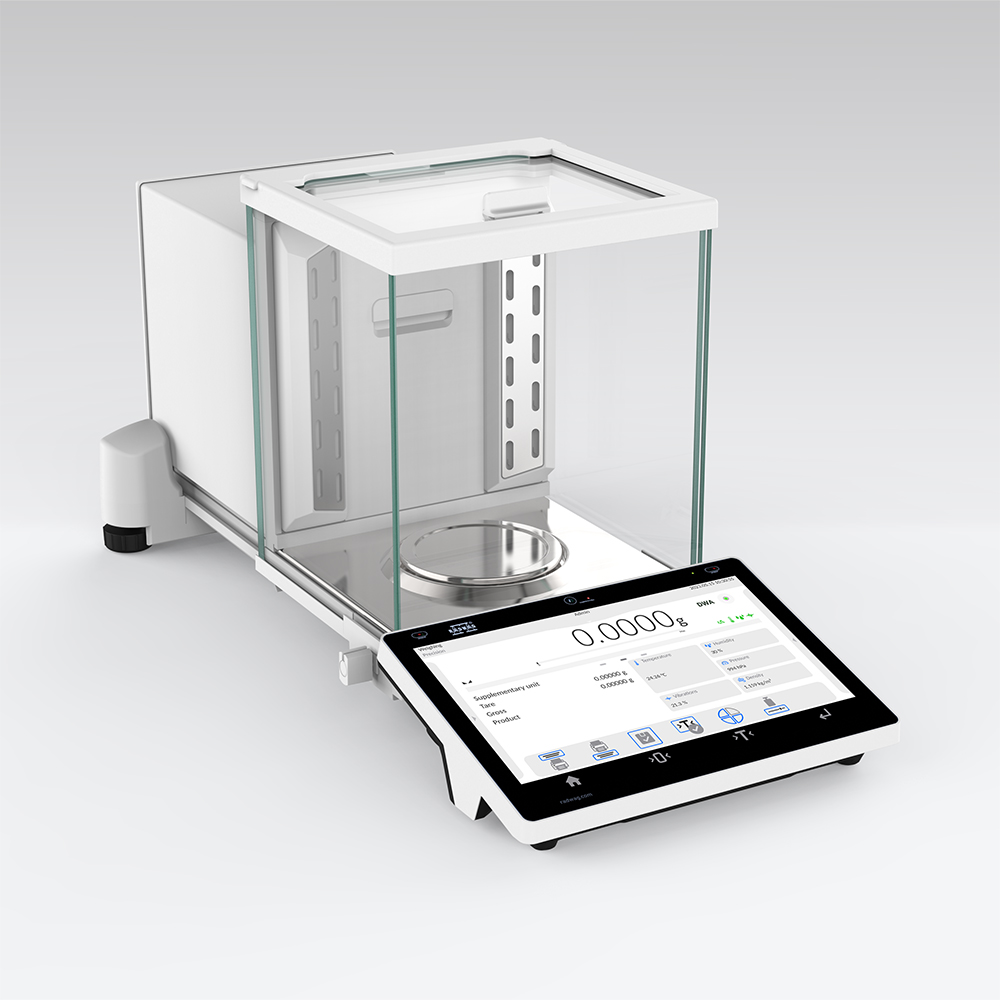

XA 110.5Y.A Analytical Balance

Do you need a balance that not only determines weight with impressive accuracy, but also performs a digital audit, responds to your voice commands and sends you light messages?

If so, learn about the functionality of the ELLIPSIS series of balances:

XA 5Y.A Analytical Balances

are advanced laboratory instruments that combine state-of-the-art technology with incomparable measurement precision. Equipped with an innovative measurement system, they offer a wide weighing range and high readability, making them ideal for analytical, pharmaceutical and chemical laboratories.

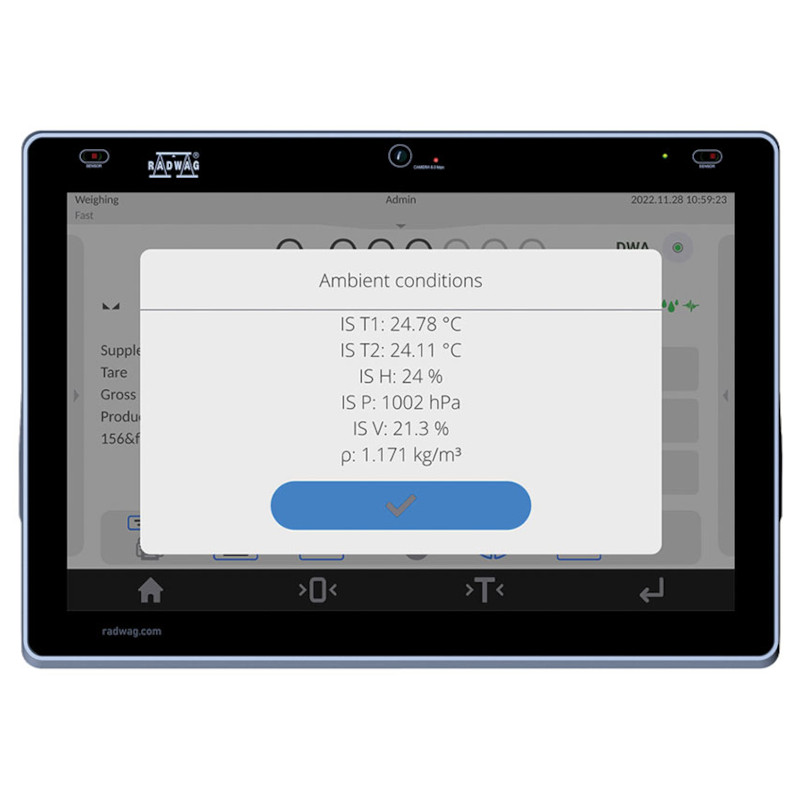

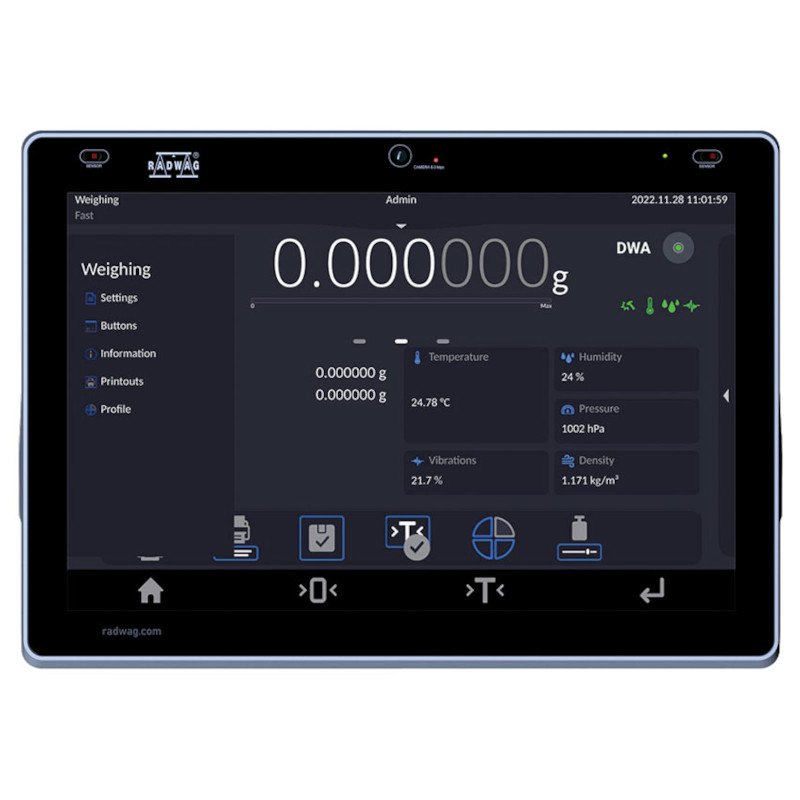

Digital Weighing Auditor

Ensures that your balance is ready for use. It enables air buoyancy compensation in real-time. What is more, it informs about the need for a balance inspection or a periodic audit of the balance’s accuracy and sensitivity.

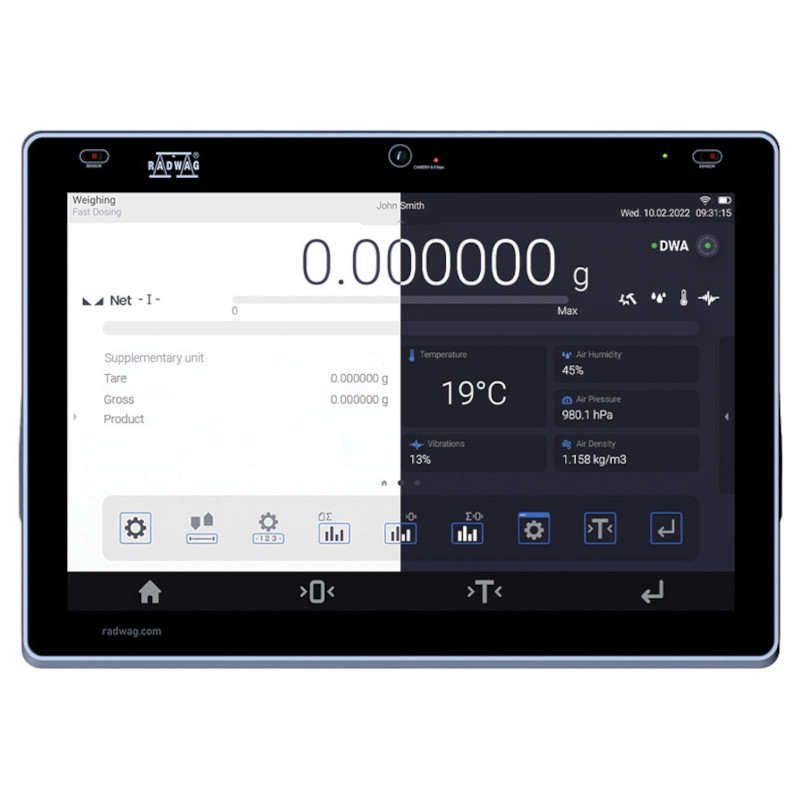

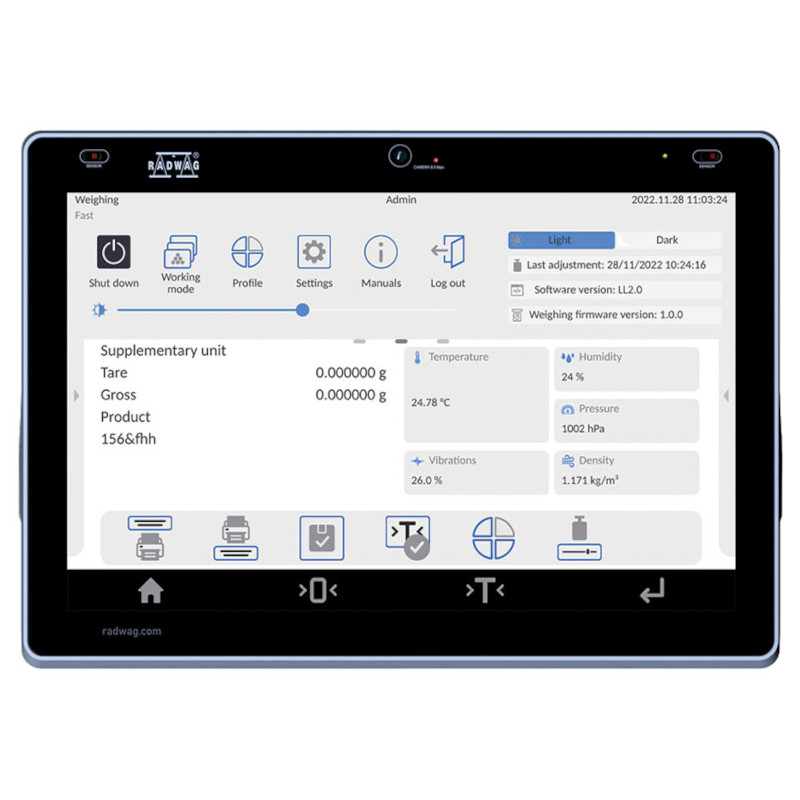

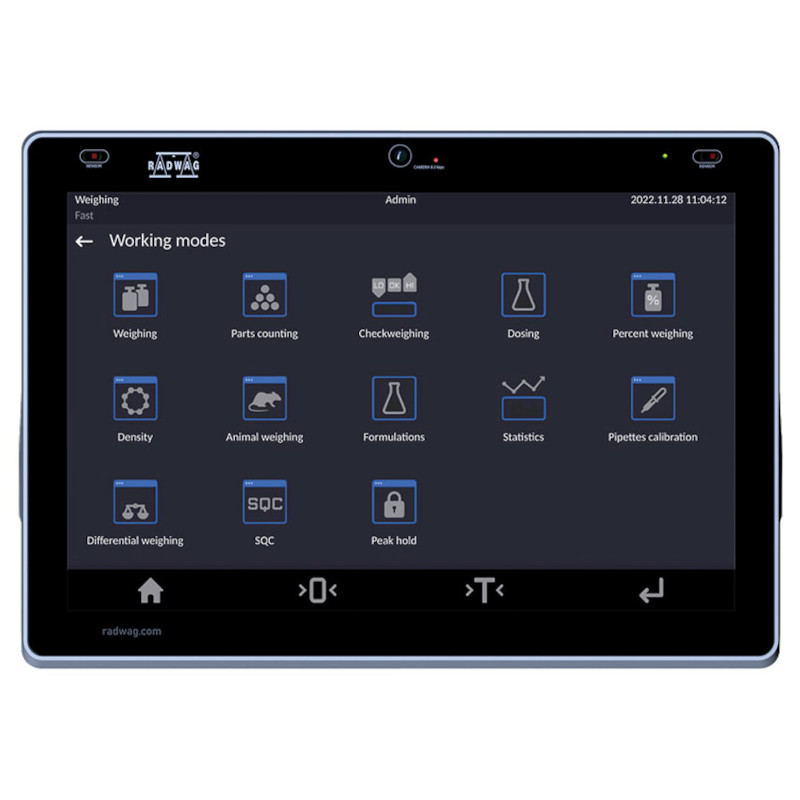

10-Inch Display

Bigger screen – 10’’ – means more information in one place. On the new ELLIPSIS terminal, you will see up to 3 screens, widgets, graphs, statuses, notes, handy measurement history.

Uncompromising User Verification

For the first time ever, the balance will verify the user using a password, RFID card, fingerprint reader, facial recognition mechanism, or any combination of these.

Ambient Light – An Innovative Way for the Balance to Communicate With the User

The light colour will tell you about status, process results, procedures, or alerts.

Hotspot

Use the balance on any device connected to it. This can be a smartphone, tablet, or computer.

RFID

ELLIPSIS works with RFID tags* that can be used to tag your products or formulation ingredients in the database. They can also be used to identify a user.

Live Note – Note Down Your Conclusions

It’s the first time you can add a voice memo to a measurement series or procedure report. If you prefer to write it down, ELLIPSIS allows you to add a text note.

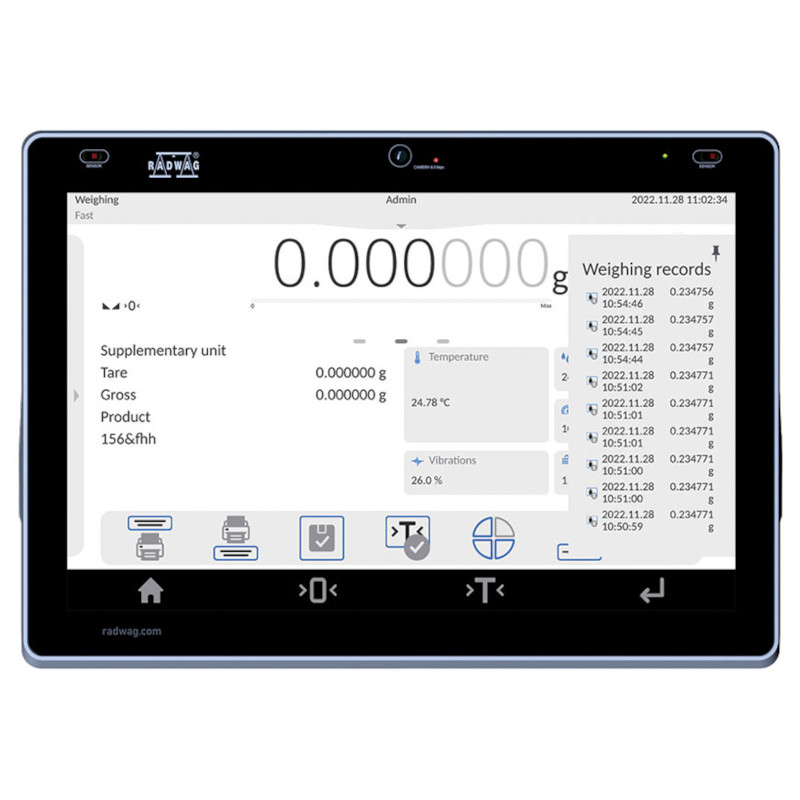

Handy Library

This is where a series of recent measurements or a report ready for digital signature, according to 21 CFR Part 11, can be found.

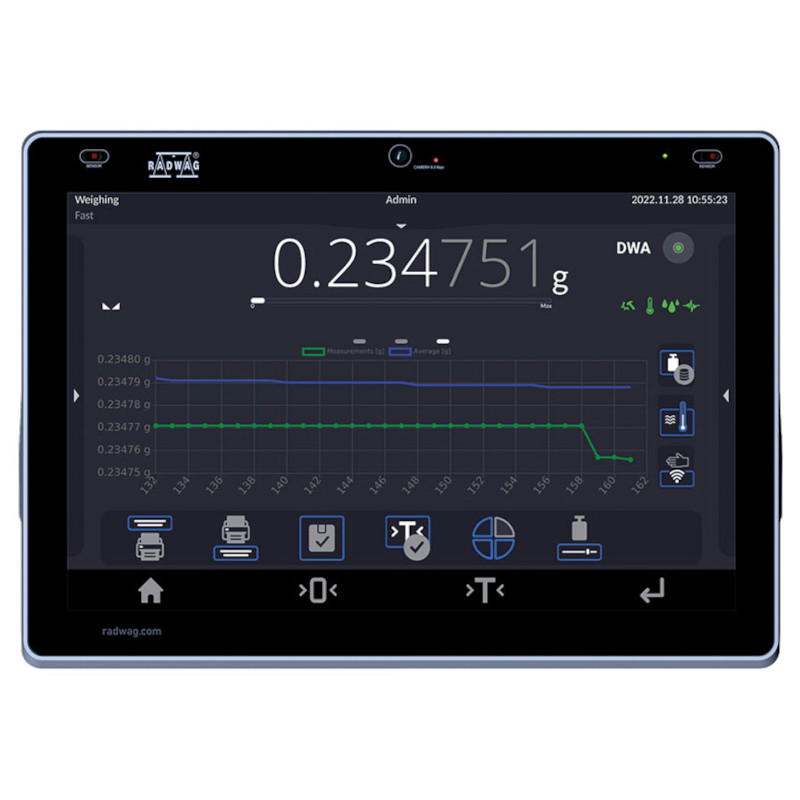

Widgets

Prepared to display what you need most at any given moment.

Automatic Leveling of the Balance ReflexLEVEL System

Instead of manually leveling your scale - level it automatically. The ReflexLEVEL System saves you time and gives you maximum precision in your measurements.

Smart Min Weight

The balance displays whether the value of the weight you want to weigh is below or above the minimum weight threshold.

Antistatics in the Weighing Chamber

Have a sample that may be electrostatically charged?

The built-in antistatic ionizer will neutralize the sample’s electrostatic charge during any weighing procedure. It is integrated into the instrument, eliminating the need for additional equipment and making it easy to manage antistatics in one place.

How Will You Improve the Readability of the Weighing Result?

You will be provided with a special antistatic glass coating that compensates for electrostatic charges on the sample and laboratory accessories, thereby eliminating measurement errors. Less deposition of dust and dirt can prolong the life of optical and electronic components near the glass panes.

21 CFR Part 11

Do you work in the pharmaceutical industry? Do you need a digital signature?

We are offering the laboratory balance which as a standalone fully meets the requirements of 21 CFR Part 11/ EU GMP Annex 11.

– Full data security
– Electronic signatures
– Validations
– Electronic records
– Audit trails

Modbus TCP/IP

is one of the most popular communication protocols in industrial automation. Implementing it in the 5Y balances and CY10 scales makes the devices of this series friendly to automation integrators.

A balance or scale in a Modbus system is a slave device and performs tasks specified by the master device which is most often a PLC. Protocol Modbus TCP/IP in the 5Y balances and C10 scales enables, among other things, the realization of mass readout, zeroing and tare functions of the device, as well as tare settings and MIN and MAX thresholds.

Two-point adjustment

Adjacency, which takes place at two measurement points instead of one, improves measurement precision over the full weighing range. And what does this mean for you? More accurate measurement.

Under-pan weighing

Weighing instruments purchased after 15th February 2023 will allow under-pan weighing at any time after the purchase. All you need to do is just to order a dedicated hook.

* RFID ISO/IEC 14443 Type A, 13.56 MHz

More photos, videos and information

CE

Verification

5 years warranty

Datasheet

Maximum capacity [Max]

110 g

Minimum load

1 mg

Readability [d]

0,01 mg

Verification unit [e]

1 mg

Tare range

-110 g

Standard repeatability [5% Max]

0,005 mg

Standard repeatability [Max]

0,02 mg

Standard minimum weight (USP)

10 mg

Standard minimum weight (U=1%, k=2)

1 mg

Permissible repeatability [5% Max]

0,012 mg

Permissible repeatability [Max]

0,03 mg

Linearity

±0,06 mg

Eccentric load deviation

0,06 mg

Sensitivity time drift

1×10⁻⁶/Year×Rt

Stabilization time

4 s

Adjustment

internal (automatic)

Leveling system

automatic – Reflex Level System

OIML Class

I

Display

10″ graphic colour touchscreen

Weighing chamber

automatic

Weighing chamber doors

automatic

Protection class

IP 43

Delivery components

Analytical Balance, weighing pan, weighing pan shield, centring ring, brush, fabric dust cover, power supply.

Communication interface

2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi^®, Hotspot

Power supply

Adapter: 100 – 240V AC 50/60Hz 1A; 15V DC 2,4A
Balance: 12 – 15V DC 1,6A max*

Operating temperature

+10 – +40 °C

Operating temperature change rate

±0,3 °C / 1 h (±1 °C / 8 h)

Relative humidity

20% – 80%

Relative humidity change rate

±1% / h (±4% / 8 h)

Weighing chamber dimensions

200×170×220 mm

Weighing pan dimensions

ø90 open-work pan + ø85 (option) mm

Packaging dimensions

750×492×595 mm

Net weight

14,7 kg

Gross weight

16 kg

This image is for reference only.

close Exit

This image is for reference only.

Availability:

In stock

Estimated shipping date :

15 working days

Price:

13190.40

GBP

with 20% VAT, shipping cost not included

Choose a variant:

XA 120/250.5Y.A Analytical Balancekeyboard_arrow_down

XA 110.5Y.A Analytical Balance
Max: 110g | d: 0,01mg
XA 120/250.5Y.A Analytical Balance
Max: 120/250g | d: 0,01/0,1mg
XA 210.5Y.A Analytical Balance
Max: 210g | d: 0,01mg
XA 220.5Y.A Analytical Balance
Max: 220g | d: 0,1mg
XA 310.5Y.A Analytical Balance
Max: 310g | d: 0,1mg
XA 52.5Y.A Analytical Balance
Max: 52g | d: 0,01mg
XA 520.5Y.A Analytical Balance
Max: 520g | d: 0,1mg
XA 82/220.5Y.A Analytical Balance
Max: 82/220g | d: 0,01/0,1mg
XA 320.5Y.A Analytical Balance
Max: 320g | d: 0,05mg
XA 121/220.5Y.A Analytical Balance
Max: 121/220g | d: 0,005/0,01mg
XA 41/120.5Y.A Analytical Balance
Max: 41/120g | d: 0,002/0,005mg

Options:

Class I Verification (43.20 GBP)

Compliance with 21 CFR part 11 (542.40 GBP)

Additional fee for Radwag Extended SI (RES level: 0,1,2) module activation (374.40 GBP)

Calibration New Analytical balances d≥0,01mg; max 500g (292.80 GBP)

Pcs.Pcs.

Add to basket

We are near you.
We have been manufacturing weighing devices since 1984.

RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569

Delivery only on the territory of United Kingdom

Code:

WL-110-1000

Buying from the producer is all about the pros

✓ Update as standard

You always get the latest version of the device and software. We are constantly improving our products.

✓ This is priceless

Technical support from the product developers. Who better to know the answers to your questions? Like our Facebooku profile – stay in touch with us.

✓ Smaller carbon footprint

A solidly packaged shipment travels only one way – the one to you.

✓ Long life for your balance

In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory.

✓ The important thing

You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance.

Overview

XA 120/250.5Y.A Analytical Balance

Do you need a balance that not only determines weight with impressive accuracy, but also performs a digital audit, responds to your voice commands and sends you light messages?

If so, learn about the functionality of the ELLIPSIS series of balances:

XA 5Y.A Analytical Balances

are advanced laboratory instruments that combine state-of-the-art technology with incomparable measurement precision. Equipped with an innovative measurement system, they offer a wide weighing range and high readability, making them ideal for analytical, pharmaceutical and chemical laboratories.

Digital Weighing Auditor

Ensures that your balance is ready for use. It enables air buoyancy compensation in real-time. What is more, it informs about the need for a balance inspection or a periodic audit of the balance’s accuracy and sensitivity.

10-Inch Display

Bigger screen – 10’’ – means more information in one place. On the new ELLIPSIS terminal, you will see up to 3 screens, widgets, graphs, statuses, notes, handy measurement history.

Uncompromising User Verification

For the first time ever, the balance will verify the user using a password, RFID card, fingerprint reader, facial recognition mechanism, or any combination of these.

Ambient Light – An Innovative Way for the Balance to Communicate With the User

The light colour will tell you about status, process results, procedures, or alerts.

Hotspot

Use the balance on any device connected to it. This can be a smartphone, tablet, or computer.

RFID

ELLIPSIS works with RFID tags* that can be used to tag your products or formulation ingredients in the database. They can also be used to identify a user.

Live Note – Note Down Your Conclusions

It’s the first time you can add a voice memo to a measurement series or procedure report. If you prefer to write it down, ELLIPSIS allows you to add a text note.

Handy Library

This is where a series of recent measurements or a report ready for digital signature, according to 21 CFR Part 11, can be found.

Widgets

Prepared to display what you need most at any given moment.

Automatic Leveling of the Balance ReflexLEVEL System

Instead of manually leveling your scale - level it automatically. The ReflexLEVEL System saves you time and gives you maximum precision in your measurements.

Smart Min Weight

The balance displays whether the value of the weight you want to weigh is below or above the minimum weight threshold.

Antistatics in the Weighing Chamber

Have a sample that may be electrostatically charged?

The built-in antistatic ionizer will neutralize the sample’s electrostatic charge during any weighing procedure. It is integrated into the instrument, eliminating the need for additional equipment and making it easy to manage antistatics in one place.

How Will You Improve the Readability of the Weighing Result?

You will be provided with a special antistatic glass coating that compensates for electrostatic charges on the sample and laboratory accessories, thereby eliminating measurement errors. Less deposition of dust and dirt can prolong the life of optical and electronic components near the glass panes.

21 CFR Part 11

Do you work in the pharmaceutical industry? Do you need a digital signature?

We are offering the laboratory balance which as a standalone fully meets the requirements of 21 CFR Part 11/ EU GMP Annex 11.

– Full data security
– Electronic signatures
– Validations
– Electronic records
– Audit trails

Modbus TCP/IP

is one of the most popular communication protocols in industrial automation. Implementing it in the 5Y balances and CY10 scales makes the devices of this series friendly to automation integrators.

A balance or scale in a Modbus system is a slave device and performs tasks specified by the master device which is most often a PLC. Protocol Modbus TCP/IP in the 5Y balances and C10 scales enables, among other things, the realization of mass readout, zeroing and tare functions of the device, as well as tare settings and MIN and MAX thresholds.

Two-point adjustment

Adjacency, which takes place at two measurement points instead of one, improves measurement precision over the full weighing range. And what does this mean for you? More accurate measurement.

Under-pan weighing

Weighing instruments purchased after 15th February 2023 will allow under-pan weighing at any time after the purchase. All you need to do is just to order a dedicated hook.

* RFID ISO/IEC 14443 Type A, 13.56 MHz

More photos, videos and information

CE

Verification

5 years warranty

Datasheet

Maximum capacity [Max]

120 / 250 g

Minimum load

1 mg

Readability [d]

0,01 / 0,1 mg

Verification unit [e]

1 mg

Tare range

-250 g

Standard repeatability [5% Max]

0,005 mg

Standard repeatability [Max]

0,06 mg

Standard minimum weight (USP)

10 mg

Standard minimum weight (U=1%, k=2)

1 mg

Permissible repeatability [5% Max]

0,012 mg

Permissible repeatability [Max]

0,1 mg

Linearity

±0,06 / 0,2 mg

Eccentric load deviation

0,2 mg

Sensitivity time drift

1×10⁻⁶/Year×Rt

Stabilization time

3 s

Adjustment

internal (automatic)

Leveling system

automatic – Reflex Level System

OIML Class

I

Display

10″ graphic colour touchscreen

Weighing chamber

automatic

Weighing chamber doors

automatic

Protection class

IP 43

Delivery components

Analytical Balance, weighing pan, weighing pan shield, centring ring, brush, fabric dust cover, power supply.

Communication interface

2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi^®, Hotspot

Power supply

Adapter: 100 – 240V AC 50/60Hz 1A; 15V DC 2,4A
Balance: 12 – 15V DC 1,6A max*

Operating temperature

+10 – +40 °C

Operating temperature change rate

±0,3 °C / 1 h (±1 °C / 8 h)

Relative humidity

20% – 80%

Relative humidity change rate

±1% / h (±4% / 8 h)

Weighing chamber dimensions

200×170×220 mm

Weighing pan dimensions

ø90 open-work pan + ø85 (option) mm

Packaging dimensions

750×492×595 mm

Net weight

14,7 kg

Gross weight

19,1 kg

This image is for reference only.

close Exit

This image is for reference only.

Availability:

In stock

Estimated shipping date :

15 working days

Price:

13190.40

GBP

with 20% VAT, shipping cost not included

Choose a variant:

XA 210.5Y.A Analytical Balancekeyboard_arrow_down

XA 110.5Y.A Analytical Balance
Max: 110g | d: 0,01mg
XA 120/250.5Y.A Analytical Balance
Max: 120/250g | d: 0,01/0,1mg
XA 210.5Y.A Analytical Balance
Max: 210g | d: 0,01mg
XA 220.5Y.A Analytical Balance
Max: 220g | d: 0,1mg
XA 310.5Y.A Analytical Balance
Max: 310g | d: 0,1mg
XA 52.5Y.A Analytical Balance
Max: 52g | d: 0,01mg
XA 520.5Y.A Analytical Balance
Max: 520g | d: 0,1mg
XA 82/220.5Y.A Analytical Balance
Max: 82/220g | d: 0,01/0,1mg
XA 320.5Y.A Analytical Balance
Max: 320g | d: 0,05mg
XA 121/220.5Y.A Analytical Balance
Max: 121/220g | d: 0,005/0,01mg
XA 41/120.5Y.A Analytical Balance
Max: 41/120g | d: 0,002/0,005mg

Options:

Class I Verification (43.20 GBP)

Compliance with 21 CFR part 11 (542.40 GBP)

Additional fee for Radwag Extended SI (RES level: 0,1,2) module activation (374.40 GBP)

Calibration New Analytical balances d≥0,01mg; max 500g (292.80 GBP)

Pcs.Pcs.

Add to basket

We are near you.
We have been manufacturing weighing devices since 1984.

RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569

Delivery only on the territory of United Kingdom

Code:

WL-110-0003

Buying from the producer is all about the pros

✓ Update as standard

You always get the latest version of the device and software. We are constantly improving our products.

✓ This is priceless

Technical support from the product developers. Who better to know the answers to your questions? Like our Facebooku profile – stay in touch with us.

✓ Smaller carbon footprint

A solidly packaged shipment travels only one way – the one to you.

✓ Long life for your balance

In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory.

✓ The important thing

You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance.

Overview

XA 210.5Y.A Analytical Balance

Do you need a balance that not only determines weight with impressive accuracy, but also performs a digital audit, responds to your voice commands and sends you light messages?

If so, learn about the functionality of the ELLIPSIS series of balances:

XA 5Y.A Analytical Balances

are advanced laboratory instruments that combine state-of-the-art technology with incomparable measurement precision. Equipped with an innovative measurement system, they offer a wide weighing range and high readability, making them ideal for analytical, pharmaceutical and chemical laboratories.

Digital Weighing Auditor

Ensures that your balance is ready for use. It enables air buoyancy compensation in real-time. What is more, it informs about the need for a balance inspection or a periodic audit of the balance’s accuracy and sensitivity.

10-Inch Display

Bigger screen – 10’’ – means more information in one place. On the new ELLIPSIS terminal, you will see up to 3 screens, widgets, graphs, statuses, notes, handy measurement history.

Uncompromising User Verification

For the first time ever, the balance will verify the user using a password, RFID card, fingerprint reader, facial recognition mechanism, or any combination of these.

Ambient Light – An Innovative Way for the Balance to Communicate With the User

The light colour will tell you about status, process results, procedures, or alerts.

Hotspot

Use the balance on any device connected to it. This can be a smartphone, tablet, or computer.

RFID

ELLIPSIS works with RFID tags* that can be used to tag your products or formulation ingredients in the database. They can also be used to identify a user.

Live Note – Note Down Your Conclusions

It’s the first time you can add a voice memo to a measurement series or procedure report. If you prefer to write it down, ELLIPSIS allows you to add a text note.

Handy Library

This is where a series of recent measurements or a report ready for digital signature, according to 21 CFR Part 11, can be found.

Widgets

Prepared to display what you need most at any given moment.

Automatic Leveling of the Balance ReflexLEVEL System

Instead of manually leveling your scale - level it automatically. The ReflexLEVEL System saves you time and gives you maximum precision in your measurements.

Smart Min Weight

The balance displays whether the value of the weight you want to weigh is below or above the minimum weight threshold.

Antistatics in the Weighing Chamber

Have a sample that may be electrostatically charged?

The built-in antistatic ionizer will neutralize the sample’s electrostatic charge during any weighing procedure. It is integrated into the instrument, eliminating the need for additional equipment and making it easy to manage antistatics in one place.

How Will You Improve the Readability of the Weighing Result?

You will be provided with a special antistatic glass coating that compensates for electrostatic charges on the sample and laboratory accessories, thereby eliminating measurement errors. Less deposition of dust and dirt can prolong the life of optical and electronic components near the glass panes.

21 CFR Part 11

Do you work in the pharmaceutical industry? Do you need a digital signature?

We are offering the laboratory balance which as a standalone fully meets the requirements of 21 CFR Part 11/ EU GMP Annex 11.

– Full data security
– Electronic signatures
– Validations
– Electronic records
– Audit trails

Modbus TCP/IP

is one of the most popular communication protocols in industrial automation. Implementing it in the 5Y balances and CY10 scales makes the devices of this series friendly to automation integrators.

A balance or scale in a Modbus system is a slave device and performs tasks specified by the master device which is most often a PLC. Protocol Modbus TCP/IP in the 5Y balances and C10 scales enables, among other things, the realization of mass readout, zeroing and tare functions of the device, as well as tare settings and MIN and MAX thresholds.

Two-point adjustment

Adjacency, which takes place at two measurement points instead of one, improves measurement precision over the full weighing range. And what does this mean for you? More accurate measurement.

Under-pan weighing

Weighing instruments purchased after 15th February 2023 will allow under-pan weighing at any time after the purchase. All you need to do is just to order a dedicated hook.

* RFID ISO/IEC 14443 Type A, 13.56 MHz

More photos, videos and information

CE

Verification

5 years warranty

Datasheet

Maximum capacity [Max]

210 g

Minimum load

1 mg

Readability [d]

0,01 mg

Verification unit [e]

1 mg

Tare range

-210 g

Standard repeatability [5% Max]

0,005 mg

Standard repeatability [Max]

0,025 mg

Standard minimum weight (USP)

10 mg

Standard minimum weight (U=1%, k=2)

1 mg

Permissible repeatability [5% Max]

0,012 mg

Permissible repeatability [Max]

0,035 mg

Linearity

±0,1 mg

Eccentric load deviation

0,1 mg

Sensitivity time drift

1×10⁻⁶/Year×Rt

Stabilization time

4 s

Adjustment

internal (automatic)

Leveling system

automatic – Reflex Level System

OIML Class

I

Display

10″ graphic colour touchscreen

Weighing chamber

automatic

Weighing chamber doors

automatic

Protection class

IP 43

Delivery components

Analytical Balance, weighing pan, weighing pan shield, centring ring, brush, fabric dust cover, power supply.

Communication interface

2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi^®, Hotspot

Power supply

Adapter: 100 – 240V AC 50/60Hz 1A; 15V DC 2,4A
Balance: 12 – 15V DC 1,6A max*

Operating temperature

+10 – +40 °C

Operating temperature change rate

±0,3 °C / 1 h (±1 °C / 8 h)

Relative humidity

20% – 80%

Relative humidity change rate

±1% / h (±4% / 8 h)

Weighing chamber dimensions

200×170×220 mm

Weighing pan dimensions

ø90 open-work pan + ø85 (option) mm

Packaging dimensions

750×492×595 mm

Net weight

14,7 kg

Gross weight

20 kg

This image is for reference only.

close Exit

This image is for reference only.

Availability:

In stock

Estimated shipping date :

15 working days

Price:

11394.00

GBP

with 20% VAT, shipping cost not included

Choose a variant:

XA 220.5Y.A Analytical Balancekeyboard_arrow_down

XA 110.5Y.A Analytical Balance
Max: 110g | d: 0,01mg
XA 120/250.5Y.A Analytical Balance
Max: 120/250g | d: 0,01/0,1mg
XA 210.5Y.A Analytical Balance
Max: 210g | d: 0,01mg
XA 220.5Y.A Analytical Balance
Max: 220g | d: 0,1mg
XA 310.5Y.A Analytical Balance
Max: 310g | d: 0,1mg
XA 52.5Y.A Analytical Balance
Max: 52g | d: 0,01mg
XA 520.5Y.A Analytical Balance
Max: 520g | d: 0,1mg
XA 82/220.5Y.A Analytical Balance
Max: 82/220g | d: 0,01/0,1mg
XA 320.5Y.A Analytical Balance
Max: 320g | d: 0,05mg
XA 121/220.5Y.A Analytical Balance
Max: 121/220g | d: 0,005/0,01mg
XA 41/120.5Y.A Analytical Balance
Max: 41/120g | d: 0,002/0,005mg

Options:

Class I Verification (43.20 GBP)

Compliance with 21 CFR part 11 (542.40 GBP)

Additional fee for Radwag Extended SI (RES level: 0,1,2) module activation (374.40 GBP)

Calibration New Analytical balances d≥0,01mg; max 500g (292.80 GBP)

Pcs.Pcs.

Add to basket

We are near you.
We have been manufacturing weighing devices since 1984.

RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569

Delivery only on the territory of United Kingdom

Code:

WL-110-0006

Buying from the producer is all about the pros

✓ Update as standard

You always get the latest version of the device and software. We are constantly improving our products.

✓ This is priceless

Technical support from the product developers. Who better to know the answers to your questions? Like our Facebooku profile – stay in touch with us.

✓ Smaller carbon footprint

A solidly packaged shipment travels only one way – the one to you.

✓ Long life for your balance

In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory.

✓ The important thing

You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance.

Overview

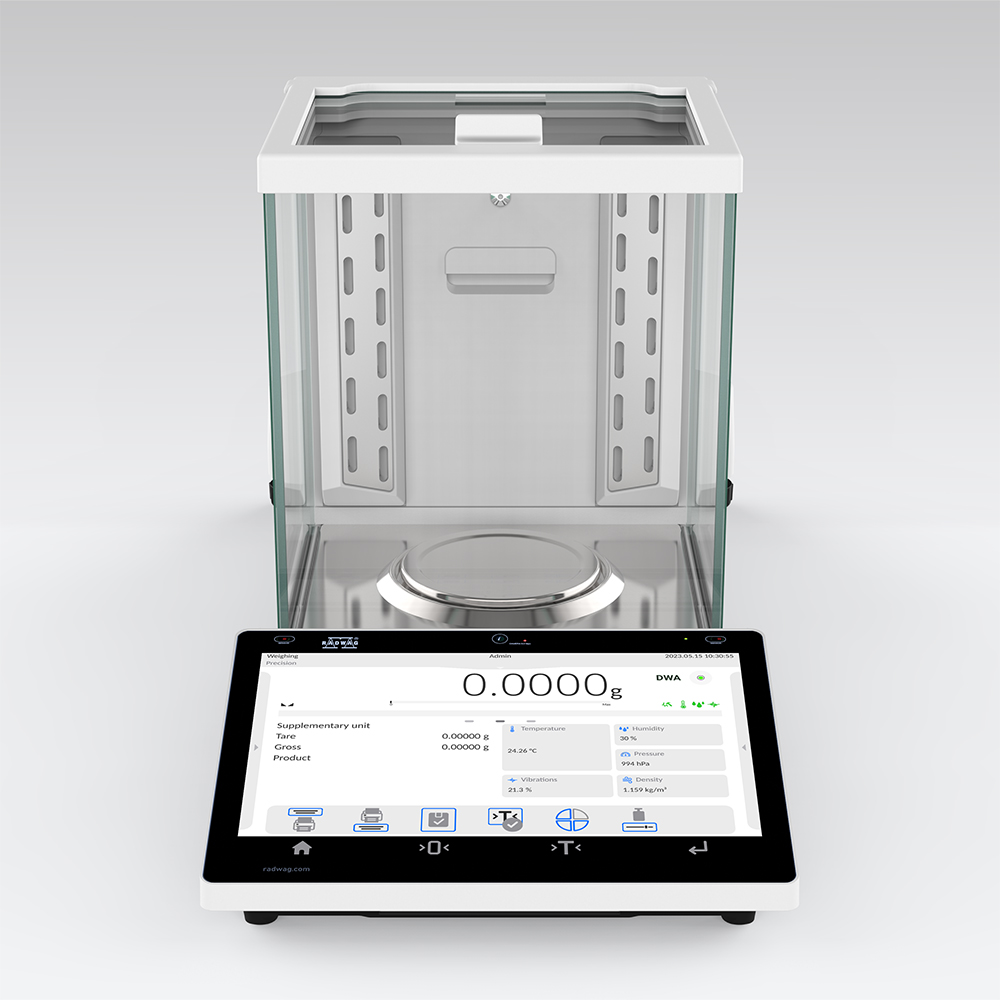

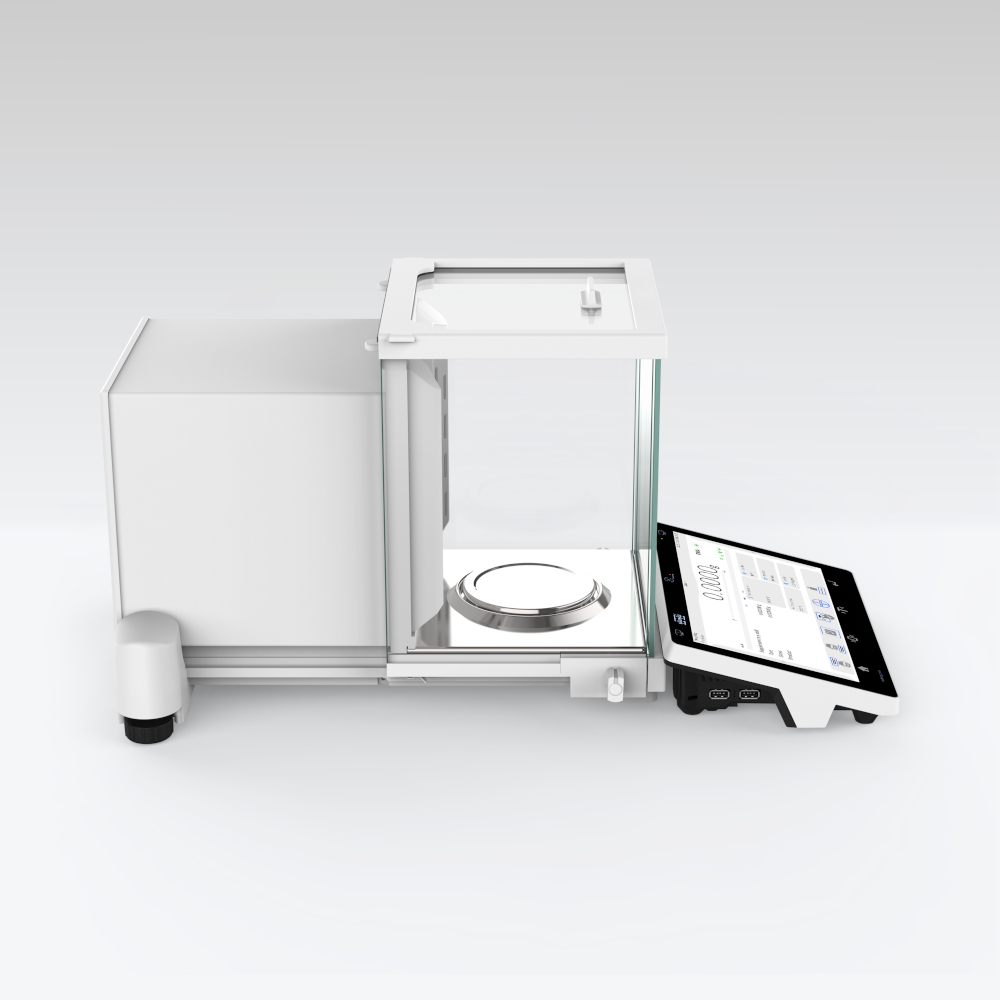

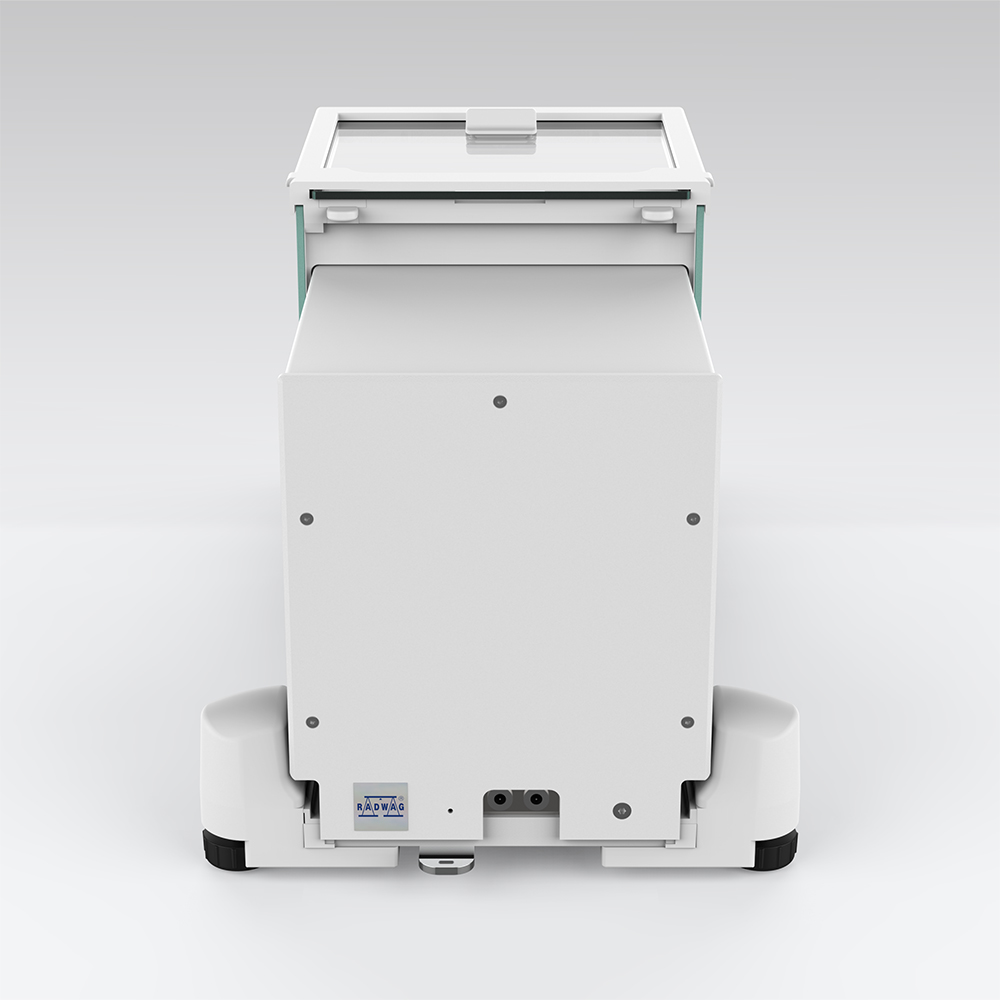

XA 220.5Y.A Analytical Balance

Do you need a balance that not only determines weight with impressive accuracy, but also performs a digital audit, responds to your voice commands and sends you light messages?

If so, learn about the functionality of the ELLIPSIS series of balances:

XA 5Y.A Analytical Balances

are advanced laboratory instruments that combine state-of-the-art technology with incomparable measurement precision. Equipped with an innovative measurement system, they offer a wide weighing range and high readability, making them ideal for analytical, pharmaceutical and chemical laboratories.

Digital Weighing Auditor

Ensures that your balance is ready for use. It enables air buoyancy compensation in real-time. What is more, it informs about the need for a balance inspection or a periodic audit of the balance’s accuracy and sensitivity.

10-Inch Display

Bigger screen – 10’’ – means more information in one place. On the new ELLIPSIS terminal, you will see up to 3 screens, widgets, graphs, statuses, notes, handy measurement history.

Uncompromising User Verification

For the first time ever, the balance will verify the user using a password, RFID card, fingerprint reader, facial recognition mechanism, or any combination of these.

Ambient Light – An Innovative Way for the Balance to Communicate With the User

The light colour will tell you about status, process results, procedures, or alerts.

Hotspot

Use the balance on any device connected to it. This can be a smartphone, tablet, or computer.

RFID

ELLIPSIS works with RFID tags* that can be used to tag your products or formulation ingredients in the database. They can also be used to identify a user.

Live Note – Note Down Your Conclusions

It’s the first time you can add a voice memo to a measurement series or procedure report. If you prefer to write it down, ELLIPSIS allows you to add a text note.

Handy Library

This is where a series of recent measurements or a report ready for digital signature, according to 21 CFR Part 11, can be found.

Widgets

Prepared to display what you need most at any given moment.

Automatic Leveling of the Balance ReflexLEVEL System

Instead of manually leveling your scale - level it automatically. The ReflexLEVEL System saves you time and gives you maximum precision in your measurements.

Smart Min Weight

The balance displays whether the value of the weight you want to weigh is below or above the minimum weight threshold.

Antistatics in the Weighing Chamber

Have a sample that may be electrostatically charged?

The built-in antistatic ionizer will neutralize the sample’s electrostatic charge during any weighing procedure. It is integrated into the instrument, eliminating the need for additional equipment and making it easy to manage antistatics in one place.

How Will You Improve the Readability of the Weighing Result?

You will be provided with a special antistatic glass coating that compensates for electrostatic charges on the sample and laboratory accessories, thereby eliminating measurement errors. Less deposition of dust and dirt can prolong the life of optical and electronic components near the glass panes.

21 CFR Part 11

Do you work in the pharmaceutical industry? Do you need a digital signature?

We are offering the laboratory balance which as a standalone fully meets the requirements of 21 CFR Part 11/ EU GMP Annex 11.

– Full data security
– Electronic signatures
– Validations
– Electronic records
– Audit trails

Modbus TCP/IP

is one of the most popular communication protocols in industrial automation. Implementing it in the 5Y balances and CY10 scales makes the devices of this series friendly to automation integrators.

A balance or scale in a Modbus system is a slave device and performs tasks specified by the master device which is most often a PLC. Protocol Modbus TCP/IP in the 5Y balances and C10 scales enables, among other things, the realization of mass readout, zeroing and tare functions of the device, as well as tare settings and MIN and MAX thresholds.

Two-point adjustment

Adjacency, which takes place at two measurement points instead of one, improves measurement precision over the full weighing range. And what does this mean for you? More accurate measurement.

Under-pan weighing

Weighing instruments purchased after 15th February 2023 will allow under-pan weighing at any time after the purchase. All you need to do is just to order a dedicated hook.

* RFID ISO/IEC 14443 Type A, 13.56 MHz

More photos, videos and information

CE

Verification

5 years warranty

Datasheet

Maximum capacity [Max]

220 g

Minimum load

10 mg

Readability [d]

0,1 mg

Verification unit [e]

1 mg

Tare range

-220 g

Standard repeatability [5% Max]

0,05 mg

Standard repeatability [Max]

0,08 mg

Standard minimum weight (USP)

100 mg

Standard minimum weight (U=1%, k=2)

10 mg

Permissible repeatability [5% Max]

0,07 mg

Permissible repeatability [Max]

0,1 mg

Linearity

±0,2 mg

Eccentric load deviation

0,2 mg

Sensitivity time drift

1×10⁻⁶/Year×Rt

Stabilization time

1,3 s

Adjustment

internal (automatic)

Leveling system

automatic – Reflex Level System

OIML Class

I

Display

10″ graphic colour touchscreen

Weighing chamber

automatic

Weighing chamber doors

automatic

Protection class

IP 43

Delivery components

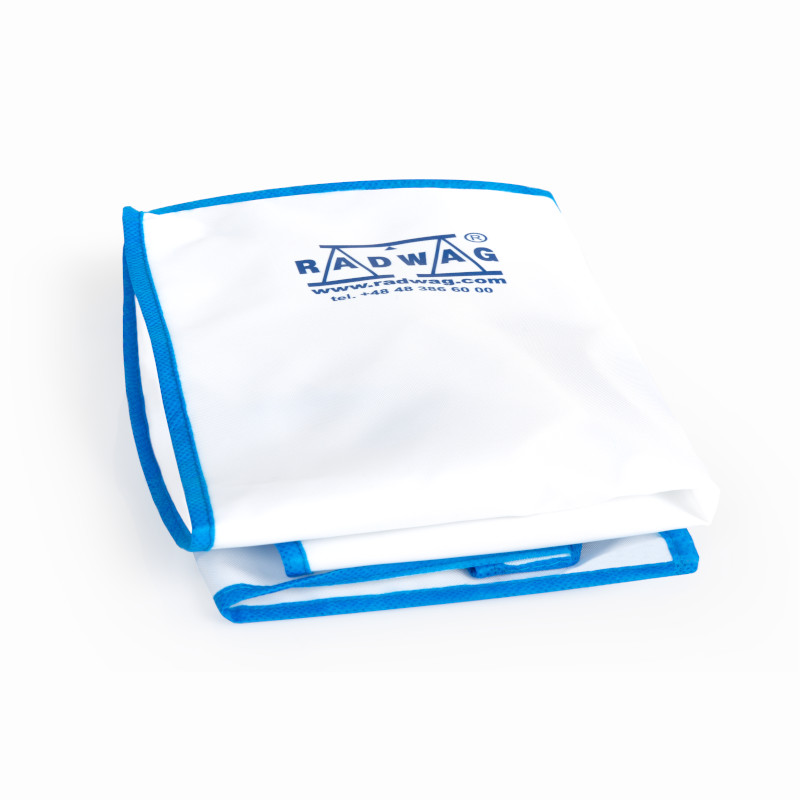

Analytical Balance, weighing pan, weighing pan shield, brush, fabric dust cover, power supply.

Communication interface

2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi^®, Hotspot

Power supply

Adapter: 100 – 240V AC 50/60Hz 1A; 15V DC 2,4A
Balance: 12 – 15V DC 1,6A max*

Operating temperature

+10 – +40 °C

Operating temperature change rate

±0,3 °C / 1 h (±1 °C / 8 h)

Relative humidity

20% – 80%

Relative humidity change rate

±1% / h (±4% / 8 h)

Weighing chamber dimensions

200×170×220 mm

Weighing pan dimensions

ø100 mm

Packaging dimensions

750×492×595 mm

Net weight

14,7 kg

Gross weight

20 kg

This image is for reference only.

close Exit

This image is for reference only.

Availability:

In stock

Estimated shipping date :

15 working days

Price:

11694.00

GBP

with 20% VAT, shipping cost not included

Choose a variant:

XA 310.5Y.A Analytical Balancekeyboard_arrow_down

XA 110.5Y.A Analytical Balance
Max: 110g | d: 0,01mg
XA 120/250.5Y.A Analytical Balance
Max: 120/250g | d: 0,01/0,1mg
XA 210.5Y.A Analytical Balance
Max: 210g | d: 0,01mg
XA 220.5Y.A Analytical Balance
Max: 220g | d: 0,1mg
XA 310.5Y.A Analytical Balance
Max: 310g | d: 0,1mg
XA 52.5Y.A Analytical Balance
Max: 52g | d: 0,01mg
XA 520.5Y.A Analytical Balance
Max: 520g | d: 0,1mg
XA 82/220.5Y.A Analytical Balance
Max: 82/220g | d: 0,01/0,1mg
XA 320.5Y.A Analytical Balance
Max: 320g | d: 0,05mg
XA 121/220.5Y.A Analytical Balance
Max: 121/220g | d: 0,005/0,01mg
XA 41/120.5Y.A Analytical Balance
Max: 41/120g | d: 0,002/0,005mg

Options:

Class I Verification (43.20 GBP)

Compliance with 21 CFR part 11 (542.40 GBP)

Additional fee for Radwag Extended SI (RES level: 0,1,2) module activation (374.40 GBP)

Calibration New Analytical balances d≥0,01mg; max 500g (292.80 GBP)

Pcs.Pcs.

Add to basket

We are near you.
We have been manufacturing weighing devices since 1984.

RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569

Delivery only on the territory of United Kingdom

Code:

WL-110-0007

Buying from the producer is all about the pros

✓ Update as standard

You always get the latest version of the device and software. We are constantly improving our products.

✓ This is priceless

Technical support from the product developers. Who better to know the answers to your questions? Like our Facebooku profile – stay in touch with us.

✓ Smaller carbon footprint

A solidly packaged shipment travels only one way – the one to you.

✓ Long life for your balance

In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory.

✓ The important thing

You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance.

Overview

XA 310.5Y.A Analytical Balance

Do you need a balance that not only determines weight with impressive accuracy, but also performs a digital audit, responds to your voice commands and sends you light messages?

If so, learn about the functionality of the ELLIPSIS series of balances:

XA 5Y.A Analytical Balances

are advanced laboratory instruments that combine state-of-the-art technology with incomparable measurement precision. Equipped with an innovative measurement system, they offer a wide weighing range and high readability, making them ideal for analytical, pharmaceutical and chemical laboratories.

Digital Weighing Auditor

Ensures that your balance is ready for use. It enables air buoyancy compensation in real-time. What is more, it informs about the need for a balance inspection or a periodic audit of the balance’s accuracy and sensitivity.

10-Inch Display

Bigger screen – 10’’ – means more information in one place. On the new ELLIPSIS terminal, you will see up to 3 screens, widgets, graphs, statuses, notes, handy measurement history.

Uncompromising User Verification

For the first time ever, the balance will verify the user using a password, RFID card, fingerprint reader, facial recognition mechanism, or any combination of these.

Ambient Light – An Innovative Way for the Balance to Communicate With the User

The light colour will tell you about status, process results, procedures, or alerts.

Hotspot

Use the balance on any device connected to it. This can be a smartphone, tablet, or computer.

RFID

ELLIPSIS works with RFID tags* that can be used to tag your products or formulation ingredients in the database. They can also be used to identify a user.

Live Note – Note Down Your Conclusions

It’s the first time you can add a voice memo to a measurement series or procedure report. If you prefer to write it down, ELLIPSIS allows you to add a text note.

Handy Library

This is where a series of recent measurements or a report ready for digital signature, according to 21 CFR Part 11, can be found.

Widgets

Prepared to display what you need most at any given moment.

Automatic Leveling of the Balance ReflexLEVEL System

Instead of manually leveling your scale - level it automatically. The ReflexLEVEL System saves you time and gives you maximum precision in your measurements.

Smart Min Weight

The balance displays whether the value of the weight you want to weigh is below or above the minimum weight threshold.

Antistatics in the Weighing Chamber

Have a sample that may be electrostatically charged?

The built-in antistatic ionizer will neutralize the sample’s electrostatic charge during any weighing procedure. It is integrated into the instrument, eliminating the need for additional equipment and making it easy to manage antistatics in one place.

How Will You Improve the Readability of the Weighing Result?

You will be provided with a special antistatic glass coating that compensates for electrostatic charges on the sample and laboratory accessories, thereby eliminating measurement errors. Less deposition of dust and dirt can prolong the life of optical and electronic components near the glass panes.

21 CFR Part 11

Do you work in the pharmaceutical industry? Do you need a digital signature?

We are offering the laboratory balance which as a standalone fully meets the requirements of 21 CFR Part 11/ EU GMP Annex 11.

– Full data security
– Electronic signatures
– Validations
– Electronic records
– Audit trails

Modbus TCP/IP

is one of the most popular communication protocols in industrial automation. Implementing it in the 5Y balances and CY10 scales makes the devices of this series friendly to automation integrators.

A balance or scale in a Modbus system is a slave device and performs tasks specified by the master device which is most often a PLC. Protocol Modbus TCP/IP in the 5Y balances and C10 scales enables, among other things, the realization of mass readout, zeroing and tare functions of the device, as well as tare settings and MIN and MAX thresholds.

Two-point adjustment

Adjacency, which takes place at two measurement points instead of one, improves measurement precision over the full weighing range. And what does this mean for you? More accurate measurement.

Under-pan weighing

Weighing instruments purchased after 15th February 2023 will allow under-pan weighing at any time after the purchase. All you need to do is just to order a dedicated hook.

* RFID ISO/IEC 14443 Type A, 13.56 MHz

More photos, videos and information

CE

Verification

5 years warranty

Datasheet

Maximum capacity [Max]

310 g

Minimum load

10 mg

Readability [d]

0,1 mg

Verification unit [e]

1 mg

Tare range

-310 g

Standard repeatability [5% Max]

0,05 mg

Standard repeatability [Max]

0,1 mg

Standard minimum weight (USP)

100 mg

Standard minimum weight (U=1%, k=2)

10 mg

Permissible repeatability [5% Max]

0,07 mg

Permissible repeatability [Max]

0,15 mg

Linearity

±0,3 mg

Eccentric load deviation

0,3 mg

Sensitivity time drift

1×10⁻⁶/Year×Rt

Stabilization time

1,3 s

Adjustment

internal (automatic)

Leveling system

automatic – Reflex Level System

OIML Class

I

Display

10″ graphic colour touchscreen

Weighing chamber

automatic

Weighing chamber doors

automatic

Protection class

IP 43

Delivery components

Analytical Balance, weighing pan, weighing pan shield, brush, fabric dust cover, power supply.

Communication interface

2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi^®, Hotspot

Power supply

Adapter: 100 – 240V AC 50/60Hz 1A; 15V DC 2,4A
Balance: 12 – 15V DC 1,6A max*

Operating temperature

+10 – +40 °C

Operating temperature change rate

±0,3 °C / 1 h (±1 °C / 8 h)

Relative humidity

20% – 80%

Relative humidity change rate

±1% / h (±4% / 8 h)

Weighing chamber dimensions

200×170×220 mm

Weighing pan dimensions

ø100 mm

Packaging dimensions

750×492×595 mm

Net weight

14,7 kg

Gross weight

19,1 kg

This image is for reference only.

close Exit

This image is for reference only.

Availability:

In stock

Estimated shipping date :

15 working days

Price:

11092.80

GBP

with 20% VAT, shipping cost not included

Choose a variant:

XA 52.5Y.A Analytical Balancekeyboard_arrow_down

XA 110.5Y.A Analytical Balance
Max: 110g | d: 0,01mg
XA 120/250.5Y.A Analytical Balance
Max: 120/250g | d: 0,01/0,1mg
XA 210.5Y.A Analytical Balance
Max: 210g | d: 0,01mg
XA 220.5Y.A Analytical Balance
Max: 220g | d: 0,1mg
XA 310.5Y.A Analytical Balance
Max: 310g | d: 0,1mg
XA 52.5Y.A Analytical Balance
Max: 52g | d: 0,01mg
XA 520.5Y.A Analytical Balance
Max: 520g | d: 0,1mg
XA 82/220.5Y.A Analytical Balance
Max: 82/220g | d: 0,01/0,1mg
XA 320.5Y.A Analytical Balance
Max: 320g | d: 0,05mg
XA 121/220.5Y.A Analytical Balance
Max: 121/220g | d: 0,005/0,01mg
XA 41/120.5Y.A Analytical Balance
Max: 41/120g | d: 0,002/0,005mg

Options:

Class I Verification (43.20 GBP)

Compliance with 21 CFR part 11 (542.40 GBP)

Additional fee for Radwag Extended SI (RES level: 0,1,2) module activation (374.40 GBP)

Calibration New Analytical balances d≥0,01mg; max 500g (292.80 GBP)

Pcs.Pcs.

Add to basket

We are near you.
We have been manufacturing weighing devices since 1984.

RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569

Delivery only on the territory of United Kingdom

Code:

WL-110-0001

Buying from the producer is all about the pros

✓ Update as standard

You always get the latest version of the device and software. We are constantly improving our products.

✓ This is priceless

Technical support from the product developers. Who better to know the answers to your questions? Like our Facebooku profile – stay in touch with us.

✓ Smaller carbon footprint

A solidly packaged shipment travels only one way – the one to you.

✓ Long life for your balance

In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory.

✓ The important thing

You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance.

Overview

XA 52.5Y.A Analytical Balance

Do you need a balance that not only determines weight with impressive accuracy, but also performs a digital audit, responds to your voice commands and sends you light messages?

If so, learn about the functionality of the ELLIPSIS series of balances:

XA 5Y.A Analytical Balances

are advanced laboratory instruments that combine state-of-the-art technology with incomparable measurement precision. Equipped with an innovative measurement system, they offer a wide weighing range and high readability, making them ideal for analytical, pharmaceutical and chemical laboratories.

Digital Weighing Auditor

Ensures that your balance is ready for use. It enables air buoyancy compensation in real-time. What is more, it informs about the need for a balance inspection or a periodic audit of the balance’s accuracy and sensitivity.

10-Inch Display

Bigger screen – 10’’ – means more information in one place. On the new ELLIPSIS terminal, you will see up to 3 screens, widgets, graphs, statuses, notes, handy measurement history.

Uncompromising User Verification

For the first time ever, the balance will verify the user using a password, RFID card, fingerprint reader, facial recognition mechanism, or any combination of these.

Ambient Light – An Innovative Way for the Balance to Communicate With the User

The light colour will tell you about status, process results, procedures, or alerts.

Hotspot

Use the balance on any device connected to it. This can be a smartphone, tablet, or computer.

RFID

ELLIPSIS works with RFID tags* that can be used to tag your products or formulation ingredients in the database. They can also be used to identify a user.

Live Note – Note Down Your Conclusions

It’s the first time you can add a voice memo to a measurement series or procedure report. If you prefer to write it down, ELLIPSIS allows you to add a text note.

Handy Library

This is where a series of recent measurements or a report ready for digital signature, according to 21 CFR Part 11, can be found.

Widgets

Prepared to display what you need most at any given moment.

Automatic Leveling of the Balance ReflexLEVEL System

Instead of manually leveling your scale - level it automatically. The ReflexLEVEL System saves you time and gives you maximum precision in your measurements.

Smart Min Weight

The balance displays whether the value of the weight you want to weigh is below or above the minimum weight threshold.

Antistatics in the Weighing Chamber

Have a sample that may be electrostatically charged?

The built-in antistatic ionizer will neutralize the sample’s electrostatic charge during any weighing procedure. It is integrated into the instrument, eliminating the need for additional equipment and making it easy to manage antistatics in one place.

How Will You Improve the Readability of the Weighing Result?

You will be provided with a special antistatic glass coating that compensates for electrostatic charges on the sample and laboratory accessories, thereby eliminating measurement errors. Less deposition of dust and dirt can prolong the life of optical and electronic components near the glass panes.

21 CFR Part 11

Do you work in the pharmaceutical industry? Do you need a digital signature?

We are offering the laboratory balance which as a standalone fully meets the requirements of 21 CFR Part 11/ EU GMP Annex 11.

– Full data security
– Electronic signatures
– Validations
– Electronic records
– Audit trails

Modbus TCP/IP

is one of the most popular communication protocols in industrial automation. Implementing it in the 5Y balances and CY10 scales makes the devices of this series friendly to automation integrators.

A balance or scale in a Modbus system is a slave device and performs tasks specified by the master device which is most often a PLC. Protocol Modbus TCP/IP in the 5Y balances and C10 scales enables, among other things, the realization of mass readout, zeroing and tare functions of the device, as well as tare settings and MIN and MAX thresholds.

Two-point adjustment

Adjacency, which takes place at two measurement points instead of one, improves measurement precision over the full weighing range. And what does this mean for you? More accurate measurement.

Under-pan weighing

Weighing instruments purchased after 15th February 2023 will allow under-pan weighing at any time after the purchase. All you need to do is just to order a dedicated hook.

* RFID ISO/IEC 14443 Type A, 13.56 MHz

More photos, videos and information

CE

Verification

5 years warranty

Datasheet

Maximum capacity [Max]

52 g

Minimum load

1 mg

Readability [d]

0,01 mg

Verification unit [e]

1 mg

Tare range

-52 g

Standard repeatability [5% Max]

0,005 mg

Standard repeatability [Max]

0,01 mg

Standard minimum weight (USP)

10 mg

Standard minimum weight (U=1%, k=2)

1 mg

Permissible repeatability [5% Max]

0,012 mg

Permissible repeatability [Max]

0,02 mg

Linearity

±0,03 mg

Eccentric load deviation

0,03 mg

Sensitivity time drift

1×10⁻⁶/Year×Rt

Stabilization time

4 s

Adjustment

internal (automatic)

Leveling system

automatic – Reflex Level System

OIML Class

I

Display

10″ graphic colour touchscreen

Weighing chamber

automatic

Weighing chamber doors

automatic

Protection class

IP 43

Delivery components

Analytical Balance, weighing pan, weighing pan shield, centring ring, brush, fabric dust cover, power supply.

Communication interface

2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi^®, Hotspot

Power supply

Adapter: 100 – 240V AC 50/60Hz 1A; 15V DC 2,4A
Balance: 12 – 15V DC 1,6A max*

Operating temperature

+10 – +40 °C

Operating temperature change rate

±0,3 °C / 1 h (±1 °C / 8 h)

Relative humidity

20% – 80%

Relative humidity change rate

±1% / h (±4% / 8 h)

Weighing chamber dimensions

200×170×220 mm

Weighing pan dimensions

ø90 open-work pan + ø85 (option) mm

Packaging dimensions

750×492×595 mm

Net weight

14,7 kg

Gross weight

20 kg

This image is for reference only.

close Exit

This image is for reference only.

Availability:

In stock

Estimated shipping date :

15 working days

Price:

12808.80

GBP

with 20% VAT, shipping cost not included

Choose a variant:

XA 520.5Y.A Analytical Balancekeyboard_arrow_down

XA 110.5Y.A Analytical Balance
Max: 110g | d: 0,01mg
XA 120/250.5Y.A Analytical Balance
Max: 120/250g | d: 0,01/0,1mg
XA 210.5Y.A Analytical Balance
Max: 210g | d: 0,01mg
XA 220.5Y.A Analytical Balance
Max: 220g | d: 0,1mg
XA 310.5Y.A Analytical Balance
Max: 310g | d: 0,1mg
XA 52.5Y.A Analytical Balance
Max: 52g | d: 0,01mg
XA 520.5Y.A Analytical Balance
Max: 520g | d: 0,1mg
XA 82/220.5Y.A Analytical Balance
Max: 82/220g | d: 0,01/0,1mg
XA 320.5Y.A Analytical Balance
Max: 320g | d: 0,05mg
XA 121/220.5Y.A Analytical Balance
Max: 121/220g | d: 0,005/0,01mg
XA 41/120.5Y.A Analytical Balance
Max: 41/120g | d: 0,002/0,005mg

Options:

Compliance with 21 CFR part 11 (542.40 GBP)

Additional fee for Radwag Extended SI (RES level: 0,1,2) module activation (374.40 GBP)

Calibration New Analytical balances d≥0,01mg; max 500g (292.80 GBP)

Pcs.Pcs.

Add to basket

We are near you.
We have been manufacturing weighing devices since 1984.

RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569

Delivery only on the territory of United Kingdom

Code:

WL-110-0008

Buying from the producer is all about the pros

✓ Update as standard

You always get the latest version of the device and software. We are constantly improving our products.

✓ This is priceless

Technical support from the product developers. Who better to know the answers to your questions? Like our Facebooku profile – stay in touch with us.

✓ Smaller carbon footprint

A solidly packaged shipment travels only one way – the one to you.

✓ Long life for your balance

In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory.

✓ The important thing

You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance.

Overview

XA 520.5Y.A Analytical Balance

Do you need a balance that not only determines weight with impressive accuracy, but also performs a digital audit, responds to your voice commands and sends you light messages?

If so, learn about the functionality of the ELLIPSIS series of balances:

XA 5Y.A Analytical Balances

are advanced laboratory instruments that combine state-of-the-art technology with incomparable measurement precision. Equipped with an innovative measurement system, they offer a wide weighing range and high readability, making them ideal for analytical, pharmaceutical and chemical laboratories.

Digital Weighing Auditor

Ensures that your balance is ready for use. It enables air buoyancy compensation in real-time. What is more, it informs about the need for a balance inspection or a periodic audit of the balance’s accuracy and sensitivity.

10-Inch Display

Bigger screen – 10’’ – means more information in one place. On the new ELLIPSIS terminal, you will see up to 3 screens, widgets, graphs, statuses, notes, handy measurement history.

Uncompromising User Verification

For the first time ever, the balance will verify the user using a password, RFID card, fingerprint reader, facial recognition mechanism, or any combination of these.

Ambient Light – An Innovative Way for the Balance to Communicate With the User

The light colour will tell you about status, process results, procedures, or alerts.

Hotspot

Use the balance on any device connected to it. This can be a smartphone, tablet, or computer.

RFID

ELLIPSIS works with RFID tags* that can be used to tag your products or formulation ingredients in the database. They can also be used to identify a user.

Live Note – Note Down Your Conclusions

It’s the first time you can add a voice memo to a measurement series or procedure report. If you prefer to write it down, ELLIPSIS allows you to add a text note.

Handy Library

This is where a series of recent measurements or a report ready for digital signature, according to 21 CFR Part 11, can be found.

Widgets

Prepared to display what you need most at any given moment.

Automatic Leveling of the Balance ReflexLEVEL System

Instead of manually leveling your scale - level it automatically. The ReflexLEVEL System saves you time and gives you maximum precision in your measurements.

Smart Min Weight

The balance displays whether the value of the weight you want to weigh is below or above the minimum weight threshold.

Antistatics in the Weighing Chamber

Have a sample that may be electrostatically charged?

The built-in antistatic ionizer will neutralize the sample’s electrostatic charge during any weighing procedure. It is integrated into the instrument, eliminating the need for additional equipment and making it easy to manage antistatics in one place.

How Will You Improve the Readability of the Weighing Result?

You will be provided with a special antistatic glass coating that compensates for electrostatic charges on the sample and laboratory accessories, thereby eliminating measurement errors. Less deposition of dust and dirt can prolong the life of optical and electronic components near the glass panes.

21 CFR Part 11

Do you work in the pharmaceutical industry? Do you need a digital signature?

We are offering the laboratory balance which as a standalone fully meets the requirements of 21 CFR Part 11/ EU GMP Annex 11.

– Full data security
– Electronic signatures
– Validations
– Electronic records
– Audit trails

Modbus TCP/IP

is one of the most popular communication protocols in industrial automation. Implementing it in the 5Y balances and CY10 scales makes the devices of this series friendly to automation integrators.

A balance or scale in a Modbus system is a slave device and performs tasks specified by the master device which is most often a PLC. Protocol Modbus TCP/IP in the 5Y balances and C10 scales enables, among other things, the realization of mass readout, zeroing and tare functions of the device, as well as tare settings and MIN and MAX thresholds.

Two-point adjustment

Adjacency, which takes place at two measurement points instead of one, improves measurement precision over the full weighing range. And what does this mean for you? More accurate measurement.

Under-pan weighing

Weighing instruments purchased after 15th February 2023 will allow under-pan weighing at any time after the purchase. All you need to do is just to order a dedicated hook.

* RFID ISO/IEC 14443 Type A, 13.56 MHz

More photos, videos and information

CE

5 years warranty

Datasheet

Maximum capacity [Max]

520 g

Minimum load

-

Readability [d]

0,1 mg

Verification unit [e]

-

Tare range

-520 g

Standard repeatability [5% Max]

0,07 mg

Standard repeatability [Max]

0,18 mg

Standard minimum weight (USP)

140 mg

Standard minimum weight (U=1%, k=2)

14 mg

Permissible repeatability [5% Max]

0,12 mg

Permissible repeatability [Max]

0,25 mg

Linearity

±0,5 mg

Eccentric load deviation

0,4 mg

Sensitivity time drift

1×10⁻⁶/Year×Rt

Stabilization time

1,3 s

Adjustment

internal (automatic)

Leveling system

automatic – Reflex Level System

OIML Class

-

Display

10″ graphic colour touchscreen

Weighing chamber

automatic

Weighing chamber doors

automatic

Protection class

IP 43

Delivery components

Analytical Balance, weighing pan, weighing pan shield, brush, fabric dust cover, power supply.

Communication interface

2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi^®, Hotspot

Power supply

Adapter: 100 – 240V AC 50/60Hz 1A; 15V DC 2,4A
Balance: 12 – 15V DC 1,6A max*

Operating temperature

+10 – +40 °C

Operating temperature change rate

±0,3 °C / 1 h (±1 °C / 8 h)

Relative humidity

20% – 80%

Relative humidity change rate

±1% / h (±4% / 8 h)

Weighing chamber dimensions

200×170×220 mm

Weighing pan dimensions

ø100 mm

Packaging dimensions

750×492×595 mm

Net weight

14,7 kg

Gross weight

20,5 kg

This image is for reference only.

close Exit

This image is for reference only.

Availability:

In stock

Estimated shipping date :

15 working days

Price:

11694.00

GBP

with 20% VAT, shipping cost not included

Choose a variant:

XA 82/220.5Y.A Analytical Balancekeyboard_arrow_down

XA 110.5Y.A Analytical Balance
Max: 110g | d: 0,01mg
XA 120/250.5Y.A Analytical Balance
Max: 120/250g | d: 0,01/0,1mg
XA 210.5Y.A Analytical Balance
Max: 210g | d: 0,01mg
XA 220.5Y.A Analytical Balance
Max: 220g | d: 0,1mg
XA 310.5Y.A Analytical Balance
Max: 310g | d: 0,1mg
XA 52.5Y.A Analytical Balance
Max: 52g | d: 0,01mg
XA 520.5Y.A Analytical Balance
Max: 520g | d: 0,1mg
XA 82/220.5Y.A Analytical Balance
Max: 82/220g | d: 0,01/0,1mg
XA 320.5Y.A Analytical Balance
Max: 320g | d: 0,05mg
XA 121/220.5Y.A Analytical Balance
Max: 121/220g | d: 0,005/0,01mg
XA 41/120.5Y.A Analytical Balance
Max: 41/120g | d: 0,002/0,005mg

Options:

Class I Verification (43.20 GBP)

Compliance with 21 CFR part 11 (542.40 GBP)

Additional fee for Radwag Extended SI (RES level: 0,1,2) module activation (374.40 GBP)

Calibration New Analytical balances d≥0,01mg; max 500g (292.80 GBP)

Pcs.Pcs.

Add to basket

We are near you.
We have been manufacturing weighing devices since 1984.

RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569

Delivery only on the territory of United Kingdom

Code:

WL-110-0004

Buying from the producer is all about the pros

✓ Update as standard

You always get the latest version of the device and software. We are constantly improving our products.

✓ This is priceless

Technical support from the product developers. Who better to know the answers to your questions? Like our Facebooku profile – stay in touch with us.

✓ Smaller carbon footprint

A solidly packaged shipment travels only one way – the one to you.

✓ Long life for your balance

In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory.

✓ The important thing

You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance.

Overview

XA 82/220.5Y.A Analytical Balance

Do you need a balance that not only determines weight with impressive accuracy, but also performs a digital audit, responds to your voice commands and sends you light messages?

If so, learn about the functionality of the ELLIPSIS series of balances:

XA 5Y.A Analytical Balances

are advanced laboratory instruments that combine state-of-the-art technology with incomparable measurement precision. Equipped with an innovative measurement system, they offer a wide weighing range and high readability, making them ideal for analytical, pharmaceutical and chemical laboratories.

Digital Weighing Auditor

Ensures that your balance is ready for use. It enables air buoyancy compensation in real-time. What is more, it informs about the need for a balance inspection or a periodic audit of the balance’s accuracy and sensitivity.

10-Inch Display

Bigger screen – 10’’ – means more information in one place. On the new ELLIPSIS terminal, you will see up to 3 screens, widgets, graphs, statuses, notes, handy measurement history.

Uncompromising User Verification

For the first time ever, the balance will verify the user using a password, RFID card, fingerprint reader, facial recognition mechanism, or any combination of these.

Ambient Light – An Innovative Way for the Balance to Communicate With the User

The light colour will tell you about status, process results, procedures, or alerts.

Hotspot

Use the balance on any device connected to it. This can be a smartphone, tablet, or computer.

RFID

ELLIPSIS works with RFID tags* that can be used to tag your products or formulation ingredients in the database. They can also be used to identify a user.

Live Note – Note Down Your Conclusions

It’s the first time you can add a voice memo to a measurement series or procedure report. If you prefer to write it down, ELLIPSIS allows you to add a text note.

Handy Library

This is where a series of recent measurements or a report ready for digital signature, according to 21 CFR Part 11, can be found.

Widgets

Prepared to display what you need most at any given moment.

Automatic Leveling of the Balance ReflexLEVEL System

Instead of manually leveling your scale - level it automatically. The ReflexLEVEL System saves you time and gives you maximum precision in your measurements.

Smart Min Weight

The balance displays whether the value of the weight you want to weigh is below or above the minimum weight threshold.

Antistatics in the Weighing Chamber

Have a sample that may be electrostatically charged?

The built-in antistatic ionizer will neutralize the sample’s electrostatic charge during any weighing procedure. It is integrated into the instrument, eliminating the need for additional equipment and making it easy to manage antistatics in one place.

How Will You Improve the Readability of the Weighing Result?

You will be provided with a special antistatic glass coating that compensates for electrostatic charges on the sample and laboratory accessories, thereby eliminating measurement errors. Less deposition of dust and dirt can prolong the life of optical and electronic components near the glass panes.

21 CFR Part 11

Do you work in the pharmaceutical industry? Do you need a digital signature?

We are offering the laboratory balance which as a standalone fully meets the requirements of 21 CFR Part 11/ EU GMP Annex 11.

– Full data security
– Electronic signatures
– Validations
– Electronic records
– Audit trails

Modbus TCP/IP

is one of the most popular communication protocols in industrial automation. Implementing it in the 5Y balances and CY10 scales makes the devices of this series friendly to automation integrators.

A balance or scale in a Modbus system is a slave device and performs tasks specified by the master device which is most often a PLC. Protocol Modbus TCP/IP in the 5Y balances and C10 scales enables, among other things, the realization of mass readout, zeroing and tare functions of the device, as well as tare settings and MIN and MAX thresholds.

Two-point adjustment

Adjacency, which takes place at two measurement points instead of one, improves measurement precision over the full weighing range. And what does this mean for you? More accurate measurement.

Under-pan weighing

Weighing instruments purchased after 15th February 2023 will allow under-pan weighing at any time after the purchase. All you need to do is just to order a dedicated hook.

* RFID ISO/IEC 14443 Type A, 13.56 MHz

More photos, videos and information

CE

Verification

5 years warranty

Datasheet

Maximum capacity [Max]

82 / 220 g

Minimum load

1 mg

Readability [d]

0,01 / 0,1 mg

Verification unit [e]

1 mg

Tare range

-220 g

Standard repeatability [5% Max]

0,005 mg

Standard repeatability [Max]

0,06 mg

Standard minimum weight (USP)

10 mg

Standard minimum weight (U=1%, k=2)

1 mg

Permissible repeatability [5% Max]

0,012 mg

Permissible repeatability [Max]

0,08 mg

Linearity

±0,06 / 0,2 mg

Eccentric load deviation

0,2 mg

Sensitivity time drift

1×10⁻⁶/Year×Rt

Stabilization time

4 s

Adjustment

internal (automatic)

Leveling system

automatic – Reflex Level System

OIML Class

I

Display

10″ graphic colour touchscreen

Weighing chamber

automatic

Weighing chamber doors

automatic

Protection class

IP 43

Delivery components

Analytical Balance, weighing pan, weighing pan shield, centring ring, brush, fabric dust cover, power supply.

Communication interface

2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi^®, Hotspot

Power supply

Adapter: 100 – 240V AC 50/60Hz 1A; 15V DC 2,4A
Balance: 12 – 15V DC 1,6A max*

Operating temperature

+10 – +40 °C

Operating temperature change rate

±0,3 °C / 1 h (±1 °C / 8 h)

Relative humidity

20% – 80%

Relative humidity change rate

±1% / h (±4% / 8 h)

Weighing chamber dimensions

200×170×220 mm

Weighing pan dimensions

ø90 open-work pan + ø85 (option) mm

Packaging dimensions

750×492×595 mm

Net weight

15,27 kg

Gross weight

19,1 kg

This image is for reference only.

close Exit

This image is for reference only.

Availability:

In stock

Estimated shipping date :

15 working days

Price:

13052.40

GBP

with 20% VAT, shipping cost not included

Choose a variant:

XA 320.5Y.A Analytical Balancekeyboard_arrow_down

XA 110.5Y.A Analytical Balance
Max: 110g | d: 0,01mg
XA 120/250.5Y.A Analytical Balance
Max: 120/250g | d: 0,01/0,1mg
XA 210.5Y.A Analytical Balance
Max: 210g | d: 0,01mg
XA 220.5Y.A Analytical Balance
Max: 220g | d: 0,1mg
XA 310.5Y.A Analytical Balance
Max: 310g | d: 0,1mg
XA 52.5Y.A Analytical Balance
Max: 52g | d: 0,01mg
XA 520.5Y.A Analytical Balance
Max: 520g | d: 0,1mg
XA 82/220.5Y.A Analytical Balance
Max: 82/220g | d: 0,01/0,1mg
XA 320.5Y.A Analytical Balance
Max: 320g | d: 0,05mg
XA 121/220.5Y.A Analytical Balance
Max: 121/220g | d: 0,005/0,01mg
XA 41/120.5Y.A Analytical Balance
Max: 41/120g | d: 0,002/0,005mg

Options:

Class I Verification (43.20 GBP)

Compliance with 21 CFR part 11 (542.40 GBP)

Additional fee for Radwag Extended SI (RES level: 0,1,2) module activation (374.40 GBP)

Calibration New Analytical balances d≥0,01mg; max 500g (292.80 GBP)

Pcs.Pcs.

Add to basket

We are near you.
We have been manufacturing weighing devices since 1984.

RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569

Delivery only on the territory of United Kingdom

Code:

WL-110-0023

Buying from the producer is all about the pros

✓ Update as standard

You always get the latest version of the device and software. We are constantly improving our products.

✓ This is priceless

Technical support from the product developers. Who better to know the answers to your questions? Like our Facebooku profile – stay in touch with us.

✓ Smaller carbon footprint

A solidly packaged shipment travels only one way – the one to you.

✓ Long life for your balance

In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory.

✓ The important thing

You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance.

Overview

XA 320.5Y.A Analytical Balance

Do you need a balance that not only determines weight with impressive accuracy, but also performs a digital audit, responds to your voice commands and sends you light messages?

If so, learn about the functionality of the ELLIPSIS series of balances:

XA 5Y.A Analytical Balances

are advanced laboratory instruments that combine state-of-the-art technology with incomparable measurement precision. Equipped with an innovative measurement system, they offer a wide weighing range and high readability, making them ideal for analytical, pharmaceutical and chemical laboratories.

Digital Weighing Auditor

Ensures that your balance is ready for use. It enables air buoyancy compensation in real-time. What is more, it informs about the need for a balance inspection or a periodic audit of the balance’s accuracy and sensitivity.

10-Inch Display

Bigger screen – 10’’ – means more information in one place. On the new ELLIPSIS terminal, you will see up to 3 screens, widgets, graphs, statuses, notes, handy measurement history.

Uncompromising User Verification

For the first time ever, the balance will verify the user using a password, RFID card, fingerprint reader, facial recognition mechanism, or any combination of these.

Ambient Light – An Innovative Way for the Balance to Communicate With the User

The light colour will tell you about status, process results, procedures, or alerts.

Hotspot

Use the balance on any device connected to it. This can be a smartphone, tablet, or computer.

RFID

ELLIPSIS works with RFID tags* that can be used to tag your products or formulation ingredients in the database. They can also be used to identify a user.

Live Note – Note Down Your Conclusions

It’s the first time you can add a voice memo to a measurement series or procedure report. If you prefer to write it down, ELLIPSIS allows you to add a text note.

Handy Library

This is where a series of recent measurements or a report ready for digital signature, according to 21 CFR Part 11, can be found.

Widgets

Prepared to display what you need most at any given moment.

Automatic Leveling of the Balance ReflexLEVEL System

Instead of manually leveling your scale - level it automatically. The ReflexLEVEL System saves you time and gives you maximum precision in your measurements.

Smart Min Weight

The balance displays whether the value of the weight you want to weigh is below or above the minimum weight threshold.

Antistatics in the Weighing Chamber

Have a sample that may be electrostatically charged?

The built-in antistatic ionizer will neutralize the sample’s electrostatic charge during any weighing procedure. It is integrated into the instrument, eliminating the need for additional equipment and making it easy to manage antistatics in one place.

How Will You Improve the Readability of the Weighing Result?

You will be provided with a special antistatic glass coating that compensates for electrostatic charges on the sample and laboratory accessories, thereby eliminating measurement errors. Less deposition of dust and dirt can prolong the life of optical and electronic components near the glass panes.

21 CFR Part 11

Do you work in the pharmaceutical industry? Do you need a digital signature?

We are offering the laboratory balance which as a standalone fully meets the requirements of 21 CFR Part 11/ EU GMP Annex 11.

– Full data security
– Electronic signatures
– Validations
– Electronic records
– Audit trails

Modbus TCP/IP

is one of the most popular communication protocols in industrial automation. Implementing it in the 5Y balances and CY10 scales makes the devices of this series friendly to automation integrators.

A balance or scale in a Modbus system is a slave device and performs tasks specified by the master device which is most often a PLC. Protocol Modbus TCP/IP in the 5Y balances and C10 scales enables, among other things, the realization of mass readout, zeroing and tare functions of the device, as well as tare settings and MIN and MAX thresholds.

Two-point adjustment

Adjacency, which takes place at two measurement points instead of one, improves measurement precision over the full weighing range. And what does this mean for you? More accurate measurement.

Under-pan weighing

Weighing instruments purchased after 15th February 2023 will allow under-pan weighing at any time after the purchase. All you need to do is just to order a dedicated hook.

* RFID ISO/IEC 14443 Type A, 13.56 MHz

More photos, videos and information

CE

Verification

5 years warranty

Datasheet

Maximum capacity [Max]

320 g

Minimum load

4,1 mg

Readability [d]

0,05 mg

Verification unit [e]

1 mg

Tare range

-320 g

Standard repeatability [5% Max]

0,02 mg

Standard repeatability [Max]

0,06 mg

Standard minimum weight (USP)

41 mg

Standard minimum weight (U=1%, k=2)

4,1 mg

Permissible repeatability [5% Max]

0,06 mg

Permissible repeatability [Max]

0,07 mg

Linearity

±0,3 mg

Eccentric load deviation

0,15 mg

Sensitivity time drift

1×10⁻⁶/Year×Rt

Stabilization time

1,3 s

Adjustment

internal (automatic)

Leveling system

automatic – Reflex Level System

OIML Class

I

Display

10″ graphic colour touchscreen

Weighing chamber

automatic

Weighing chamber doors

automatic

Protection class

IP 43

Delivery components

Analytical Balance, weighing pan, weighing pan shield, centring ring, brush, fabric dust cover, power supply.

Communication interface

2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi^®, Hotspot

Power supply

Adapter: 100 – 240V AC 50/60Hz 1A; 15V DC 2,4A
Balance: 12 – 15V DC 1,6A max*

Operating temperature

+10 – +40 °C

Operating temperature change rate

±0,3 °C / 1 h (±1 °C / 8 h)

Relative humidity

20% – 80%

Relative humidity change rate

±1% / h (±4% / 8 h)

Weighing chamber dimensions

200×170×220 mm

Weighing pan dimensions

ø90 open-work pan + ø85 (option) mm

Packaging dimensions

750×492×595 mm

Net weight

14,7 kg

Gross weight

16 kg

This image is for reference only.

close Exit

This image is for reference only.

Availability:

In stock

Estimated shipping date :

15 working days

Price:

15498.00

GBP

with 20% VAT, shipping cost not included

Choose a variant:

XA 121/220.5Y.A Analytical Balancekeyboard_arrow_down

XA 110.5Y.A Analytical Balance
Max: 110g | d: 0,01mg
XA 120/250.5Y.A Analytical Balance
Max: 120/250g | d: 0,01/0,1mg
XA 210.5Y.A Analytical Balance
Max: 210g | d: 0,01mg
XA 220.5Y.A Analytical Balance
Max: 220g | d: 0,1mg
XA 310.5Y.A Analytical Balance
Max: 310g | d: 0,1mg
XA 52.5Y.A Analytical Balance
Max: 52g | d: 0,01mg
XA 520.5Y.A Analytical Balance
Max: 520g | d: 0,1mg
XA 82/220.5Y.A Analytical Balance
Max: 82/220g | d: 0,01/0,1mg
XA 320.5Y.A Analytical Balance
Max: 320g | d: 0,05mg
XA 121/220.5Y.A Analytical Balance
Max: 121/220g | d: 0,005/0,01mg
XA 41/120.5Y.A Analytical Balance
Max: 41/120g | d: 0,002/0,005mg

Options:

Compliance with 21 CFR part 11 (542.40 GBP)

Additional fee for Radwag Extended SI (RES level: 0,1,2) module activation (374.40 GBP)

Calibration New Analytical balances d≥0,01mg; max 500g (292.80 GBP)

Pcs.Pcs.

Add to basket

We are near you.
We have been manufacturing weighing devices since 1984.

RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569

Delivery only on the territory of United Kingdom

Code:

WL-110-0026

Buying from the producer is all about the pros

✓ Update as standard

You always get the latest version of the device and software. We are constantly improving our products.

✓ This is priceless

Technical support from the product developers. Who better to know the answers to your questions? Like our Facebooku profile – stay in touch with us.

✓ Smaller carbon footprint

A solidly packaged shipment travels only one way – the one to you.

✓ Long life for your balance

In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory.

✓ The important thing

You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance.

Overview

XA 121/220.5Y.A Analytical Balance

Do you need a balance that not only determines weight with impressive accuracy, but also performs a digital audit, responds to your voice commands and sends you light messages?

If so, learn about the functionality of the ELLIPSIS series of balances:

XA 5Y.A Analytical Balances

are advanced laboratory instruments that combine state-of-the-art technology with incomparable measurement precision. Equipped with an innovative measurement system, they offer a wide weighing range and high readability, making them ideal for analytical, pharmaceutical and chemical laboratories.

Digital Weighing Auditor

Ensures that your balance is ready for use. It enables air buoyancy compensation in real-time. What is more, it informs about the need for a balance inspection or a periodic audit of the balance’s accuracy and sensitivity.

10-Inch Display

Bigger screen – 10’’ – means more information in one place. On the new ELLIPSIS terminal, you will see up to 3 screens, widgets, graphs, statuses, notes, handy measurement history.

Uncompromising User Verification

For the first time ever, the balance will verify the user using a password, RFID card, fingerprint reader, facial recognition mechanism, or any combination of these.

Ambient Light – An Innovative Way for the Balance to Communicate With the User

The light colour will tell you about status, process results, procedures, or alerts.

Hotspot

Use the balance on any device connected to it. This can be a smartphone, tablet, or computer.

RFID

ELLIPSIS works with RFID tags* that can be used to tag your products or formulation ingredients in the database. They can also be used to identify a user.

Live Note – Note Down Your Conclusions

It’s the first time you can add a voice memo to a measurement series or procedure report. If you prefer to write it down, ELLIPSIS allows you to add a text note.

Handy Library

This is where a series of recent measurements or a report ready for digital signature, according to 21 CFR Part 11, can be found.

Widgets

Prepared to display what you need most at any given moment.

Automatic Leveling of the Balance ReflexLEVEL System

Instead of manually leveling your scale - level it automatically. The ReflexLEVEL System saves you time and gives you maximum precision in your measurements.

Smart Min Weight

The balance displays whether the value of the weight you want to weigh is below or above the minimum weight threshold.

Antistatics in the Weighing Chamber

Have a sample that may be electrostatically charged?

The built-in antistatic ionizer will neutralize the sample’s electrostatic charge during any weighing procedure. It is integrated into the instrument, eliminating the need for additional equipment and making it easy to manage antistatics in one place.

How Will You Improve the Readability of the Weighing Result?

You will be provided with a special antistatic glass coating that compensates for electrostatic charges on the sample and laboratory accessories, thereby eliminating measurement errors. Less deposition of dust and dirt can prolong the life of optical and electronic components near the glass panes.

21 CFR Part 11

Do you work in the pharmaceutical industry? Do you need a digital signature?

We are offering the laboratory balance which as a standalone fully meets the requirements of 21 CFR Part 11/ EU GMP Annex 11.

– Full data security
– Electronic signatures
– Validations
– Electronic records
– Audit trails

Modbus TCP/IP

is one of the most popular communication protocols in industrial automation. Implementing it in the 5Y balances and CY10 scales makes the devices of this series friendly to automation integrators.

A balance or scale in a Modbus system is a slave device and performs tasks specified by the master device which is most often a PLC. Protocol Modbus TCP/IP in the 5Y balances and C10 scales enables, among other things, the realization of mass readout, zeroing and tare functions of the device, as well as tare settings and MIN and MAX thresholds.

Two-point adjustment

Adjacency, which takes place at two measurement points instead of one, improves measurement precision over the full weighing range. And what does this mean for you? More accurate measurement.

Under-pan weighing

Weighing instruments purchased after 15th February 2023 will allow under-pan weighing at any time after the purchase. All you need to do is just to order a dedicated hook.

* RFID ISO/IEC 14443 Type A, 13.56 MHz

More photos, videos and information

CE

5 years warranty

Datasheet

Maximum capacity [Max]

121 / 220 g

Minimum load

-

Readability [d]

0,005 / 0,01 mg

Verification unit [e]

-

Tare range

-220 g

Standard repeatability [5% Max]

0,005 mg

Standard repeatability [Max]

0,025 mg

Standard minimum weight (USP)

10 mg

Standard minimum weight (U=1%, k=2)

1 mg

Permissible repeatability [5% Max]

0,01 mg

Permissible repeatability [Max]

0,035 mg

Standard linearity

0,06 mg

Permissible linearity

0,1 mg

Standard eccentric load deviation

0,06 mg

Permissible eccentric load deviation

0,1 mg

Sensitivity time drift

1×10⁻⁶/Year×Rt

Stabilization time

2 s

Adjustment

internal (automatic)

Leveling system

automatic – Reflex Level System

OIML Class

-

Display

10″ graphic colour touchscreen

Weighing chamber

automatic

Weighing chamber doors

automatic

Protection class

IP 43

Delivery components

Analytical Balance, weighing pan, weighing pan shield, centring ring, brush, fabric dust cover, power supply.

Communication interface

2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi^®, Hotspot

Power supply

Adapter: 100 – 240V AC 50/60Hz 1A; 15V DC 2,4A
Balance: 12 – 15V DC 1,6A max*

Operating temperature

+10 – +40 °C

Operating temperature change rate

±0,3 °C / 1 h (±1 °C / 8 h)

Relative humidity

20% – 80%

Relative humidity change rate

±1% / h (±4% / 8 h)

Weighing chamber dimensions

200×170×220 mm

Weighing pan dimensions

ø78 mm

Packaging dimensions

750×492×595 mm

Net weight

14,7 kg

Gross weight

16 kg

This image is for reference only.

close Exit

This image is for reference only.

Availability:

In stock

Estimated shipping date :

15 working days

Price:

17563.20

GBP

with 20% VAT, shipping cost not included

Choose a variant:

XA 41/120.5Y.A Analytical Balancekeyboard_arrow_down

XA 110.5Y.A Analytical Balance
Max: 110g | d: 0,01mg
XA 120/250.5Y.A Analytical Balance
Max: 120/250g | d: 0,01/0,1mg
XA 210.5Y.A Analytical Balance
Max: 210g | d: 0,01mg
XA 220.5Y.A Analytical Balance
Max: 220g | d: 0,1mg
XA 310.5Y.A Analytical Balance
Max: 310g | d: 0,1mg
XA 52.5Y.A Analytical Balance
Max: 52g | d: 0,01mg
XA 520.5Y.A Analytical Balance
Max: 520g | d: 0,1mg
XA 82/220.5Y.A Analytical Balance
Max: 82/220g | d: 0,01/0,1mg
XA 320.5Y.A Analytical Balance
Max: 320g | d: 0,05mg
XA 121/220.5Y.A Analytical Balance
Max: 121/220g | d: 0,005/0,01mg
XA 41/120.5Y.A Analytical Balance
Max: 41/120g | d: 0,002/0,005mg

Options:

Compliance with 21 CFR part 11 (542.40 GBP)

Additional fee for Radwag Extended SI (RES level: 0,1,2) module activation (374.40 GBP)

Calibration New Analytical balances d≥0,01mg; max 500g (292.80 GBP)

Pcs.Pcs.

Add to basket

We are near you.
We have been manufacturing weighing devices since 1984.

RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569

Delivery only on the territory of United Kingdom

Code:

WL-110-0027

Buying from the producer is all about the pros

✓ Update as standard

You always get the latest version of the device and software. We are constantly improving our products.

✓ This is priceless

Technical support from the product developers. Who better to know the answers to your questions? Like our Facebooku profile – stay in touch with us.

✓ Smaller carbon footprint

A solidly packaged shipment travels only one way – the one to you.

✓ Long life for your balance

In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory.

✓ The important thing

You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance.

Overview

XA 41/120.5Y.A Analytical Balance

Do you need a balance that not only determines weight with impressive accuracy, but also performs a digital audit, responds to your voice commands and sends you light messages?

If so, learn about the functionality of the ELLIPSIS series of balances:

XA 5Y.A Analytical Balances

are advanced laboratory instruments that combine state-of-the-art technology with incomparable measurement precision. Equipped with an innovative measurement system, they offer a wide weighing range and high readability, making them ideal for analytical, pharmaceutical and chemical laboratories.

Digital Weighing Auditor

Ensures that your balance is ready for use. It enables air buoyancy compensation in real-time. What is more, it informs about the need for a balance inspection or a periodic audit of the balance’s accuracy and sensitivity.

10-Inch Display

Bigger screen – 10’’ – means more information in one place. On the new ELLIPSIS terminal, you will see up to 3 screens, widgets, graphs, statuses, notes, handy measurement history.

Uncompromising User Verification

For the first time ever, the balance will verify the user using a password, RFID card, fingerprint reader, facial recognition mechanism, or any combination of these.

Ambient Light – An Innovative Way for the Balance to Communicate With the User

The light colour will tell you about status, process results, procedures, or alerts.

Hotspot

Use the balance on any device connected to it. This can be a smartphone, tablet, or computer.

RFID

ELLIPSIS works with RFID tags* that can be used to tag your products or formulation ingredients in the database. They can also be used to identify a user.

Live Note – Note Down Your Conclusions

It’s the first time you can add a voice memo to a measurement series or procedure report. If you prefer to write it down, ELLIPSIS allows you to add a text note.

Handy Library

This is where a series of recent measurements or a report ready for digital signature, according to 21 CFR Part 11, can be found.

Widgets

Prepared to display what you need most at any given moment.

Automatic Leveling of the Balance ReflexLEVEL System

Instead of manually leveling your scale - level it automatically. The ReflexLEVEL System saves you time and gives you maximum precision in your measurements.

Smart Min Weight

The balance displays whether the value of the weight you want to weigh is below or above the minimum weight threshold.

Antistatics in the Weighing Chamber

Have a sample that may be electrostatically charged?

The built-in antistatic ionizer will neutralize the sample’s electrostatic charge during any weighing procedure. It is integrated into the instrument, eliminating the need for additional equipment and making it easy to manage antistatics in one place.

How Will You Improve the Readability of the Weighing Result?

You will be provided with a special antistatic glass coating that compensates for electrostatic charges on the sample and laboratory accessories, thereby eliminating measurement errors. Less deposition of dust and dirt can prolong the life of optical and electronic components near the glass panes.

21 CFR Part 11

Do you work in the pharmaceutical industry? Do you need a digital signature?

We are offering the laboratory balance which as a standalone fully meets the requirements of 21 CFR Part 11/ EU GMP Annex 11.

– Full data security
– Electronic signatures
– Validations
– Electronic records
– Audit trails

Modbus TCP/IP

is one of the most popular communication protocols in industrial automation. Implementing it in the 5Y balances and CY10 scales makes the devices of this series friendly to automation integrators.

A balance or scale in a Modbus system is a slave device and performs tasks specified by the master device which is most often a PLC. Protocol Modbus TCP/IP in the 5Y balances and C10 scales enables, among other things, the realization of mass readout, zeroing and tare functions of the device, as well as tare settings and MIN and MAX thresholds.

Two-point adjustment

Adjacency, which takes place at two measurement points instead of one, improves measurement precision over the full weighing range. And what does this mean for you? More accurate measurement.

Under-pan weighing

Weighing instruments purchased after 15th February 2023 will allow under-pan weighing at any time after the purchase. All you need to do is just to order a dedicated hook.

* RFID ISO/IEC 14443 Type A, 13.56 MHz

More photos, videos and information

CE

5 years warranty

Datasheet

Maximum capacity [Max]

41 / 120 g

Minimum load

-

Readability [d]

0,002 / 0,005 mg

Verification unit [e]

-

Tare range

-120 g

Standard repeatability [5% Max]

0,004 mg

Standard repeatability [Max]

0,012 mg

Standard minimum weight (USP)

8 mg

Standard minimum weight (U=1%, k=2)

0,8 mg

Permissible repeatability [5% Max]

0,008 mg

Permissible repeatability [Max]

0,02 mg

Standard linearity

0,03 mg

Permissible linearity

0,1 mg

Standard eccentric load deviation

0,04 mg

Permissible eccentric load deviation

0,1 mg

Sensitivity time drift

1×10⁻⁶/Year×Rt

Stabilization time

3,5 s

Adjustment

internal (automatic)

Leveling system

automatic – Reflex Level System

OIML Class

-

Display

10″ graphic colour touchscreen

Weighing chamber

automatic

Weighing chamber doors

automatic

Protection class

IP 43

Delivery components

Analytical Balance, weighing pan, weighing pan shield, centring ring, brush, fabric dust cover, power supply.

Communication interface

2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi^®, Hotspot

Power supply

Adapter: 100 – 240V AC 50/60Hz 1A; 15V DC 2,4A
Balance: 12 – 15V DC 1,6A max*

Operating temperature

+10 – +40 °C

Operating temperature change rate

±0,3 °C / 1 h (±1 °C / 8 h)

Relative humidity

20% – 80%

Relative humidity change rate

±1% / h (±4% / 8 h)

Weighing chamber dimensions

200×170×220 mm

Weighing pan dimensions

ø64 mm

Packaging dimensions

750×492×595 mm

Net weight

14,7 kg

Gross weight

16 kg
