Datasheet - WPY 60/C2/K Multifunctional Scale

Code:

WP-111-0004

2 years warranty

Verification

Datasheet

Maximum capacity [Max]

60 kg

Minimum load

400 g

Readability [d]

20 g

Verification unit [e]

20 g

Tare range

-60 kg

Max readability for non-verified scale

2 g

Stabilization time

2 s

Adjustment

external

OIML Class

III

Display

5,7” Resistive Color Touchscreen

Protection class

IP 65 construction, IP 43 terminal

Communication interface

2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital), Wi-Fi^®

Power supply

100 – 240 V AC 50/60 Hz

Operating temperature

-10 – +40 °C

Weighing pan dimensions

400×500 mm

Packaging dimensions W x D x H

720×620×210 mm

Net weight

11,1 kg

Gross weight

13,1 kg

Overview

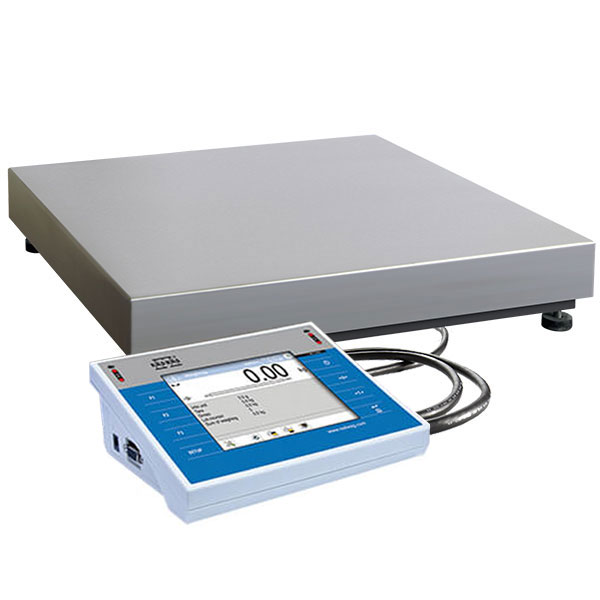

WPY 60/C2/K Multifunctional Scale

Multifunctional scales WPY series is designed for fast and precise determining mass of weighed objects in industrial conditions and with application of a modern terminal PUE7 series.

Application

The device features simple structure and enables maximum automation of carried out weighing processes. Apart from standard weighing mode, the WPY series additionally allows for parts counting, labelling and formula making processes.

The universal software implemented in the terminal enables scales cooperation with barcode scanners, receipt printers, label printers, RFID scanners and PC peripherals (including mouse, keyboard and external data storage devices) all connectable to built-in interfaces RS232, USB and Ethernet.

The multifunctional WPY scales if connected to a label printer enables printing labels for matching goods weighed in industrial conditions. The labelling system based on the labelling scales WPY series is dedicated to printing labels for matching weighed products in a packaging process.

The multifunctional WPY scales

if connected to a label printer enables printing labels for matching goods weighed in industrial conditions.
The labelling system based on the labelling scales WPY series is dedicated to printing labels for matching weighed products in a packaging process.

Design and functionality

The WPY series features a stainless steel weighing platform and a terminal comprising both, 5,7” TFT colourful touch screen display and a membrane keyboard. The system is ready to connect an additional weighing platform, and provides below functions:

programming of display and functional keys,
programming of infrared proximity sensors,
designing printouts,
designing text data that is displayed on terminal display.

The Workflow Module

will improve work in your company. It enables developing a path of customized weighing process adapted to individual requirements of a particular production system, and next sending it to all weighing instruments cooperating with the E2R. The given process is started on the weighing instrument upon operator logging or after selecting a product, a formulation or an ingredient to which it is assigned. Modifications are made with use of convenient and intuitive interface.

Software functionality:

available working modes: weighing, parts counting, percent setup, formulation, density determination, animal weighing;
generating standard labels for matching single goods;
generating C labels for matching cumulative containers;
generating CC labels for matching containers with cumulative containers;
three means of triggering a C and CC label printout:
- manually,
- by counter status,
- by set mass value of a product;
control scales mode (+/- control of measurement result);
product identification using EAN-13 and EAN-128 codes;
access to databases of operators, products, raw materials, clients, weighing records, universal variables and tares.

The multifunctional WPY series enables quick searching of a product by means of a connected barcode scanner. This option considerably increases functionality of the system. The terminal enables cooperation with a computer software "LABEL EDITOR", and the software communicates with the scales either through RS 232 interface or through ETHERNET.

Scale WPY series is available in dual range (non-verified) version on surchage.

Dual and single range scales in non-verified version are named as: scale model/NL, e.g. WPY 150/C2/R/NL.
