Datasheet - WLC 2.X7 Precision Balance

Code:

WL-227-0005

2 years warranty

Datasheet

Maximum capacity [Max]

2 kg

Readability [d]

0,01 g

Verification unit [e]

Tare range

-2 kg

Repeatability

0,015 g

Linearity

±0,03 g

Stabilization time

2 s

Adjustment

internal (automatic)

Leveling system

manual

Display

7″ graphic colour touchscreen

Protection class

IP 43

Delivery components

Balance, weighing pan, weighing pan shield, grounding bumper ×1, bumper ×3, power supply.

Database capacity

Products, Users, Packaging, Customers, Formulations, Formulations reports, Ambient Conditions, Weighings, Alibi memory

Communication interface

2×RS232¹, USB-A, USB-B, Ethernet, Wi-Fi^®

Power supply

Adapter: 100 – 240V AC 50/60Hz 0,6A; 12V DC 1,2A
Balance: 10 – 15VDC 0,6A max

Operating temperature

+10 – +40 °C

Weighing pan dimensions

195×195 mm

Packaging dimensions W x D x H

430×270×190 mm

Net weight

2,2 kg

Gross weight

3,5 kg

Overview

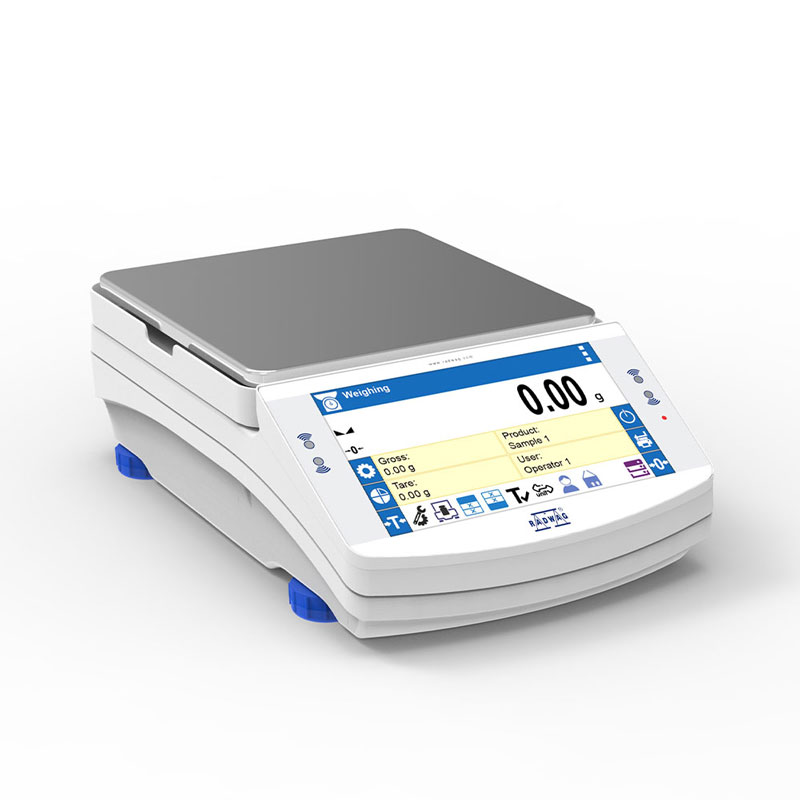

WLC 2.X7 Precision Balance

WLC X7 Precision Balances are high-tech yet easy-to-use weighing devices at a very good price. They have a clear menu, which the user will enjoy working on via a 7-inch touchscreen display.

New Possibilities

Features and functionalities such as:

7-inch color touchscreen display
Screen personalization through widgets
Multilingual interactive menus
Touchless operation sensors
Compliance with GLP and GMP requirements
Dynamic sample mass control (bargraph)
Statistics, recipes, reports and printouts
Unlimited communication possibilities
ALIBI memory with measurement recording
Extensive databases
Highest operating comfort
Internal/ external adjustment

provide the user with the highest readability and maximum operating comfort.

Personalization Through Widgets

The WLC X7 Precision Balances allow you to design the layout of the information on the display through a wide selection of widgets. Personalization of the WLC X7 balance display allows you to access information and operating results directly from the main display panel.

Fast communication

WLC X7 Precision Balances are equipped with multiple communication interfaces: 2 x RS232, USB-A, USB-B, Ethernet and Wi-Fi. USB interface facilitates quick transfer and copying of any results of your work (measurements, reports, databases) to a computer or another balance. Data management on the balance is also possible online, through remote access to the balance and its database.

The housing of these devices is made of plastic, and the pan is made of stainless steel.

Databases

In WLC X7 Precision Balances the information system is based on 9 databases which allow several users to work with database storing several products. The registered weighing results can be subject to further analysis.
The data is registered in 9 databases:

Products (5 000 products)
Users (100 users)
Packaging (100 packaging types)
Customers (1 000 customers)
Formulations (100 formulations)
Formulations reports (500 reports)
Ambient Conditions (10 000 records)
Weighings (50 000 records)
ALIBI memory (512 000 records).

ALIBI Memory

WLC X7 Precision Balances feature ALIBI memory, which guarantees safety as it automatically records measurements, and allows data prereview, copying and archiving. The ALIBI memory allows to record up to 512,000 weighment records.

Under-Pan Weighing
Weighing instruments purchased after 15th February 2023 allow under-pan weighing at any time after the purchase. All you need to do is order a dedicated hook.

THBR 2.0 System
The balances work with THBR 2.0 System for ambient conditions monitoring.
