WAY 5Y.KO Manual Mass Comparator
This image is for reference only.
Exit
This image is for reference only.
Availability:
To order
Estimated shipping date :
Ask for delivery time
Need it urgently? Call us to check real-time stock availability: +44 (0)1625 569569
Price:
13780.80
GBP
with 20% VAT, shipping cost not included
Choose a variant:
WAY 5100.5Y.KO Mass Comparator
- WAY 100.5Y.KO Mass ComparatorMax: 110g | d: 0,001mg
- WAY 500.5Y.KO Mass ComparatorMax: 520g | d: 0,01mg
- WAY 1.5Y.KO Mass ComparatorMax: 1.02kg | d: 0,01mg
- WAY 2.5Y.KO Mass ComparatorMax: 2.3kg | d: 0,1mg
- WAY 5.5Y.KO Mass ComparatorMax: 5.05kg | d: 0,1mg
- WAY 200.5Y.KO Mass ComparatorMax: 210g | d: 0,001mg
- WAY 1200.5Y.KO Mass ComparatorMax: 1.2kg | d: 0,1mg
- WAY 5100.5Y.KO Mass ComparatorMax: 5.1kg | d: 1mg
Pcs.
Add to basket
We are near you.
We have been manufacturing weighing devices since 1984.
RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569
Delivery only on the territory of United Kingdom
We have been manufacturing weighing devices since 1984.
RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569
Delivery only on the territory of United Kingdom
Optional paid installation and training service available - please contact us for details and pricing.
Datasheet - WAY 5100.5Y.KO Mass ComparatorCode:
WL-406-0045
2 years warranty
CE
Datasheet
E2 Calibration Range
5 kg
F1 Calibration Range
1 – 5 kg
F2 Calibration Range
500 g – 5 kg
M1 Calibration Range
200 g – 5 kg
M2 Calibration Range
10 g – 5 kg
Maximum capacity [Max]
5,1 kg
Readability [d]
1 mg
Standard repeatability [Max]
1 mg
Standard repeatability [5% Max]
0,8 mg
Permissible repeatability
2 mg
Linearity
±5 mg
Eccentricity (tested load)
1d / 5 mm
Electric compensation range
0 – +5100 g
Stabilization time
10 s
Adjustment
external
Display
10″ graphic colour touchscreen
Supplementary weights external
Brak
Communication interface
2×USB-A, USB-C, RS 232 (COM3), HDMI, Ethernet, Wi-Fi®, Hotspot
Operating temperature
+15 – +30 °C
Operating temperature change rate
±0,5 °C / 12 h (±0,3 °C / 4 h)
Relative humidity
40% – 60%
Relative humidity change rate
±3% / 4 h
Weighing pan dimensions
ø100 mm
Weighing device dimensions
385×195×210 mm
Controling device dimensions
249×170×72 mm
Anti-draft chamber dimensions
560×340×455 mm
Packaging dimensions W x D x H
945×820×1260 mm
Chamber packaging size
820×735×630 mm
Net weight
16 kg
Gross weight
24,5 kg
Overview
WAY 5100.5Y.KO Mass Comparator
WAY 5100.5Y.KO mass comparators ensure the traceability of mass measurements and verify weights according to the requirements of legal metrology. For this reason, they are an obligatory working tool in calibration laboratories worldwide. The WAY 5100.5Y.KO Manual Mass Comparators series are designed for the calibration of mass standards and weights according to OIML (R-111) recommendations.
What Do the WAY Mass Comparators Consist of?
These devices are constructed from an electronic module and a precision mechanical measuring system. The ring surrounding the weighing pan protects it not only from air-drafts, but also from impacts when the mass standard is placed on it. The weighing pan is made of high-quality, non-magnetic stainless steel and has centring marks for easy placement of mass standards.
What Does the WAY Mass Comparator Connect to?
The WAY 5100.5Y.KO comparator has the following communication interfaces: USB-A (2), USB-C, HDMI, Ethernet, Wi-Fi, Hotspot and optionally the Radwag communication protocol. With these, you will connect to:
- Smartphone and tablet (Hotspot)
- Spreadsheet (USB-C)
- Receipt and label printer (Ethernet, Wi-Fi, USB-A)
- Computer and laptop (Ethernet, Wi-Fi, USB-A)
- Barcode scanner (USB-A)
- Additional screen, including projector (HDMI)
- Software on your PC (RES Radwag Extended SI Module)
- Keyboard and mouse.
Automatic Adjustment in the WAY 5100.5Y.KO Mass Comparator
The WAY 5100.5Y.KO comparator has internal (automatic) adjustment. Adjustment is a set of activities aimed at bringing a measuring instrument to an operation in accordance with its intended use. In the case of electronic balances and scales, such an operation is the correction of this device sensitivity by comparing the weighing result of the internal adjustment standard with its reference value. The internal adjustment is carried out automatically, i.e. without operator intervention. Such a solution saves time for the user and aims to achieve more accurate measurement results.
How to Eliminate Air-Drafts?

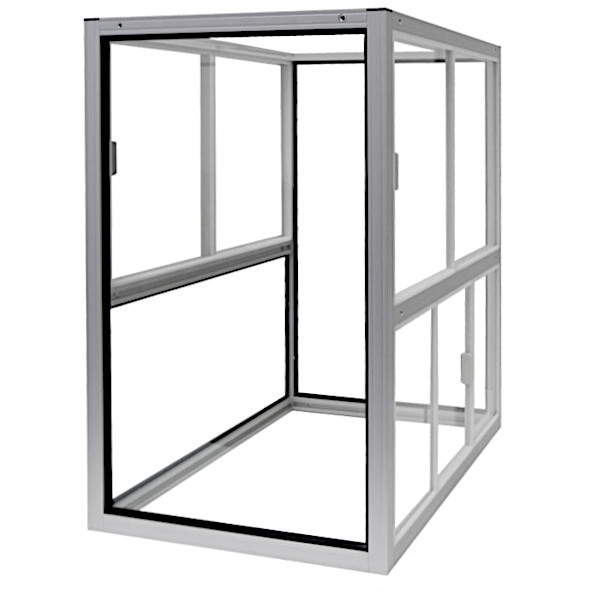

The WAY 5100.5Y.KO mass comparator comes as standard with an additional external anti-draft chamber that shields the entire unit. The anti-draft chamber has retractable side windows and a sliding top window to provide unobstructed access to the weighing chamber of the comparator. Even small air-drafts, caused, for example, by ventilation systems, air conditioning or the movement of people in the vicinity, can interfere with measurements. The anti-draft chamber creates an enclosed space that protects against these factors. Its use increases the reliability and improves the repeatability of results in metrology, pharmaceutical and industrial laboratories.
Terminal 5Y in the WAY Mass Comparator
With the 5Y terminal, the WAY 5Y.KO comparator has gained new features and functionalities, which are:
- User-friendly menus seen more clearly on the 10’ touch display
- DWA® (Digital Weighing Auditor)
- Log-in via password, fingerprint, facial recognition, RFID tags* or a combination of these
- Ambient Light alerts
- Hotspot
- RFID
- Live Note text memos
- Voice commands to the device
- Handy measurement history within the Handy Library
- Widgets.
* RFID ISO/IEC 14443 Type A, 13.56 MHz
