Datasheet - TMX15C.150.H6.K Multifunctional Scale

Code:

WP-119-0047

Verification

2 years warranty

Datasheet

Maximum capacity [Max]

150 kg

Minimum load

1 kg

Readability [d]

50 g

Verification unit [e]

50 g

Tare range

-150 kg

Max readability for non-verified scale

10 g

OIML Class

III

Display

15,6” graphic colour touchscreen

Cable length

2,5 m

Protection class

IP 66 / 67 construction, IP 66 / 67 / 69 terminal

Communication interface

4×USB 2.0 (2×USB-A, 2×M12 4P), Ethernet - 2×10/100/1000 Mbit (2×RJ45 hermetic), Profibus DP (operation mode: slave), 2×RS232, RS485 (2×M12 8P), 4IN / 4OUT (2×ports M12 8P or 2×cables fed through the cable gland)

Optional interfaces

external buttons PRINT, TARE, START - terminal with 4IN/4OUT (M12 8P connector) is required, additional weighing platform module - max. 3 pcs, metrological parameters as in the main weighing platform

Power supply

100 – 240 V AC 50/60 Hz

Power consumption

45 W

Operating temperature

0 – +40 °C

Relative humidity

10% – 85% RH no condensation

Operating system

Microsoft Windows 11 IoT

Weighing pan dimensions

800×800 mm

Controling device dimensions

560×360×240 mm

Packaging dimensions W x D x H

820×1250×510 mm

Overview

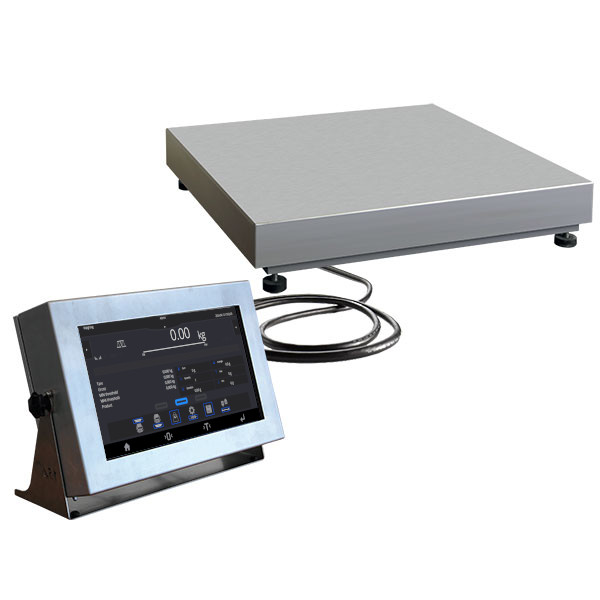

TMX15C.150.H6.K Multifunctional Scale

Multifunctional scales TMX H is designed to fast and precise determination of mass in industrial conditions.

TMX H

Multifunctional scales TMX H comprises terminal PUE 5 and a weighing platform.

Labelling system series TMX H is used to print labels for marking weighted goods e.g. in the process of packing.

The program can generate standard labels for single goods.

Functionality of the software:

a function of weight control (weighing control + / -),
previewing weighments carried out on weighing terminal as a table of weighments,
simplified reporting module allowing the report to be generated,
creation of label templates from labels in weighing terminal,
identification of goods by using the code EAN-13 and EAN-128,
quick search using the range of barcode scanner,
the availability of databases: the operators, products, clients, warehouses, tares (packages), etc.

The application enables measurements execution and their record into a local database or on the server. Networked terminals allow transmission of the measurements to the parent database installed on the server.

The ability to work with a computer program E2R SYSTEM.

Terminal types:

PUE 5.15R, PUE 5.19R – resistive touch screen technology. Protection class IP 66. High resistance to moisture and dust. In comparison to remaining models, limited brightness and lower resistance to shocks and scratches. Possibility of operation using gloves preventing scratches (latex, material).
PUE 5.15IR, PUE 5.19IR – infrared touch screen technology. Protection class IP 66/67. Very high brightness and readability level. High resistance to moisture and dust. High mechanical resistance, possibility of operation using gloves (made of latex, material or even steel chain).
PUE 5.15C, PUE 5.19C – capacitive touch screen technology. Protection class IP 66/67/69. High brightness and readability level. High resistance to moisture and dust, good mechanical resistance. Absolute precision of touch detection, sensing multiple points of touch (multi-touch).
