THBR 2.0 System - Ambient Conditions Monitoring

THB S Environmental Conditions Sensor
This image is for reference only.
close Exit
This image is for reference only.
Availability:
In stock
Estimated shipping date :
15 working days

Need it urgently? Call us to check real-time stock availability: +44 (0)1625 569569

Price:
994.80
 GBP
with 20% VAT, shipping cost not included
Choose a variant:
THB S Environmental Conditions Sensorkeyboard_arrow_down
  • THB-R
  • THB W Liquid Temperature Sensor
  • THBR Box Ambient Conditions Recorder
  • THB S Environmental Conditions Sensor
  • THB P Environmental Conditions Sensor
  • THB S PRO Environmental Conditions Sensor
  • THB P PRO Environmental Conditions Sensor
  • THB W PRO Liquid Temperature Sensor

Pcs.

Add to basket
We are near you.
We have been manufacturing weighing devices since 1984.

RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569

Delivery only on the territory of United Kingdom
Optional paid installation and training service available - please contact us for details and pricing.
Datasheet - THB S Environmental Conditions SensorDatasheet - THB S Environmental Conditions Sensor
Code:
WX-016-0160
2 years warranty
2 years warranty

Datasheet

Temperature readability [d]
0,01 °C
Temperature measurement accuracy
± 0,1 °C
Measured pressure range
850 – 1050 hPa
Pressure readability [d]
0,1 hPa
Pressure measurement accuracy
1 hPa
Measured humidity range
0 – 100 %
Operating temperature
+5 – +45 °C
Humidity readability [d]
0,1 %
Humidity measurement accuracy
± 1,8 %
Communication interface
USB 2.0
Vibrations detection
YES
Air density determination
YES
Measured temperature range
+5 – +45 °C
Net weight
260 g
Gross weight
0,44 kg

Overview

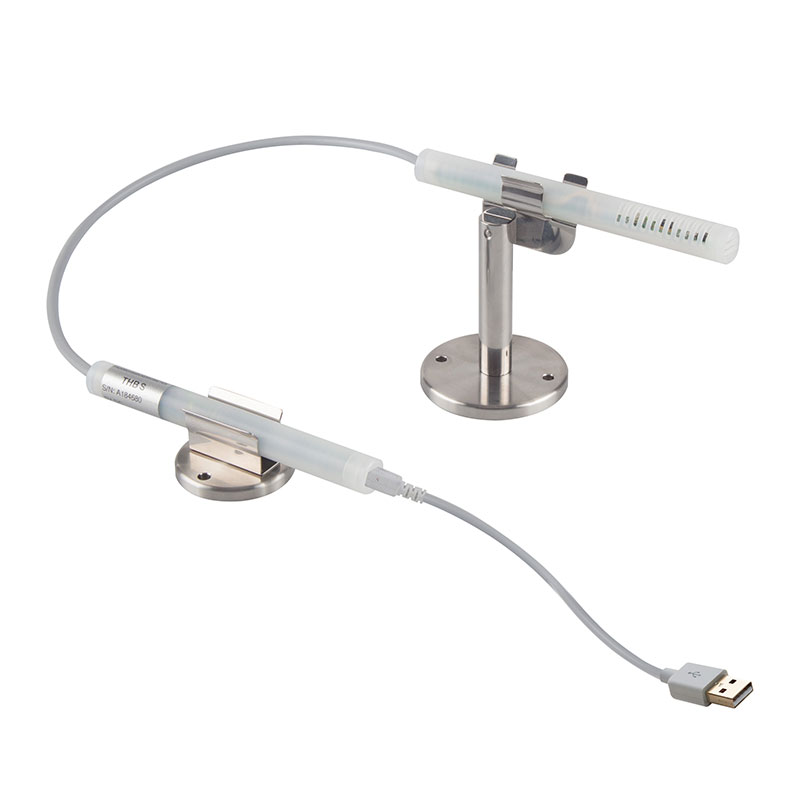

THB S Environmental Conditions Sensor



THB sensor

THB sensor is a device measuring ambient conditions, it cooperates with:
  • a computer (1 sensor via USB 2.0 port); direct cooperation,
  • a weighing device (1 sensor via USB 2.0 port); direct cooperation,
  • a THBR Box (up to 4 sensors connected to THBR Box via USB 2.0 port).

The THB sensor is designed to measure parameters such as temperature, humidity, pressure, air density and vibrations level. Sensor registers level of permissible vibrations at the workstation, wherein the values of vibrations level are displayed within 0 - 100% range versus reference values in laboratory conditions. Values exceeding 100% threshold inform about potential occurrence of error greater than permissible error of mass measurement performed using weighing device.












Each sensor has its own identification number that is assigned to measurements saved to the database.


Ambient conditions can be monitored using:
  • weighing instrument display
  • website
  • Windows OS application: THB Single or THB Multi
  • Android application.

On the basis of sent measurements, the THB Single or THB Multi software determines air temperature, humidity, pressure, density and permissible vibrations factor.
