Stainless Steel HRP EX.H Platforms

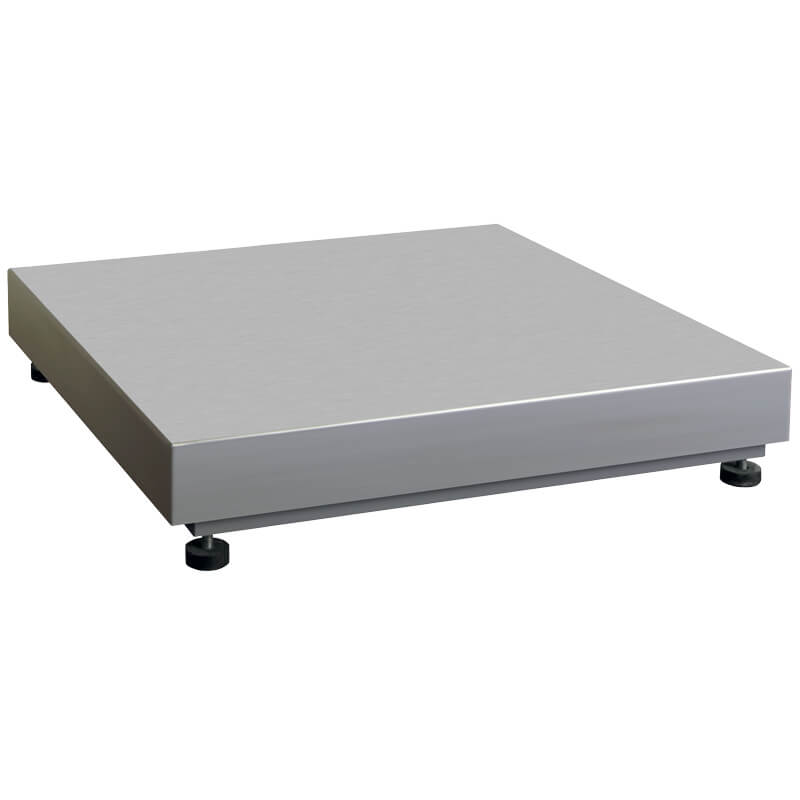

High Resolution Platforms PL.2000.HRP.EX.H
This image is for reference only.
High Resolution Platforms PL.2000.HRP.EX.HHigh Resolution Platforms PL.2000.HRP.EX.HHigh Resolution Platforms PL.2000.HRP.EX.H
close Exit
This image is for reference only.
High Resolution Platforms PL.2000.HRP.EX.HHigh Resolution Platforms PL.2000.HRP.EX.HHigh Resolution Platforms PL.2000.HRP.EX.H
Availability:
In stock
Estimated shipping date :
15 working days

Need it urgently? Call us to check real-time stock availability: +44 (0)1625 569569

Price:
Individual pricing
Choose a variant:
High Resolution Platforms PL.2000.HRP.EX.Hkeyboard_arrow_down
  • High Resolution Platforms PL.1100.HRP.EX.H
    Max: 1100kg | d: 10g
  • High Resolution Platforms PL.120.HRP.EX.H
    Max: 120kg | d: 1g
  • High Resolution Platforms PL.150.HRP.EX.H
    Max: 150kg | d: 1g
  • High Resolution Platforms PL.16.HRP.EX.H
    Max: 16kg | d: 0,1g
  • High Resolution Platforms PL.2000.HRP.EX.H
    Max: 2000kg | d: 10g
  • High Resolution Platforms PL.300.1.HRP.EX.H
    Max: 300kg | d: 1g
  • High Resolution Platforms PL.300.HRP.EX.H
    Max: 300kg | d: 1g
  • High Resolution Platforms PL.32.HRP.EX.H
    Max: 32kg | d: 0,1g
  • High Resolution Platforms PL.600.HRP.EX.H
    Max: 600kg | d: 5g
  • High Resolution Platforms PL.62.HRP.EX.H
    Max: 62kg | d: 0,5g
  • High Resolution Platforms PL.10.HRP.EX.H
    Max: 10kg | d: 0,02g
  • High Resolution Platforms PL.150.1.HRP.EX.H
    Max: 150kg | d: 1g
  • 4IN/4OUT Module (493.20 GBP)
    • We are near you.
    We have been manufacturing weighing devices since 1984.

    RADWAG UK Limited
    16 Macon Court, Herald Drive, Crewe, CW1 6EA
    +44 01625 569569

    Delivery only on the territory of United Kingdom
    Optional paid installation and training service available - please contact us for details and pricing.
    Datasheet - High Resolution Platforms PL.2000.HRP.EX.HDatasheet - High Resolution Platforms PL.2000.HRP.EX.H
    Code:
    WX-009-0289
    CE
    CE
    2 years warranty
    2 years warranty
    Scales with ATEX certificate
    Scales with ATEX certificate
    Scales with IECEx certificate
    Scales with IECEx certificate

    Datasheet

    Maximum capacity [Max]
    2000 kg
    Preload range
    200 kg
    Readability [d]
    10 g
    Tare range
    -2000 kg
    Repeatability
    30 g
    Linearity
    ±60 g
    Adjustment
    internal (automatic)
    Cable length
    10 m
    Protection class
    IP 66 / 67
    ATEX Certification
    ll 3G Ex ic IIC T4 Gc
    ll 3D Ex ic IIIC T60ºC Dc
    IECEx Certification
    Ex ic IIC T4 Gc
    Ex ic IIIC T60ºC Dc
    Communication interface
    RS485
    Power supply
    100 – 240 V AC 50/60 Hz
    Operating temperature
    +10 – +40 °C
    Relative humidity
    15% – 80%
    Construction
    Stainless steel AISI304
    Weighing pan material
    Stainless steel AISI304
    Weighing pan dimensions
    1250×1000 mm
    Net weight
    290 kg
    Gross weight
    415 kg

    Overview


    Stainless Steel HRP EX.H Platform


    Wherever high readability and precision are important. Wherever good repeatability in harsh industrial conditions matters. Stainless Steel HRP EX.H Platforms are the ideal solution for any type of industry.





    Repeatability that cannot be repeated by others

    Stainless Steel HRP EX.H Platforms have a built-in internal adjustment system. Automatic internal adjustment guarantees the best quality of work and repeatability of results. You save time and avoid the inconvenience of manual adjustment.









    Hazardous areas are their natural environment

    Stainless Steel HRP EX.H Platforms have been developed in accordance with Directive 2014/34/EU and the IECEx scheme and, depending on their design, can operate in environments containing explosive gases or dust, classified as zones: 2 and 22. We have equipped them with an intrinsically safe RS 485 communication interface, which allows the platform to work with the PUE HX5.EX weighing meter.







    To power the platforms, we have dedicated intrinsically safe PM02.EX-1-2 or PM02.EX-2-2 power supplies.









    Use the potential

    Stainless Steel HRP EX.H Platforms work with the PUE HX5.EX weighing terminal and are compatible with RADWAG receipt printers. In addition, you will match them with appropriate antivibration tables from our offer, and thus increase the readability of your measurements. The use of stainless steel for the construction of the pan guarantees you a long life of the platform. Fearless of its contact with moist objects or accidental splashing.
