Datasheet - DWR 1500 H1 Checkweigher

Code:

WK-104-1___

Automatic Scales verification

1 year warranty

Datasheet

Maximum capacity [Max]

300 – 6000 g

Readability [d]

0,2 – 2 g

Verification unit [e]

0,2 – 2 g

OIML Class

XIII (1)*, Y (a)

Display

12” graphic colour touchscreen

Protection class

IP 55, IP 65

Communication interface

RS232, USB, Ethernet, IN/OUT

Optional interfaces

Profibus, Profinet, EtherNet/IP, Modbus

Operating temperature

-10 – +40 °C

Keypad

touch screen

Construction

Stainless steel

Operating system

Microsoft Windows 11 IoT

Operating pressure

6 – 8 bar

Air consumption

1 liter/measurement

Capacity

max 80 pcs/min

Overview

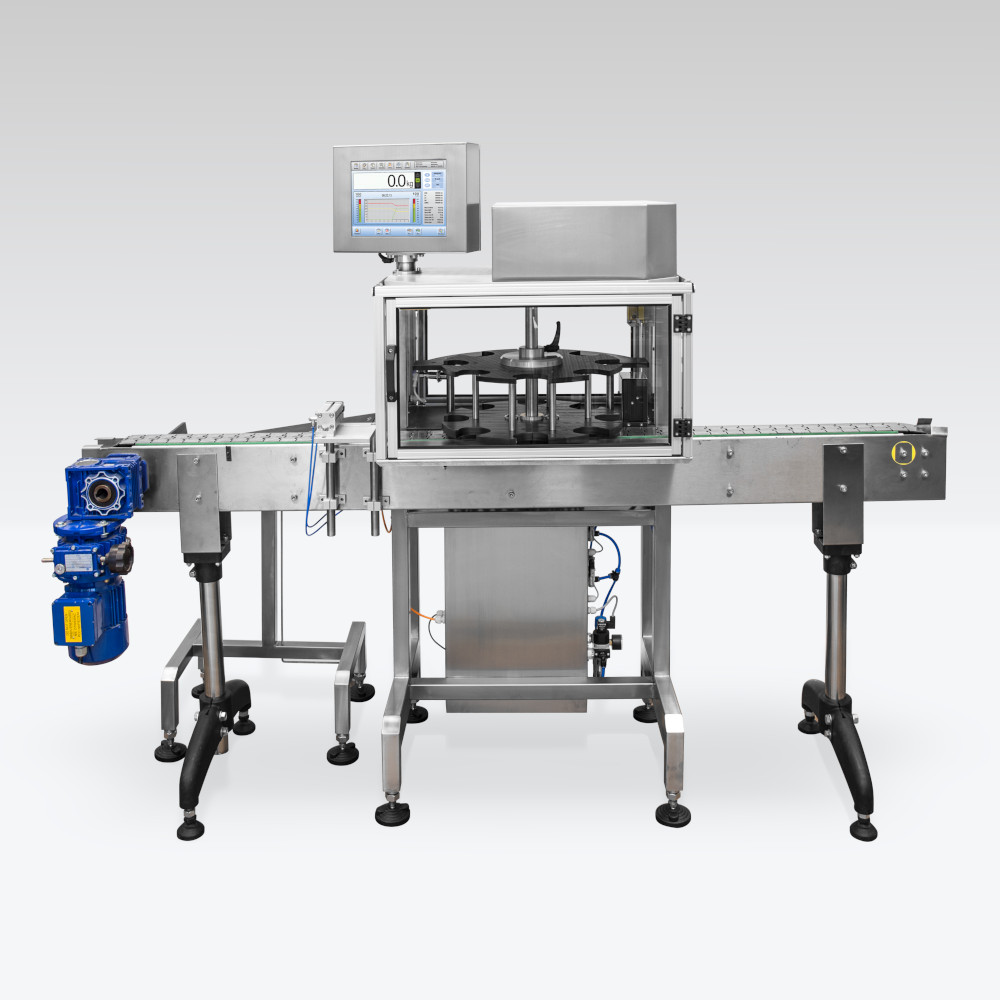

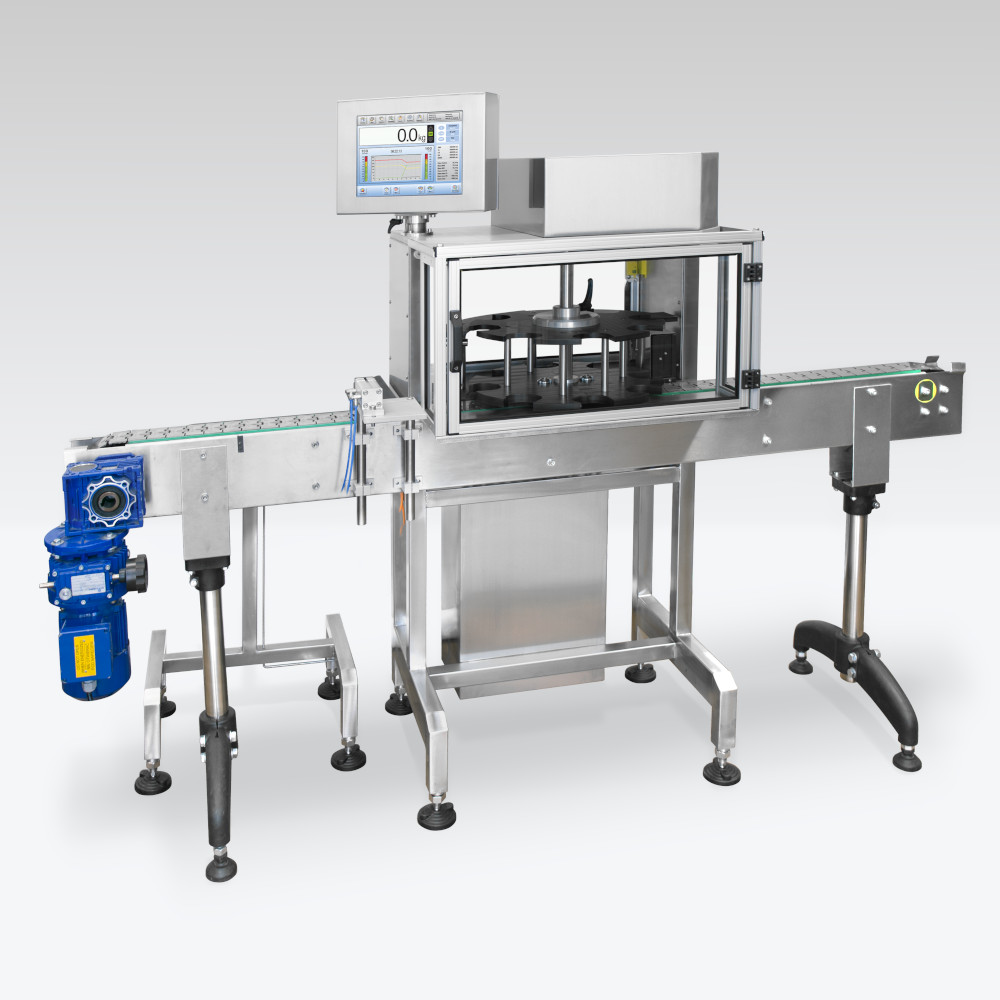

DWR 1500 H1 Checkweigher

Automatic rotational scales is designed for operation in technological lines of cylindrical packaged goods with diameter ø 35–66 mm*, like aerosols, sprays, glass and plastic bottles, etc. The device is operates in accordance with regulation on Control of Prepacked Goods.

Intuitive operation and quick implementation

Control unit is based on Windows 11 IoT software and SQL database server. Industrial computer is designed to operate in hard industrial conditions. Its cooperation with specially prepared Windows platform makes the system stable and allows for holding set parameters. Graphic and touch screen communication panel makes operation very easy and intuitive which has already been appreciated by users.
Rotational device is not equipped with its own conveyor belt, it is mounted over an existing one, which significantly shortens and simplifies its installation. The scale is pneumatically powered. This provides high durability and reliability.

Full control on the production line

Rotational scales provide 100 % control of goods transported on the processing line. Goods that do not meet set thresholds are discriminated from the line.

Main application:
✔ Chemical industry,
✔ Pharmaceutical industry,
✔ Distilling industry,
✔ Food processing industry.

A comprehensive weight control and data management system

Control of goods in accordance with regulation on Control of Packaged Goods,
Acquiring data on controlled goods,
Definable access levels for scale users,
Discrimination of defective goods by weight,
Extended statistics conducted in real time,
Built-in line performance meter,
Reports generated automatically in accordance with the weighing mode,
Export of reports to PDF files,
Cooperation with other devices in a processing line,
Remote start and stop function,
Detection of line congestion,
Detection of empty line,
Cooperation with computer software.

Basic technical data:

Industrial Windows 11 IoT system,
Industrial computer designed for operation in hard conditions,
Graphic touch screen,
Databases applying SQL servers,
Interfaces and ports: RS232, USB and Profibus,
Ethernet,
Controlling - informative outputs control,
IP55 or IP65.

Cooperation with peripheral devices

Rotational scale is prepared to cooperate with peripheral devices, and devices form a processing line. I/O set provides broad configuration possibilities and full integration of the scale with an existing processing line.

✔ Cooperation with dosing device with feedback,
✔ Cooperation with barcode scanner,
✔ Printouts on receipt printers,
✔ Remote control,
✔ Keeping records from weighing on a computer.

*It is possible to weigh containters with other diameter.
