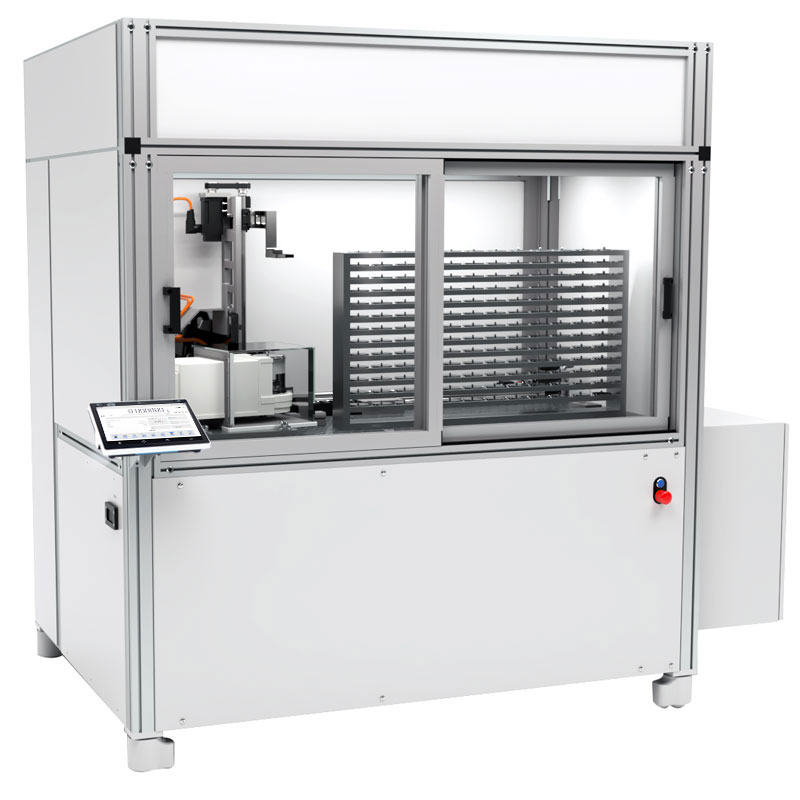

RMC F Robotic Weighing System

The RMC 2.5Y.FC filter robot is a professional-class measuring device ensuring full automation of filter mass measurement. The robot is based on MYA 5Y microbalance mechanism that guarantees unrivalled repeatability and readability of d= 1 µg. The device enables weighing up to 156 filters.

The device is enclosed in a tight and dustproof chamber protecting it against any contamination. The air conditioning and humidification system ensures stable and fixed ambient conditions inside the chamber, which guarantees correct filters conditioning. Ambient conditions monitoring allows control of current chamber status, record and report of data.

Advantages:

• Compliance with EN 12341:2014 standard
• Less time consuming when compared to manual filter weighing
• Elimination of human factor as the reason of measurement errors
• Process management using RMCS Filter software
• Automatic data recording, creating reports and statistics
• Coding and identification of filters using QR code system
• Elimination of the influence of electrostatics onto the measurement
• Hermetic robot chamber and the chamber for filter weighing
• Air conditioning system, HEPA filter
• Increased pressure in the chamber prevents contamination

The RMC 2.5Y.FC filter robot comprises:

• a six-position reference magazine for storing mass standards and reference filters;
• a robot with a gripper enabling transport of the filters between the magazine and the microbalance, the robot moves on three axes: X,Y,Z;
• a microbalance with a draft shield;
• an ionizing system;
• an air conditioning system with HEPA filter for cleaning the air in the vicinity of the robot chamber;
• ambient conditions monitoring (temperature, humidity, pressure);
• a weighing indicator for managing of the device operation;
• an integrated QR code reader;
• a QR code printer;
• a PC with the RMCS Filter software for managing the device operation;
• a control and adjustment systems;
• an external air conditioning unit.
