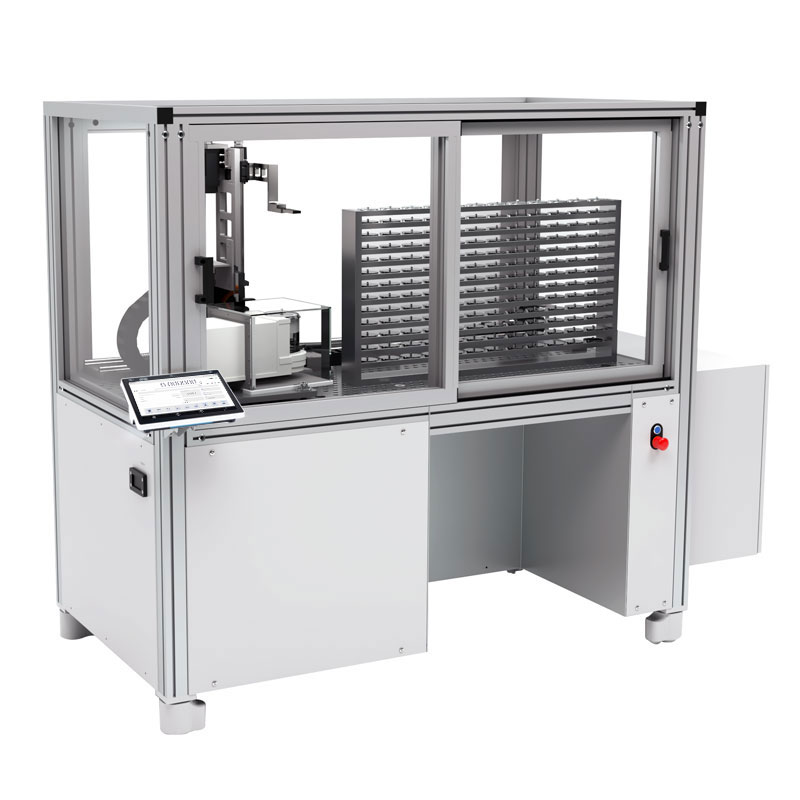

RMC F Robotic Weighing System
This image is for reference only.
Exit
This image is for reference only.
Availability:
In stock
Estimated shipping date :
Ask for delivery time
Need it urgently? Call us to check real-time stock availability: +44 (0)1625 569569
Price:
147492.00
GBP
with 20% VAT, shipping cost not included
Choose a variant:
RMC 2.5Y.F Robotic Weighing System
- RMC 2.5Y.F Robotic Weighing SystemMax: 2.1g | d: 1µg
- RMC 2.5Y.FC Robotic Weighing SystemMax: 2.1g | d: 1µg
Pcs.
Add to basket
We are near you.
We have been manufacturing weighing devices since 1984.
RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569
Delivery only on the territory of United Kingdom
We have been manufacturing weighing devices since 1984.
RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569
Delivery only on the territory of United Kingdom
Optional paid installation and training service available - please contact us for details and pricing.
Datasheet - RMC 2.5Y.F Robotic Weighing SystemCode:
WL-504-0003
CE
1 year warranty
Datasheet
Maximum capacity [Max]
2,1 g
Readability [d]
1 µg
Verification unit [e]
1 mg
Tare range
-2,1 g
Repeatability (Max)
1 – 2 µg
Repeatability (5% Max)
0,5 µg
Linearity
≤ 1,5 µg
Stabilization time
10 - 20 s
Adjustment
internal
OIML Class
I
Display
10″ graphic colour touchscreen
Touch-free operation
2 IR Sensors
Communication interface
2×USB-A, USB-C, RS 232 (COM3), HDMI, Ethernet, Wi-Fi®, Hotspot
Power supply
110 – 240 V AC 50/60 Hz
Operating temperature
+10 – +40 °C
Storage temperature
-20 – +50 °C
Operating temperature change rate
±0,3 °C / 1 h (±1 °C / 8 h)
Relative humidity
30% – 70%
Relative humidity change rate
±1% / h (±4% / 8 h)
Keypad
8 buttons
Device dimensions W x D x H
2108×1067×1595 mm
Net weight
400 kg
Gross weight
500 kg
Magazine
156 pcs
Overview
RMC 2.5Y.F Robotic Weighing System
The RMC 2.5Y.F filter robot is a professional-class measuring device ensuring full automation of filter mass measurement. The robot is based on MYA 5Y microbalance mechanism that guarantees unrivalled repeatability and readability of d= 1 µg. The device enables weighing up to 156 filters.
The device is enclosed in a tight and dustproof chamber protecting it against any contamination. Ambient conditions monitoring allows control of current chamber status and report of data.
Advantages:
- Compliance with EN 12341:2014 standard
- Less time consuming when compared to manual filter weighing
- Elimination of human factor as the reason of measurement errors
- Process management using RMCS Filter software
- Automatic data recording, creating reports and statistics
- Coding and identification of filters using QR code system
- Elimination of the influence of electrostatics onto the measurement
The RMC 2.5Y.F filter robot comprises:
- a six-position reference magazine for storing mass standards and reference filters;
- a robot with a gripper enabling transport of the filters between the magazine and the microbalance, the robot moves on three axes: X,Y,Z;
- a microbalance with a draft shield;
- an ionizing system;
- ambient conditions monitoring (temperature, humidity, pressure);
- a weighing indicator for managing of the device operation;
- an integrated QR code reader;
- a QR code printer;
- a PC with the RMCS Filter software for managing the device operation.
