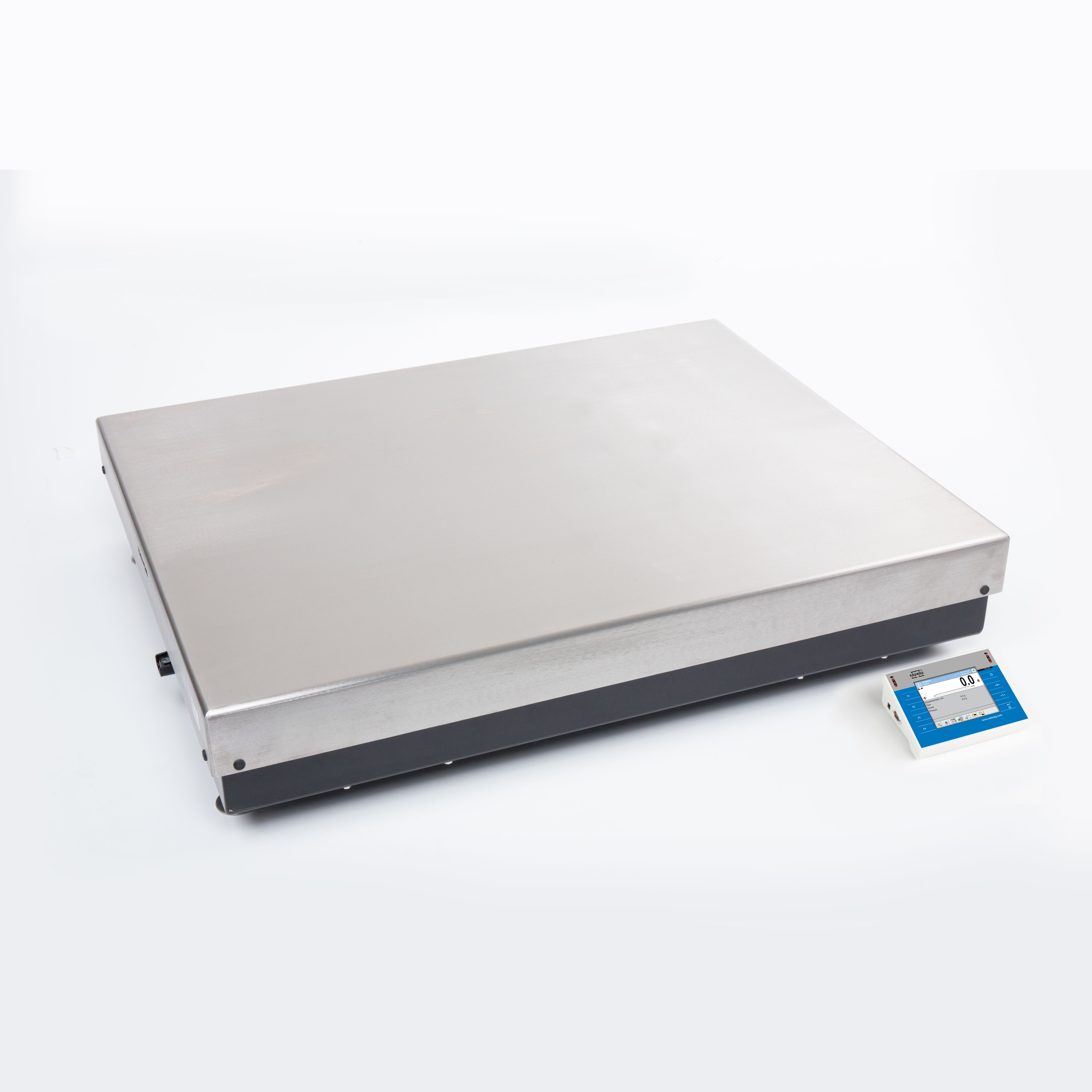

Datasheet - PUE 7.1.1100.HRP.M2.1 High Resolution Scale

Code:

WP-350-0034

Verification

2 years warranty

Datasheet

Maximum capacity [Max]

1100 kg

Minimum load

500 g

Preload range

100 kg

Readability [d]

10 g

Verification unit [e]

100 g

Tare range

-1100 kg

Repeatability

15 g

Linearity

±30 g

Stabilization time

3 s

Adjustment

internal (automatic)

OIML Class

Display

5,7” Resistive Color Touchscreen

Protection class

IP 66 / 67 construction, IP 43 terminal

Communication interface

2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital), Wi-Fi^®

Power supply

100 – 240 V AC 50/60 Hz

Maximum quantity of verification units

11000 e

Operating temperature

+10 – +40 °C

Relative humidity

15% – 80%

Construction

mild steel St3S

Weighing pan material

Stainless steel AISI304

Weighing pan dimensions

1000×800 mm

Device dimensions W x D x H

360×313×170 mm

Packaging dimensions W x D x H

1000×1200×436 mm

Net weight

126 kg

Gross weight

160 kg

Overview

High Resolution Scale

The HRP high resolution scales feature a cutting-edge measuring system based on

MONO

BLOCK^® technology. It allows working with a readability of 1 g at a maximum capacity of 300 kg and 20 g at a maximum capacity of 2000 kg, with a repeatability of 3 g guaranteed.

9 advantages, 1 monobloc

The ability to weigh loads up to 150 kg on a large pan with high readability and good repeatability, minimal eccentricity error over the entire range, fast and stable measurement (achievable within 1 second), stability of parameters over time and after transport, and a pan dimension adapted to the scale’s readability – all this is the result of using a measurement system based on improved technology.

Repeatability not repeatable by others

Automatic adjustment with an internal weight not only guarantees the best quality of work and repeatability of results, but also saves time and provides comfort. The HRP high resolution scales feature a cutting-edge measuring system based on

MONO

BLOCK^® technology. It allows working with a readability of 1 g at a maximum capacity of 300 kg and 20 g at a maximum capacity of 2 000 kg, with a repeatability of 3 g guaranteed.

For such industries as pharmaceutical, chemical, food and…

HRP scales are ideal for industrial conditions where high readability and repeatability of measurement are required, such as in the pharmaceutical, chemical and food industries.

Choose a terminal

HRP high-resolution scales can work with one of two industrial terminals: PUE 7.1 and PUE HY10.

The PUE 7.1 terminal has:

5.7-inch color resistive display
a touch-sensitive keyboard
ABS plastic housing
IP 43 protection rating
communication interfaces: 2xRS232, 2xUSB-A, Ethernet, 4 IN/ 4 OUT, Wi-Fi,
optional additional modules: additional A/D converter module DP6.

The PUE HY10 terminal features:

10.1-inch color graphic display
touchscreen keyboard
stainless steel housing
IP 68/69 degree of protection
communication interfaces: 2xRS232, 2xUSB-A, Ethernet, 4 IN/ 4 OUT,
optional additional modules: Wi-Fi, RS485, Profibus, Profinet, analog output module, 12 IN/ 12 OUT.

The power of steel

The use of stainless steel for weighing pan construction guarantees you a long life for the scale. It is not afraid of contact with moist objects or accidental splashes.

The robustness and strength of the design of the HRP high-resolution scales makes it possible to weigh large objects, such as pallets of goods. The stable platform is resistant to vibration, which is important when weighing large objects.

Do you need ALIBI?

There you have it. ALIBI memory is like a black box of a scale. It records all measurements taken on the device. The ALIBI memory cannot be modified or erased.

Use the potential

Barcode scanners, receipt printers, label printers or additional displays – thanks to multipurpose software, PUE 7.1 scale can work with all of them. You can find all accessories in our regular offer. And if you have questions about compatibility, our experts will help you.

Not just weighing

But also parts counting, checkweighing, percent weighing, animal weighing, formulations, differential weighing, labelling, peak hold and statistics. The power of PUE 7.1’s working mods.
