Datasheet - PS 750.X7 Precision Balance

Code:

WL-226-0016

Verification

2 years warranty

Datasheet

Maximum capacity [Max]

750 g

Minimum load

20 mg

Readability [d]

1 mg

Verification unit [e]

10 mg

Tare range

-750 g

Minimum weight (USP)

1 g

Minimum weight (U=1%, k=2)

0,1 g

Standard repeatability [Max]

1,5 mg

Standard repeatability [5% Max]

0,5 mg

Linearity

±3 mg

Sensitivity temperature drift

2×10⁻⁶/°C×Rt

Stabilization time

2 s

Adjustment

internal (automatic)

Leveling system

manual

OIML Class

Display

7″ graphic colour touchscreen

Protection class

IP 43

Delivery components

Balance, weighing pan, weighing pan shield, grounding bumper ×1, bumper ×3, power supply.

Database capacity

Products, Users, Packaging, Customers, Formulations, Formulations reports, Ambient Conditions, Weighings, Alibi memory

Touch-free operation

2 IR Sensors

Communication interface

2×RS232¹, USB-A, USB-B, Ethernet, Wi-Fi^®

Power supply

Adapter: 100 – 240V AC 50/60Hz 0.6A Max; 12V DC 1,2A
Balance: 12 – 15V DC 0,9A max; 4 – 8W*

Power consumption

4 W

Operating temperature

+10 – +40 °C

Ambient conditions monitoring (option)

THBR 2.0 System, THBR BOX, THB P, THB W, THB S

Relative humidity

40% – 80%

Weighing pan dimensions

128×128 mm

Packaging dimensions W x D x H

545×455×575 mm

Net weight

3,9 kg

Gross weight

5 kg

Overview

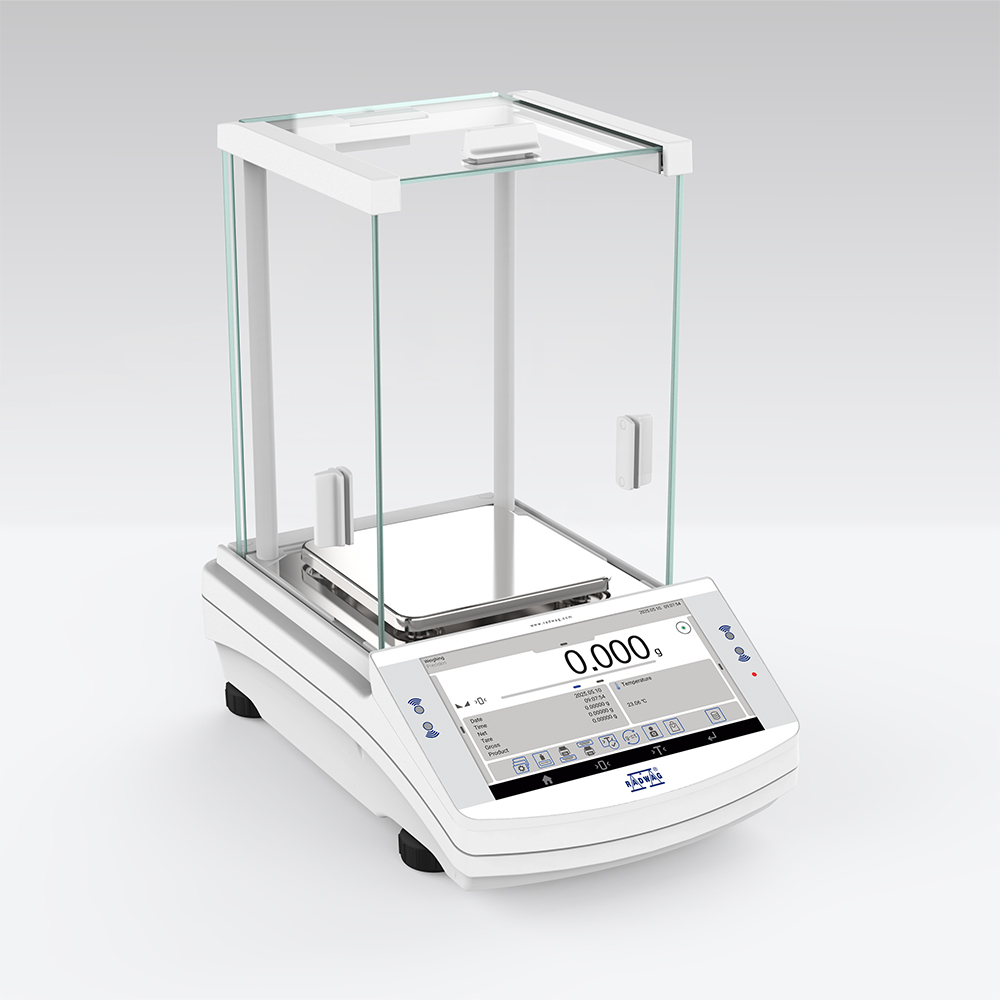

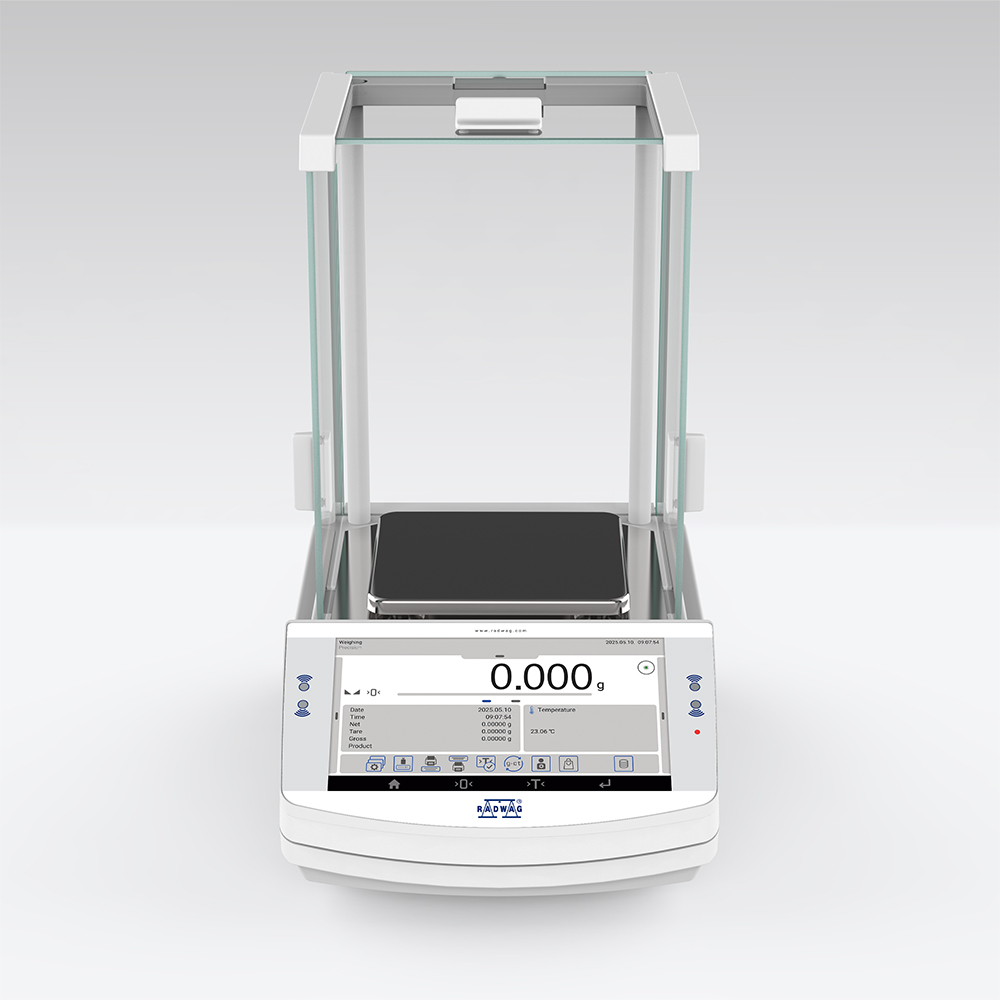

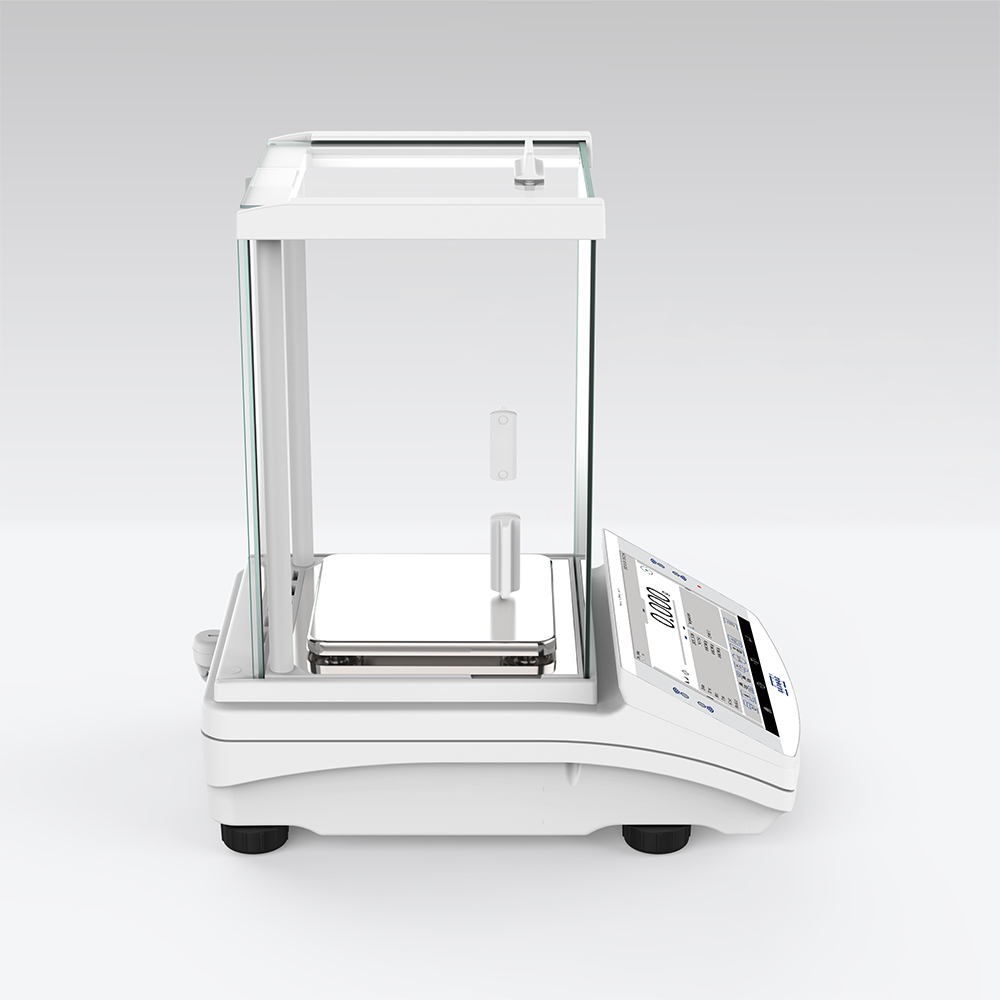

PS 750.X7 Precision Balance

PS X7 Precision Balances are distinguished by their simplicity of use, clarity of menu and intuitive layout of information on the display. Much of this is due to the 7-inch touchscreen display, but the latest generation of capacitive display, which provides maximum operating comfort, is not the only advantage of these balances.

Precision and comfort

PS X7 Precision Balances have a readability [d] of 1 to 10 mg, and a maximum capacity [Max] of 200 to 10,100 g; both of these parameters vary depending on the model. An advantage of this series balances is internal (automatic) adjustment, which relieves the user from having to carry out this complicated and precision-demanding procedure himself.

The PS X7 balances are equipped with two infrared sensors, which allow for non-contact operation. Built-in IR sensors allow numerous operations (e.g. tarring, transmitting the result to a printer or selecting successive steps of a particular process, etc.) to be performed handsfree, by simply moving a hand across the sensor.

New Possibilities

PS X7 Precision Balances enable user to design the layout of the information on the display through a wide selection of widgets. Personalizing the PS X7 balance display gives access to information and operating results directly from the main display panel.

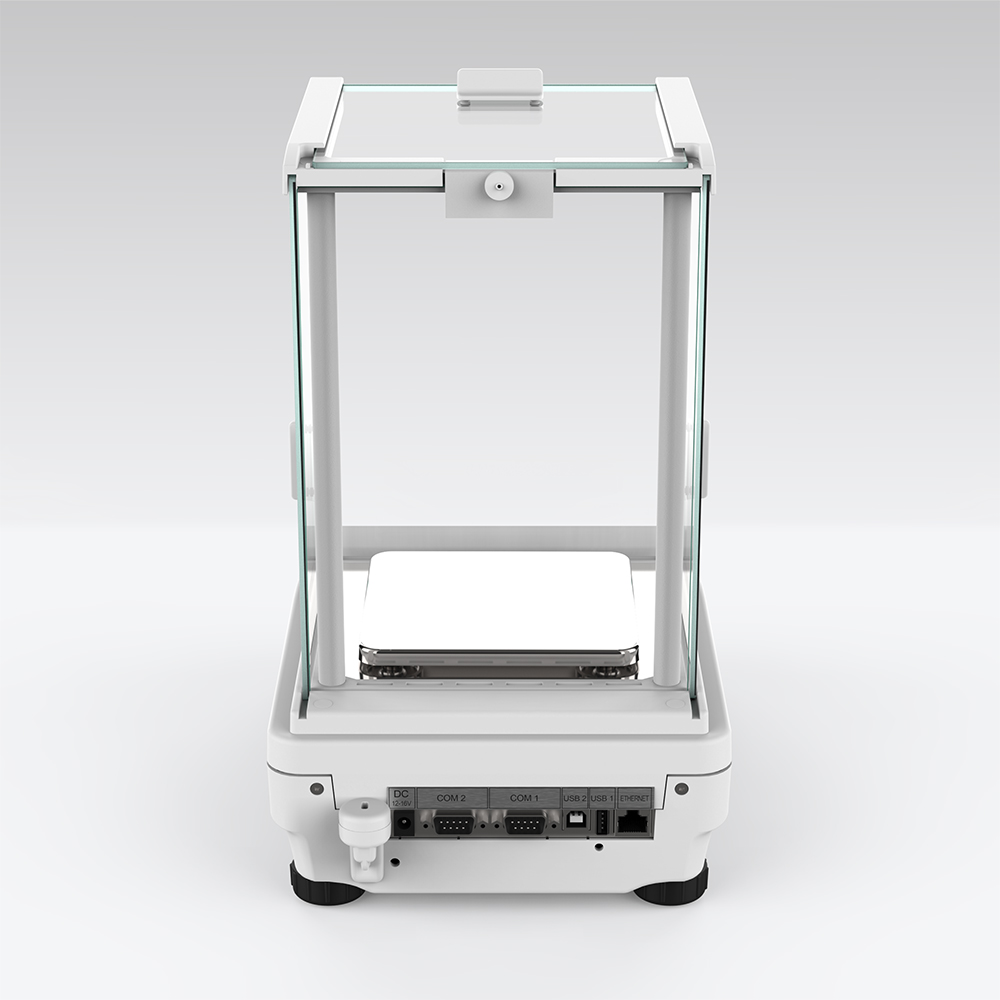

PS X7 Precision Balances are equipped with multiple communication interfaces: 2 x RS232, USB-A, USB-B, Ethernet and Wi-Fi. The balances housing is made of plastic, and the pan is made of stainless steel.

Databases

In PS X7 Precision Balances the information system is based on 9 databases which allow several users to work with database storing several products. The registered weighing results can be subject to further analysis.
The data is registered in 9 databases:

Products (5 000 products)
Users (100 users)
Packaging (100 packaging types)
Customers (1 000 customers)
Formulations (100 formulations)
Formulations reports (500 reports)
Ambient Conditions (10 000 records)
Weighings (50 000 records)
ALIBI memory (512 000 records).

Weighing Data Management

USB interface facilitates quick transfer and copying of any results of your work (measurements, reports, databases) to a computer or another balance. Data management on the balance is also possible online, through remote access to the balance and its database.

ALIBI Memory

PS X7 Precision Balances feature ALIBI memory, which guarantees safety as it automatically records measurements, and allows data prereview, copying and archiving.

The ALIBI memory allows to record up to 512 000 weighment records.

Under-pan weighing

Weighing instruments purchased after 15th February 2023 will allow under-pan weighing at any time after the purchase. All you need to do is just to order a dedicated hook.

THBR 2.0 System

Cooperation with THBR 2.0 System for ambient conditions monitoring.
