Datasheet - PS 6100.X7.M.PGC Precision Balance

Code:

WK-313-0004

Verification

2 years warranty

Datasheet

Maximum capacity [Max]

6100 g

Minimum load

5 g

Readability [d]

0,1 g

Verification unit [e]

0,1 g

Tare range

-6100 g

Minimum weight (USP)

10 g

Minimum weight (U=1%, k=2)

1 g

Repeatability (Max)

0,008 g

Repeatability (5% Max)

0,005 g

Linearity

±0,02 g

Sensitivity temperature drift

2×10⁻⁶/°C×Rt

Stabilization time

1,5 s

Adjustment

internal (automatic)

Leveling system

manual

OIML Class

Display

7″ graphic colour touchscreen

Protection class

IP 43

Delivery components

Balance, weighing pan, weighing pan shield, power supply

Touch-free operation

2 IR Sensors

Communication interface

2×RS232¹, USB-A, USB-B, Ethernet, Wi-Fi^®

Power supply

Adapter: 100 – 240V AC 50/60Hz 0.6A Max; 12V DC 1,2A
Balance: 12 – 15V DC 0,9A max; 4 – 8W*

Power consumption

4 W

Operating temperature

+10 – +40 °C

Storage temperature

-20 – +50 °C

Relative humidity

40% – 80%

Weighing pan dimensions

195×195 mm

Device dimensions W x D x H

333x206x107 mm

Packaging dimensions W x D x H

476×381×346 mm

Net weight

4,1 kg

Gross weight

5,5 kg

Overview

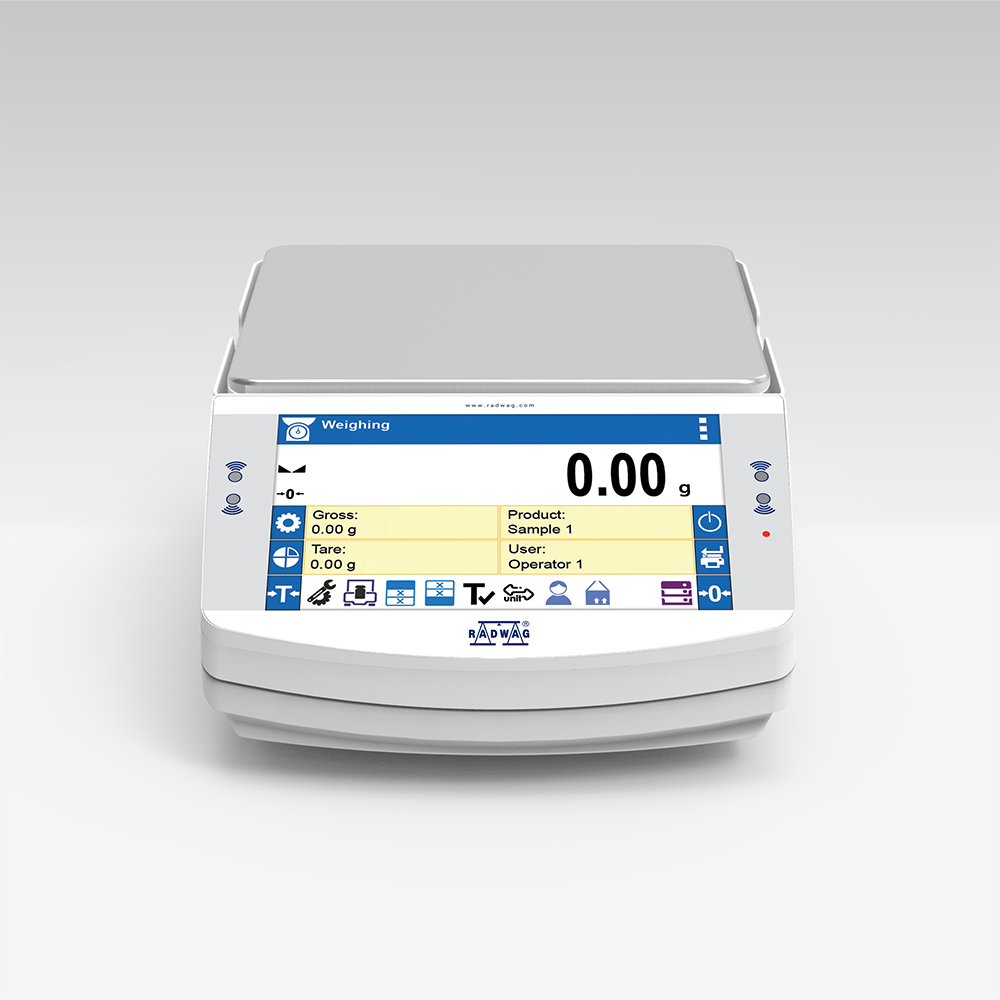

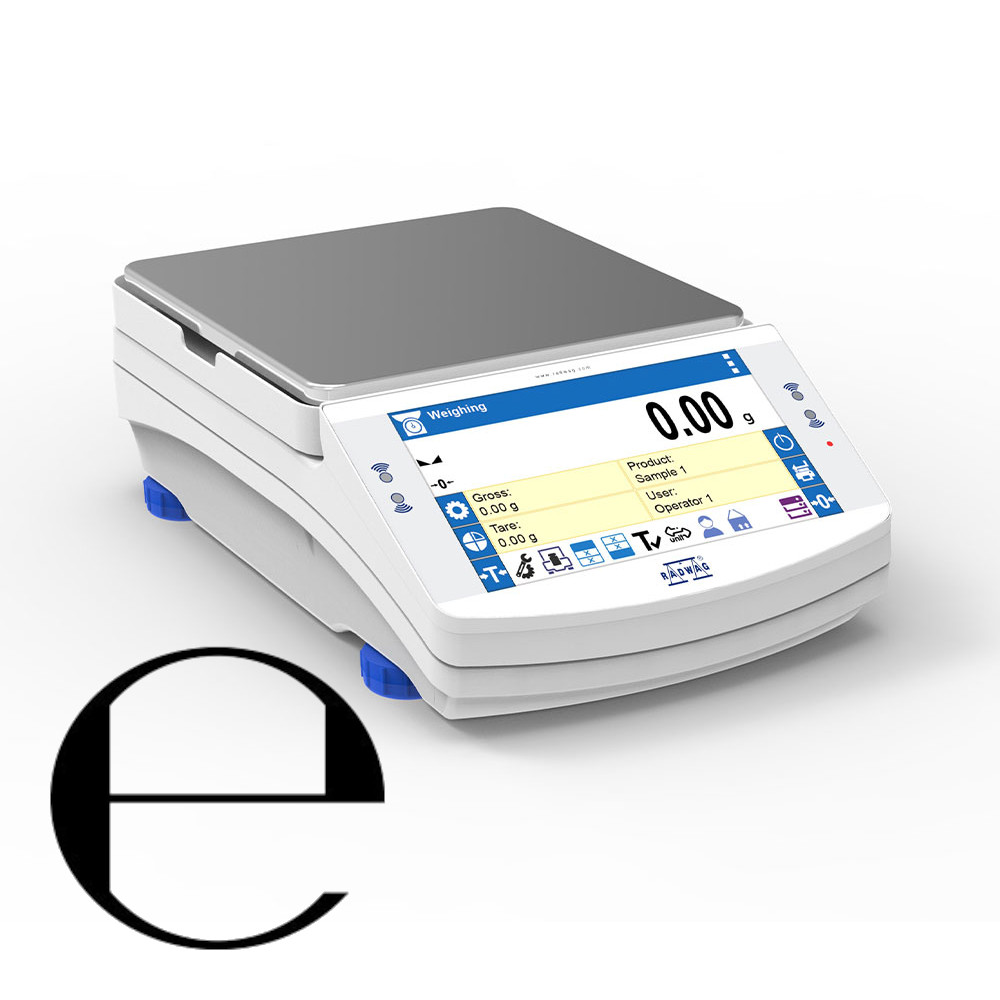

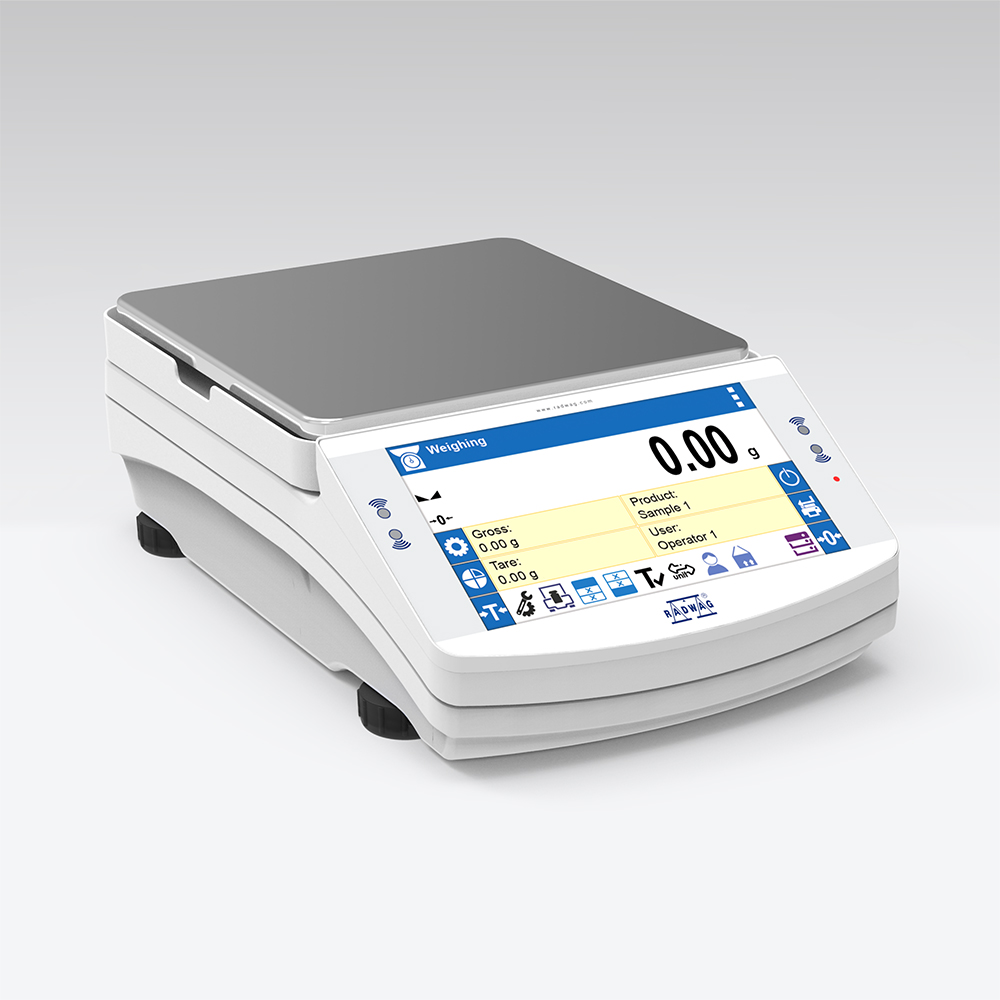

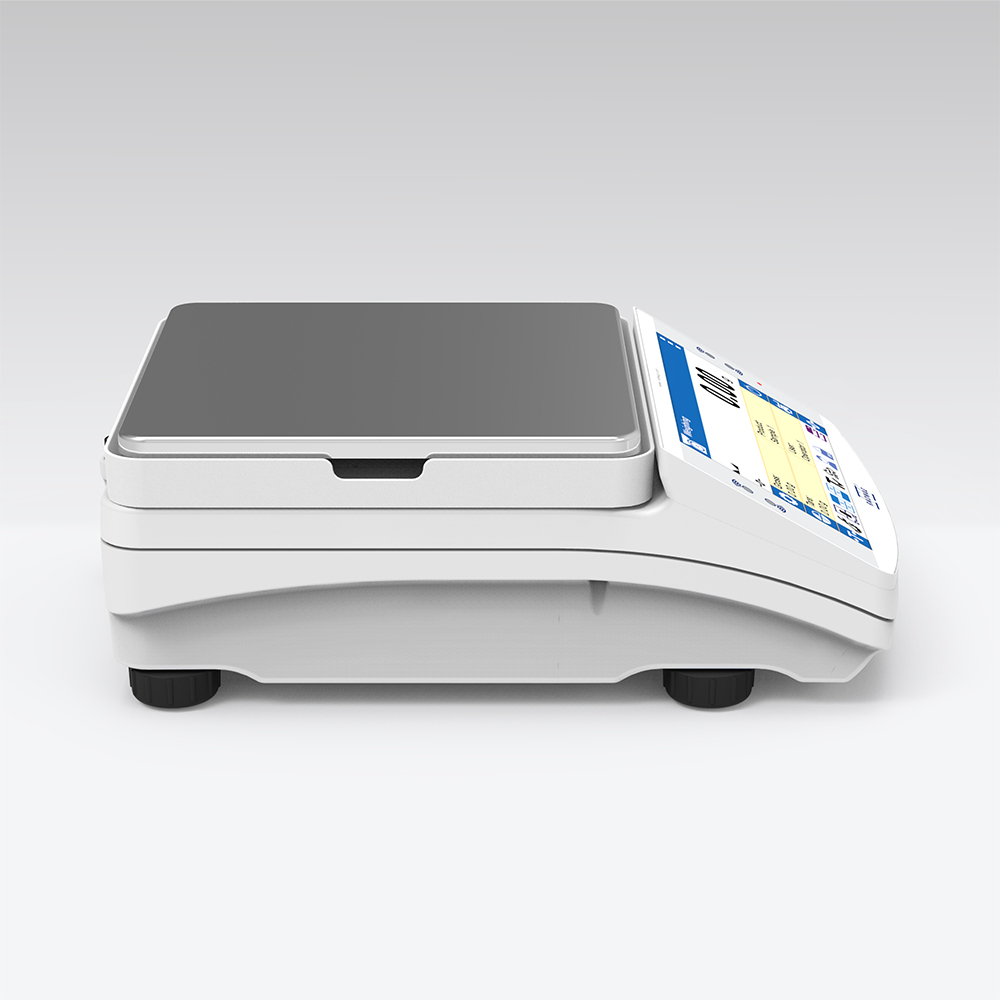

PS 6100.X7.M.PGC Precision Balance

The purpose of the scale is the packaged goods control (PGC), so remember that verification (legalization) is necessary.
We recommend ordering a scale with a proper verification (legalization).

PS X7.M is a series of advanced-class precision balances of high resolution based on
MONO
BLOCK technology. The innovative construction of PS X7.M balance features a new single-point weighing pan fastening, which ensures its excellent geometry and minimizes eccentricity error. The labyrinth-shape fastening guarantees excellent resistance to contamination.

Weighing module

MONO
BLOCK technology enables weighing loads with the readability of d=0.01 g at the maximum capacity of 10 kg. Rigid base ensures stability of the weighing system and great resistance to shocks.

Internal adjustment system means precision and high measurement repeatability. Leverage of internal weight mass enables adjustment within the whole measuring range.

Features:

d=0.01 g readability at 10 kg max capacity
great resistance to ambient conditions
stability and repeatability over time
MONO
BLOCK technology
internal adjustment within the whole measuring range
complex databases and ALIBI memory
ergonomic 7” colour touchscreen
touch-free operation

Databases

In PS X7.M Precision Balances the information system is based on 11 databases which allow several users to work with database storing several products. The registered weighing results can be subject to further analysis.

The data is registered in 11 databases:

Products (5 000 products)
Users (100 users)
Packaging (100 packaging types)
Customers (1 000 customers)
Formulations (100 formulations)
Formulations reports (500 reports)
Ambient Conditions (10 000 records)
Weighings (50 000 records)
ALIBI memory (512 000 records)
Control reports (1 000 reports)
Average tares (1 000 reports).

ALIBI memory

PS X7.M Precision Balances feature ALIBI memory, which guarantees safety as it automatically records measurements, and allows data prereview, copying and archiving. The ALIBI memory allows to record up to 512,000 weighment records.

New Possibilities

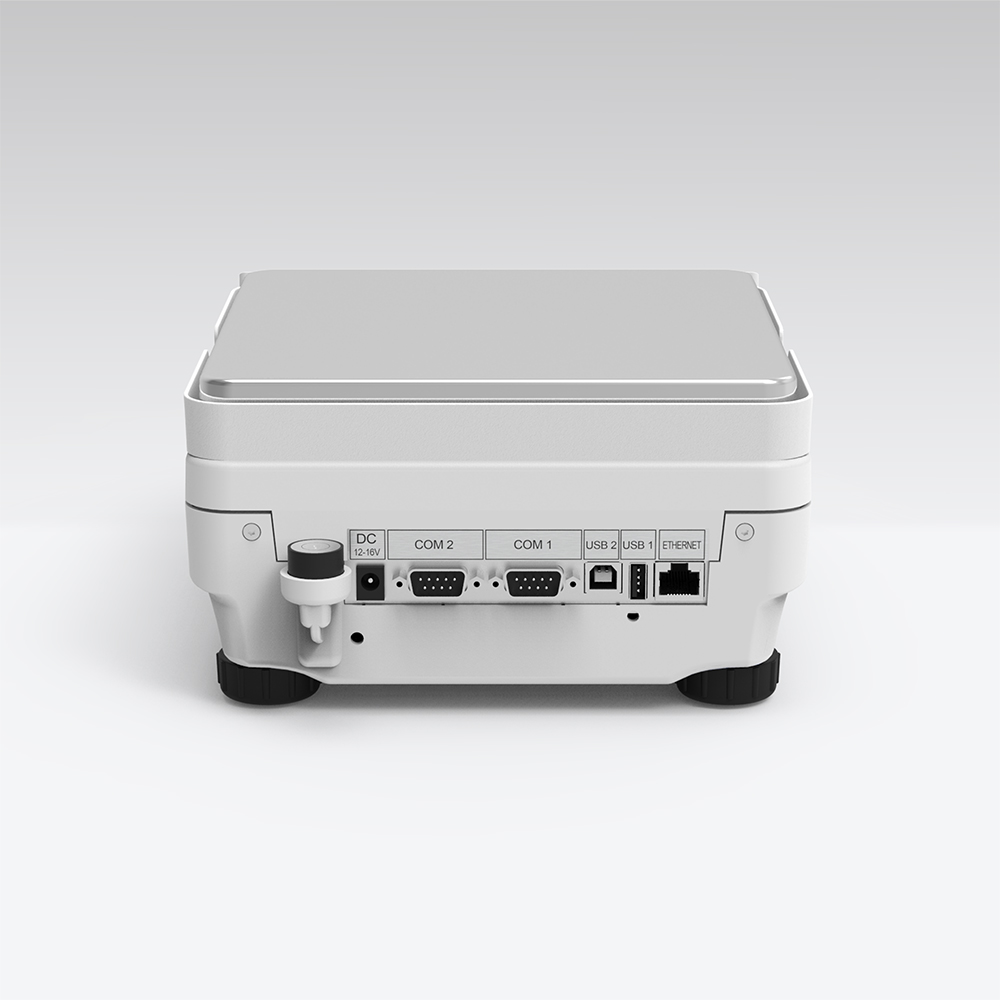

PS X7.M Precision Balances enable user to design the layout of the information on the display through a wide selection of widgets. Personalizing the PS X7.M balance display gives access to information and operating results directly from the main display panel. PS X7.M Precision Balances are equipped with multiple communication interfaces: 2 x RS232, USB-A, USB-B, Ethernet and Wi-Fi. The balances housing is made of plastic, and the pan is made of stainless steel.

USB allows for fast transfer and copying of work results (measurements, reports, databases) to a computer or other weighing device. The balance provides possibility of remote data management.

THBR 2.0 System

The balances work with THBR 2.0 System for ambient conditions monitoring.
