PS X7 Balances for PGC
This image is for reference only.
Exit
This image is for reference only.
Availability:
To order
Estimated shipping date :
15 working days
Need it urgently? Call us to check real-time stock availability: +44 (0)1625 569569
Price:
1923.60
GBP
with 20% VAT, shipping cost not included
Choose a variant:
PS 750.X7.PGC Precision Balance
- PS 750.X7.PGC Precision BalanceMax: 750g | d: 0,01g
- PS 4500.X7.M.PGC Precision BalanceMax: 4500g | d: 0,1g
- PS 6100.X7.M.PGC Precision BalanceMax: 6100g | d: 0,1g
- PS 2100.X7.M.PGC Precision BalanceMax: 2100g | d: 0,1g
Class II Verification (66.00 GBP)
Pcs.
Add to basket
We are near you.
We have been manufacturing weighing devices since 1984.
RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569
Delivery only on the territory of United Kingdom
We have been manufacturing weighing devices since 1984.
RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569
Delivery only on the territory of United Kingdom
Optional paid installation and training service available - please contact us for details and pricing.
Datasheet - PS 750.X7.PGC Precision BalanceCode:
WK-313-0001
CE
Verification
2 years warranty
Datasheet
Maximum capacity [Max]
750 g
Minimum load
0,5 g
Readability [d]
0,01 g
Verification unit [e]
0,01 g
Tare range
-750 g
Minimum weight (USP)
1 g
Minimum weight (U=1%, k=2)
0,1 g
Repeatability (Max)
0,0015 g
Repeatability (5% Max)
0,0005 g
Linearity
±0,003 g
Sensitivity temperature drift
2×10⁻⁶/°C×Rt
Stabilization time
2 s
Adjustment
internal (automatic)
Leveling system
manual
OIML Class
II
Display
7″ graphic colour touchscreen
Protection class
IP 43
Delivery components
Balance, weighing pan, weighing pan shield, grounding bumper ×1, bumper ×3, power supply.
Touch-free operation
2 IR Sensors
Communication interface
2×RS232¹, USB-A, USB-B, Ethernet, Wi-Fi®
Power supply
Adapter: 100 – 240V AC 50/60Hz 0.6A Max; 12V DC 1,2A
Balance: 12 – 15V DC 0,9A max; 4 – 8W*
Balance: 12 – 15V DC 0,9A max; 4 – 8W*
Power consumption
4 W
Operating temperature
+10 – +40 °C
Relative humidity
40% – 80%
Weighing pan dimensions
128×128 mm
Packaging dimensions W x D x H
545×455×575 mm
Net weight
3,9 kg
Gross weight
5 kg
Overview

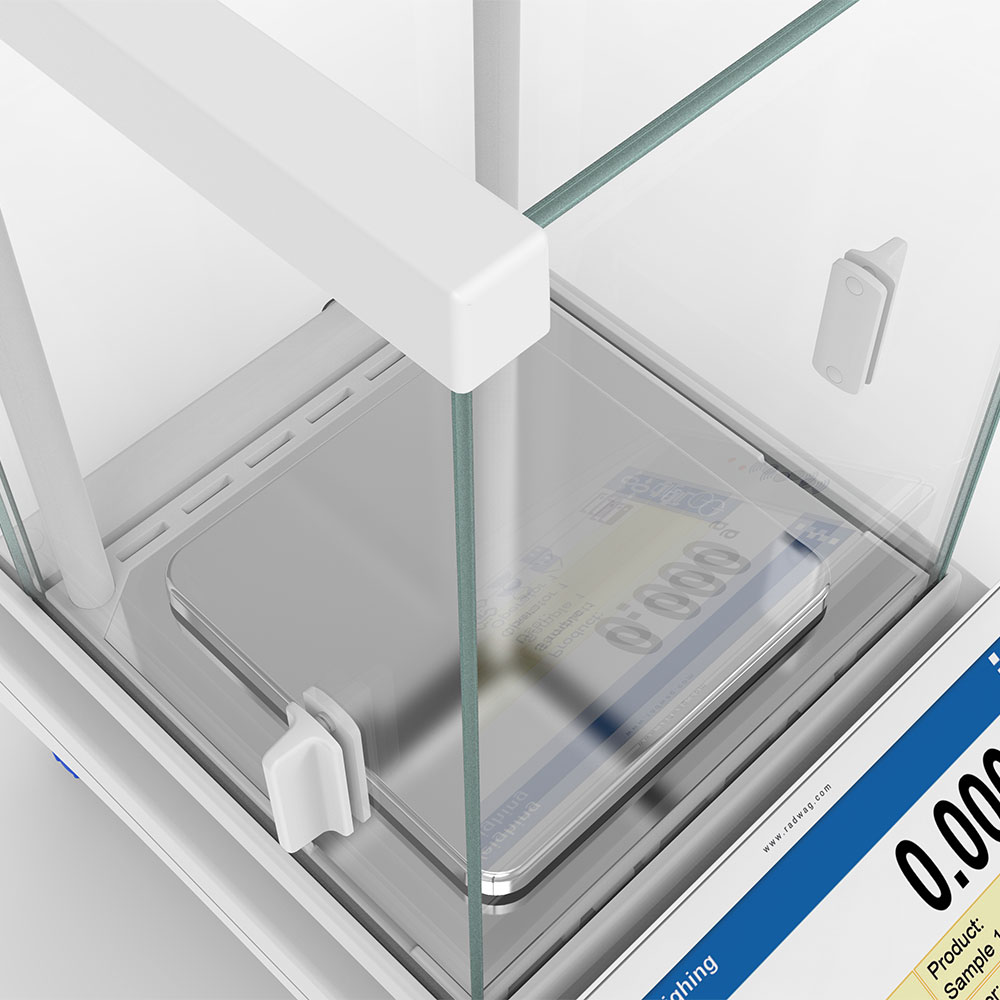

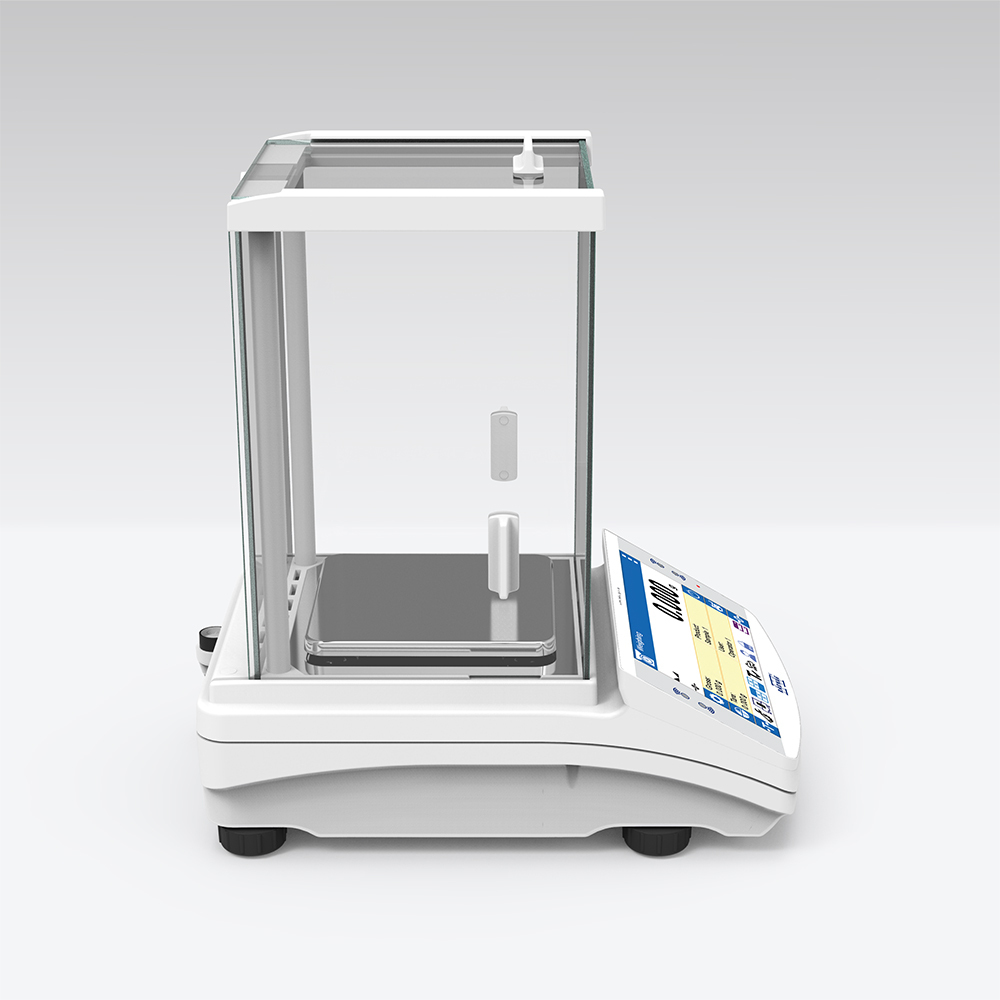

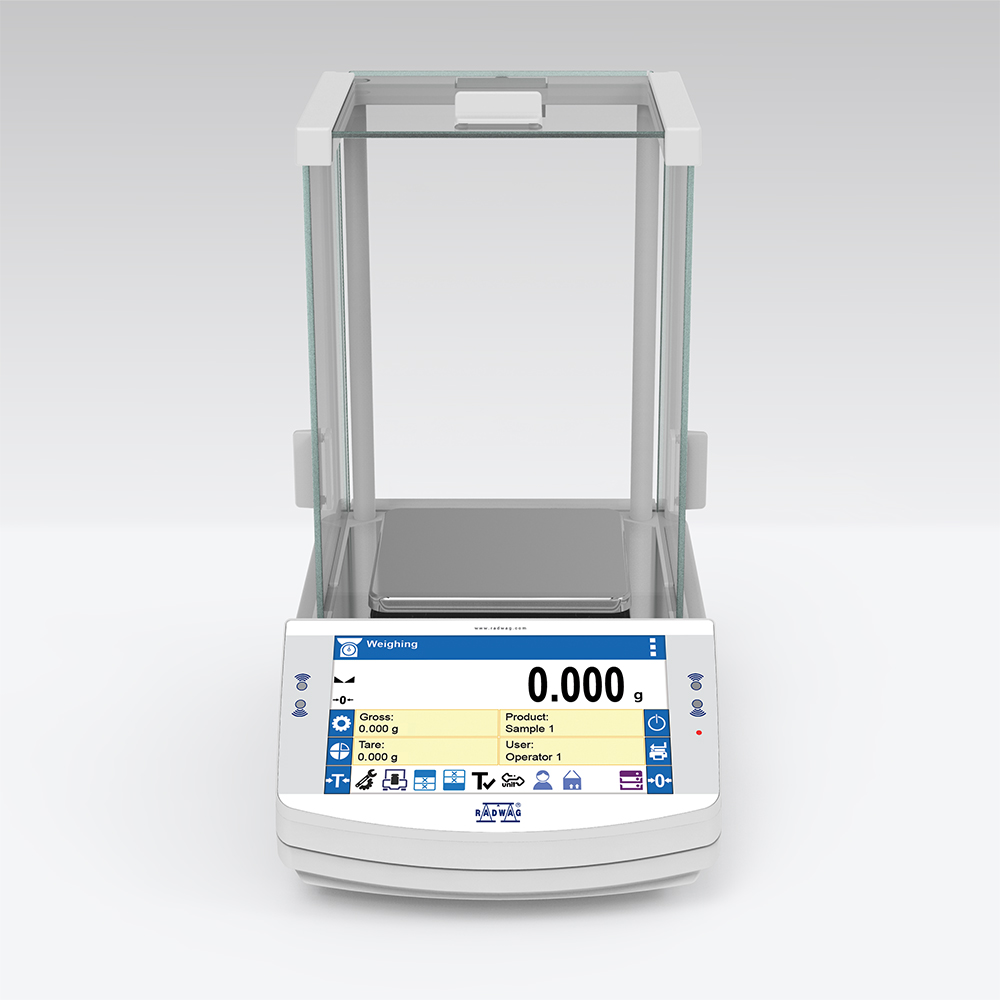

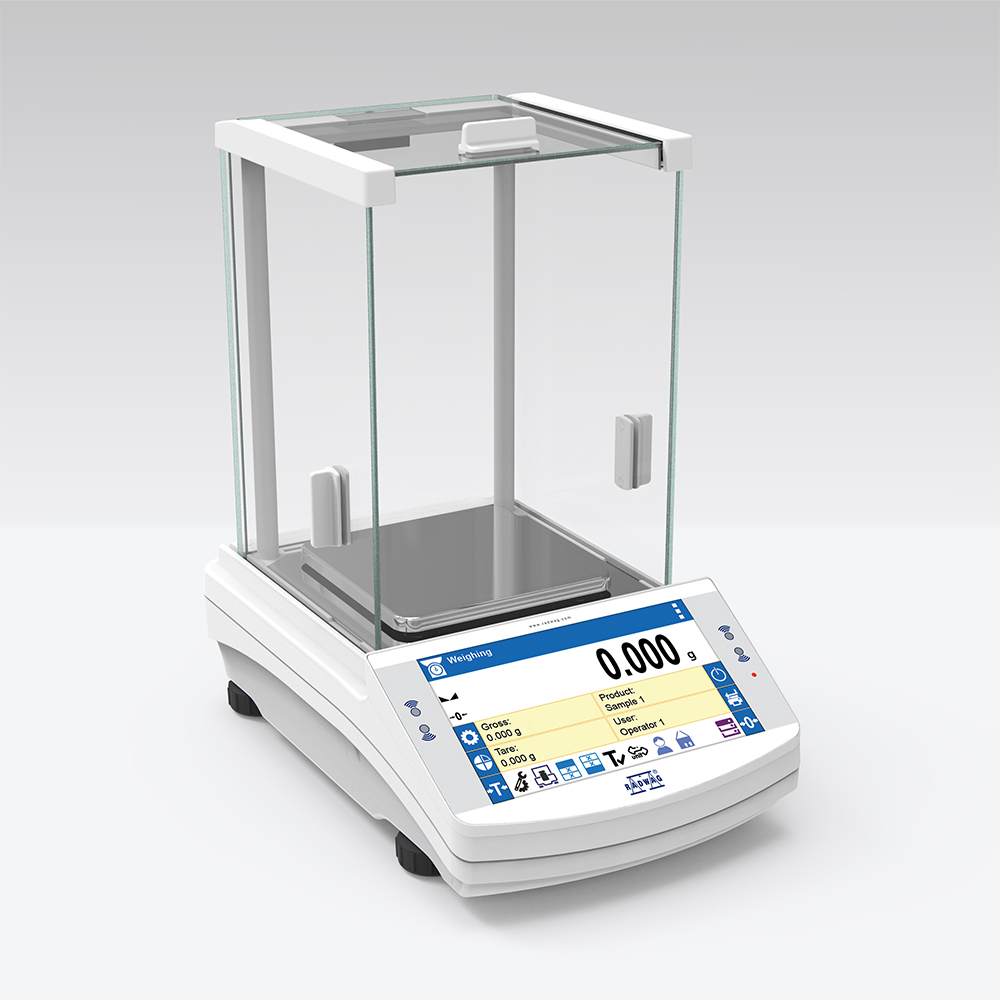

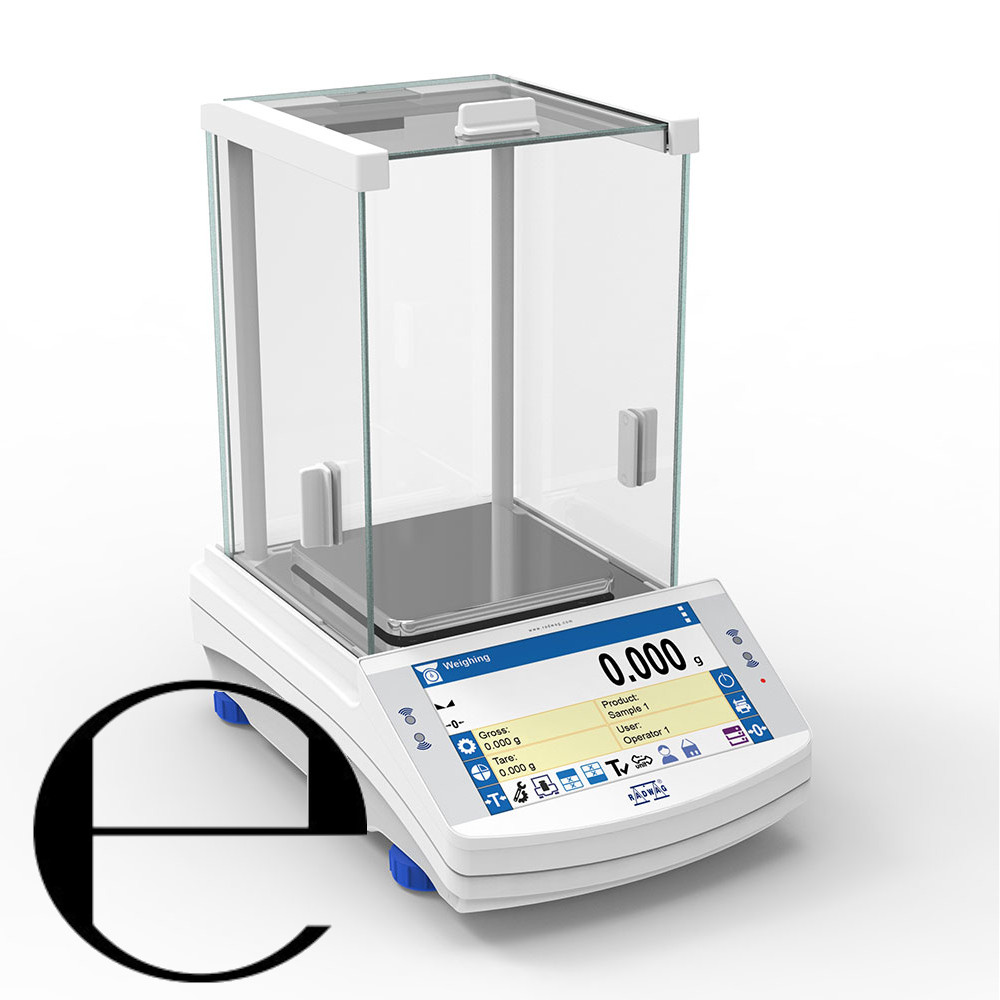

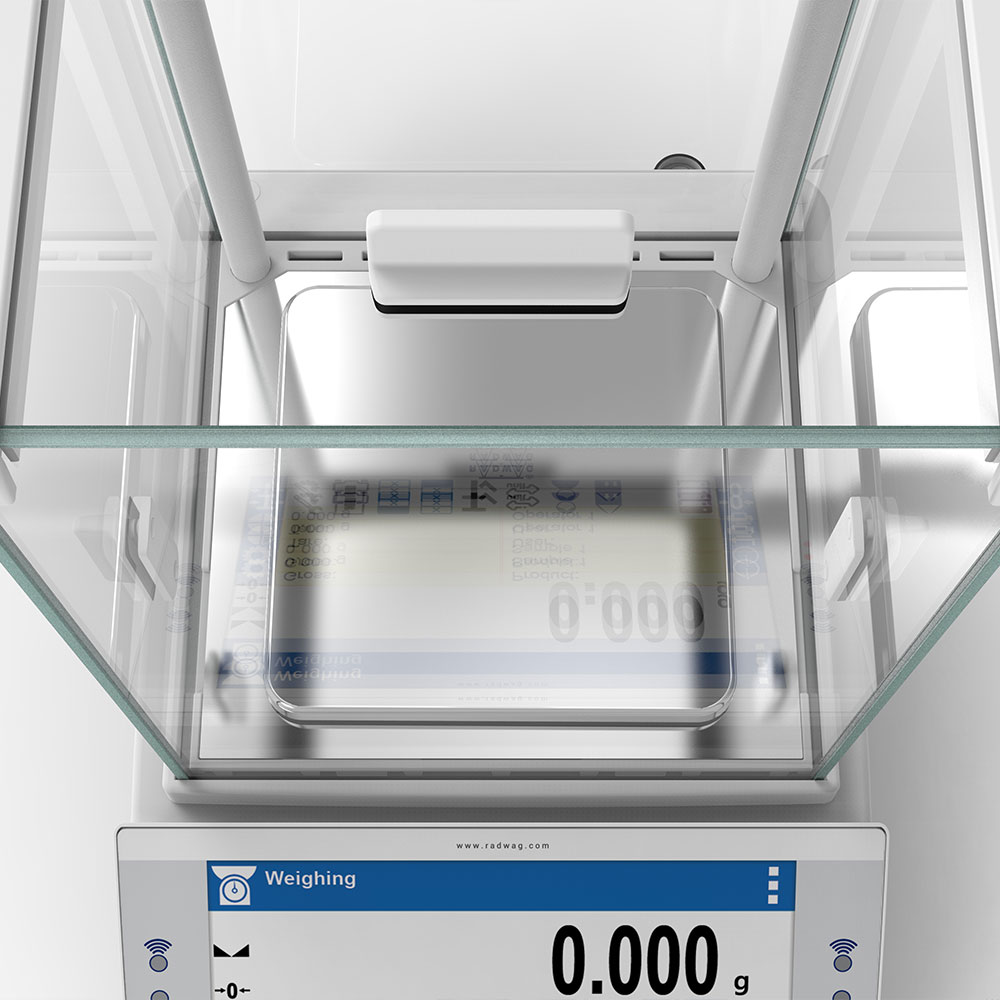

PS 750.X7.PGC Precision Balance
The purpose of the scale is the packaged goods control (PGC), so remember that verification (legalization) is necessary.
We recommend ordering a scale with a proper verification (legalization).
We recommend ordering a scale with a proper verification (legalization).
PS X7 Precision Balances are distinguished by their simplicity of use, clarity of menu and intuitive layout of information on the display. Much of this is due to the 7-inch touchscreen display, but the latest generation of capacitive display, which provides maximum operating comfort, is not the only advantage of these balances.
Precision and comfort
PS X7 Precision Balances have a readability [d] of 1 to 10 mg, and a maximum capacity [Max] of 200 to 10,100 g; both of these parameters vary depending on the model. An advantage of this series balances is internal (automatic) adjustment, which relieves the user from having to carry out this complicated and precision-demanding procedure himself.
The PS X7 balances are equipped with two infrared sensors, which allow for non-contact operation. Built-in IR sensors allow numerous operations (e.g. tarring, transmitting the result to a printer or selecting successive steps of a particular process, etc.) to be performed handsfree, by simply moving a hand across the sensor. The balances housing is made of plastic, and the pan is made of stainless steel.
The PS X7 balances are equipped with two infrared sensors, which allow for non-contact operation. Built-in IR sensors allow numerous operations (e.g. tarring, transmitting the result to a printer or selecting successive steps of a particular process, etc.) to be performed handsfree, by simply moving a hand across the sensor. The balances housing is made of plastic, and the pan is made of stainless steel.
New Possibilities
PS X7 Precision Balances enable user to design the layout of the information on the display through a wide selection of widgets. Personalizing the PS X7 balance display gives access to information and operating results directly from the main display panel.

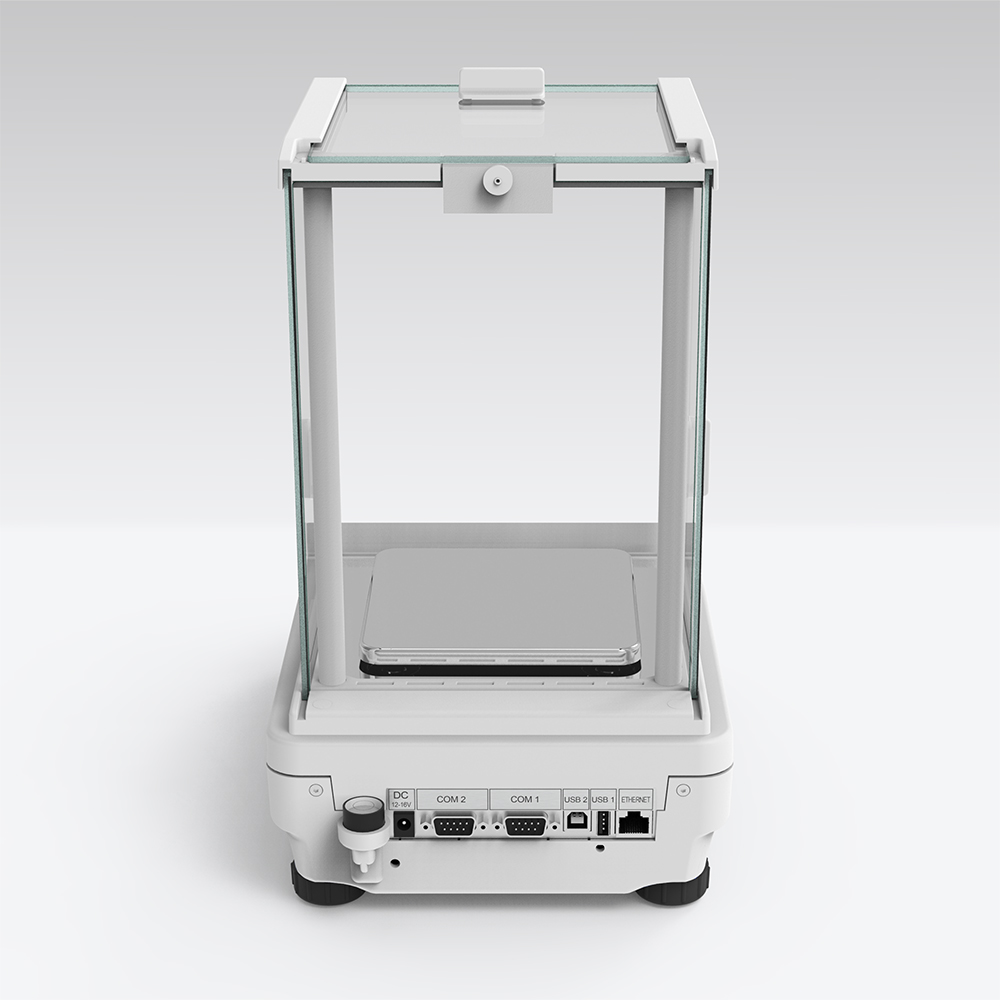

PS X7 Precision Balances are equipped with multiple communication interfaces: 2 x RS232, USB-A, USB-B, Ethernet and Wi-Fi. The balances housing is made of plastic, and the pan is made of stainless steel.
Databases
In PS X7 Precision Balances the information system is based on 11 databases which allow several users to work with database storing several products. The registered weighing results can be subject to further analysis.
The data is registered in 11 databases:
The data is registered in 11 databases:
- Products (5 000 products)
- Users (100 users)
- Packaging (100 packaging types)
- Customers (1 000 customers)
- Formulations (100 formulations)
- Formulations reports (500 reports)
- Ambient Conditions (10 000 records)
- Weighings (50 000 records)
- ALIBI memory (512 000 records)
- Control reports (1 000 reports)
- Average tares (1 000 reports).
Weighing Data Management
USB interface facilitates quick transfer and copying of any results of your work (measurements, reports, databases) to a computer or another balance. Data management on the balance is also possible online, through remote access to the balance and its database.
ALIBI Memory
PS X7 Precision Balances feature ALIBI memory, which guarantees safety as it automatically records measurements, and allows data prereview, copying and archiving.
The ALIBI memory allows to record up to 512 000 weighment records.
The ALIBI memory allows to record up to 512 000 weighment records.
Under-pan weighing
Weighing instruments purchased after 15th February 2023 will allow under-pan weighing at any time after the purchase. All you need to do is just to order a dedicated hook.
THBR 2.0 System
Cooperation with THBR 2.0 System for ambient conditions monitoring.
