PS R2.H Precision Balance
This image is for reference only.
Exit
This image is for reference only.
Availability:
In stock
Estimated shipping date :
15 working days
Need it urgently? Call us to check real-time stock availability: +44 (0)1625 569569
Price:
2132.40
GBP
with 20% VAT, shipping cost not included
Choose a variant:
PS 6100.R2.M.H Precision Balance
- PS 210.R2.H Precision BalanceMax: 210g | d: 0,001g
- PS 200/2000.R2.H Precision BalanceMax: 200/2000g | d: 0,001/0,01g
- PS 360.R2.H Precision BalanceMax: 360g | d: 0,001g
- PS 600.R2.H Precision BalanceMax: 600g | d: 0,001g
- PS 750.R2.H Precision BalanceMax: 750g | d: 0,001g
- PS 1000.R2.H Precision BalanceMax: 1000g | d: 0,001g
- PS 2100.R2.M.H Precision BalanceMax: 2100g | d: 0,01g
- PS 3500.R2.M.H Precision BalanceMax: 3500g | d: 0,01g
- PS 4500.R2.M.H Precision BalanceMax: 4500g | d: 0,01g
- PS 6100.R2.M.H Precision BalanceMax: 6100g | d: 0,01g
Wi-Fi Interface (132.00 GBP)
Calibration new precision balances / industrial scales 0kg-60kg (189.60 GBP)
Pcs.
Add to basket
We are near you.
We have been manufacturing weighing devices since 1984.
RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569
Delivery only on the territory of United Kingdom
We have been manufacturing weighing devices since 1984.
RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569
Delivery only on the territory of United Kingdom
Optional paid installation and training service available - please contact us for details and pricing.
Datasheet - PS 6100.R2.M.H Precision BalanceCode:
WL-221-0026
CE
2 years warranty
Datasheet
Maximum capacity [Max]
6100 g
Minimum load
500 mg
Readability [d]
0,01 g
Tare range
-6100 g
Minimum weight (USP)
10 g
Minimum weight (U=1%, k=2)
1 g
Standard repeatability [5% Max]
0,005 g
Repeatability (Max)
0,008 g
Linearity
±0,03 g
Sensitivity temperature drift
2×10⁻⁶/°C×Rt
Stabilization time
1,5 s
Adjustment
internal (automatic)
Leveling system
manual
Display
5,3” LCD (backlit)
Protection class
IP 54
Delivery components
Balance, weighing pan, weighing pan shield, power supply
Communication interface
2×RS232¹, USB-A, USB-B, Wi-Fi® (option)
Power supply
Adapter: 100 – 240V AC 50/60Hz 0.6A Max; 12V DC 1,2A
Balance: 12 – 15V DC 0,7A max; 3 – 5,5W*
Balance: 12 – 15V DC 0,7A max; 3 – 5,5W*
Power consumption
4 W
Operating temperature
+10 – +40 °C
Relative humidity
40% – 80%
Weighing pan dimensions
195×195 mm
Packaging dimensions W x D x H
475×380×345 mm
Net weight
4,8 kg
Gross weight
6,3 kg
Overview

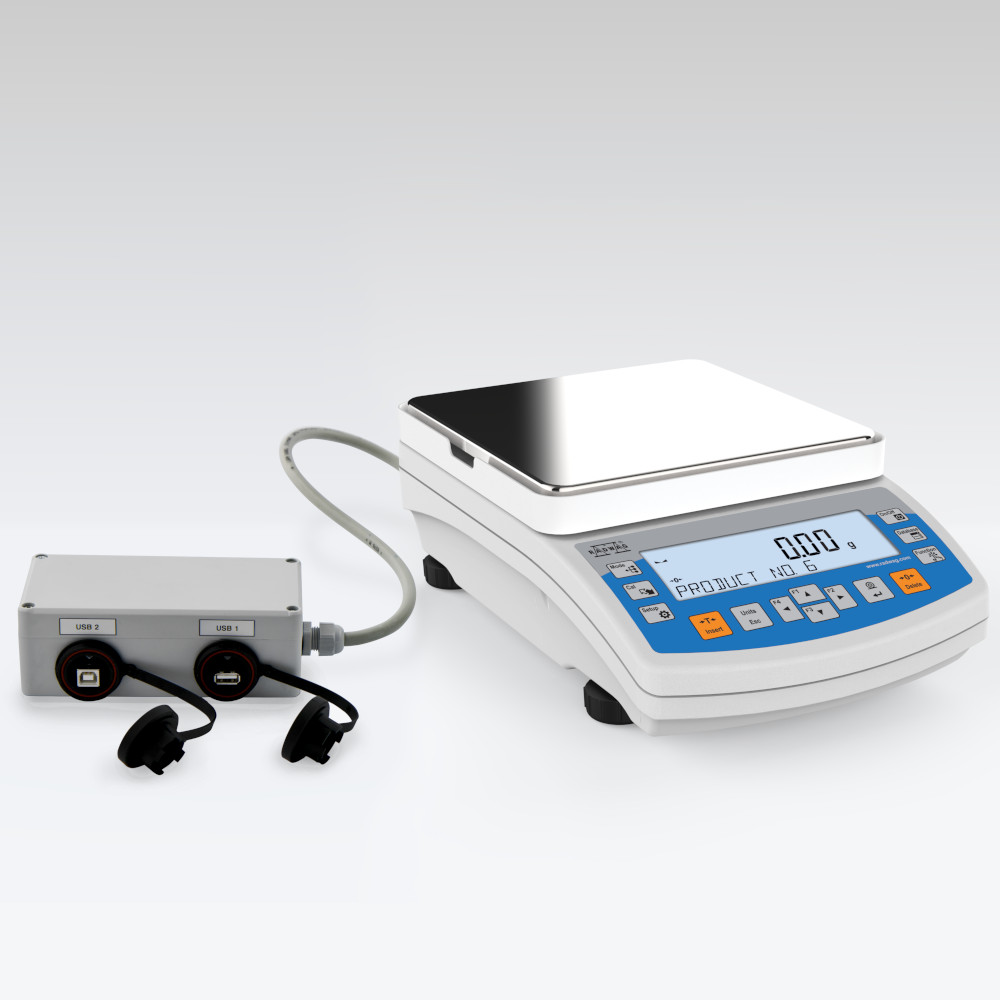

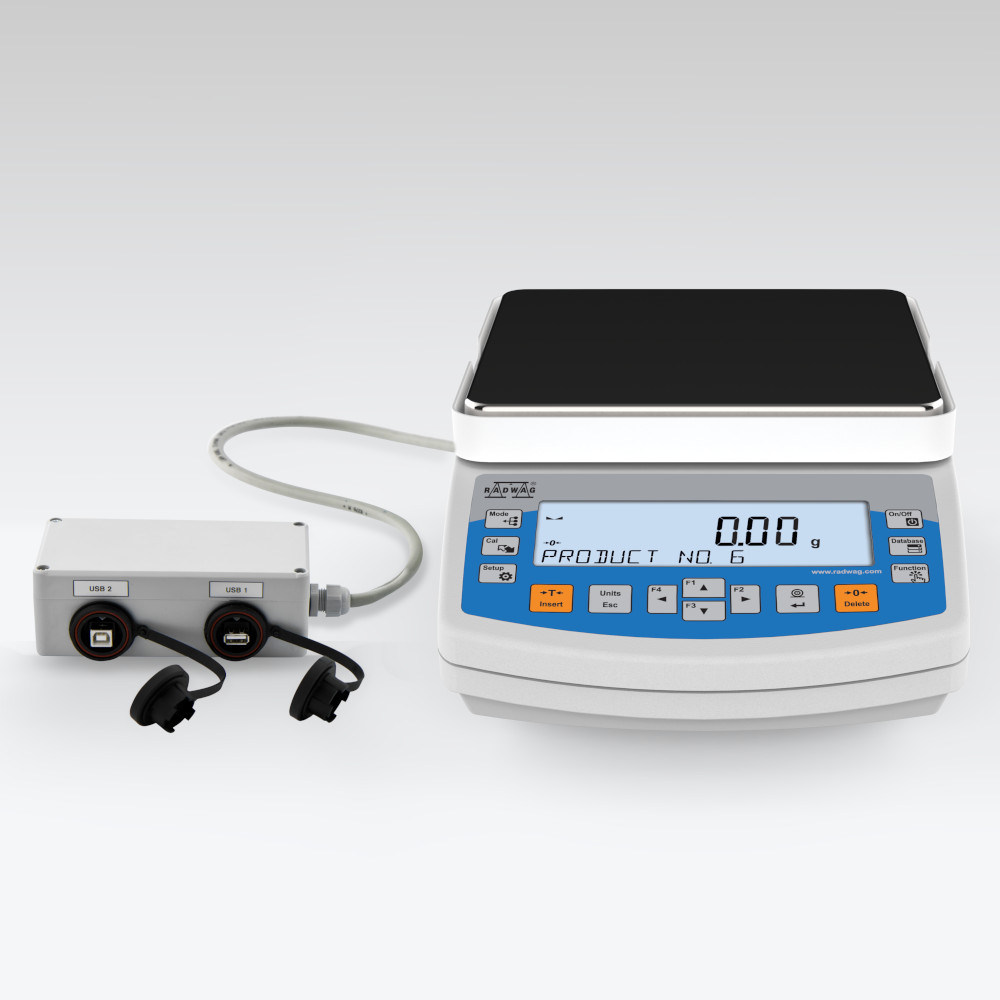

PS 6100.R2.M.H Precision Balance
PS R2.H series balances redefine the level of standard precision balances. Not only do they share all the features of R series balances, but can also work in adverse operating conditions (condensed dust, drops of water falling down at different angles typical for IP 54).
LCD display
These balances are equipped with innovative LCD display allowing for clear and legible presentation of a measurement result. Moreover, it offers new text line which supplies the user with some additional messages and information, e.g. product name or tare value.
Interfaces
Additional asset of PS R2.H balances are their interfaces build-in a hermetic closed housing which is separated from the balance. The interfaces include 2 x RS232, USB type A, USB type B, and Wireless Connection optionally.
Balance housing is made of plastic, whereas its pan of stainless steel.
Balance housing is made of plastic, whereas its pan of stainless steel.
Under-pan weighing
Weighing instruments purchased after 15th February 2023 will allow under-pan weighing at any time after the purchase. All you need to do is just to order a dedicated hook.
THBR 2.0 System
Cooperation with THBR 2.0 System for ambient conditions monitoring.
