Datasheet - PS 600.R2.1 Precision Balance

Code:

WL-212-0071

Verification

2 years warranty

Datasheet

Maximum capacity [Max]

600 g

Minimum load

500 mg

Readability [d]

10 mg

Verification unit [e]

100 mg

Tare range

-600 g

Minimum weight (USP)

8,2 g

Minimum weight (U=1%, k=2)

0,82 g

Standard repeatability [Max]

10 mg

Standard repeatability [5% Max]

4,1 mg

Linearity

±20 mg

Sensitivity temperature drift

2×10⁻⁶/°C×Rt

Stabilization time

1,5 s

Adjustment

internal (automatic)

Leveling system

manual

OIML Class

Display

5,3” LCD (backlit)

Protection class

IP 43

Delivery components

Balance, weighing pan, grounding bumper ×1, bumper ×3, power supply.

Communication interface

2×RS232¹, USB-A, USB-B, Wi-Fi^® (option)

Power supply

Adapter: 100 – 240V AC 50/60Hz 0.6A Max; 12V DC 1,2A
Balance: 12 – 15V DC 0,7A max; 3 – 5,5W*

Power consumption

4 W

Operating temperature

+10 – +40 °C

Relative humidity

40% – 80%

Weighing pan dimensions

195×195 mm

Packaging dimensions W x D x H

475×380×345 mm

Net weight

4,4 kg

Gross weight

5,7 kg

Overview

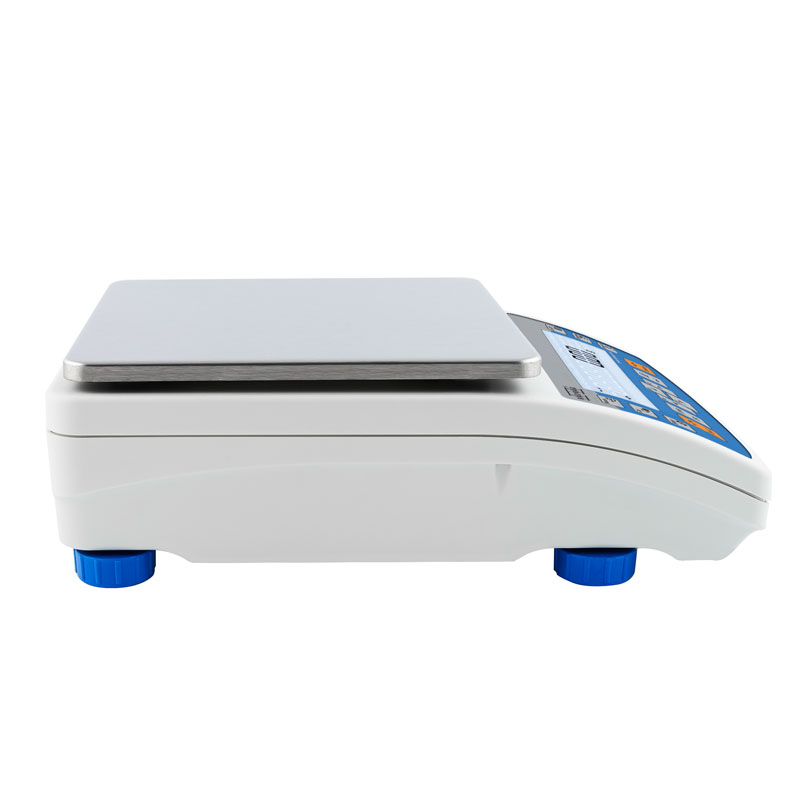

PS 600.R2.1 Precision Balance

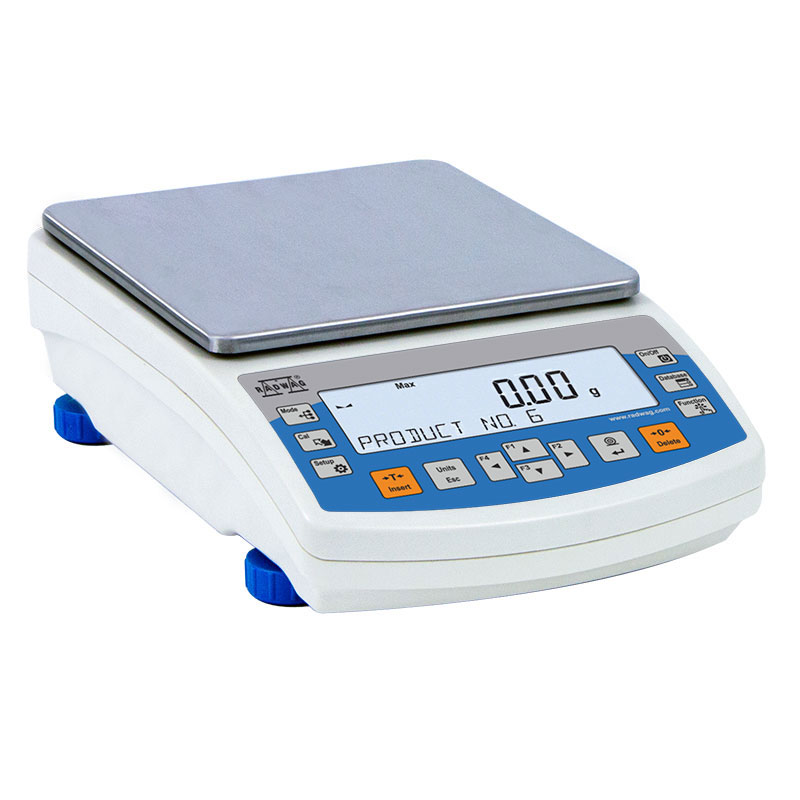

PS.R2 series balances represent a new standard of precision balances. They feature a new, readable LCD display which allows
a clearer presentation of the weighing result. Besides, the display has a new text information line allowing to show additional messages and data, e.g. product name or tare value.

Communication interfaces

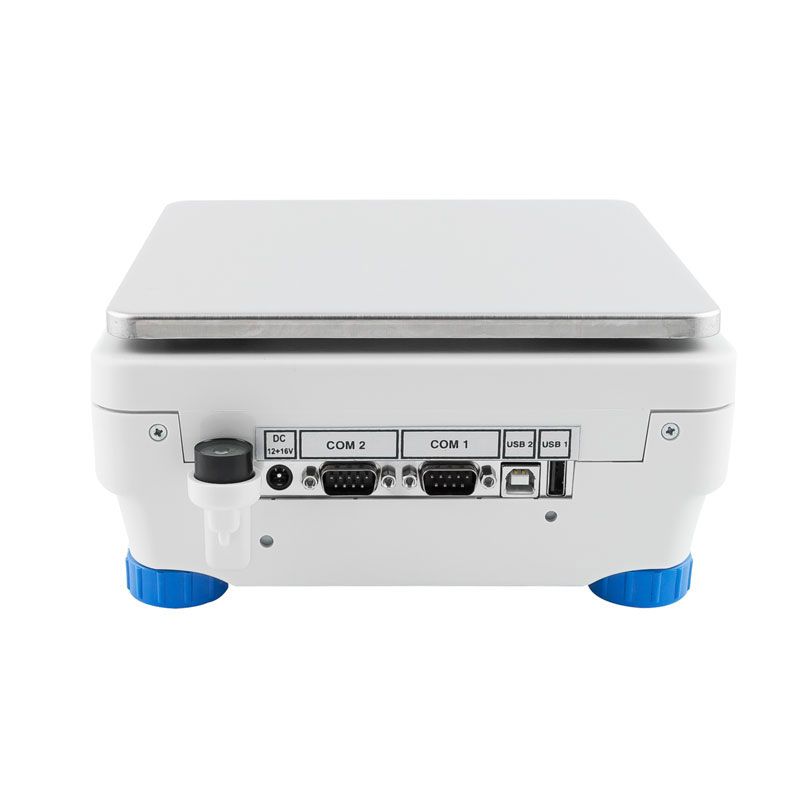

PS.R2 balances feature several communication interfaces: 2 x RS232, USB-A, USB-B and optional Wireless Connection.

The balance may cooperate with computer by means of USB interface supposing a supplementary software has been installed (respective driver). The said driver may be downloaded from RADWAG website – SOFTWARE link or SUPPORT section.

The housing is made of plastic, and the pan is made of stainless steel. The balances have a possibility to weigh products out of the pan (under-pan weighing) - the load hangs under the pan.

Databases in R Series Balances

The information system is based on 5 databases, which allows for several users to work with several products databases, and the registered weighing results can be subject to further analysis. The data is registered in 5 databases:

users (up to 10 users),
products (up to 1000 products),
weighments (up to 5000 weighments),
tares (up to 100 tares),
ALIBI memory (up to 100 000 weighments).

Quick access to information

There is two directions data exchange within the system thanks to a quick USB interface. New balances allow to import and export databases using USB pen drives.
The used ALIBI memory is a data secure area and allows to record up to 100 000 weighment records. It ensures security of constant data register in the long time period.

Direct access to functions and databases is possible from the level of keyboard.

Database - a direct access to databasis
Function - a direct access to the basic functions
F1 do F4 - programmable function and navigation keys on the menu.

Under-pan weighing

Weighing instruments purchased after 15th February 2023 will allow under-pan weighing at any time after the purchase. All you need to do is just to order a dedicated hook.

THBR 2.0 System

Cooperation with THBR 2.0 System for ambient conditions monitoring.
