Datasheet - MYA 5.5Y.F1 Microbalance

Code:

WL-109-0025

Verification

2 years warranty

Datasheet

Maximum capacity [Max]

5,1 g

Minimum load

0,1 mg

Readability [d]

1 µg

Verification unit [e]

1 mg

Tare range

-5,1 g

Minimum weight (USP)

1,2 mg

Minimum weight (U=1%, k=2)

0,12 mg

Standard repeatability [Max]

1,6 µg

Standard repeatability [5% Max]

0,6 µg

Permissible repeatability [Max]

2,4 µg

Permissible repeatability [5% Max]

1,2 µg

Linearity

±5 µg

Eccentric load deviation

5 µg

Sensitivity time drift

1×10⁻⁶/Year×Rt

Stabilization time

max 8 s

Adjustment

internal (automatic)

Leveling system

automatic – Reflex Level System

OIML Class

Display

10″ graphic colour touchscreen

Weighing chamber doors

manual

Protection class

IP 43

Delivery components

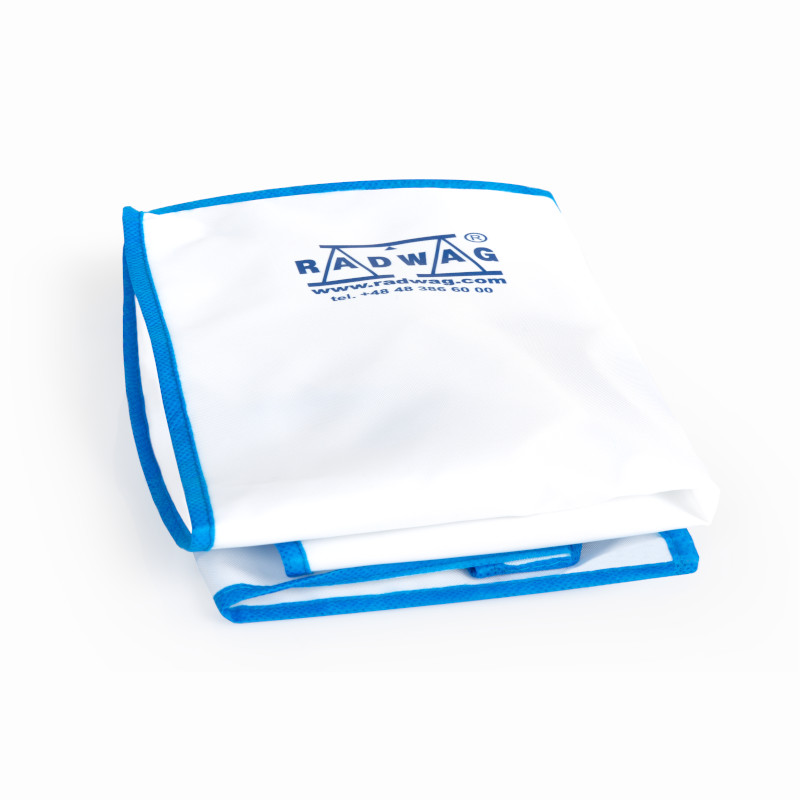

Microbalance, terminal, weighing pan, weighing pan for filters, centring ring, power supply, pincette, brush, fabric dust cover.

Communication interface

2×USB-A, USB-C, RS 232 (COM3), HDMI, Ethernet, Wi-Fi^®, Hotspot

Power supply

Adapter: 100 – 240V AC 50/60Hz 1A Max; 15V DC 2,4A
Balance: 12 – 15V DC 1,4A max; 9 – 17W*

Operating temperature

+10 – +40 °C

Operating temperature change rate

±0,3 °C / 1 h (±1 °C / 8 h)

Relative humidity

40% – 80%

Relative humidity change rate

±1% / h (±4% / 8 h)

Weighing chamber dimensions

ø 168×35 mm

Weighing pan dimensions

ø160 + ø26 mm

Packaging dimensions W x D x H

755×655×455 mm

Net weight

10,6 kg

Gross weight

16,5 kg

Overview

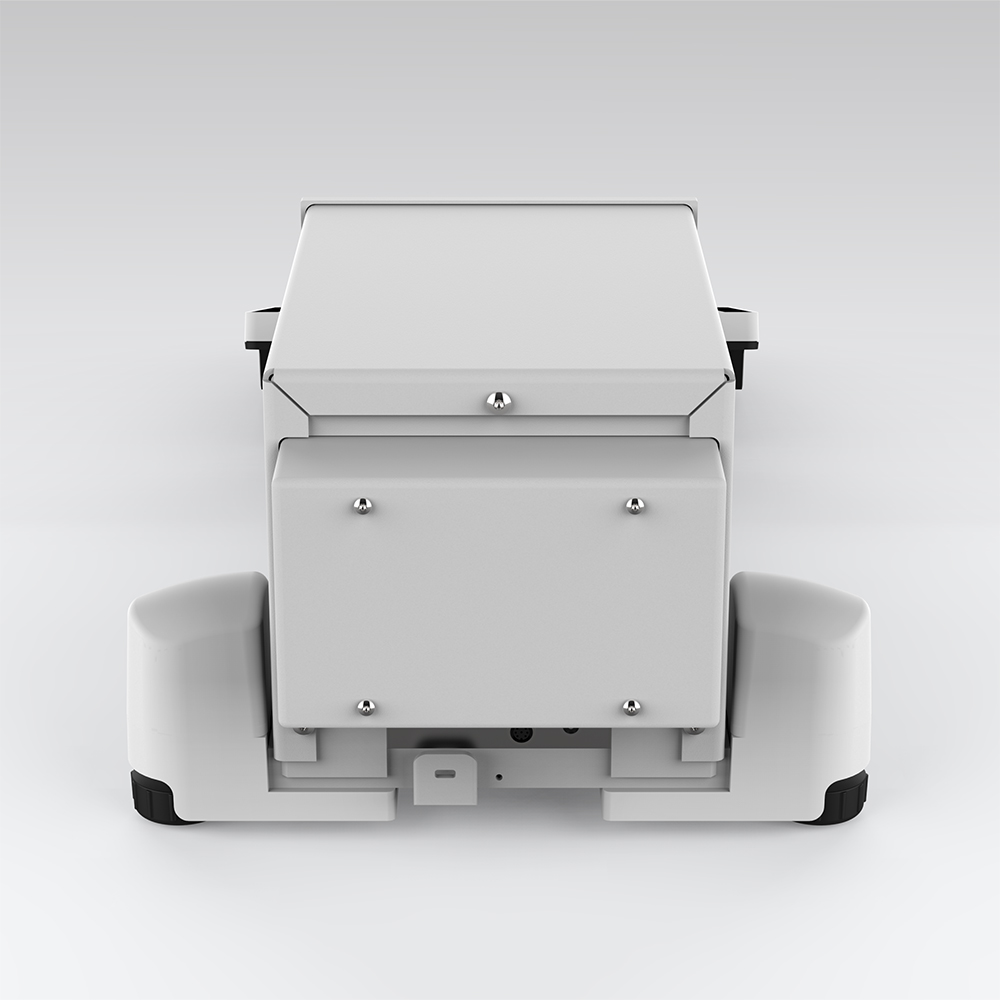

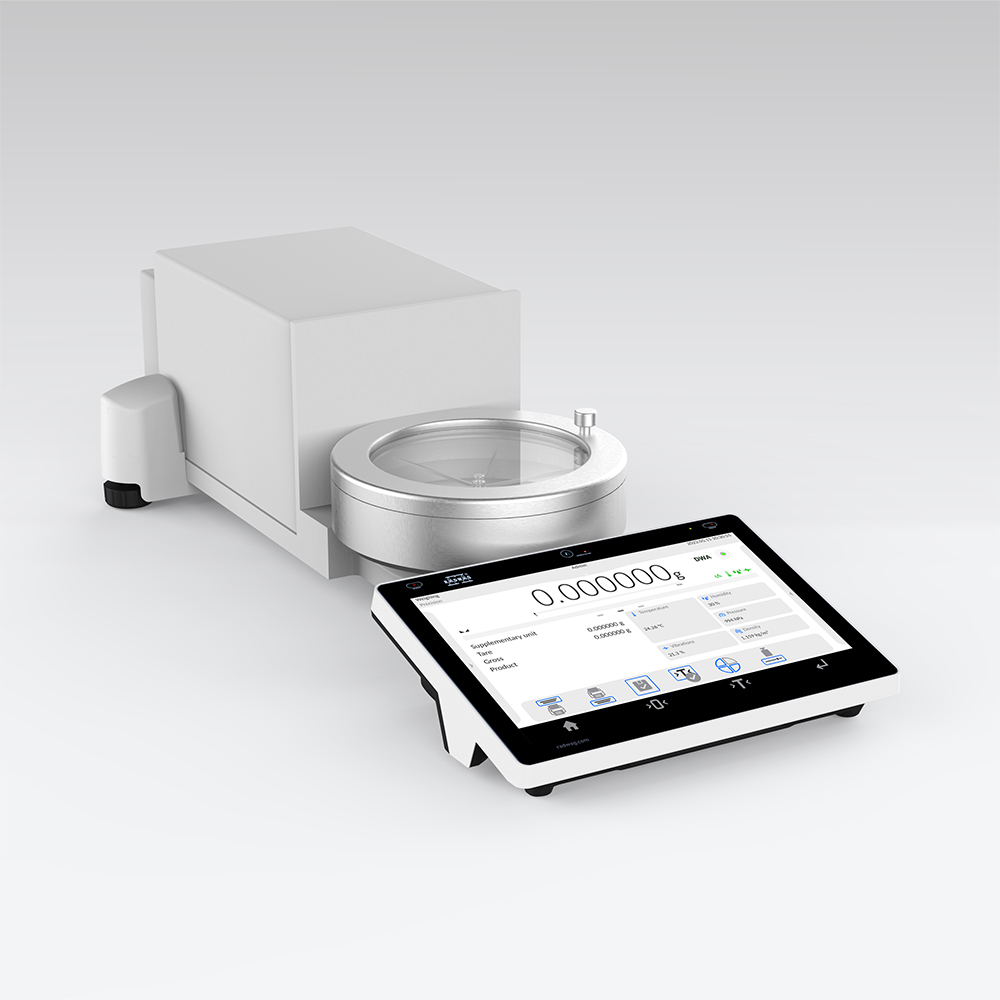

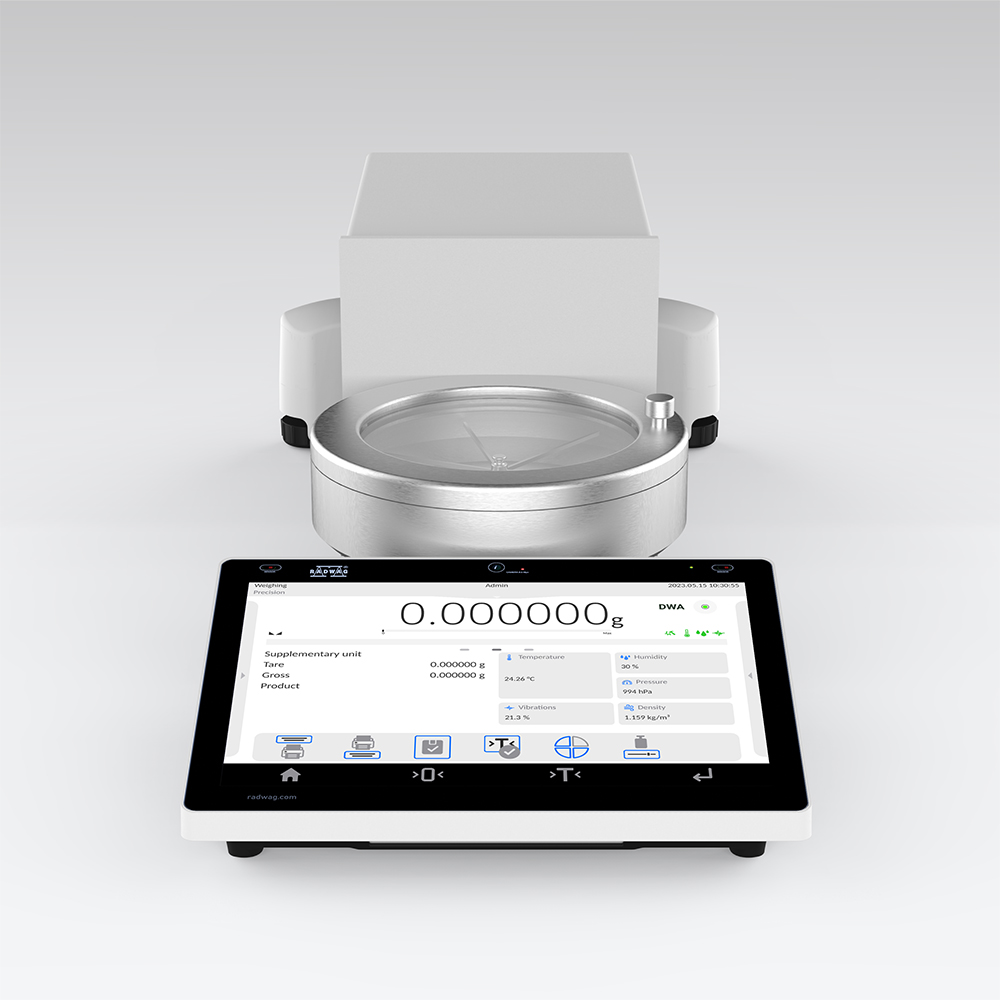

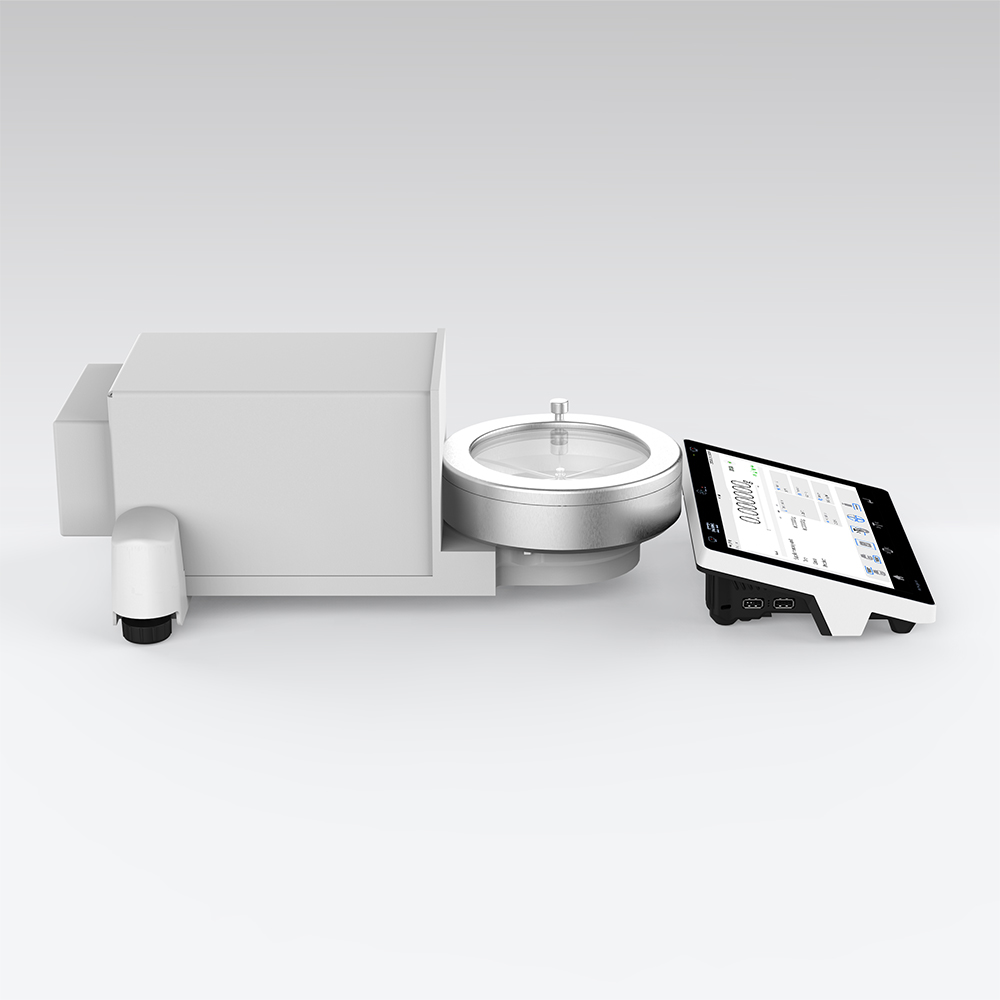

MYA 5.5Y.F1 Microbalance for Filters

Microbalances for filters are high-precision laboratory balances designed for accurate filter weighing in analytical, pharmaceutical, environmental and many other laboratories. With ultra-precise mechanisms and state-of-the-art technology,
these microbalances provide reliable results essential for research and control processes.

High Precision

Microbalances for filters provide exceptional measurement accuracy crucial during quantitative and qualitative analysis of samples. They can weigh with microgram readability, allowing precise monitoring of filter mass before and after analysis.

High-tech microbalances for filters provide stable and repeatable results. State-of-the-art measuring systems minimize the influence of ambient conditions on weighing results.

Applications

Environmental Laboratories

Air, water and soil quality analysis requires precise filter weighing used to collect samples. Microbalances for filters are an indispensable tool in such research.

Pharmaceutical Industry

In production and control processes in the pharmaceutical industry, weighing accuracy is crucial. Microbalances provide the necessary precision for process monitoring.

Scientific Research

In research laboratories where advanced studies of new materials, chemicals or biological processes are conducted, microbalances for filters provide the dependability and accuracy needed for reliable results.

Do you need a balance that not only determines weight with impressive accuracy, but also performs a digital audit, responds to your voice commands and sends you light messages?

If so, learn about the functionality of the ELLIPSIS series of balances:

Digital Weighing Auditor

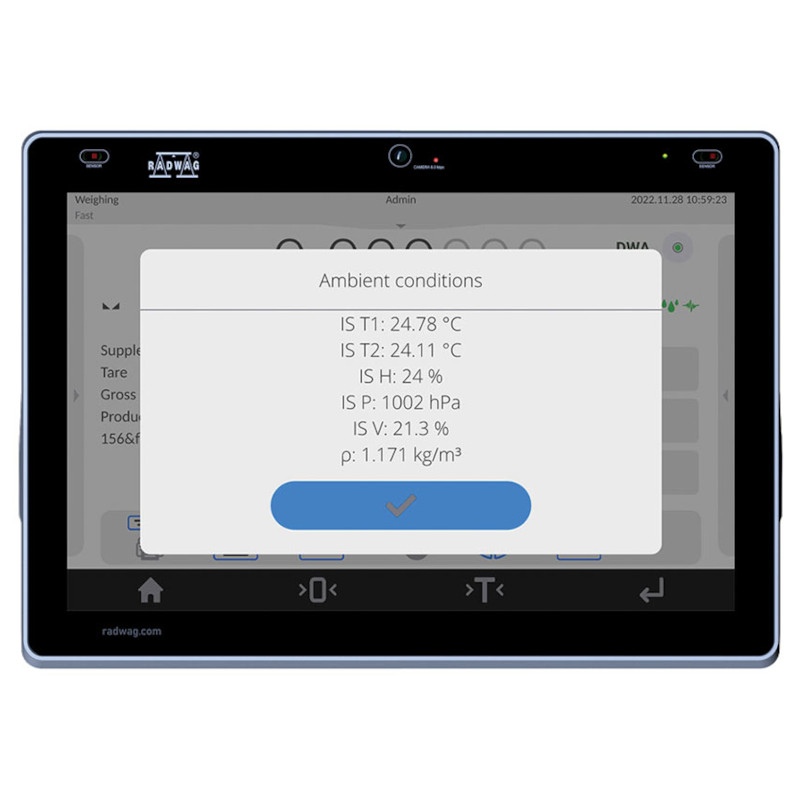

Ensures that your balance is ready for use. It enables air buoyancy compensation in real-time. What is more, it informs about the need for a balance inspection or a periodic audit of the balance’s accuracy and sensitivity.

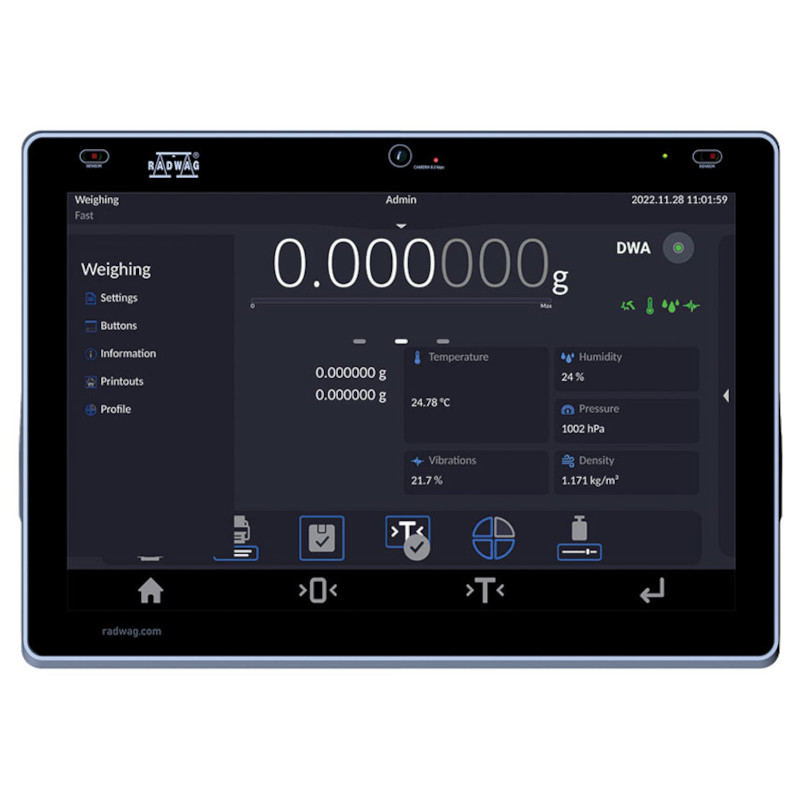

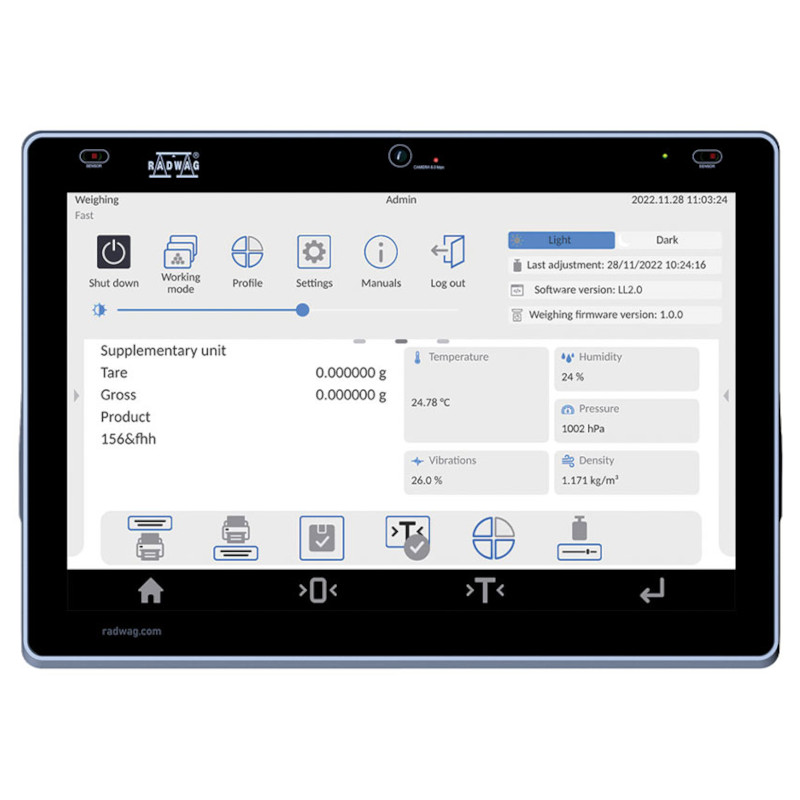

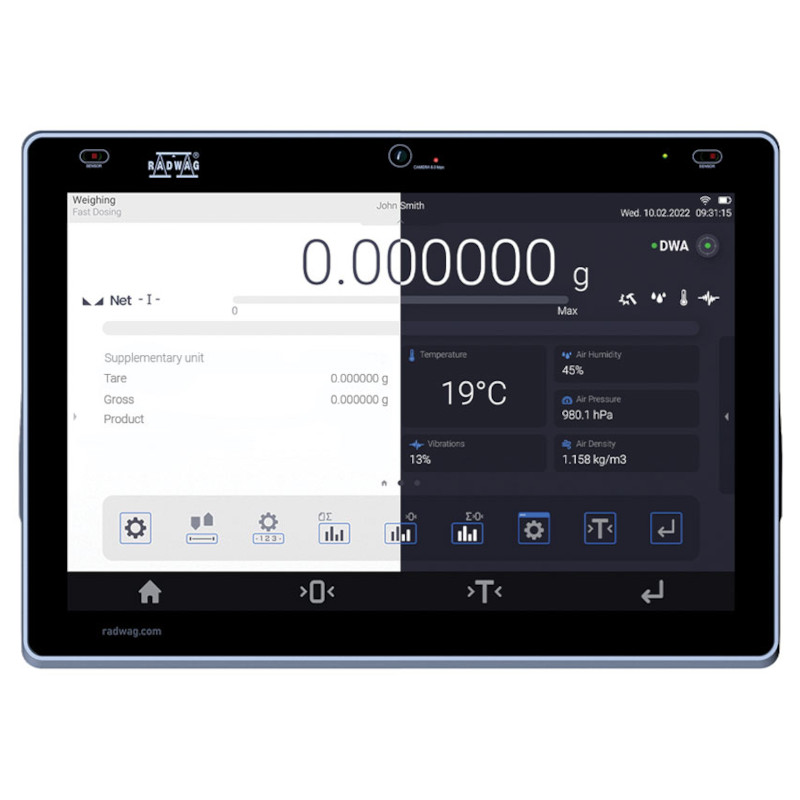

10-Inch Display

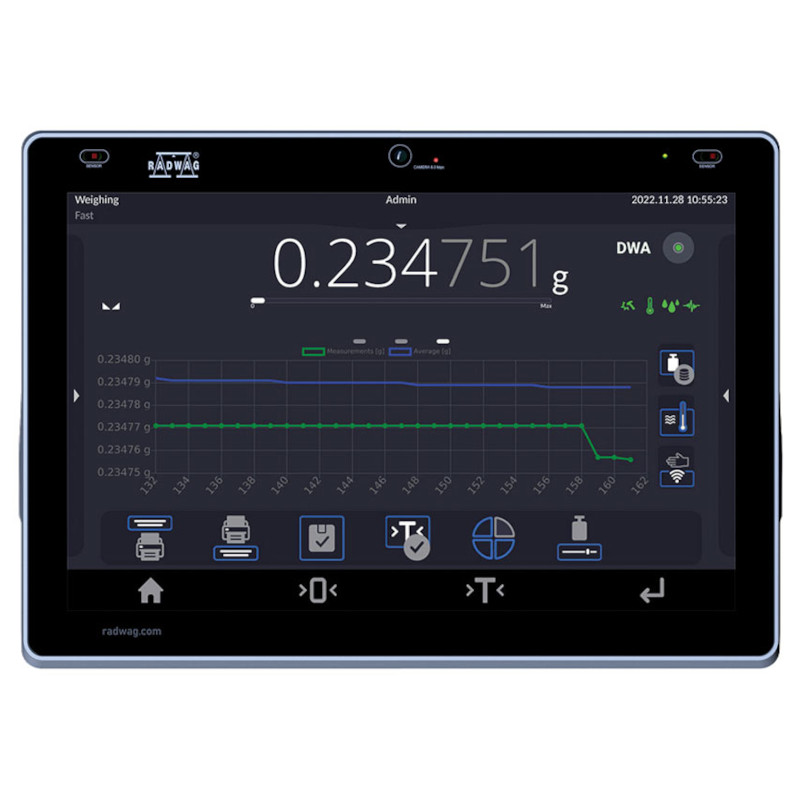

Bigger screen – 10’’ – means more information in one place. On the new ELLIPSIS terminal, you will see up to 3 screens, widgets, graphs, statuses, notes, handy measurement history.

Uncompromising User Verification

For the first time ever, the balance will verify the user using a password, RFID card, fingerprint reader, facial recognition mechanism, or any combination of these.

Ambient Light – An Innovative Way for the Balance to Communicate With the User

The light colour will tell you about status, process results, procedures, or alerts.

Hotspot

Use the balance on any device connected to it. This can be a smartphone, tablet, or computer.

RFID

ELLIPSIS works with RFID tags* that can be used to tag your products or formulation ingredients in the database. They can also be used to identify a user.

Live Note – Note Down Your Conclusions

It’s the first time you can add a text memo to a measurement series or procedure report. These can be, for example, assumptions, reminders or questions that can be returned to at any time.

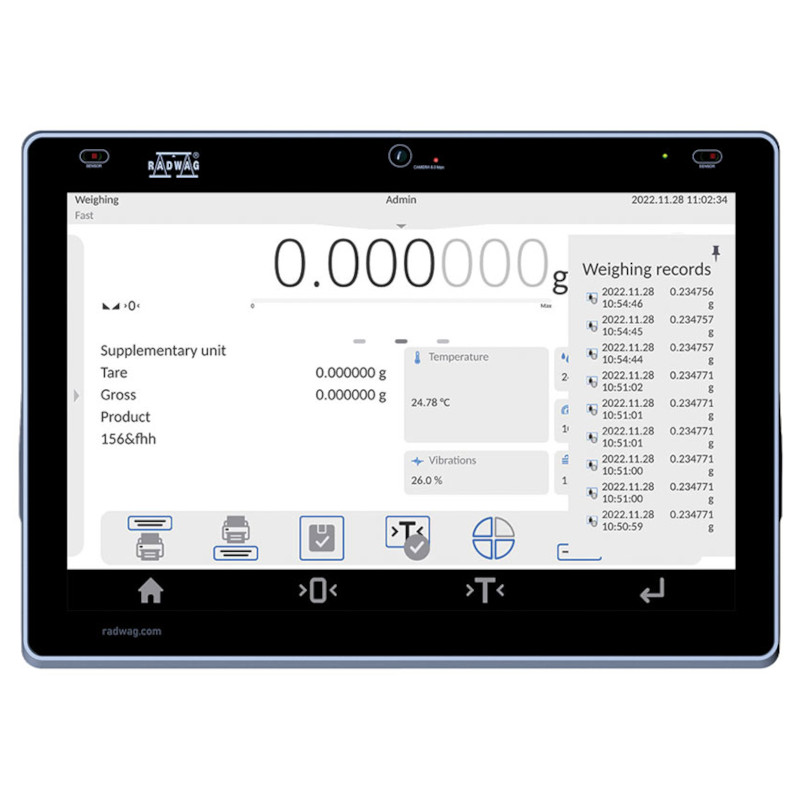

Handy Library

This is where a series of recent measurements or a report ready for digital signature, according to 21 CFR Part 11, can be found.

Widgets

Prepared to display what you need most at any given moment.

Automatic Leveling of the Balance ReflexLEVEL System

Instead of manually leveling your scale - level it automatically.

The ReflexLEVEL System saves you time and gives you maximum precision in your measurements.

Smart Min Weight

The balance displays whether the value of the weight you want to weigh is below or above the minimum weight threshold.

21 CFR Part 11

Do you work in the pharmaceutical industry? Do you need a digital signature?

We are offering the laboratory balance which as a standalone fully meets the requirements of 21 CFR Part 11/ EU GMP Annex 11.

– Full data security
– Electronic signatures
– Validations
– Electronic records
– Audit trails

Modbus TCP/IP

is one of the most popular communication protocols in industrial automation. Implementing it in the 5Y balances and CY10 scales makes the devices of this series friendly to automation integrators.

A balance or scale in a Modbus system is a slave device and performs tasks specified by the master device which is most often a PLC. Protocol Modbus TCP/IP in the 5Y balances and C10 scales enables, among other things, the realization of mass readout, zeroing and tare functions of the device, as well as tare settings and MIN and MAX thresholds.

Two-point adjustment

Adjacency, which takes place at two measurement points instead of one, improves measurement precision over the full weighing range. And what does this mean for you? More accurate measurement.

* RFID ISO/IEC 14443 Type A, 13.56 MHz
