MWMH Series Weighing Modules
This image is for reference only.
Exit
This image is for reference only.
Availability:
In stock
Estimated shipping date :
15 working days
Need it urgently? Call us to check real-time stock availability: +44 (0)1625 569569
Price:
6856.80
GBP
with 20% VAT, shipping cost not included
Choose a variant:
MWMH 100-1 Electromagnetic Compensation Weighing Module
- MWMH 100-1 Electromagnetic Compensation Weighing ModuleMax: 1kg | d: 0,01g
- MWMH 200-1 Electromagnetic Compensation Weighing ModuleMax: 2kg | d: 0,02g
- MWMH 500-1 Electromagnetic Compensation Weighing ModuleMax: 5kg | d: 0,1g
- MWMH 1000-1 Electromagnetic Compensation Weighing ModuleMax: 10kg | d: 0,1g
- MWMH 100-3 Electromagnetic Compensation Weighing ModuleMax: 1kg | d: 0,1g
- MWMH 200-3 Electromagnetic Compensation Weighing ModuleMax: 2kg | d: 0,1g
- MWMH 500-3 Electromagnetic Compensation Weighing ModuleMax: 5kg | d: 0,1g
- MWMH 1000-3 Electromagnetic Compensation Weighing ModuleMax: 10kg | d: 0,1g
- MWMH 100-2 Electromagnetic Compensation Weighing ModuleMax: 1kg | d: 0,01g
- MWMH 200-2 Electromagnetic Compensation Weighing ModuleMax: 2kg | d: 0,02g
- MWMH 500-2 Electromagnetic Compensation Weighing ModuleMax: 5kg | d: 0,1g
- MWMH 1000-2 Electromagnetic Compensation Weighing ModuleMax: 10kg | d: 0,1g
- MWMH 100-4 Electromagnetic Compensation Weighing ModuleMax: 1kg | d: 0,1g
- MWMH 200-4 Electromagnetic Compensation Weighing ModuleMax: 2kg | d: 0,1g
- MWMH 500-4 Electromagnetic Compensation Weighing ModuleMax: 5kg | d: 0,1g
- MWMH 1000-4 Electromagnetic Compensation Weighing ModuleMax: 10kg | d: 0,1g
Pcs.
Add to basket
We are near you.
We have been manufacturing weighing devices since 1984.
RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569
Delivery only on the territory of United Kingdom
We have been manufacturing weighing devices since 1984.
RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569
Delivery only on the territory of United Kingdom
Optional paid installation and training service available - please contact us for details and pricing.
Datasheet - MWMH 100-1 Electromagnetic Compensation Weighing ModuleCode:
WX-016-0061
CE
2 years warranty
Datasheet
Maximum capacity [Max]
1 kg
Minimum load
2 g
Preload range
6 – 9 kg
Readability [d]
0,01 g
Verification unit [e]
0,1 g
Tare range
-1 kg
Repeatability
0,01 g
Sensitivity temperature drift
2×10⁻⁶/°C×Rt
Stabilization time
0,1 s
Adjustment
external
OIML Class
III
Protection class
IP 65
Communication interface
RS232, Ethernet, 2×IN / 2×OUT
Power supply
12 – 24 V DC
Power consumption max.
5 W
Operating temperature
+10 – +40 °C
Storage temperature
-20 – +50 °C
Relative humidity
15% – 80%
Material
Stainless steel
Weighing pan dimensions
212×174 mm
Device dimensions W x D x H
344×224×166 mm
Packaging dimensions W x D x H
580×413×360 mm
Net weight
12,4 kg
Gross weight
15 kg
Overview

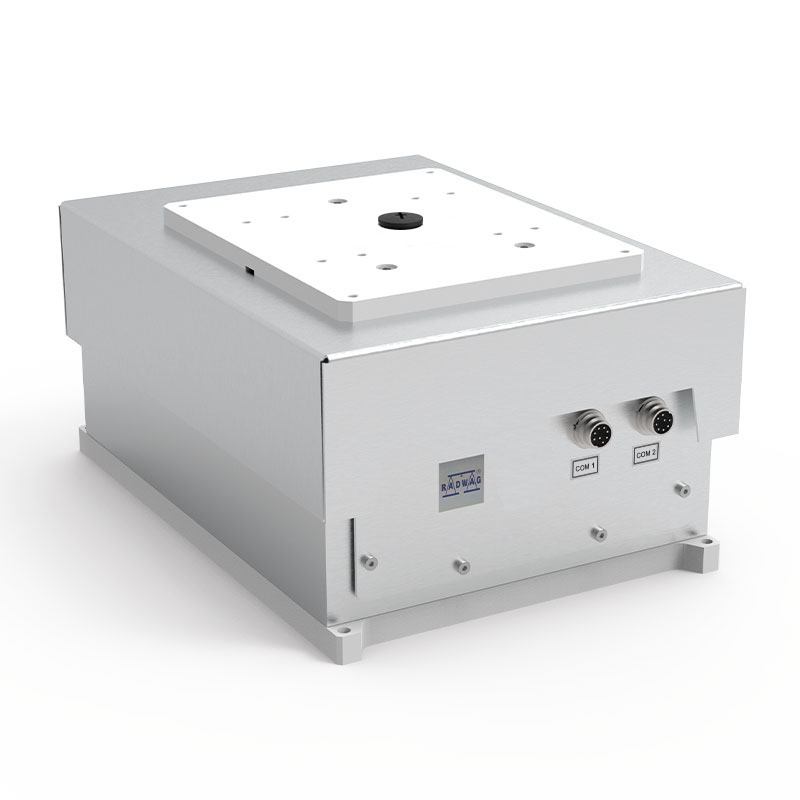

MWMH 100-1 Electromagnetic Compensation Weighing Module
Magnetoelectric weighing modules MWMH are intended for mass measurement ranging from 1kg to 10kg. Minimum readability of 0.01g guarantees amazing accuracy for your measurement.
MWMH series modules are not offered or distributed in the following countries: Germany, Switzerland, Italy, Japan and the USA.
Protection Against Challenging Conditions
Hermetic versions of modules feature stainless steel housing with IP65 and IP69K. This allows operation even in the most challenging conditions. Mechanical design lacks sharp edges and gaps which ensures adherence to HACCP, GMP and FDA standards for safety and quality of operation.
Fast and Precise Measurement
High measurement accuracy with sd=1d* guarantees both readout of real weighing results and repeatability of indications. Cutting-edge design solutions provide fast measurement which is an asset allowing to install the module on automated production lines. Intended for fast and dynamic measuring processes the weighing module’s converter throughput is 3200 meas./s.
Cooperation with terminals
Connecting the module to a multifunctional weighing terminal expands communication interfaces range and increases usage in industrial applications.
Mechanical design versions:
- MWMH xxx - 1 - model with Binder connectors (IP 65),
- MWMH xxx - 2 - model with Binder connectors, (IP 65), power supply and control of the transporter on a weighing pan,
- MWMH xxx - 3 - model with cable glands (IP 69K),
- MWMH xxx - 4 - model with cable glands (IP 69K), power supply and control of the transporter on a weighing pan,
- MWMH xxx - TWD - model with cable glands (IP 65).
