MWLH Series Weighing Modules

MWLH 10 Electromagnetic Compensation Weighing Module
This image is for reference only.
MWLH 10 Electromagnetic Compensation Weighing ModuleMWLH 10 Electromagnetic Compensation Weighing Module
close Exit
This image is for reference only.
MWLH 10 Electromagnetic Compensation Weighing ModuleMWLH 10 Electromagnetic Compensation Weighing Module
Availability:
In stock
Estimated shipping date :
15 working days

Need it urgently? Call us to check real-time stock availability: +44 (0)1625 569569

Price:
6657.60
 GBP
with 20% VAT, shipping cost not included
Choose a variant:
MWLH 10 Electromagnetic Compensation Weighing Modulekeyboard_arrow_down
  • MWLH 10 Electromagnetic Compensation Weighing Module
    Max: 10kg | d: 0,01g
  • MWLH 25 Electromagnetic Compensation Weighing Module
    Max: 25kg | d: 0,1g
  • MWLH 30 Electromagnetic Compensation Weighing Module
    Max: 30kg | d: 0,1g
  • MWLH 35 Electromagnetic Compensation Weighing Module
    Max: 35kg | d: 0,1g

Pcs.

Add to basket
We are near you.
We have been manufacturing weighing devices since 1984.

RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569

Delivery only on the territory of United Kingdom
Optional paid installation and training service available - please contact us for details and pricing.
Datasheet - MWLH 10 Electromagnetic Compensation Weighing ModuleDatasheet - MWLH 10 Electromagnetic Compensation Weighing Module
Code:
WX-016-0108
2 years warranty
2 years warranty
CE
CE

Datasheet

Maximum capacity [Max]
10 kg
Minimum load
0,5 g
Preload range
1 kg
Readability [d]
0,01 g
Tare range
-10 kg
Repeatability
0,01 g
Linearity
±0,02 g
Stabilization time
3 s
Adjustment
external
Protection class
IP 65
Power supply
100 – 240 V AC 50/60 Hz
Operating temperature
+10 – +40 °C
Relative humidity
15% – 80%
Weighing pan dimensions
212×174 mm
Device dimensions W x D x H
341×236×164 mm
Packaging dimensions W x D x H
580×413×360 mm

Overview


MWLH 10 Electromagnetic Compensation Weighing Module


Operation of professional MWLH electromagnetic high resolution modules is based on an electromagnetic digital converter. The MWLH series is designed to be incorporated into customer's weighing systems requiring high IP rate, great weighing accuracy and high measurement speed. Brand new, compact design favours unlimited module's adaptation capabilities. The module may be installed on technological lines thus ensuring quick and precise measurement in challenging industrial environment.







Design

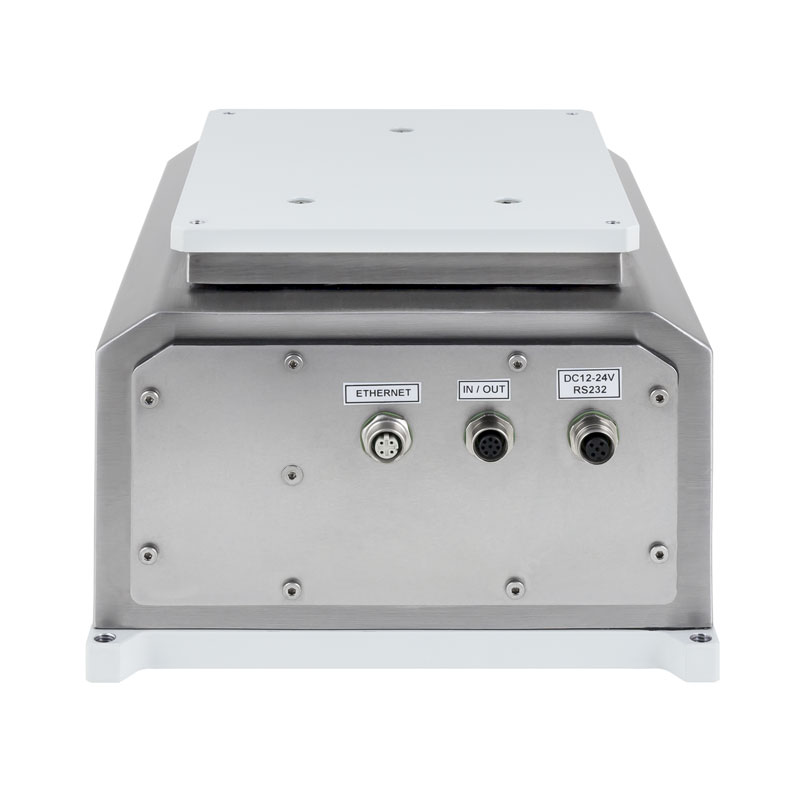

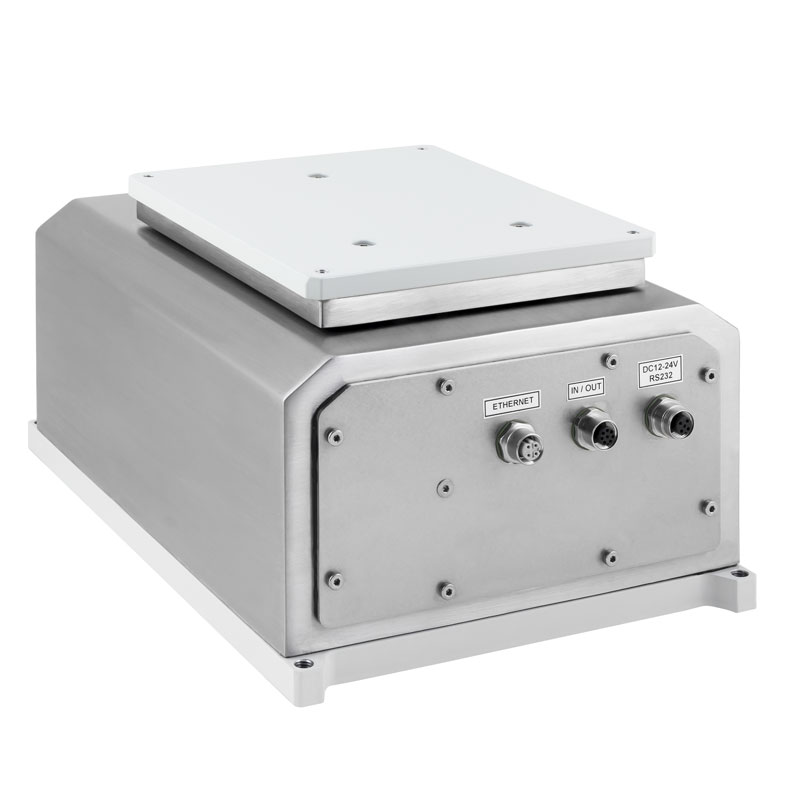

MWLH Weighing Module features integrated stainless steel housing with degree of protection classified as IP 65. It is connected to signal cables via quick coupling. The module base features four holes located in its corners allowing to fix the module to the base using M8 screws. MWLH Weighing Module comprises aluminium, painted plate with four threaded M6 holes, useful for fixing the weighing pan.

Features:
✓ Brand new construction of the electromagnetic mechanism housed in a stainless steel casing (IP65)
✓ Reading unit of 0,01 g
✓ Ease of adaptation to required usage area
✓ Cooperation with HY terminal
✓ Interfaces: RS 232, RS 485, Ethernet, 2xIN i 2xOUT, Profibus (option).
