MW-01 Mass Converters

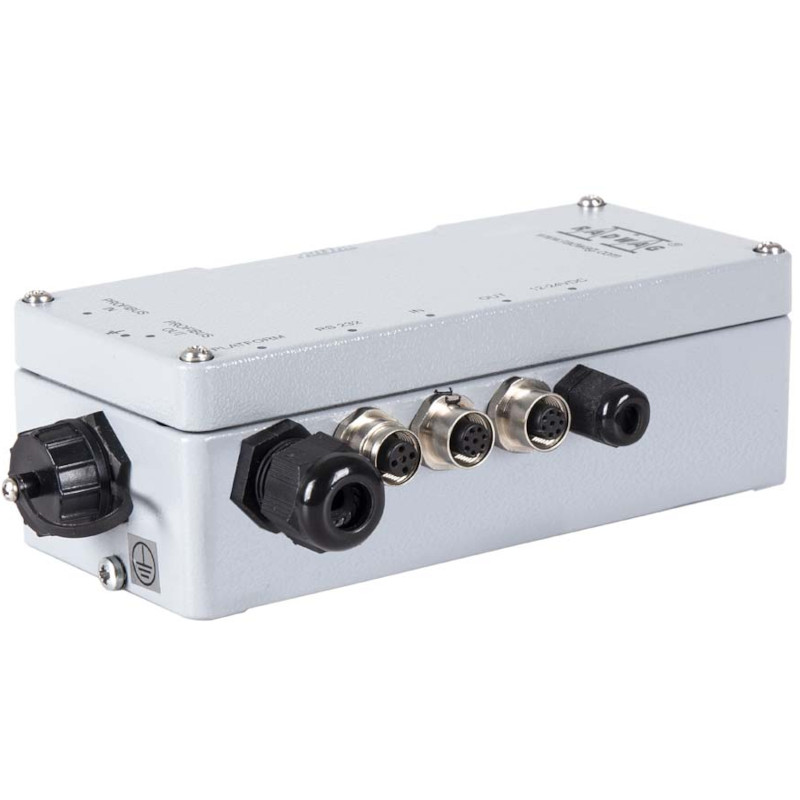

MW-01-A2 Mass Converter
This image is for reference only.
MW-01-A2 Mass ConverterMW-01-A2 Mass Converter
close Exit
This image is for reference only.
MW-01-A2 Mass ConverterMW-01-A2 Mass Converter
Availability:
In stock
Estimated shipping date :
15 working days

Need it urgently? Call us to check real-time stock availability: +44 (0)1625 569569

Price:
877.20
 GBP
with 20% VAT, shipping cost not included
Choose a variant:
MW-01-A2 Mass Converterkeyboard_arrow_down
  • MW-01-A1 Mass Converter
  • MW-01-A2 Mass Converter
  • MW-01-A3 Mass Converter
  • MW-01-A4 Mass Converter
  • MW-01-A5 Mass Converter
  • MW-01-A6 Mass Converter
  • MW-01-A7 Mass Converter

Pcs.

Add to basket
We are near you.
We have been manufacturing weighing devices since 1984.

RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569

Delivery only on the territory of United Kingdom
Optional paid installation and training service available - please contact us for details and pricing.
Datasheet - MW-01-A2 Mass ConverterDatasheet - MW-01-A2 Mass Converter
Code:
WX-016-0279

Datasheet

OIML Class
II or III
Protection class
IP 66
Communication interface
RS232, ETHERNET, 3×IN / 3×OUT
Power supply
100 – 240 V AC 50/60 Hz
Maximum quantity of verification units
10000 e
Minimum volatge per verification unit
0,5 µV
Maximum voltage per verification unit
1,95 µV
Minimum load cell impedance
50 Ω
Maximum load cell impedance
1200 Ω
Load cell excitation voltage
5V DC
Maximum increase of signal
19,5 mV
Connection of load cells
4 or 6 wires + ekran
Operating temperature
-10 – +40 °C
Housing
aluminum
Packaging dimensions W x D x H
300×250×130 mm
Net weight
1 kg
Gross weight
1,4 kg
Multiple range
YES
Max number of platforms
1

Overview


The MW-01-A mass converter is designed to be a component of an industrial load cell scale. Depending on the needs, communication with the mass converter can be carried out via the following communication interfaces: RS232, RS485, Ethernet, Ethernet IP, Profibus or Profinet. The MW-01-A mass converter is compatible with indicators and PC.

Operation of the MW-01-A mass converter via PC is carried out using „MW Manager” software.
