MPS.M.R1 Modules

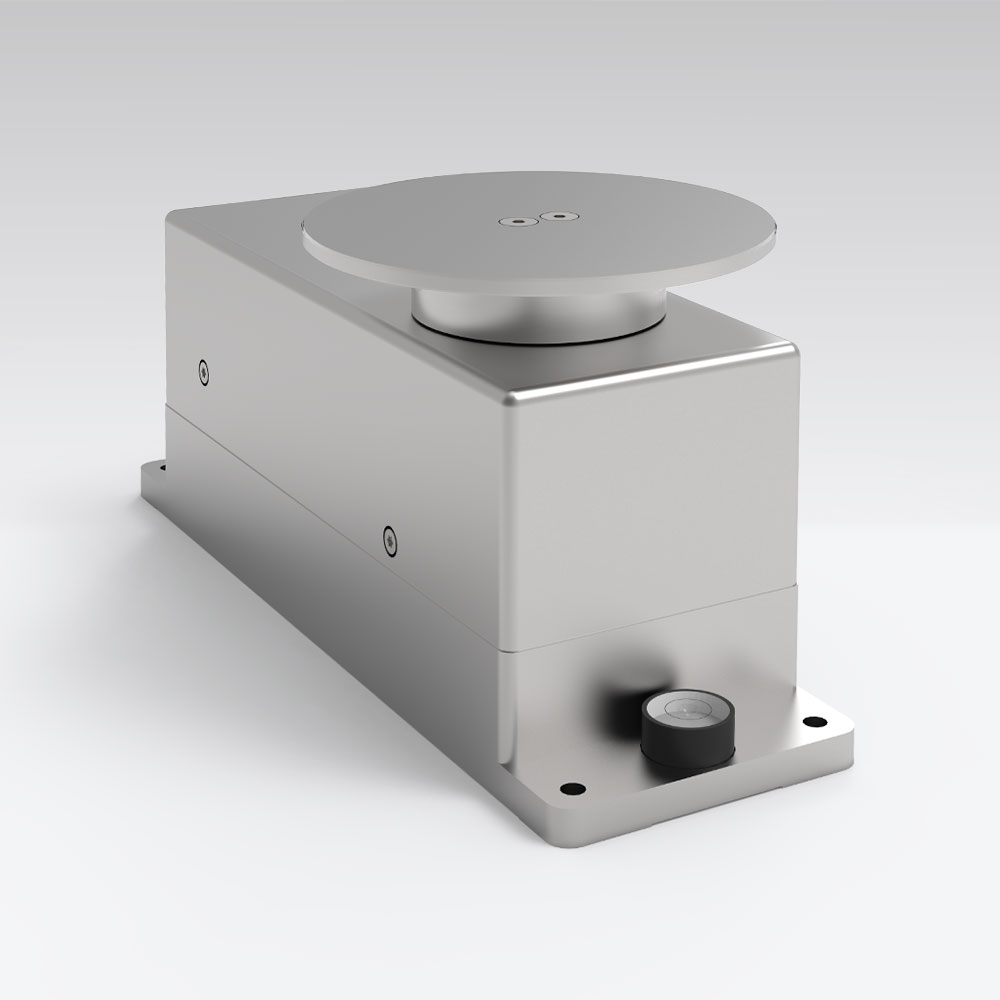

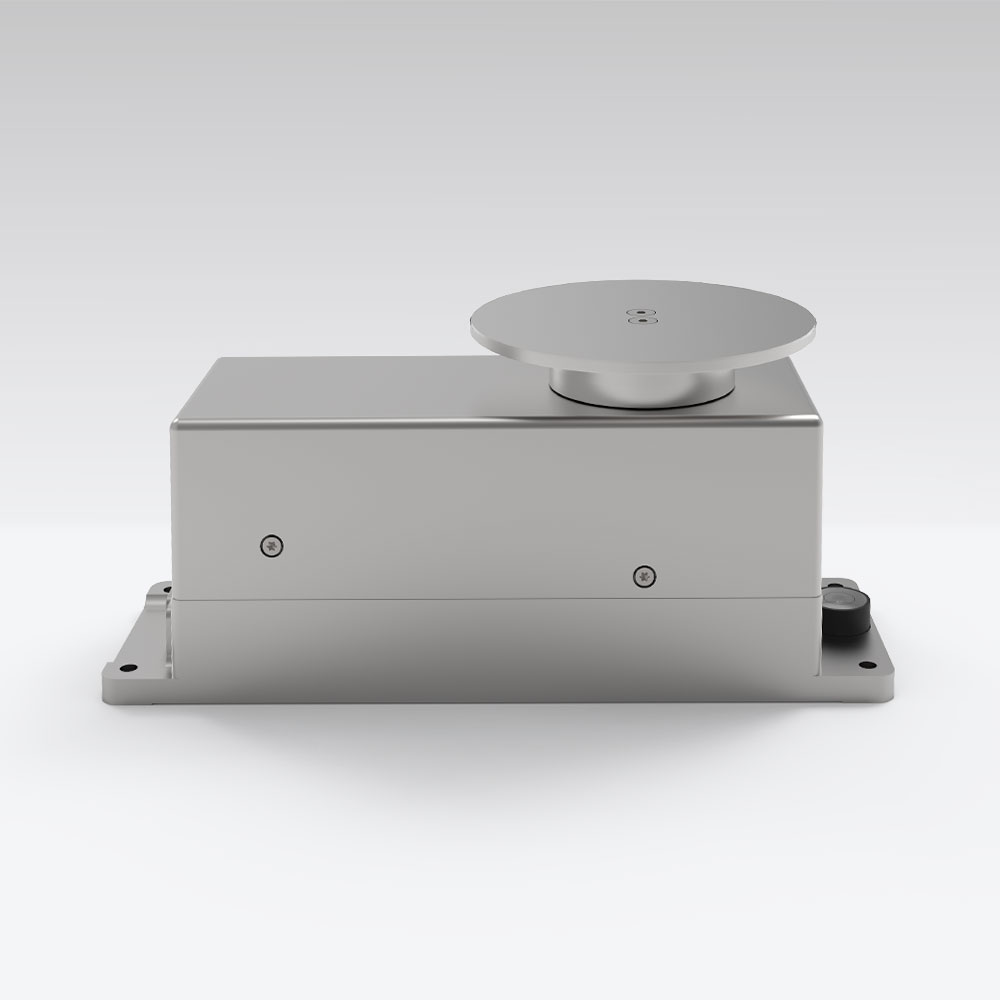

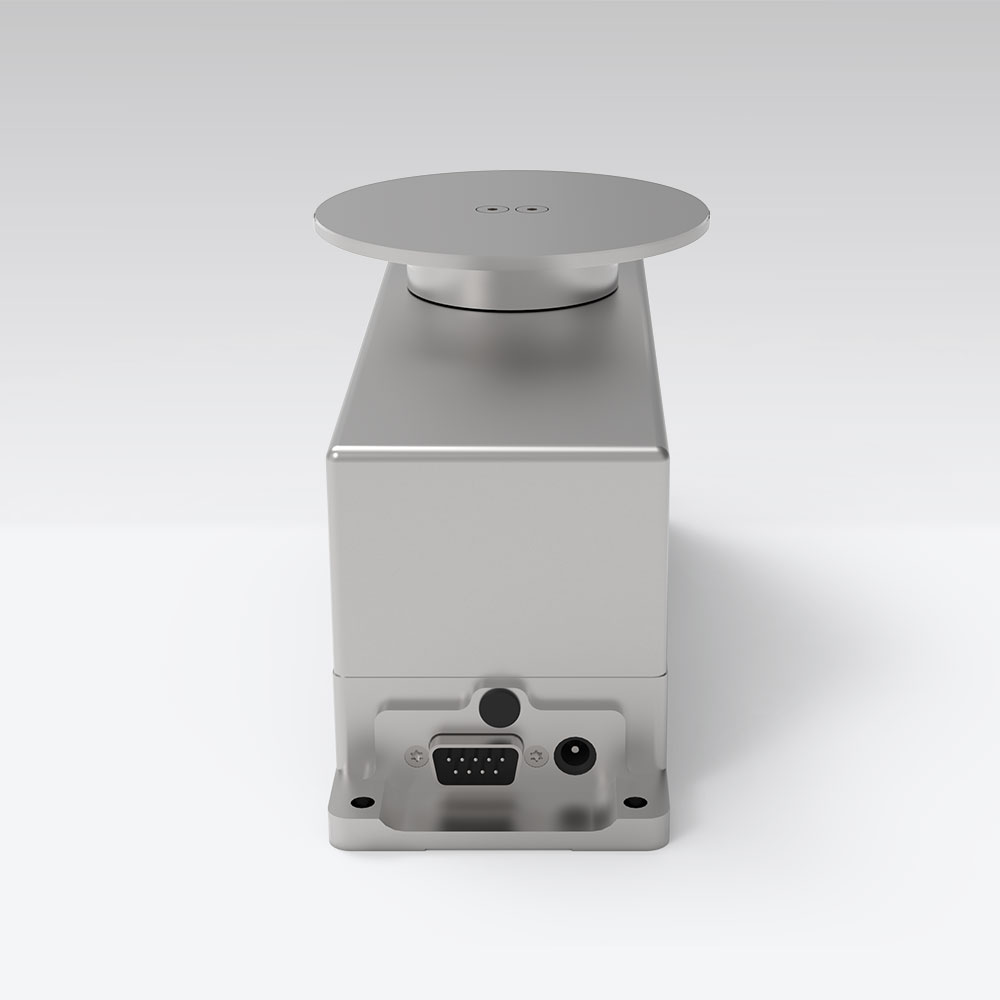

MPS.M.3300.R1 Weighing Module
This image is for reference only.
MPS.M.3300.R1 Weighing ModuleMPS.M.3300.R1 Weighing ModuleMPS.M.3300.R1 Weighing Module
close Exit
This image is for reference only.
MPS.M.3300.R1 Weighing ModuleMPS.M.3300.R1 Weighing ModuleMPS.M.3300.R1 Weighing Module
Availability:
In stock
Estimated shipping date :
15 working days

Need it urgently? Call us to check real-time stock availability: +44 (0)1625 569569

Price:
1581.60
 GBP
with 20% VAT, shipping cost not included
Choose a variant:
MPS.M.3300.R1 Weighing Modulekeyboard_arrow_down
  • MPS.M.6300.R1 Weighing Module
    Max: 6300g | d: 10mg
  • MPS.M.3300.R1 Weighing Module
    Max: 3300g | d: 10mg
  • MPS.M.5100/10000.R1 Weighing Module
    Max: 5100/10000g | d: 0,01/0,05g

Pcs.

Add to basket
We are near you.
We have been manufacturing weighing devices since 1984.

RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569

Delivery only on the territory of United Kingdom
Optional paid installation and training service available - please contact us for details and pricing.
Datasheet - MPS.M.3300.R1 Weighing ModuleDatasheet - MPS.M.3300.R1 Weighing Module
Code:
WX-016-0343
2 years warranty
2 years warranty
CE
CE

Datasheet

Maximum capacity [Max]
3300 g
Preload range
330 g
Readability [d]
10 mg
Repeatability
7 mg
Linearity
±20 mg
Warm-up time after connection to power
1 h
Stabilization time
2 s
Adjustment
external
Protection class
IP 43
Communication interface
RS232
Power supply
Adapter: 100 – 240V AC 50/60Hz 0,6A; 12V DC 1,2A Module: 12V DC
Operating temperature
+10 – +40 °C
Relative humidity
40% – 80%
Housing
aluminum
Weighing pan material
aluminum
Weighing pan dimensions
ø100 mm
Device dimensions W x D x H
266x70x105 mm
Net weight
1,8 kg

Overview


MPS.M.3300.R1 Weighing Module


It features a measuring system based on RADWAG’s proprietary

MONO

BLOCK® technology, which allows weighing with a readability of 10 mg. This OEM product is mainly used for integration into machines and production lines.





MPS.M Weighing Module – Application

Thanks to its compactness and ability to operate without a weighing terminal, the MPS.M module is the ideal solution for companies involved in production automation as well as for machine and automation equipment developers. The module will find application in many processes requiring control, batching and filling.


What Do You Get in the Set?
  • Module with standard weighing pan
  • Power supply
  • P0108 – RS232 cable; computer – module.







MPS.M Weighing Module – What Are Its Advantages?

  • Compact size
  • Compatibility with R-Panel computer software
  • Cooperation with R Weighing Terminal
  • Possibility to personalise the weighing pan to the customer’s requirements
  • Communication with it can be carried out using the ASCII character communication protocol – Radwag CBCP available on the RS232 port.







What Does the MPS.M Weighing Module Fit with?

Recommended accessories:

  • R-Panel computer program
Virtual version of the weighing terminal; enables the module to be operated via a computer. It provides all the buttons and functions found on the (physical) R terminal, including for taring, zeroing or parameter setting. Communication between the R-Panel software and the MPS.M module is achieved by means of an RS232 interface. The automatic search algorithm of the weighing module translates into an easy connection.
  • R Weighing Terminal
Physical operator’s panel with LCD display. It not only displays the mass, but also allows the operation and configuration of the module parameters.
  • Splitter PT0487
Which allows the MPS.M module to be connected simultaneously to the R terminal and to a computer, PLC or other device using the RS232 port.
Cable P0108.5
5 m RS232 cable; computer – module.
