MAS.Y Modules

MAS.1000.Y Weighing Module
This image is for reference only.
MAS.1000.Y Weighing ModuleMAS.1000.Y Weighing ModuleMAS.1000.Y Weighing Module
close Exit
This image is for reference only.
MAS.1000.Y Weighing ModuleMAS.1000.Y Weighing ModuleMAS.1000.Y Weighing Module
Availability:
In stock
Estimated shipping date :
15 working days

Need it urgently? Call us to check real-time stock availability: +44 (0)1625 569569

Price:
1542.00
 GBP
with 20% VAT, shipping cost not included
Choose a variant:
MAS.1000.Y Weighing Modulekeyboard_arrow_down
  • MAS.50.Y Weighing Module
    Max: 50g | d: 0,01mg
  • MAS.80.Y Weighing Module
    Max: 80g | d: 0,01mg
  • MAS.220.Y Weighing Module
    Max: 220g | d: 0,1mg
  • MAS.640.Y Weighing Module
    Max: 640g | d: 1mg
  • MAS.1000.Y Weighing Module
    Max: 1000g | d: 1mg
  • MAS.220/440.Y Weighing Module
    Max: 220/440g | d: 0,1/1mg

Pcs.

Add to basket
We are near you.
We have been manufacturing weighing devices since 1984.

RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569

Delivery only on the territory of United Kingdom
Optional paid installation and training service available - please contact us for details and pricing.
Datasheet - MAS.1000.Y Weighing ModuleDatasheet - MAS.1000.Y Weighing Module
Code:
WX-016-0363
2 years warranty
2 years warranty
CE
CE

Datasheet

Maximum capacity [Max]
1000 g
Preload range
100 g
Readability [d]
1 mg
Repeatability
1,5 mg
Linearity
±3 mg
Warm-up time after connection to power
1 h
Stabilization time
2 s
Adjustment
internal
Protection class
IP 43
Communication interface
RS232, Ethernet TCP/IP
Optional interfaces
RS485, 2 IN/2 OUT
Power supply
Adapter: 100 – 240V AC 50/60Hz; 12V DC 1,2A Module: 12V DC
Operating temperature
+10 – +40 °C
Relative humidity
40% – 80%
Housing
aluminum
Weighing pan material
Stainless steel
Weighing pan dimensions
ø56 mm
Device dimensions W x D x H
231x115x120 mm
Net weight
1,6 kg

Overview

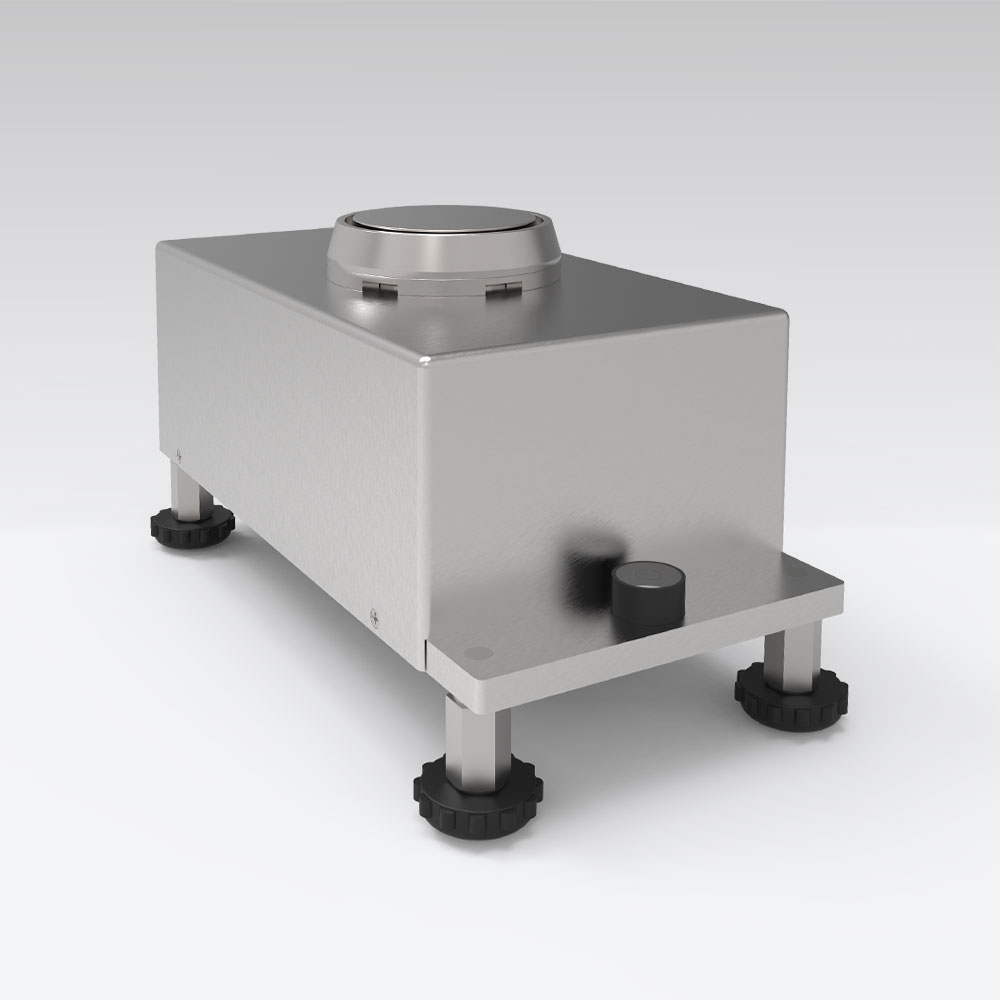

MAS.1000.Y Weighing Module


The MAS.1000.Y Weighing Module enables weighing with an impressive readability of 1 mg. This is an OEM product designed primarily for integration into machines and production lines.





MAS.Y Weighing Module and Possible Applications

Its compact size and ability to operate without a weighing terminal have made the MAS.Y module a great choice for companies involved in production automation and for machine and automation equipment developers. You will use it in processes that require control, batching and filling. Communication with the MAS.Y Weighing Module can be performed using the ASCII character communication protocol – Radwag CBCP available on the RS232 port.


Standard Equipment:
  • Module with standard weighing pan
  • Power supply
  • P0108 – RS232 cable (computer – module).







MAS.Y Weighing Module – Its Advantages and Possibilities

  • Compactness
  • RS232, Ethernet TCP/IP communication interfaces
  • Internal adjustment
