MAS.1.Y Modules

MAS.1.82/220.Y Weighing Module
This image is for reference only.
MAS.1.82/220.Y Weighing Module
close Exit
This image is for reference only.
MAS.1.82/220.Y Weighing Module
Availability:
In stock
Estimated shipping date :
15 working days

Need it urgently? Call us to check real-time stock availability: +44 (0)1625 569569

Price:
11007.60
 GBP
with 20% VAT, shipping cost not included
Choose a variant:
MAS.1.82/220.Y Weighing Modulekeyboard_arrow_down
  • MAS.1.82/220.Y Weighing Module
    Max: 82/220g | d: 0,01/0,1mg

Pcs.

Add to basket
We are near you.
We have been manufacturing weighing devices since 1984.

RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569

Delivery only on the territory of United Kingdom
Optional paid installation and training service available - please contact us for details and pricing.
Datasheet - MAS.1.82/220.Y Weighing ModuleDatasheet - MAS.1.82/220.Y Weighing Module
Code:
WX-016-0166
2 years warranty
2 years warranty
CE
CE

Datasheet

Maximum capacity [Max]
82 / 220 g
Minimum load
1 mg
Readability [d]
0,01 / 0,1 mg
Tare range
-220 g
Minimum weight (USP)
40 mg
Minimum weight (U=1%, k=2)
4 mg
Repeatability (Max)
0,1 mg
Repeatability (5% Max)
0,02 mg
Linearity
±0,06 / 0,2 mg
Stabilization time
6 / 2 s
Adjustment
internal (automatic)
Display
10″ graphic colour touchscreen
Protection class
IP 54, IP 43 terminal
Communication interface
2×USB-A, USB-C, RS 232 (COM3), HDMI, Ethernet, Wi-Fi®, Hotspot
Power supply
100 – 240 V AC 50/60 Hz
Operating temperature
+10 – +40 °C
Relative humidity
40% – 80%
Weighing pan dimensions
ø42 mm
Device dimensions W x D x H
289×143×125 mm
Packaging dimensions W x D x H
650×340×315 mm
Net weight
4,7 kg
Gross weight
6,7 kg

Overview

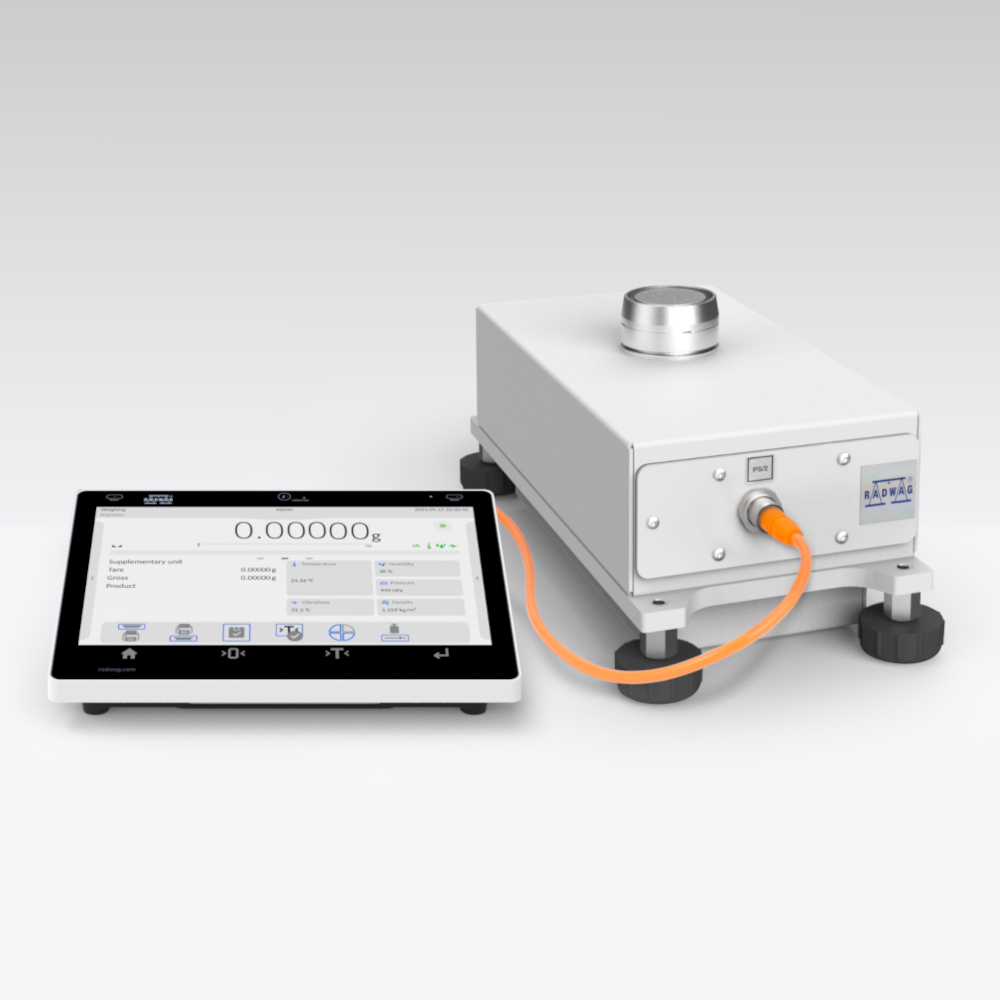

MAS.1.82/220.Y Weighing Module


MAS.1 Y device is an electromagnetic weighing module of high resolution, equipped with 5Y touch panel featuring 10" display. The device can be integrated into a weighing system of the customer. Solid construction and advanced electronics ensure great adaptability both when fitting the module into the technological line and building it into the customer device.







Features:

  • Brand new design of the electromagnetic mechanism housed in an aluminium enclosure,
  • Readability of 0.01 mg,
  • Overload protection,
  • Ease of adaptation to the required storage space,
  • Internal adjustment,
  • Various options of hardware configuration,
  • The 5Y panel functionality is remarkable thanks to use of numerous interfaces: 2×USB-A, USB-C, RS 232 (COM3), HDMI, Ethernet, Wi-Fi, Hotspot.
By cause of high measurement accuracy, it is recommended to install the module inside customer's device (e.g. in a draft shield) in order to reduce the influence of ambient conditions on the measurement result.

The module comes standard with a dedicated power supply.
