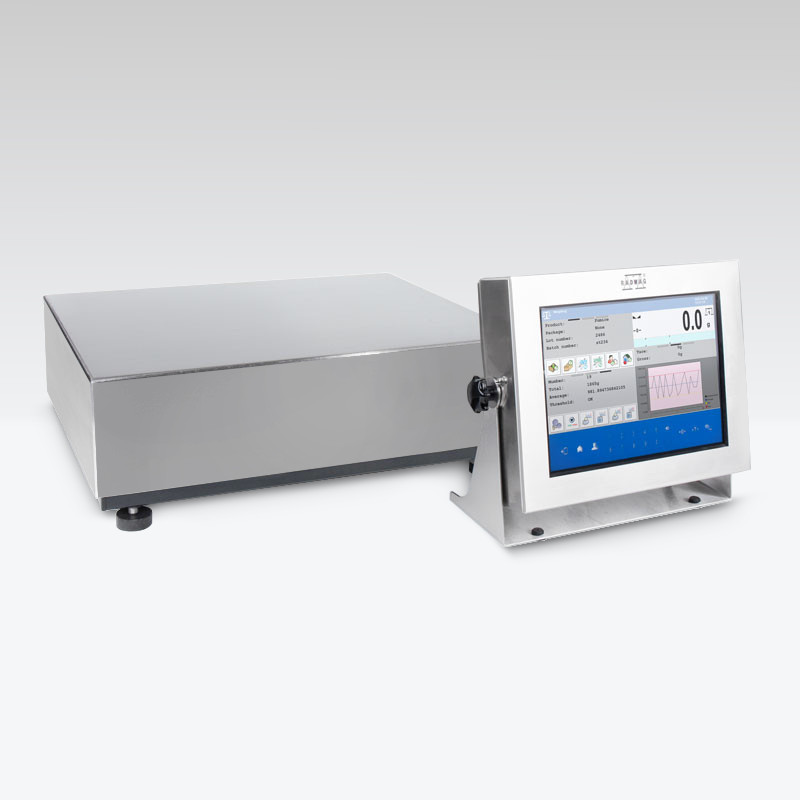

HY10.HRP High Resolution Scale
This image is for reference only.
Exit
This image is for reference only.
Availability:
In stock
Estimated shipping date :
15 working days
Need it urgently? Call us to check real-time stock availability: +44 (0)1625 569569
Price:
10668.00
GBP
with 20% VAT, shipping cost not included
Choose a variant:
HY10.150.HRP High Resolution Scale
- HY10.300.HRP High Resolution ScaleMax: 300kg | d: 1g
- HY10.150.1.HRP High Resolution ScaleMax: 150kg | d: 1g
- HY10.62.HRP.M2.1 High Resolution ScaleMax: 62kg | d: 1g
- HY10.300.1.HRP High Resolution ScaleMax: 300kg | d: 1g
- HY10.600.HRP High Resolution ScaleMax: 600kg | d: 5g
- HY10.1100.HRP High Resolution ScaleMax: 1100kg | d: 10g
- HY10.16.HRP High Resolution ScaleMax: 16kg | d: 0,1g
- HY10.32.HRP High Resolution ScaleMax: 32kg | d: 0,1g
- HY10.120.HRP High Resolution ScaleMax: 120kg | d: 0,5g
- HY10.32.HRP.M2.1 High Resolution ScaleMax: 32kg | d: 0,1g
- HY10.62.HRP High Resolution ScaleMax: 62kg | d: 0,1g
- HY10.62.HRP.M2.2 High Resolution ScaleMax: 62kg | d: 2g
- HY10.120.HRP.M2.1 High Resolution ScaleMax: 120kg | d: 1g
- HY10.120.HRP.M2.2 High Resolution ScaleMax: 120kg | d: 5g
- HY10.150.1.HRP.M2.1 High Resolution ScaleMax: 150kg | d: 1g
- HY10.150.1.HRP.M2.2 High Resolution ScaleMax: 150kg | d: 5g
- HY10.300.HRP.M2.1 High Resolution ScaleMax: 300kg | d: 1g
- HY10.300.1.HRP.M2.1 High Resolution ScaleMax: 300kg | d: 1g
- HY10.600.HRP.M2.1 High Resolution ScaleMax: 600kg | d: 10g
- HY10.600.HRP.M2.2 High Resolution ScaleMax: 600kg | d: 20g
- HY10.1100.HRP.M2.1 High Resolution ScaleMax: 1100kg | d: 10g
- HY10.1100.HRP.M2.2 High Resolution ScaleMax: 1100kg | d: 50g
- HY10.1000.HRP.M3 High Resolution ScaleMax: 200/500kg | d: 20/50g
- HY10.16.HRP.M2.1 High Resolution ScaleMax: 16kg | d: 0,1g
- HY10.10.HRP High Resolution ScaleMax: 10kg | d: 0,02g
- HY10.150.HRP High Resolution ScaleMax: 150kg | d: 1g
- HY10.62.2.HRP High Resolution ScaleMax: 62kg | d: 0,1g
- HY10.120.2.HRP High Resolution ScaleMax: 120kg | d: 0,5g
- HY10.150.2.HRP High Resolution ScaleMax: 150kg | d: 1g
RS232 Module (106.80 GBP)
RS485 Module (272.40 GBP)
Wi-Fi Interface (260.40 GBP)
4IN/4OUT Module (493.20 GBP)
12WE/12WY Module (272.40 GBP)
EtherNet/IP Module (1120.80 GBP)
DP-6 Additional weighing platform module (288.00 GBP)
Additional fee for 'Audit Trail' module activation (176.40 GBP)
AN Analogue output module: 0-20mA, 4-20mA, 0-10V (300.00 GBP)
Additional fee for Radwag Extended SI (RES level: 0,1,2) module activation (418.80 GBP)
Workflow module - License lifetime (169.20 GBP)
Calibration new precision balances / industrial scales 121kg-300kg (285.60 GBP)
Pcs.
Add to basket
We are near you.
We have been manufacturing weighing devices since 1984.
RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569
Delivery only on the territory of United Kingdom
We have been manufacturing weighing devices since 1984.
RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569
Delivery only on the territory of United Kingdom
Optional paid installation and training service available - please contact us for details and pricing.
Datasheet - HY10.150.HRP High Resolution ScaleCode:
WP-330-0038
CE
2 years warranty
Datasheet
Maximum capacity [Max]
150 kg
Minimum load
50 g
Preload range
30 kg
Readability [d]
1 g
Tare range
-150 kg
Repeatability
0,6 g
Linearity
±3 g
Stabilization time
3 s
Adjustment
internal (automatic)
Display
10,1″ graphic colour touchscreen
Protection class
IP 66 / 67 construction, IP 66 / 67 / 69 terminal
Communication interface
2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital)
Optional interfaces
module Wi-Fi® 802.11 b/g/n, module Profibus (DP SLAVE), module RS485, module PROFINET (RJ45), analog output module (4-20mA, 0-20mA, 0-10V) , 12IN / 12OUT (IN – 5-24 VDC, OUT – max 30 VDC, 0,5 ADC)
Power supply
100 – 240 V AC 50/60 Hz
Operating temperature
+10 – +40 °C
Relative humidity
15% – 80%
Construction
mild steel St3S
Weighing pan material
Stainless steel AISI304
Weighing pan dimensions
500×400 mm
Packaging dimensions W x D x H
610×710×505 mm
Net weight
71,5 kg
Gross weight
119 kg
Overview
67 on the IP scale
HRP high resolution scales are very robust. Their platforms are distinguished by a high degree of protection – IP 67. They have additional sealing elements that protect them from dust and moisture. As a result, HRP scales can be cleaned with a pressure washer.
9 advantages, 1 monobloc
The ability to weigh loads up to 150 kg on a large pan with high readability and good repeatability, minimal eccentricity error over the entire range, fast and stable measurement (achievable within 1 second), stability of parameters over time and after transport, and a pan dimension adapted to the scale’s readability – all this is the result of using a measurement system based on improved RADWAG MONOBLOCK® technology. The new – taller and larger – RADWAG MONOBLOCK® has enabled the best repeatability and speed in the class of high-resolution industrial weighing platforms.
Repeatability not repeatable by others
Automatic adjustment with an internal weight not only guarantees the best quality of work and repeatability of results, but also saves time and provides comfort.
For such industries as pharmaceutical, chemical, food and…
HY10.HRP scales are ideal for industrial conditions where high readability and repeatability of measurement are required, such as in the pharmaceutical, chemical and food industries. The HY10.HRP and HX7.HRP scales whose terminals are made of stainless steel can be used even in the most demanding wet environments.
Choose a terminal
HRP high-resolution scales can work with one of two industrial terminals: PUE 7.1 and PUE HY10.
The PUE 7.1 terminal has:
- 5.7-inch color resistive display
- a touch-sensitive keyboard
- ABS plastic housing
- IP 43 protection rating
- communication interfaces: 2xRS232, 2xUSB-A, Ethernet, 4 IN/ 4 OUT,
- Wi-Fi,
- optional additional modules: additional A/D converter module DP6.
The PUE HY10 terminal features:
- 10.1-inch color graphic display,
- touchscreen keyboard,
- stainless steel housing,
- IP 68/69 degree of protection,
- communication interfaces: 2xRS232, 2xUSB-A, Ethernet, 4 IN/ 4 OUT,
- optional additional modules: Wi-Fi, RS485, Profibus, Profinet, analog output module, 12 IN/ 12 OUT.

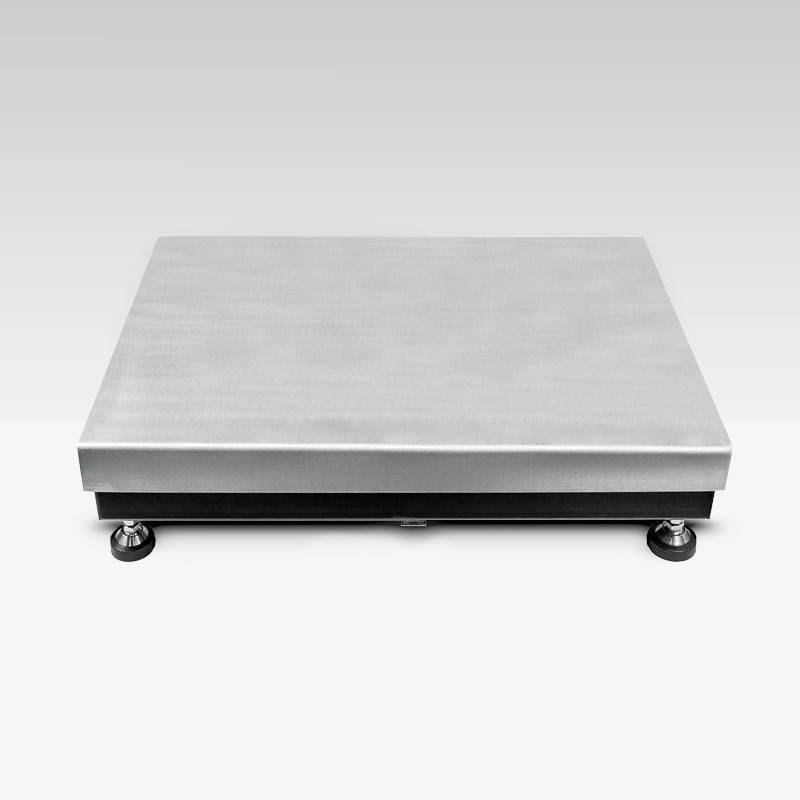

The power of steel
The use of stainless steel for weighing pan construction guarantees you a long life for the scale. It is not afraid of contact with moist objects or accidental splashes. The robustness and strength of the design of the HRP high-resolution scales makes it possible to weigh large objects, such as pallets of goods. The stable platform is resistant to vibration, which is important when weighing large objects.
Do you need ALIBI?
There you have it. ALIBI memory is like a black box of a scale. It records all measurements taken on the device. The ALIBI memory cannot be modified or erased.
Use the potential
Barcode scanners, receipt printers, label printers or additional displays – thanks to multipurpose software, HY10 scale can work with all of them. You can find all accessories in our regular offer. And if you have questions about compatibility, our experts will help you.
Not just weighing
But also parts counting, checkweighing, percent weighing, animal weighing, formulations, differential weighing, labelling, peak hold and statistics. The power of HY10’s working mods.
