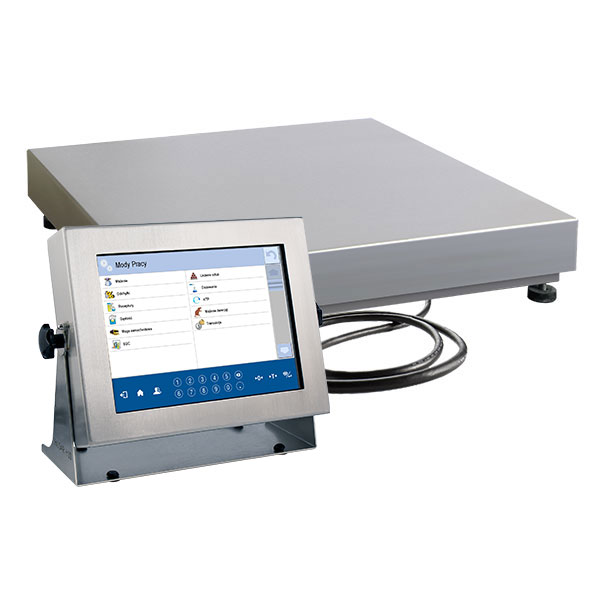

HY10 H Stainless Steel Multifunctional Scale
This image is for reference only.
Exit
This image is for reference only.
Availability:
In stock
Estimated shipping date :
15 working days
Need it urgently? Call us to check real-time stock availability: +44 (0)1625 569569
Price:
4672.80
GBP
with 20% VAT, shipping cost not included
Choose a variant:
HY10.150.H5.K Multifunctional Scale
- HY10.3.H1.K Multifunctional ScaleMax: 3kg | d: 1g
- HY10.6.H2.K Multifunctional ScaleMax: 6kg | d: 2g
- HY10.15.H2.K Multifunctional ScaleMax: 15kg | d: 5g
- HY10.15.H3.K Multifunctional ScaleMax: 15kg | d: 5g
- HY10.30.H3.K Multifunctional ScaleMax: 30kg | d: 10g
- HY10.60.H3.K Multifunctional ScaleMax: 60kg | d: 20g
- HY10.150.H3.K Multifunctional ScaleMax: 150kg | d: 50g
- HY10.60.H4.K Multifunctional ScaleMax: 60kg | d: 20g
- HY10.150.H4.K Multifunctional ScaleMax: 150kg | d: 50g
- HY10.60.H5.K Multifunctional ScaleMax: 60kg | d: 20g
- HY10.150.H5.K Multifunctional ScaleMax: 150kg | d: 50g
- HY10.300.H5.K Multifunctional ScaleMax: 300kg | d: 100g
- HY10.150.H6.K Multifunctional ScaleMax: 150kg | d: 50g
- HY10.300.H6.K Multifunctional ScaleMax: 300kg | d: 100g
- HY10.60.H3/5.K Multifunctional ScaleMax: 60kg | d: 20g
- HY10.150.H3/5.K Multifunctional ScaleMax: 150kg | d: 50g
- HY10.1,5.H1.K Multifunctional ScaleMax: 1.5kg | d: 0,5g
- HY10.6.H1.K Multifunctional ScaleMax: 6kg | d: 2g
- HY10.15.H1.K Multifunctional ScaleMax: 15kg | d: 5g
- HY10.30.H2.K Multifunctional ScaleMax: 30kg | d: 10g
- HY10.6.H3.K Multifunctional ScaleMax: 6kg | d: 2g
- HY10.15.H4.K Multifunctional ScaleMax: 15kg | d: 5g
- HY10.30.H4.K Multifunctional ScaleMax: 30kg | d: 10g
- HY10.30.H3/5.K Multifunctional ScaleMax: 30kg | d: 10g
- HY10.15.H3/5.K Multifunctional ScaleMax: 15kg | d: 10g
- HY10.30.H5.K Multifunctional ScaleMax: 30kg | d: 10g
- HY10.15.H5.K Multifunctional ScaleMax: 15kg | d: 5g
- HY10.60.H6.K Multifunctional ScaleMax: 60kg | d: 20g
- HY10.3.H2.K Multifunctional ScaleMax: 3kg | d: 1g
Wi-Fi Interface (260.40 GBP)
RS232 Module (106.80 GBP)
RS485 Module (272.40 GBP)
4IN/4OUT Module (43.20 GBP)
12WE/12WY Module (272.40 GBP)
EtherNet/IP Module (1120.80 GBP)
Class III Verification (43.20 GBP)
DP-6 Additional weighing platform module (288.00 GBP)
Extra charge for dual range 1 Load Cell Platform Scales (322.80 GBP)
Additional fee for 'Audit Trail' module activation (176.40 GBP)
AN Analogue output module: 0-20mA, 4-20mA, 0-10V (300.00 GBP)
Additional fee for Radwag Extended SI (RES level: 0,1,2) module activation (418.80 GBP)
Additional fee for RADWAG Data Access (RDA) module activation (418.80 GBP)
Workflow module - License lifetime (176.40 GBP)
Calibration new precision balances / industrial scales 121kg-300kg (285.60 GBP)
Pcs.
Add to basket
We are near you.
We have been manufacturing weighing devices since 1984.
RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569
Delivery only on the territory of United Kingdom
We have been manufacturing weighing devices since 1984.
RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569
Delivery only on the territory of United Kingdom
Optional paid installation and training service available - please contact us for details and pricing.
Datasheet - HY10.150.H5.K Multifunctional ScaleCode:
WP-116-0021
2 years warranty
Verification
CE
Datasheet
Maximum capacity [Max]
150 kg
Minimum load
1 kg
Readability [d]
50 g
Verification unit [e]
50 g
Tare range
-150 kg
Max readability for non-verified scale
5 g
Adjustment
external
OIML Class
III
Display
10,1″ graphic colour touchscreen
Cable length
2,5 m
Protection class
IP 66 / 67 construction, IP 66 / 67 / 69 terminal
Communication interface
2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital)
Optional interfaces
module Wi-Fi® 802.11 b/g/n, module Profibus (DP SLAVE), module RS485, module PROFINET (RJ45), analog output module (4-20mA, 0-20mA, 0-10V) , 12IN / 12OUT (IN – 5-24 VDC, OUT – max 30 VDC, 0,5 ADC)
Power supply
100 – 240 V AC 50/60 Hz
Operating temperature
-10 – +40 °C
Relative humidity
10% – 85% RH no condensation
Weighing pan dimensions
600×600 mm
Packaging dimensions W x D x H
710×710×560 mm
Net weight
30 kg
Gross weight
33 kg
Overview
HY10.150.H5.K Multifunctional Scale
Multifunctional scales HY10 series is designed to fast and precise determination of mass in industrial conditions.
The HY10 scales
features a terminal PUE HY10 series in stainless steel housing and a single load cell weighing platform.
The HY10 series scales is made of stainless steel OH18N9 including the weighing platform, and it is equipped with 10,1”colourful touch screen display, keyboard with numeric and function keys.
The scales enables cooperation with an additional weighing platforms.
Additionally, the HY10 series offers full functionality available in the terminal PUE HY10 series:
- programmable display and function keys,
- designing custom printout templates,
- designing text data indicated on terminal display.
Multifunctional scales HY10 series is offered with a terminal connected to a weighing platform through a cable.
Scales HY10 series is available in dual range version on surcharge.
Dedicated Applications
Smart Editor
The application is intended for scales equipped with the HY10 terminal. It does not require any additional installations. Enter the terminal’s address in the browser address field and log in.
The application enables:
- remote databases editing
- import of images from the graphic file to the scale
- labels import from lb file to the scale
- creating and preview of report, e.g. Workflow
- dosing processes operation
Smart Display
The application allows to personalise the scale screen and display it on a computer. The Smart Display enables customization of the display screen in a simple and clear way.
Place the individual elements on a grid visible on the screen. These elements can be further scaled to suit user needs.
When operated directly on the scale, the user gets a new, refreshed look with the possibility of any configuration of the home screen.
If the application is operated via a computer browser, it enables remote control of the desktop or setting larger mass indication window.
The Workflow Module
will improve work in your company. It enables developing a path of customized weighing process adapted to individual requirements of a particular production system, and next sending it to all weighing instruments cooperating with the E2R. The given process is started on the weighing instrument upon operator logging or after selecting a product, a formulation or an ingredient to which it is assigned. Modifications are made with use of convenient and intuitive interface.
