HX7.4N H.LD Multifunctional Stainless Steel Ramp Scale

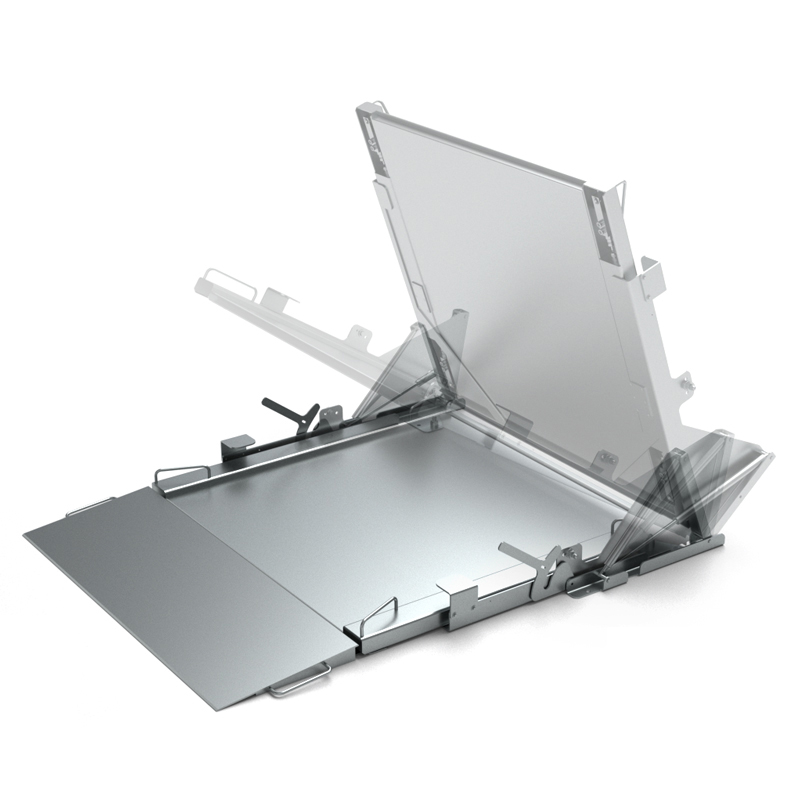

The HX7.4N H scale is a device controlled by means of the PUE HX7 indicator, and it has been equipped with a 4-load-cell ramp platform made of stainless steel, AISI 304. This robust design facilitates weighing of heavy loads in humid environment. The ramps enable easy loading and unloading.



Indicator with a colour 7” graphic display and a diode bar graph allow to observe visualisation of a current load mass presented in relation to the scale range or declared minimum and maximum thresholds. This makes the operation significantly easier. At the back of the housing there are hermetic connectors of RS232, RS485, USB and Ethernet communication interfaces, plus digital inputs/outputs and analogue output. This enables cooperation with external devices such as barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems.



With use of the bracket you can either place the indicator at any flat horizontal surface, or fix it to the wall adjusting the tilt respectively to suit your needs.

The terminal's software allows carrying out processes such as weighing, parts counting, dosing, labelling, formulations and percent weighing. Indicator’s system of information is based on databases (users, products, weighings, packaging, formulations, customers) and ALIBI memory which guarantees stored data safety.



Since the scale is equipped with a platform lifting system, you are kindly requested to order a transport box (OSB box for the platform) for it. The transport box is necessary for the safe and efficient transport and storage of the ramp scale with the platform lifting system. Please take this item into consideration when planning and placing your order. If you have any questions, the Customer Service Department will be happy to assist you.
