HX7.4C Multifunctional Platform Scale
This image is for reference only.
Exit
This image is for reference only.
Availability:
In stock
Estimated shipping date :
15 working days
Need it urgently? Call us to check real-time stock availability: +44 (0)1625 569569
Price:
3444.00
GBP
with 20% VAT, shipping cost not included
Choose a variant:
HX7.4.600.C7 Multifunctional Platform Scale
- HX7.4.150.C6 Multifunctional Platform ScaleMax: 150kg | d: 50g
- HX7.4.150.C7 Multifunctional Platform ScaleMax: 150kg | d: 50g
- HX7.4.1500.C6 Multifunctional Platform ScaleMax: 1500kg | d: 500g
- HX7.4.1500.C7 Multifunctional Platform ScaleMax: 1500kg | d: 500g
- HX7.4.1500.C8 Multifunctional Platform ScaleMax: 1500kg | d: 500g
- HX7.4.1500.C8/9 Multifunctional Platform ScaleMax: 1500kg | d: 500g
- HX7.4.1500.C9 Multifunctional Platform ScaleMax: 1500kg | d: 500g
- HX7.4.300.C6 Multifunctional Platform ScaleMax: 300kg | d: 100g
- HX7.4.300.C7 Multifunctional Platform ScaleMax: 300kg | d: 100g
- HX7.4.300.C8 Multifunctional Platform ScaleMax: 300kg | d: 100g
- HX7.4.3000.C10 Multifunctional Platform ScaleMax: 3000kg | d: 1kg
- HX7.4.3000.C11 Multifunctional Platform ScaleMax: 3000kg | d: 1kg
- HX7.4.3000.C8 Multifunctional Platform ScaleMax: 3000kg | d: 1kg
- HX7.4.3000.C8/9 Multifunctional Platform ScaleMax: 3000kg | d: 1kg
- HX7.4.3000.C9 Multifunctional Platform ScaleMax: 3000kg | d: 1kg
- HX7.4.600.C6 Multifunctional Platform ScaleMax: 600kg | d: 200g
- HX7.4.600.C7 Multifunctional Platform ScaleMax: 600kg | d: 200g
- HX7.4.600.C8 Multifunctional Platform ScaleMax: 600kg | d: 200g
- HX7.4.600.C8/9 Multifunctional Platform ScaleMax: 600kg | d: 200g
- HX7.4.600.C9 Multifunctional Platform ScaleMax: 600kg | d: 200g
- HX7.4.6000.C10 Multifunctional Platform ScaleMax: 6000kg | d: 2kg
- HX7.4.6000.C11 Multifunctional Platform ScaleMax: 6000kg | d: 2kg
- HX7.4.6000.C9 Multifunctional Platform ScaleMax: 6000kg | d: 2kg
RS232 Module (106.80 GBP)
RS485 Module (272.40 GBP)
12WE/12WY Module (272.40 GBP)
EtherNet/IP Module (1120.80 GBP)
Class III Verification (43.20 GBP)
Extra charge for dual range 4 Load Cell Platform Scales (642.00 GBP)
DP-6 Additional weighing platform module (288.00 GBP)
AN Analogue output module: 0-20mA, 4-20mA, 0-10V (300.00 GBP)
Extra charge for Internal battery (198.00 GBP)
Additional fee for Radwag Extended SI (RES level: 0,1,2) module activation (418.80 GBP)
Calibration new industrial scales 301kg-3000kg (589.20 GBP)
Pcs.
Add to basket
We are near you.
We have been manufacturing weighing devices since 1984.
RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569
Delivery only on the territory of United Kingdom
We have been manufacturing weighing devices since 1984.
RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569
Delivery only on the territory of United Kingdom
Optional paid installation and training service available - please contact us for details and pricing.
Datasheet - HX7.4.600.C7 Multifunctional Platform ScaleCode:
WP-224-0007
CE
Verification
2 years warranty
Datasheet
Maximum capacity [Max]
600 kg
Minimum load
4 kg
Readability [d]
200 g
Verification unit [e]
200 g
Tare range
-600 kg
Max readability for non-verified scale
50 g
OIML Class
III
Display
7” graphic colour
Cable length
3 m
Protection class
IP 65 construction, IP 67 cell, IP 66 / 67 terminal
Communication interface
RS232, USB-A, 4IN, 4OUT, Ethernet, Modbus RTU
Optional interfaces
USB (M12 4P), Ethernet, module RS485, module RS232, module Profibus (Dp SLAVE), PROFINET (RRJ45), EtherNet/IP (RRJ45), 12 IN, 12 OUT, 4-20mA, 0-10V
Power supply
100 – 240 V AC 50/60 Hz
Power consumption max.
25 W
Optional power supply
12 – 24 V DC
Operating temperature
-10 – +40 °C
Storage temperature
-10 – +50 °C
Relative humidity
10% – 80% RH no condensation
Indicator
PUE HX7
Keypad
membrane
Number of buttons
22
Construction
mild steel St3S
Weighing pan dimensions
1000×1000 mm
Packaging dimensions W x D x H
1100×1000×500 mm
Net weight
84,7 kg
Gross weight
114,3 kg
Max number of platforms
2
Overview

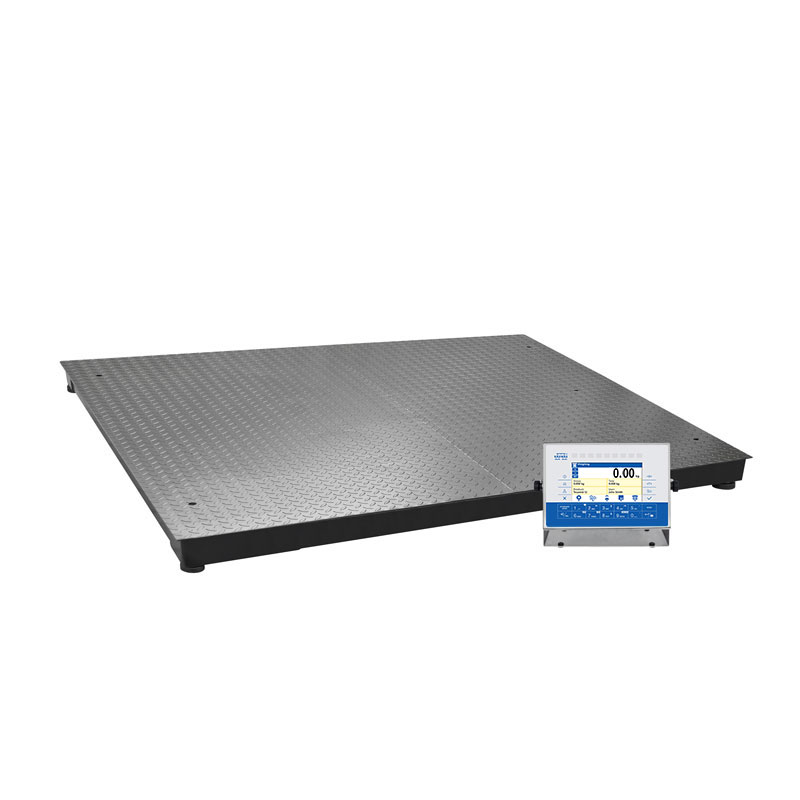

HX7.4.600.C7 Multifunctional Platform Scale
The HX7.4 C scale is a solution based on a stainless steel PUE HX7 terminal (AISI 304) and a powder coated 4-load-cell platform.
The terminal
The terminal is characteristic for a 7” colour graphic display. Its novelty is a red-green 9-diode bar graph presenting the current net mass in reference to the scale range or preset min and max thresholds. At the back of the housing there are hermetic connectors of RS232, RS485, USB and Ethernet communication interfaces, plus digital inputs/outputs and analogue output.
This enables cooperation with external devices such as:
This enables cooperation with external devices such as:
- barcode scanners,
- printers,
- external displays,
- control buttons,
- light signalling towers,
- other controlling/signalling devices,
- systems for automatic process control
- superior IT systems.
With use of the bracket you can either place the indicator at any flat horizontal surface, or fix it to the wall adjusting the tilt respectively to suit your needs.
Databases
Terminal’s system of information is based on databases:
- users,
- products,
- weighings,
- packaging,
- formulations,
- customers,
- ALIBI memory which guarantees stored data safety.
The terminal's software allows carrying out processes such as weighing, parts counting, dosing, labelling, formulations and percent weighing.
