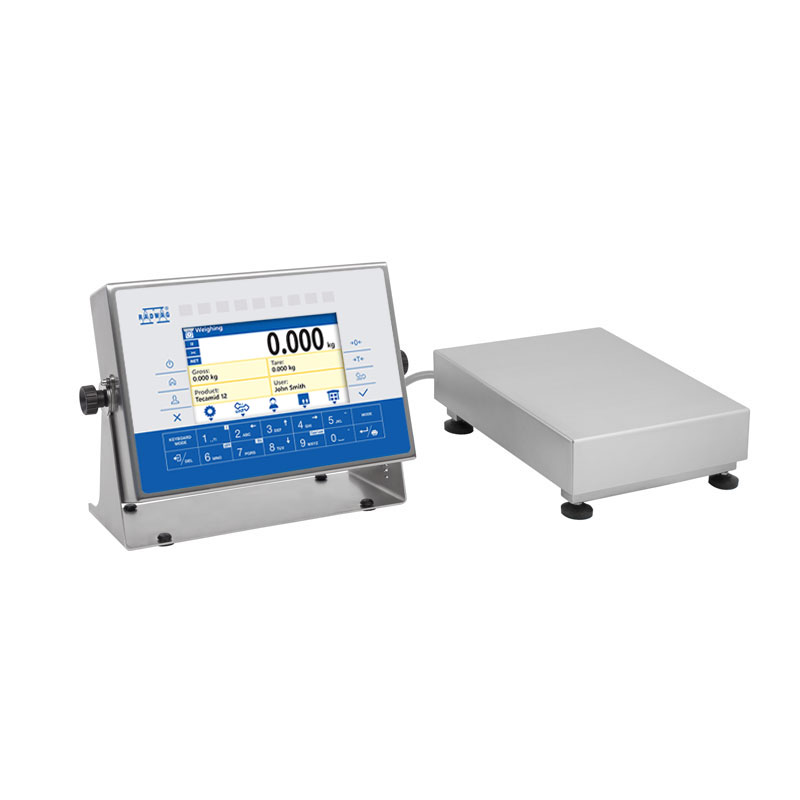

HX7 HR Multifunctional Scale
This image is for reference only.
Exit
This image is for reference only.
Availability:
In stock
Estimated shipping date :
15 working days
Need it urgently? Call us to check real-time stock availability: +44 (0)1625 569569
Price:
Individual pricing
Choose a variant:
HX7.6/15.HR2 Multifunctional Scale
- HX7.15.HR3 Multifunctional ScaleMax: 15kg | d: 5g
- HX7.15.HR3/5 Multifunctional ScaleMax: 15kg | d: 5g
- HX7.15.HR4 Multifunctional ScaleMax: 15kg | d: 5g
- HX7.15.HR5 Multifunctional ScaleMax: 15kg | d: 5g
- HX7.150.HR3 Multifunctional ScaleMax: 150kg | d: 50g
- HX7.150.HR3/5 Multifunctional ScaleMax: 150kg | d: 50g
- HX7.150.HR4 Multifunctional ScaleMax: 150kg | d: 50g
- HX7.3.HR2 Multifunctional ScaleMax: 3kg | d: 1g
- HX7.30.HR2 Multifunctional ScaleMax: 30kg | d: 10g
- HX7.30.HR3 Multifunctional ScaleMax: 30kg | d: 10g
- HX7.30.HR3/5 Multifunctional ScaleMax: 30kg | d: 10g
- HX7.30.HR4 Multifunctional ScaleMax: 30kg | d: 10g
- HX7.30.HR5 Multifunctional ScaleMax: 30kg | d: 10g
- HX7.6.HR2 Multifunctional ScaleMax: 6kg | d: 2g
- HX7.6.HR3 Multifunctional ScaleMax: 6kg | d: 2g
- HX7.60.HR3 Multifunctional ScaleMax: 60kg | d: 20g
- HX7.60.HR3/5 Multifunctional ScaleMax: 60kg | d: 20g
- HX7.60.HR4 Multifunctional ScaleMax: 60kg | d: 20g
- HX7.60.HR5 Multifunctional ScaleMax: 60kg | d: 20g
- HX7.15.HR2 Multifunctional ScaleMax: 15kg | d: 5g
- HX7.6/15.HR2 Multifunctional ScaleMax: 6/15kg | d: 2/5g
We are near you.
We have been manufacturing weighing devices since 1984.
RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569
Delivery only on the territory of United Kingdom
We have been manufacturing weighing devices since 1984.
RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569
Delivery only on the territory of United Kingdom
Optional paid installation and training service available - please contact us for details and pricing.
Datasheet - HX7.6/15.HR2 Multifunctional ScaleCode:
WP-122-1015
CE
Verification
2 years warranty
Datasheet
Maximum capacity [Max]
6 / 15 kg
Minimum load
40 / 100 g
Readability [d]
2 / 5 g
Verification unit [e]
2 / 5 g
Tare range
-6 / -15 kg
OIML Class
III
Display
7” graphic colour
Protection class
IP 66 / 67 / 69 construction, IP 68 / 69 cell, IP 66 / 67 / 69 terminal
Communication interface
RS232, USB-A, 4IN, 4OUT, Ethernet, Modbus TCP/IP
Optional interfaces
USB (M12 4P), RS485, RS232, Profibus (Dp SLAVE), PROFINET (RJ45), EtherNet/IP (RJ45), 12 IN / 12 OUT, 4-20mA, 0-10V
Power supply
100 – 240 V AC 50/60 Hz
Power consumption max.
25 W
Optional power supply
12 – 24 V DC
Operating temperature
-10 – +40 °C
Storage temperature
-10 – +50 °C
Relative humidity
10% – 80% RH no condensation
Indicator
PUE HX7
Keypad
membrane
Number of buttons
22
Construction
Stainless steel AISI316
Weighing pan material
Stainless steel AISI316
Weighing pan dimensions
250×300 mm
Packaging dimensions W x D x H
370×560×490 mm
Net weight
10,7 kg
Gross weight
13,2 kg
Max number of platforms
2
Overview
HX7 HR scale’s multi functions
The HX7 HR scale is a device comprised of AISI 304 (IP 66 / 67 / 69) stainless steel terminal the PUE HX7, and AISI 316 stainless steel weighing platform. The HX7 HR has been designed to operate in challenging conditions,
even in places where the platform is exposed to acids.
Display
The 7” colour graphic display and the diode bar graph, which signals current net weight of a load in reference to the scale range or declared min, max thresholds, boost comfort especially in case of piecework where fast and precise presentation of product mass deviation is required with regard to the limit values.
.png)
Hermetic communication interfaces
Housing back is equipped with hermetic communication interfaces such as RS232, RS485, USB, Ethernet, at your disposal there are also digital inputs/outputs and analogue output. This enables cooperation with external devices such as barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems.
With use of the bracket you can either place the terminal at any flat horizontal surface, or fix it to the wall adjusting the tilt respectively to suit your needs.
Software
The terminal's software allows carrying out processes such as weighing, parts counting, dosing, labelling, formulations and percent weighing.
Terminal’s system of information is based on databases (users, products, weighings, packaging, formulations, customers) and ALIBI memory which guarantees stored data safety.
