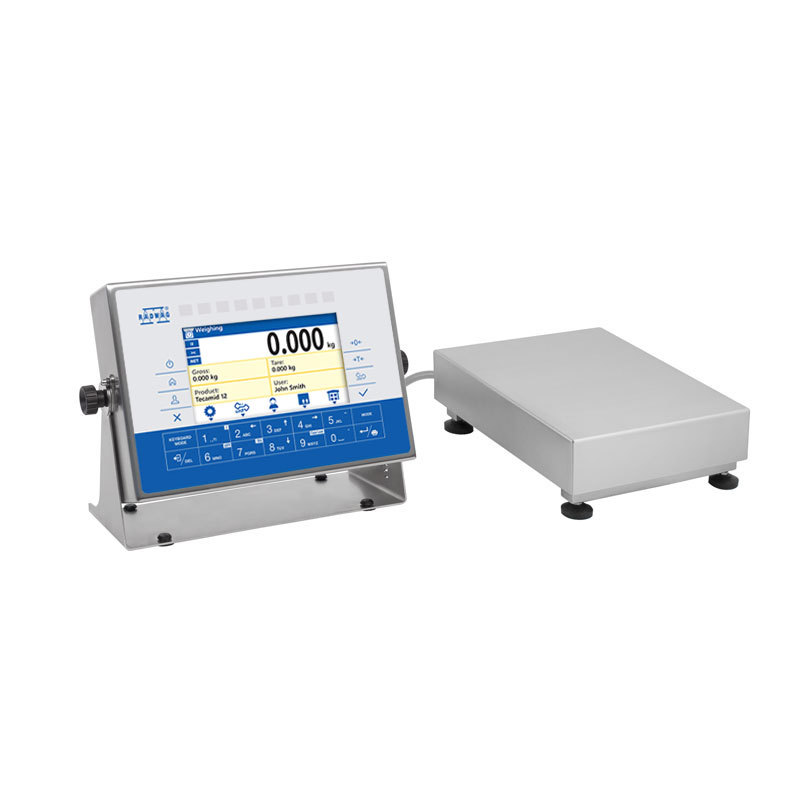

HX7 H Stainless steel Multifunctional Scale
This image is for reference only.
Exit
This image is for reference only.
Availability:
In stock
Estimated shipping date :
15 working days
Need it urgently? Call us to check real-time stock availability: +44 (0)1625 569569
Price:
2994.00
GBP
with 20% VAT, shipping cost not included
Choose a variant:
HX7.3.H2 Multifunctional Scale
- HX7.1,5.H1 Multifunctional ScaleMax: 1.5kg | d: 0,5g
- HX7.15.H1 Multifunctional ScaleMax: 15kg | d: 5g
- HX7.15.H2 Multifunctional ScaleMax: 15kg | d: 5g
- HX7.15.H3 Multifunctional ScaleMax: 15kg | d: 5g
- HX7.15.H3/5 Multifunctional ScaleMax: 15kg | d: 5g
- HX7.15.H4 Multifunctional ScaleMax: 15kg | d: 5g
- HX7.15.H5 Multifunctional ScaleMax: 15kg | d: 5g
- HX7.150.H3 Multifunctional ScaleMax: 150kg | d: 50g
- HX7.150.H3/5 Multifunctional ScaleMax: 150kg | d: 50g
- HX7.150.H4 Multifunctional ScaleMax: 150kg | d: 50g
- HX7.150.H6 Multifunctional ScaleMax: 150kg | d: 50g
- HX7.3.H1 Multifunctional ScaleMax: 3kg | d: 1g
- HX7.3.H2 Multifunctional ScaleMax: 3kg | d: 1g
- HX7.30.H2 Multifunctional ScaleMax: 30kg | d: 10g
- HX7.30.H3 Multifunctional ScaleMax: 30kg | d: 10g
- HX7.30.H3/5 Multifunctional ScaleMax: 30kg | d: 10g
- HX7.30.H4 Multifunctional ScaleMax: 30kg | d: 10g
- HX7.30.H5 Multifunctional ScaleMax: 30kg | d: 10g
- HX7.300.H6 Multifunctional ScaleMax: 300kg | d: 100g
- HX7.6.H1 Multifunctional ScaleMax: 6kg | d: 2g
- HX7.6.H2 Multifunctional ScaleMax: 6kg | d: 2g
- HX7.6.H3 Multifunctional ScaleMax: 6kg | d: 2g
- HX7.60.H3 Multifunctional ScaleMax: 60kg | d: 20g
- HX7.60.H3/5 Multifunctional ScaleMax: 60kg | d: 20g
- HX7.60.H4 Multifunctional ScaleMax: 60kg | d: 20g
- HX7.60.H5 Multifunctional ScaleMax: 60kg | d: 20g
- HX7.60.H6 Multifunctional ScaleMax: 60kg | d: 20g
- HX7.150.H5 Multifunctional ScaleMax: 150kg | d: 50g
- HX7.6/15.H1 Multifunctional ScaleMax: 6/15kg | d: 2/5g
- HX7.6/15.H2 Multifunctional ScaleMax: 6/15kg | d: 2/5g
- HX7.6/15.H3 Multifunctional ScaleMax: 6/15kg | d: 2/5g
RS232 Module (106.80 GBP)
RS485 Module (272.40 GBP)
EtherNet/IP Module (1120.80 GBP)
12WE/12WY Module (272.40 GBP)
Class III Verification (43.20 GBP)
DP-6 Additional weighing platform module (288.00 GBP)
Extra charge for dual range 1 Load Cell Platform Scales (322.80 GBP)
AN Analogue output module: 0-20mA, 4-20mA, 0-10V (300.00 GBP)
Extra charge for Internal battery (198.00 GBP)
Additional fee for Radwag Extended SI (RES level: 0,1,2) module activation (418.80 GBP)
Calibration new precision balances / industrial scales 0kg-60kg (189.60 GBP)
Pcs.
Add to basket
We are near you.
We have been manufacturing weighing devices since 1984.
RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569
Delivery only on the territory of United Kingdom
We have been manufacturing weighing devices since 1984.
RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569
Delivery only on the territory of United Kingdom
Optional paid installation and training service available - please contact us for details and pricing.
Datasheet - HX7.3.H2 Multifunctional ScaleCode:
WP-122-0006
CE
Verification
2 years warranty
Datasheet
Maximum capacity [Max]
3 kg
Minimum load
20 g
Readability [d]
1 g
Verification unit [e]
1 g
Tare range
-3 kg
Max readability for non-verified scale
0,2 g
OIML Class
III
Display
7” graphic colour
Protection class
IP 66 / 67 construction, IP 66 / 67 terminal
Communication interface
RS232, USB-A, 4IN, 4OUT, Ethernet, Modbus RTU
Optional interfaces
USB (M12 4P), Ethernet, module RS485, module RS232, module Profibus (Dp SLAVE), PROFINET (RRJ45), EtherNet/IP (RRJ45), 12 IN, 12 OUT, 4-20mA, 0-10V
Power supply
100 – 240 V AC 50/60 Hz
Power consumption max.
25 W
Optional power supply
12 – 24 V DC
Operating temperature
-10 – +40 °C
Storage temperature
-10 – +50 °C
Relative humidity
10% – 80% RH no condensation
Indicator
PUE HX7
Keypad
membrane
Number of buttons
22
Construction
Stainless steel AISI304
Weighing pan material
Stainless steel AISI304
Weighing pan dimensions
250×300 mm
Packaging dimensions W x D x H
310×560×490 mm
Net weight
10,2 kg
Gross weight
12,7 kg
Max number of platforms
2
Overview
HX7 H scale’s multi functions
Many functions, many interfaces and great robustness (IP 66 / 67) mean many possibilities for you to use this advanced scale. Tomorrow you can apply it to a different process than today – that’s the multifunctionality. That’s the saving!
Use the potential
Barcode scanners, receipt printers, label printers, external displays, control buttons, light signalling towers and other controlling/ signalling devices – thanks to multipurpose software, HX7 scale can work with all of them. You can easily connect them thanks to the fact that the balance is equipped with interfaces: RS232, RS485, USB, Ethernet, 4 IN/ 4 OUT. Optionally, the balance can be equipped with 12 IN/ 12 OUT and analog output module. You can find all accessories in our regular offer. And if you have questions about compatibility, our experts will help you.
Easy and pleasant
Simple and convenient operation with a 7-inch color display. Perfectly visible messages additionally supported by bargraph.
The top part of the operation panel features a bar graph consisting of 9 red and green diode fields. The bar graph is a graphic visualisation informing the user on a current net weight of a product presented with reference to the scale range or declared min and max thresholds.
The bracket allows the terminal to be placed on any flat horizontal surface or screwed to the wall with adjustable angle.
The power of steel
The use of stainless steel guarantees you a long life for the scale. It is not afraid of contact with moist objects or accidental splashes. The construction of the scale is made of a stainless steel. This guarantees you work for many years.
Not just weighing
But also parts counting, dosing, percent weighing and formulations. The power of HX7’s working mods.
Do you need ALIBI?
There you have it. ALIBI memory is like a black box of a scale. It records all measurements taken on the device. The ALIBI memory cannot be modified or erased. Referring to stored weighings you can generate weighing reports, formulation reports and reports on performed control processes. Single weighing is stored in the ALIBI memory as long as it is specified by a Weighing Storage Period (days) parameter.
