HX5.EX-1.4 H/Z Stainless Steel Platform Scales, Pit Version

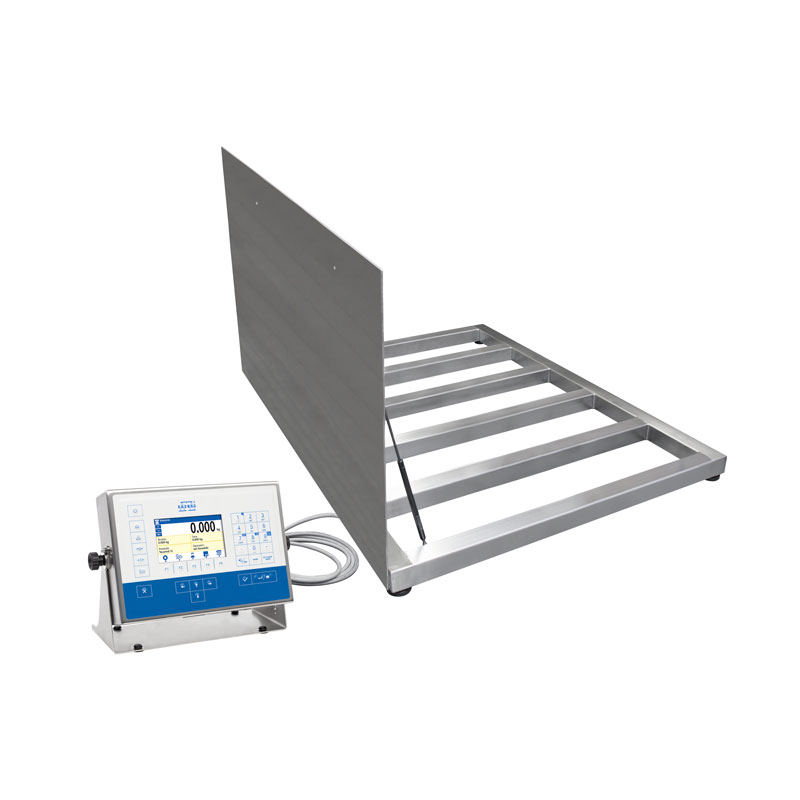

HX5.EX-1.4.150.H6/Z 4 Load Cell Platform Scale, Pit Version
This image is for reference only.
close Exit
This image is for reference only.
Availability:
In stock
Estimated shipping date :
10 working days
Price:
9416.40
 GBP
with 20% VAT, shipping cost not included
Choose a variant:
HX5.EX-1.4.150.H6/Z 4 Load Cell Platform Scale, Pit Versionkeyboard_arrow_down
  • HX5.EX-1.4.150.H6/Z 4 Load Cell Platform Scale, Pit Version
    Max: 150kg | d: 50g
  • HX5.EX-1.4.150.H7/Z 4 Load Cell Platform Scale, Pit Version
    Max: 150kg | d: 50g
  • HX5.EX-1.4.1500.H10/Z 4 Load Cell Platform Scale, Pit Version
    Max: 1500kg | d: 500g
  • HX5.EX-1.4.1500.H7/Z 4 Load Cell Platform Scale, Pit Version
    Max: 1500kg | d: 500g
  • HX5.EX-1.4.1500.H8/9/Z 4 Load Cell Platform Scale, Pit Version
    Max: 1500kg | d: 500g
  • HX5.EX-1.4.1500.H8/Z 4 Load Cell Platform Scale, Pit Version
    Max: 1500kg | d: 500g
  • HX5.EX-1.4.1500.H9/Z 4 Load Cell Platform Scale, Pit Version
    Max: 1500kg | d: 500g
  • HX5.EX-1.4.300.H6/Z 4 Load Cell Platform Scale, Pit Version
    Max: 300kg | d: 100g
  • HX5.EX-1.4.300.H7/Z 4 Load Cell Platform Scale, Pit Version
    Max: 300kg | d: 100g
  • HX5.EX-1.4.300.H8/9/Z 4 Load Cell Platform Scale, Pit Version
    Max: 300kg | d: 100g
  • HX5.EX-1.4.300.H8/Z 4 Load Cell Platform Scale, Pit Version
    Max: 300kg | d: 100g
  • HX5.EX-1.4.300.H9/Z 4 Load Cell Platform Scale, Pit Version
    Max: 300kg | d: 100g
  • HX5.EX-1.4.3000.H10/Z 4 Load Cell Platform Scale, Pit Version
    Max: 3000kg | d: 1000g
  • HX5.EX-1.4.3000.H8/9/Z 4 Load Cell Platform Scale, Pit Version
    Max: 3000kg | d: 1000g
  • HX5.EX-1.4.3000.H8/Z 4 Load Cell Platform Scale, Pit Version
    Max: 3000kg | d: 1000g
  • HX5.EX-1.4.3000.H9/Z 4 Load Cell Platform Scale, Pit Version
    Max: 3000kg | d: 1000g
  • HX5.EX-1.4.60.H6/Z 4 Load Cell Platform Scale, Pit Version
    Max: 60kg | d: 20g
  • HX5.EX-1.4.600.H10/Z 4 Load Cell Platform Scale, Pit Version
    Max: 600kg | d: 200g
  • HX5.EX-1.4.600.H6/Z 4 Load Cell Platform Scale, Pit Version
    Max: 600kg | d: 200g
  • HX5.EX-1.4.600.H7/Z 4 Load Cell Platform Scale, Pit Version
    Max: 600kg | d: 200g
  • HX5.EX-1.4.600.H8/9/Z 4 Load Cell Platform Scale, Pit Version
    Max: 600kg | d: 200g
  • HX5.EX-1.4.600.H8/Z 4 Load Cell Platform Scale, Pit Version
    Max: 600kg | d: 200g
  • HX5.EX-1.4.600.H9/Z 4 Load Cell Platform Scale, Pit Version
    Max: 600kg | d: 200g
  • HX5.EX-1.4.6000.H10/Z 4 Load Cell Platform Scale, Pit Version
    Max: 6000kg | d: 2000g
  • HX5.EX-1.4.6000.H9/Z 4 Load Cell Platform Scale, Pit Version
    Max: 6000kg | d: 2000g
Options:
  • Class III Verification (33.60 GBP)
  • Power Supply for EX Area (990.00 GBP)
  • Pcs.

    Add to basket
    We are near you.
    We have been manufacturing weighing devices since 1984.

    RADWAG UK Limited
    4 Maple Court, Davenport Street,
    Macclesfield SK10 1JE
    +44 01625 569569
    Code:
    WW-008-0027

    Buying from the producer is all about the pros


    ✓ Update as standard

    You always get the latest version of the device and software. We are constantly improving our products.

    ✓ This is priceless

    Technical support from the product developers. Who better to know the answers to your questions? Like our Facebooku profile – stay in touch with us.

    ✓ Smaller carbon footprint

    A solidly packaged shipment travels only one way – the one to you.

    ✓ Long life for your balance

    In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory.

    ✓ The important thing

    You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance.

    Overview


    The HX5.EX scale is a modern weighing instrument assuring fast and reliable measurement in hazardous areas classified as zones 1/21 and 2/22. To ensure precision and excellent measurement repeatability, high quality electronic components are used.
    The weighing platforms offered in wide range of dimensions and maximum capacities, this combined with excellent metrological parameters enables easy selection of an instrument that meets the most demanding requirements.
    Standard version of the scale is equipped with 2 serial, intrinsically safe RS232 communication interfaces, and with one RS485 interface. They facilitate cooperation with equipment intended for operation in hazardous areas. Possibility to add digital inputs/outputs extends the range of instruments compatible with the indicator by automatic elements compliant with ATEX directive.
    More demanding customers can use the IM01.EX module, installed in the safe area, which extends the available connectors by Ethernet, USB, 4-20mA/0- 10V analog outputs, Profibus DP and additional digital inputs/outputs. This enables cooperation with external devices: barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems.

    Scale operation requires use of a dedicated PM01.EX power supply, which is not a standard scale component.
    To operate the scale, order a selected type of the dedicated intrinsically safe power supply.
    Power supply types:
    • PM01.EX-1 - power supply  for operation in ATEX area. Used when it is required to connect the power supply to voltage source placed in hazardous area.
    • PM01.EX-2 - power supply  for operation outside ATEX area. Used when power supply connection to voltage source is carried out outside hazardous area.
    Complex software enables carrying out many tasks connected with mass measurement, e.g. parts counting, checkweighing and statistics.
    The scales feature user-friendly graphic interface, which can be customized using widgets. This and the large colour display of high resolution guarantee easy and clear transmission of data on current process.
    Colour bar graph significantly influences performance by signalling whether the weighing result is within declared thresholds or not.

    The frame for recessing (foundation) is part of the set – you will receive it with the ordered scale.
    CE
    CE
    Verification
    Verification
    2 years warranty
    2 years warranty
    Scales with ATEX certificate
    Scales with ATEX certificate
    Scales with IECEx certificate
    Scales with IECEx certificate

    Datasheet

    Maximum capacity [Max]
    150 kg
    Minimum load
    1 kg
    Readability [d]
    50 g
    Tare range
    -150 kg
    Display
    5” graphic colour
    Cable length
    3 m
    Protection class
    IP 68 construction, IP 66/68 indicator
    ATEX Certification
    II 2G Ex ib IIB T4 Gb
    IECEx Certification
    Ex ib IIB T4 Gb
    Communication interface
    2×RS232, RS485
    Power supply
    100 – 240 V AC 50/60 Hz
    Power consumption max.
    15 W
    Operating temperature
    -10 ÷ +40 °C
    Relative humidity
    10% ÷ 85% RH no condensation
    Indicator
    PUE HX5.EX-1
    Construction
    Stainless steel AISI304
    Weighing pan dimensions
    800×800 mm
    Packaging dimensions
    1000×1000×530 mm
    Net weight
    62,8 kg
    Gross weight
    63 kg
    HX5.EX-1.4.150.H7/Z 4 Load Cell Platform Scale, Pit Version
    This image is for reference only.
    close Exit
    This image is for reference only.
    Availability:
    In stock
    Estimated shipping date :
    10 working days
    Price:
    9932.40
     GBP
    with 20% VAT, shipping cost not included
    Choose a variant:
    HX5.EX-1.4.150.H7/Z 4 Load Cell Platform Scale, Pit Versionkeyboard_arrow_down
    • HX5.EX-1.4.150.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.150.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.1500.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.300.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.3000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.60.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 60kg | d: 20g
    • HX5.EX-1.4.600.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.6000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    • HX5.EX-1.4.6000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    Options:
  • Class III Verification (33.60 GBP)
  • Power Supply for EX Area (990.00 GBP)
  • Pcs.

    Add to basket
    We are near you.
    We have been manufacturing weighing devices since 1984.

    RADWAG UK Limited
    4 Maple Court, Davenport Street,
    Macclesfield SK10 1JE
    +44 01625 569569
    Code:
    WW-008-0030

    Buying from the producer is all about the pros


    ✓ Update as standard

    You always get the latest version of the device and software. We are constantly improving our products.

    ✓ This is priceless

    Technical support from the product developers. Who better to know the answers to your questions? Like our Facebooku profile – stay in touch with us.

    ✓ Smaller carbon footprint

    A solidly packaged shipment travels only one way – the one to you.

    ✓ Long life for your balance

    In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory.

    ✓ The important thing

    You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance.

    Overview


    The HX5.EX scale is a modern weighing instrument assuring fast and reliable measurement in hazardous areas classified as zones 1/21 and 2/22. To ensure precision and excellent measurement repeatability, high quality electronic components are used.
    The weighing platforms offered in wide range of dimensions and maximum capacities, this combined with excellent metrological parameters enables easy selection of an instrument that meets the most demanding requirements.
    Standard version of the scale is equipped with 2 serial, intrinsically safe RS232 communication interfaces, and with one RS485 interface. They facilitate cooperation with equipment intended for operation in hazardous areas. Possibility to add digital inputs/outputs extends the range of instruments compatible with the indicator by automatic elements compliant with ATEX directive.
    More demanding customers can use the IM01.EX module, installed in the safe area, which extends the available connectors by Ethernet, USB, 4-20mA/0- 10V analog outputs, Profibus DP and additional digital inputs/outputs. This enables cooperation with external devices: barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems.

    Scale operation requires use of a dedicated PM01.EX power supply, which is not a standard scale component.
    To operate the scale, order a selected type of the dedicated intrinsically safe power supply.
    Power supply types:
    • PM01.EX-1 - power supply  for operation in ATEX area. Used when it is required to connect the power supply to voltage source placed in hazardous area.
    • PM01.EX-2 - power supply  for operation outside ATEX area. Used when power supply connection to voltage source is carried out outside hazardous area.
    Complex software enables carrying out many tasks connected with mass measurement, e.g. parts counting, checkweighing and statistics.
    The scales feature user-friendly graphic interface, which can be customized using widgets. This and the large colour display of high resolution guarantee easy and clear transmission of data on current process.
    Colour bar graph significantly influences performance by signalling whether the weighing result is within declared thresholds or not.

    The frame for recessing (foundation) is part of the set – you will receive it with the ordered scale.
    CE
    CE
    Verification
    Verification
    2 years warranty
    2 years warranty
    Scales with ATEX certificate
    Scales with ATEX certificate
    Scales with IECEx certificate
    Scales with IECEx certificate

    Datasheet

    Maximum capacity [Max]
    150 kg
    Minimum load
    1 kg
    Readability [d]
    50 g
    Tare range
    -150 kg
    Display
    5” graphic colour
    Cable length
    3 m
    Protection class
    IP 68 construction, IP 66/68 indicator
    ATEX Certification
    II 2G Ex ib IIB T4 Gb
    IECEx Certification
    Ex ib IIB T4 Gb
    Communication interface
    2×RS232, RS485
    Power supply
    100 – 240 V AC 50/60 Hz
    Power consumption max.
    15 W
    Operating temperature
    -10 ÷ +40 °C
    Relative humidity
    10% ÷ 85% RH no condensation
    Indicator
    PUE HX5.EX-1
    Construction
    Stainless steel AISI304
    Weighing pan dimensions
    1000×1000 mm
    Packaging dimensions
    1200×1200×530 mm
    Net weight
    87,8 kg
    Gross weight
    68 kg
    HX5.EX-1.4.1500.H10/Z 4 Load Cell Platform Scale, Pit Version
    This image is for reference only.
    close Exit
    This image is for reference only.
    Availability:
    In stock
    Estimated shipping date :
    10 working days
    Price:
    15044.40
     GBP
    with 20% VAT, shipping cost not included
    Choose a variant:
    HX5.EX-1.4.1500.H10/Z 4 Load Cell Platform Scale, Pit Versionkeyboard_arrow_down
    • HX5.EX-1.4.150.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.150.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.1500.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.300.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.3000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.60.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 60kg | d: 20g
    • HX5.EX-1.4.600.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.6000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    • HX5.EX-1.4.6000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    Options:
  • Class III Verification (33.60 GBP)
  • Power Supply for EX Area (990.00 GBP)
  • Pcs.

    Add to basket
    We are near you.
    We have been manufacturing weighing devices since 1984.

    RADWAG UK Limited
    4 Maple Court, Davenport Street,
    Macclesfield SK10 1JE
    +44 01625 569569
    Code:
    WW-008-0048

    Buying from the producer is all about the pros


    ✓ Update as standard

    You always get the latest version of the device and software. We are constantly improving our products.

    ✓ This is priceless

    Technical support from the product developers. Who better to know the answers to your questions? Like our Facebooku profile – stay in touch with us.

    ✓ Smaller carbon footprint

    A solidly packaged shipment travels only one way – the one to you.

    ✓ Long life for your balance

    In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory.

    ✓ The important thing

    You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance.

    Overview


    The HX5.EX scale is a modern weighing instrument assuring fast and reliable measurement in hazardous areas classified as zones 1/21 and 2/22. To ensure precision and excellent measurement repeatability, high quality electronic components are used.
    The weighing platforms offered in wide range of dimensions and maximum capacities, this combined with excellent metrological parameters enables easy selection of an instrument that meets the most demanding requirements.
    Standard version of the scale is equipped with 2 serial, intrinsically safe RS232 communication interfaces, and with one RS485 interface. They facilitate cooperation with equipment intended for operation in hazardous areas. Possibility to add digital inputs/outputs extends the range of instruments compatible with the indicator by automatic elements compliant with ATEX directive.
    More demanding customers can use the IM01.EX module, installed in the safe area, which extends the available connectors by Ethernet, USB, 4-20mA/0- 10V analog outputs, Profibus DP and additional digital inputs/outputs. This enables cooperation with external devices: barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems.

    Scale operation requires use of a dedicated PM01.EX power supply, which is not a standard scale component.
    To operate the scale, order a selected type of the dedicated intrinsically safe power supply.
    Power supply types:
    • PM01.EX-1 - power supply  for operation in ATEX area. Used when it is required to connect the power supply to voltage source placed in hazardous area.
    • PM01.EX-2 - power supply  for operation outside ATEX area. Used when power supply connection to voltage source is carried out outside hazardous area.
    Complex software enables carrying out many tasks connected with mass measurement, e.g. parts counting, checkweighing and statistics.
    The scales feature user-friendly graphic interface, which can be customized using widgets. This and the large colour display of high resolution guarantee easy and clear transmission of data on current process.
    Colour bar graph significantly influences performance by signalling whether the weighing result is within declared thresholds or not.

    The frame for recessing (foundation) is part of the set – you will receive it with the ordered scale.
    CE
    CE
    Verification
    Verification
    2 years warranty
    2 years warranty
    Scales with ATEX certificate
    Scales with ATEX certificate
    Scales with IECEx certificate
    Scales with IECEx certificate

    Datasheet

    Maximum capacity [Max]
    1500 kg
    Minimum load
    10 kg
    Readability [d]
    500 g
    Tare range
    -1500 kg
    Display
    5” graphic colour
    Cable length
    3 m
    Protection class
    IP 68 construction, IP 66/68 indicator
    ATEX Certification
    II 2G Ex ib IIB T4 Gb
    IECEx Certification
    Ex ib IIB T4 Gb
    Communication interface
    2×RS232, RS485
    Power supply
    100 – 240 V AC 50/60 Hz
    Power consumption max.
    15 W
    Operating temperature
    -10 ÷ +40 °C
    Relative humidity
    10% ÷ 85% RH no condensation
    Indicator
    PUE HX5.EX-1
    Construction
    Stainless steel AISI304
    Weighing pan dimensions
    1500×2000 mm
    Net weight
    287,8 kg
    Gross weight
    288 kg
    HX5.EX-1.4.1500.H7/Z 4 Load Cell Platform Scale, Pit Version
    This image is for reference only.
    close Exit
    This image is for reference only.
    Availability:
    In stock
    Estimated shipping date :
    10 working days
    Price:
    9932.40
     GBP
    with 20% VAT, shipping cost not included
    Choose a variant:
    HX5.EX-1.4.1500.H7/Z 4 Load Cell Platform Scale, Pit Versionkeyboard_arrow_down
    • HX5.EX-1.4.150.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.150.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.1500.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.300.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.3000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.60.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 60kg | d: 20g
    • HX5.EX-1.4.600.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.6000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    • HX5.EX-1.4.6000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    Options:
  • Class III Verification (33.60 GBP)
  • Power Supply for EX Area (990.00 GBP)
  • Pcs.

    Add to basket
    We are near you.
    We have been manufacturing weighing devices since 1984.

    RADWAG UK Limited
    4 Maple Court, Davenport Street,
    Macclesfield SK10 1JE
    +44 01625 569569
    Code:
    WW-008-0033

    Buying from the producer is all about the pros


    ✓ Update as standard

    You always get the latest version of the device and software. We are constantly improving our products.

    ✓ This is priceless

    Technical support from the product developers. Who better to know the answers to your questions? Like our Facebooku profile – stay in touch with us.

    ✓ Smaller carbon footprint

    A solidly packaged shipment travels only one way – the one to you.

    ✓ Long life for your balance

    In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory.

    ✓ The important thing

    You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance.

    Overview


    The HX5.EX scale is a modern weighing instrument assuring fast and reliable measurement in hazardous areas classified as zones 1/21 and 2/22. To ensure precision and excellent measurement repeatability, high quality electronic components are used.
    The weighing platforms offered in wide range of dimensions and maximum capacities, this combined with excellent metrological parameters enables easy selection of an instrument that meets the most demanding requirements.
    Standard version of the scale is equipped with 2 serial, intrinsically safe RS232 communication interfaces, and with one RS485 interface. They facilitate cooperation with equipment intended for operation in hazardous areas. Possibility to add digital inputs/outputs extends the range of instruments compatible with the indicator by automatic elements compliant with ATEX directive.
    More demanding customers can use the IM01.EX module, installed in the safe area, which extends the available connectors by Ethernet, USB, 4-20mA/0- 10V analog outputs, Profibus DP and additional digital inputs/outputs. This enables cooperation with external devices: barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems.

    Scale operation requires use of a dedicated PM01.EX power supply, which is not a standard scale component.
    To operate the scale, order a selected type of the dedicated intrinsically safe power supply.
    Power supply types:
    • PM01.EX-1 - power supply  for operation in ATEX area. Used when it is required to connect the power supply to voltage source placed in hazardous area.
    • PM01.EX-2 - power supply  for operation outside ATEX area. Used when power supply connection to voltage source is carried out outside hazardous area.
    Complex software enables carrying out many tasks connected with mass measurement, e.g. parts counting, checkweighing and statistics.
    The scales feature user-friendly graphic interface, which can be customized using widgets. This and the large colour display of high resolution guarantee easy and clear transmission of data on current process.
    Colour bar graph significantly influences performance by signalling whether the weighing result is within declared thresholds or not.

    The frame for recessing (foundation) is part of the set – you will receive it with the ordered scale.
    CE
    CE
    Verification
    Verification
    2 years warranty
    2 years warranty
    Scales with ATEX certificate
    Scales with ATEX certificate
    Scales with IECEx certificate
    Scales with IECEx certificate

    Datasheet

    Maximum capacity [Max]
    1500 kg
    Minimum load
    10 kg
    Readability [d]
    500 g
    Tare range
    -1500 kg
    Display
    5” graphic colour
    Cable length
    3 m
    Protection class
    IP 68 construction, IP 66/68 indicator
    ATEX Certification
    II 2G Ex ib IIB T4 Gb
    IECEx Certification
    Ex ib IIB T4 Gb
    Communication interface
    2×RS232, RS485
    Power supply
    100 – 240 V AC 50/60 Hz
    Power consumption max.
    15 W
    Operating temperature
    -10 ÷ +40 °C
    Relative humidity
    10% ÷ 85% RH no condensation
    Indicator
    PUE HX5.EX-1
    Construction
    Stainless steel AISI304
    Weighing pan dimensions
    1000×1000 mm
    Packaging dimensions
    1200×1200×530 mm
    Net weight
    87,8 kg
    Gross weight
    68 kg
    HX5.EX-1.4.1500.H8/9/Z 4 Load Cell Platform Scale, Pit Version
    This image is for reference only.
    close Exit
    This image is for reference only.
    Availability:
    In stock
    Estimated shipping date :
    10 working days
    Price:
    11385.60
     GBP
    with 20% VAT, shipping cost not included
    Choose a variant:
    HX5.EX-1.4.1500.H8/9/Z 4 Load Cell Platform Scale, Pit Versionkeyboard_arrow_down
    • HX5.EX-1.4.150.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.150.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.1500.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.300.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.3000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.60.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 60kg | d: 20g
    • HX5.EX-1.4.600.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.6000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    • HX5.EX-1.4.6000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    Options:
  • Class III Verification (33.60 GBP)
  • Power Supply for EX Area (990.00 GBP)
  • Pcs.

    Add to basket
    We are near you.
    We have been manufacturing weighing devices since 1984.

    RADWAG UK Limited
    4 Maple Court, Davenport Street,
    Macclesfield SK10 1JE
    +44 01625 569569
    Code:
    WW-008-0040

    Buying from the producer is all about the pros


    ✓ Update as standard

    You always get the latest version of the device and software. We are constantly improving our products.

    ✓ This is priceless

    Technical support from the product developers. Who better to know the answers to your questions? Like our Facebooku profile – stay in touch with us.

    ✓ Smaller carbon footprint

    A solidly packaged shipment travels only one way – the one to you.

    ✓ Long life for your balance

    In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory.

    ✓ The important thing

    You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance.

    Overview


    The HX5.EX scale is a modern weighing instrument assuring fast and reliable measurement in hazardous areas classified as zones 1/21 and 2/22. To ensure precision and excellent measurement repeatability, high quality electronic components are used.
    The weighing platforms offered in wide range of dimensions and maximum capacities, this combined with excellent metrological parameters enables easy selection of an instrument that meets the most demanding requirements.
    Standard version of the scale is equipped with 2 serial, intrinsically safe RS232 communication interfaces, and with one RS485 interface. They facilitate cooperation with equipment intended for operation in hazardous areas. Possibility to add digital inputs/outputs extends the range of instruments compatible with the indicator by automatic elements compliant with ATEX directive.
    More demanding customers can use the IM01.EX module, installed in the safe area, which extends the available connectors by Ethernet, USB, 4-20mA/0- 10V analog outputs, Profibus DP and additional digital inputs/outputs. This enables cooperation with external devices: barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems.

    Scale operation requires use of a dedicated PM01.EX power supply, which is not a standard scale component.
    To operate the scale, order a selected type of the dedicated intrinsically safe power supply.
    Power supply types:
    • PM01.EX-1 - power supply  for operation in ATEX area. Used when it is required to connect the power supply to voltage source placed in hazardous area.
    • PM01.EX-2 - power supply  for operation outside ATEX area. Used when power supply connection to voltage source is carried out outside hazardous area.
    Complex software enables carrying out many tasks connected with mass measurement, e.g. parts counting, checkweighing and statistics.
    The scales feature user-friendly graphic interface, which can be customized using widgets. This and the large colour display of high resolution guarantee easy and clear transmission of data on current process.
    Colour bar graph significantly influences performance by signalling whether the weighing result is within declared thresholds or not.

    The frame for recessing (foundation) is part of the set – you will receive it with the ordered scale.
    CE
    CE
    Verification
    Verification
    2 years warranty
    2 years warranty
    Scales with ATEX certificate
    Scales with ATEX certificate
    Scales with IECEx certificate
    Scales with IECEx certificate

    Datasheet

    Maximum capacity [Max]
    1500 kg
    Minimum load
    10 kg
    Readability [d]
    500 g
    Tare range
    -1500 kg
    Display
    5” graphic colour
    Cable length
    3 m
    Protection class
    IP 68 construction, IP 66/68 indicator
    ATEX Certification
    II 2G Ex ib IIB T4 Gb
    IECEx Certification
    Ex ib IIB T4 Gb
    Communication interface
    2×RS232, RS485
    Power supply
    100 – 240 V AC 50/60 Hz
    Power consumption max.
    15 W
    Operating temperature
    -10 ÷ +40 °C
    Relative humidity
    10% ÷ 85% RH no condensation
    Indicator
    PUE HX5.EX-1
    Construction
    Stainless steel AISI304
    Weighing pan dimensions
    1200×1500 mm
    Packaging dimensions
    1700×1400×550 mm
    Net weight
    157,8 kg
    Gross weight
    158 kg
    HX5.EX-1.4.1500.H8/Z 4 Load Cell Platform Scale, Pit Version
    This image is for reference only.
    close Exit
    This image is for reference only.
    Availability:
    In stock
    Estimated shipping date :
    10 working days
    Price:
    10712.40
     GBP
    with 20% VAT, shipping cost not included
    Choose a variant:
    HX5.EX-1.4.1500.H8/Z 4 Load Cell Platform Scale, Pit Versionkeyboard_arrow_down
    • HX5.EX-1.4.150.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.150.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.1500.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.300.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.3000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.60.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 60kg | d: 20g
    • HX5.EX-1.4.600.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.6000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    • HX5.EX-1.4.6000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    Options:
  • Class III Verification (33.60 GBP)
  • Power Supply for EX Area (990.00 GBP)
  • Pcs.

    Add to basket
    We are near you.
    We have been manufacturing weighing devices since 1984.

    RADWAG UK Limited
    4 Maple Court, Davenport Street,
    Macclesfield SK10 1JE
    +44 01625 569569
    Code:
    WW-008-0036

    Buying from the producer is all about the pros


    ✓ Update as standard

    You always get the latest version of the device and software. We are constantly improving our products.

    ✓ This is priceless

    Technical support from the product developers. Who better to know the answers to your questions? Like our Facebooku profile – stay in touch with us.

    ✓ Smaller carbon footprint

    A solidly packaged shipment travels only one way – the one to you.

    ✓ Long life for your balance

    In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory.

    ✓ The important thing

    You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance.

    Overview


    The HX5.EX scale is a modern weighing instrument assuring fast and reliable measurement in hazardous areas classified as zones 1/21 and 2/22. To ensure precision and excellent measurement repeatability, high quality electronic components are used.
    The weighing platforms offered in wide range of dimensions and maximum capacities, this combined with excellent metrological parameters enables easy selection of an instrument that meets the most demanding requirements.
    Standard version of the scale is equipped with 2 serial, intrinsically safe RS232 communication interfaces, and with one RS485 interface. They facilitate cooperation with equipment intended for operation in hazardous areas. Possibility to add digital inputs/outputs extends the range of instruments compatible with the indicator by automatic elements compliant with ATEX directive.
    More demanding customers can use the IM01.EX module, installed in the safe area, which extends the available connectors by Ethernet, USB, 4-20mA/0- 10V analog outputs, Profibus DP and additional digital inputs/outputs. This enables cooperation with external devices: barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems.

    Scale operation requires use of a dedicated PM01.EX power supply, which is not a standard scale component.
    To operate the scale, order a selected type of the dedicated intrinsically safe power supply.
    Power supply types:
    • PM01.EX-1 - power supply  for operation in ATEX area. Used when it is required to connect the power supply to voltage source placed in hazardous area.
    • PM01.EX-2 - power supply  for operation outside ATEX area. Used when power supply connection to voltage source is carried out outside hazardous area.
    Complex software enables carrying out many tasks connected with mass measurement, e.g. parts counting, checkweighing and statistics.
    The scales feature user-friendly graphic interface, which can be customized using widgets. This and the large colour display of high resolution guarantee easy and clear transmission of data on current process.
    Colour bar graph significantly influences performance by signalling whether the weighing result is within declared thresholds or not.

    The frame for recessing (foundation) is part of the set – you will receive it with the ordered scale.
    CE
    CE
    Verification
    Verification
    2 years warranty
    2 years warranty
    Scales with ATEX certificate
    Scales with ATEX certificate
    Scales with IECEx certificate
    Scales with IECEx certificate

    Datasheet

    Maximum capacity [Max]
    1500 kg
    Minimum load
    10 kg
    Readability [d]
    500 g
    Tare range
    -1500 kg
    Display
    5” graphic colour
    Cable length
    3 m
    Protection class
    IP 68 construction, IP 66/68 indicator
    ATEX Certification
    II 2G Ex ib IIB T4 Gb
    IECEx Certification
    Ex ib IIB T4 Gb
    Communication interface
    2×RS232, RS485
    Power supply
    100 – 240 V AC 50/60 Hz
    Power consumption max.
    15 W
    Operating temperature
    -10 ÷ +40 °C
    Relative humidity
    10% ÷ 85% RH no condensation
    Indicator
    PUE HX5.EX-1
    Construction
    Stainless steel AISI304
    Weighing pan dimensions
    1200×1200 mm
    Packaging dimensions
    1400×1400×550 mm
    Net weight
    127,8 kg
    Gross weight
    128 kg
    HX5.EX-1.4.1500.H9/Z 4 Load Cell Platform Scale, Pit Version
    This image is for reference only.
    close Exit
    This image is for reference only.
    Availability:
    In stock
    Estimated shipping date :
    10 working days
    Price:
    12486.00
     GBP
    with 20% VAT, shipping cost not included
    Choose a variant:
    HX5.EX-1.4.1500.H9/Z 4 Load Cell Platform Scale, Pit Versionkeyboard_arrow_down
    • HX5.EX-1.4.150.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.150.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.1500.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.300.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.3000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.60.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 60kg | d: 20g
    • HX5.EX-1.4.600.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.6000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    • HX5.EX-1.4.6000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    Options:
  • Class III Verification (33.60 GBP)
  • Power Supply for EX Area (990.00 GBP)
  • Pcs.

    Add to basket
    We are near you.
    We have been manufacturing weighing devices since 1984.

    RADWAG UK Limited
    4 Maple Court, Davenport Street,
    Macclesfield SK10 1JE
    +44 01625 569569
    Code:
    WW-008-0044

    Buying from the producer is all about the pros


    ✓ Update as standard

    You always get the latest version of the device and software. We are constantly improving our products.

    ✓ This is priceless

    Technical support from the product developers. Who better to know the answers to your questions? Like our Facebooku profile – stay in touch with us.

    ✓ Smaller carbon footprint

    A solidly packaged shipment travels only one way – the one to you.

    ✓ Long life for your balance

    In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory.

    ✓ The important thing

    You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance.

    Overview


    The HX5.EX scale is a modern weighing instrument assuring fast and reliable measurement in hazardous areas classified as zones 1/21 and 2/22. To ensure precision and excellent measurement repeatability, high quality electronic components are used.
    The weighing platforms offered in wide range of dimensions and maximum capacities, this combined with excellent metrological parameters enables easy selection of an instrument that meets the most demanding requirements.
    Standard version of the scale is equipped with 2 serial, intrinsically safe RS232 communication interfaces, and with one RS485 interface. They facilitate cooperation with equipment intended for operation in hazardous areas. Possibility to add digital inputs/outputs extends the range of instruments compatible with the indicator by automatic elements compliant with ATEX directive.
    More demanding customers can use the IM01.EX module, installed in the safe area, which extends the available connectors by Ethernet, USB, 4-20mA/0- 10V analog outputs, Profibus DP and additional digital inputs/outputs. This enables cooperation with external devices: barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems.

    Scale operation requires use of a dedicated PM01.EX power supply, which is not a standard scale component.
    To operate the scale, order a selected type of the dedicated intrinsically safe power supply.
    Power supply types:
    • PM01.EX-1 - power supply  for operation in ATEX area. Used when it is required to connect the power supply to voltage source placed in hazardous area.
    • PM01.EX-2 - power supply  for operation outside ATEX area. Used when power supply connection to voltage source is carried out outside hazardous area.
    Complex software enables carrying out many tasks connected with mass measurement, e.g. parts counting, checkweighing and statistics.
    The scales feature user-friendly graphic interface, which can be customized using widgets. This and the large colour display of high resolution guarantee easy and clear transmission of data on current process.
    Colour bar graph significantly influences performance by signalling whether the weighing result is within declared thresholds or not.

    The frame for recessing (foundation) is part of the set – you will receive it with the ordered scale.
    CE
    CE
    Verification
    Verification
    2 years warranty
    2 years warranty
    Scales with ATEX certificate
    Scales with ATEX certificate
    Scales with IECEx certificate
    Scales with IECEx certificate

    Datasheet

    Maximum capacity [Max]
    1500 kg
    Minimum load
    10 kg
    Readability [d]
    500 g
    Tare range
    -1500 kg
    Display
    5” graphic colour
    Cable length
    3 m
    Protection class
    IP 68 construction, IP 66/68 indicator
    ATEX Certification
    II 2G Ex ib IIB T4 Gb
    IECEx Certification
    Ex ib IIB T4 Gb
    Communication interface
    2×RS232, RS485
    Power supply
    100 – 240 V AC 50/60 Hz
    Power consumption max.
    15 W
    Operating temperature
    -10 ÷ +40 °C
    Relative humidity
    10% ÷ 85% RH no condensation
    Indicator
    PUE HX5.EX-1
    Construction
    Stainless steel AISI304
    Weighing pan dimensions
    1500×1500 mm
    Net weight
    192,8 kg
    Gross weight
    193 kg
    HX5.EX-1.4.300.H6/Z 4 Load Cell Platform Scale, Pit Version
    This image is for reference only.
    close Exit
    This image is for reference only.
    Availability:
    In stock
    Estimated shipping date :
    10 working days
    Price:
    9416.40
     GBP
    with 20% VAT, shipping cost not included
    Choose a variant:
    HX5.EX-1.4.300.H6/Z 4 Load Cell Platform Scale, Pit Versionkeyboard_arrow_down
    • HX5.EX-1.4.150.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.150.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.1500.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.300.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.3000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.60.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 60kg | d: 20g
    • HX5.EX-1.4.600.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.6000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    • HX5.EX-1.4.6000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    Options:
  • Class III Verification (33.60 GBP)
  • Power Supply for EX Area (990.00 GBP)
  • Pcs.

    Add to basket
    We are near you.
    We have been manufacturing weighing devices since 1984.

    RADWAG UK Limited
    4 Maple Court, Davenport Street,
    Macclesfield SK10 1JE
    +44 01625 569569
    Code:
    WW-008-0028

    Buying from the producer is all about the pros


    ✓ Update as standard

    You always get the latest version of the device and software. We are constantly improving our products.

    ✓ This is priceless

    Technical support from the product developers. Who better to know the answers to your questions? Like our Facebooku profile – stay in touch with us.

    ✓ Smaller carbon footprint

    A solidly packaged shipment travels only one way – the one to you.

    ✓ Long life for your balance

    In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory.

    ✓ The important thing

    You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance.

    Overview


    The HX5.EX scale is a modern weighing instrument assuring fast and reliable measurement in hazardous areas classified as zones 1/21 and 2/22. To ensure precision and excellent measurement repeatability, high quality electronic components are used.
    The weighing platforms offered in wide range of dimensions and maximum capacities, this combined with excellent metrological parameters enables easy selection of an instrument that meets the most demanding requirements.
    Standard version of the scale is equipped with 2 serial, intrinsically safe RS232 communication interfaces, and with one RS485 interface. They facilitate cooperation with equipment intended for operation in hazardous areas. Possibility to add digital inputs/outputs extends the range of instruments compatible with the indicator by automatic elements compliant with ATEX directive.
    More demanding customers can use the IM01.EX module, installed in the safe area, which extends the available connectors by Ethernet, USB, 4-20mA/0- 10V analog outputs, Profibus DP and additional digital inputs/outputs. This enables cooperation with external devices: barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems.

    Scale operation requires use of a dedicated PM01.EX power supply, which is not a standard scale component.
    To operate the scale, order a selected type of the dedicated intrinsically safe power supply.
    Power supply types:
    • PM01.EX-1 - power supply  for operation in ATEX area. Used when it is required to connect the power supply to voltage source placed in hazardous area.
    • PM01.EX-2 - power supply  for operation outside ATEX area. Used when power supply connection to voltage source is carried out outside hazardous area.
    Complex software enables carrying out many tasks connected with mass measurement, e.g. parts counting, checkweighing and statistics.
    The scales feature user-friendly graphic interface, which can be customized using widgets. This and the large colour display of high resolution guarantee easy and clear transmission of data on current process.
    Colour bar graph significantly influences performance by signalling whether the weighing result is within declared thresholds or not.

    The frame for recessing (foundation) is part of the set – you will receive it with the ordered scale.
    CE
    CE
    Verification
    Verification
    2 years warranty
    2 years warranty
    Scales with ATEX certificate
    Scales with ATEX certificate
    Scales with IECEx certificate
    Scales with IECEx certificate

    Datasheet

    Maximum capacity [Max]
    300 kg
    Minimum load
    2 kg
    Readability [d]
    100 g
    Tare range
    -300 kg
    Display
    5” graphic colour
    Cable length
    3 m
    Protection class
    IP 68 construction, IP 66/68 indicator
    ATEX Certification
    II 2G Ex ib IIB T4 Gb
    IECEx Certification
    Ex ib IIB T4 Gb
    Communication interface
    2×RS232, RS485
    Power supply
    100 – 240 V AC 50/60 Hz
    Power consumption max.
    15 W
    Operating temperature
    -10 ÷ +40 °C
    Relative humidity
    10% ÷ 85% RH no condensation
    Indicator
    PUE HX5.EX-1
    Construction
    Stainless steel AISI304
    Weighing pan dimensions
    800×800 mm
    Packaging dimensions
    1000×1000×530 mm
    Net weight
    62,8 kg
    Gross weight
    63 kg
    HX5.EX-1.4.300.H7/Z 4 Load Cell Platform Scale, Pit Version
    This image is for reference only.
    close Exit
    This image is for reference only.
    Availability:
    In stock
    Estimated shipping date :
    10 working days
    Price:
    9932.40
     GBP
    with 20% VAT, shipping cost not included
    Choose a variant:
    HX5.EX-1.4.300.H7/Z 4 Load Cell Platform Scale, Pit Versionkeyboard_arrow_down
    • HX5.EX-1.4.150.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.150.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.1500.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.300.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.3000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.60.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 60kg | d: 20g
    • HX5.EX-1.4.600.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.6000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    • HX5.EX-1.4.6000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    Options:
  • Class III Verification (33.60 GBP)
  • Power Supply for EX Area (990.00 GBP)
  • Pcs.

    Add to basket
    We are near you.
    We have been manufacturing weighing devices since 1984.

    RADWAG UK Limited
    4 Maple Court, Davenport Street,
    Macclesfield SK10 1JE
    +44 01625 569569
    Code:
    WW-008-0031

    Buying from the producer is all about the pros


    ✓ Update as standard

    You always get the latest version of the device and software. We are constantly improving our products.

    ✓ This is priceless

    Technical support from the product developers. Who better to know the answers to your questions? Like our Facebooku profile – stay in touch with us.

    ✓ Smaller carbon footprint

    A solidly packaged shipment travels only one way – the one to you.

    ✓ Long life for your balance

    In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory.

    ✓ The important thing

    You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance.

    Overview


    The HX5.EX scale is a modern weighing instrument assuring fast and reliable measurement in hazardous areas classified as zones 1/21 and 2/22. To ensure precision and excellent measurement repeatability, high quality electronic components are used.
    The weighing platforms offered in wide range of dimensions and maximum capacities, this combined with excellent metrological parameters enables easy selection of an instrument that meets the most demanding requirements.
    Standard version of the scale is equipped with 2 serial, intrinsically safe RS232 communication interfaces, and with one RS485 interface. They facilitate cooperation with equipment intended for operation in hazardous areas. Possibility to add digital inputs/outputs extends the range of instruments compatible with the indicator by automatic elements compliant with ATEX directive.
    More demanding customers can use the IM01.EX module, installed in the safe area, which extends the available connectors by Ethernet, USB, 4-20mA/0- 10V analog outputs, Profibus DP and additional digital inputs/outputs. This enables cooperation with external devices: barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems.

    Scale operation requires use of a dedicated PM01.EX power supply, which is not a standard scale component.
    To operate the scale, order a selected type of the dedicated intrinsically safe power supply.
    Power supply types:
    • PM01.EX-1 - power supply  for operation in ATEX area. Used when it is required to connect the power supply to voltage source placed in hazardous area.
    • PM01.EX-2 - power supply  for operation outside ATEX area. Used when power supply connection to voltage source is carried out outside hazardous area.
    Complex software enables carrying out many tasks connected with mass measurement, e.g. parts counting, checkweighing and statistics.
    The scales feature user-friendly graphic interface, which can be customized using widgets. This and the large colour display of high resolution guarantee easy and clear transmission of data on current process.
    Colour bar graph significantly influences performance by signalling whether the weighing result is within declared thresholds or not.

    The frame for recessing (foundation) is part of the set – you will receive it with the ordered scale.
    CE
    CE
    Verification
    Verification
    2 years warranty
    2 years warranty
    Scales with ATEX certificate
    Scales with ATEX certificate
    Scales with IECEx certificate
    Scales with IECEx certificate

    Datasheet

    Maximum capacity [Max]
    300 kg
    Minimum load
    2 kg
    Readability [d]
    100 g
    Tare range
    -300 kg
    Display
    5” graphic colour
    Cable length
    3 m
    Protection class
    IP 68 construction, IP 66/68 indicator
    ATEX Certification
    II 2G Ex ib IIB T4 Gb
    IECEx Certification
    Ex ib IIB T4 Gb
    Communication interface
    2×RS232, RS485
    Power supply
    100 – 240 V AC 50/60 Hz
    Power consumption max.
    15 W
    Operating temperature
    -10 ÷ +40 °C
    Relative humidity
    10% ÷ 85% RH no condensation
    Indicator
    PUE HX5.EX-1
    Construction
    Stainless steel AISI304
    Weighing pan dimensions
    1000×1000 mm
    Packaging dimensions
    1200×1200×530 mm
    Net weight
    87,8 kg
    Gross weight
    68 kg
    HX5.EX-1.4.300.H8/9/Z 4 Load Cell Platform Scale, Pit Version
    This image is for reference only.
    close Exit
    This image is for reference only.
    Availability:
    In stock
    Estimated shipping date :
    10 working days
    Price:
    11385.60
     GBP
    with 20% VAT, shipping cost not included
    Choose a variant:
    HX5.EX-1.4.300.H8/9/Z 4 Load Cell Platform Scale, Pit Versionkeyboard_arrow_down
    • HX5.EX-1.4.150.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.150.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.1500.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.300.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.3000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.60.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 60kg | d: 20g
    • HX5.EX-1.4.600.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.6000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    • HX5.EX-1.4.6000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    Options:
  • Class III Verification (33.60 GBP)
  • Power Supply for EX Area (990.00 GBP)
  • Pcs.

    Add to basket
    We are near you.
    We have been manufacturing weighing devices since 1984.

    RADWAG UK Limited
    4 Maple Court, Davenport Street,
    Macclesfield SK10 1JE
    +44 01625 569569
    Code:
    WW-008-0038

    Buying from the producer is all about the pros


    ✓ Update as standard

    You always get the latest version of the device and software. We are constantly improving our products.

    ✓ This is priceless

    Technical support from the product developers. Who better to know the answers to your questions? Like our Facebooku profile – stay in touch with us.

    ✓ Smaller carbon footprint

    A solidly packaged shipment travels only one way – the one to you.

    ✓ Long life for your balance

    In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory.

    ✓ The important thing

    You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance.

    Overview


    The HX5.EX scale is a modern weighing instrument assuring fast and reliable measurement in hazardous areas classified as zones 1/21 and 2/22. To ensure precision and excellent measurement repeatability, high quality electronic components are used.
    The weighing platforms offered in wide range of dimensions and maximum capacities, this combined with excellent metrological parameters enables easy selection of an instrument that meets the most demanding requirements.
    Standard version of the scale is equipped with 2 serial, intrinsically safe RS232 communication interfaces, and with one RS485 interface. They facilitate cooperation with equipment intended for operation in hazardous areas. Possibility to add digital inputs/outputs extends the range of instruments compatible with the indicator by automatic elements compliant with ATEX directive.
    More demanding customers can use the IM01.EX module, installed in the safe area, which extends the available connectors by Ethernet, USB, 4-20mA/0- 10V analog outputs, Profibus DP and additional digital inputs/outputs. This enables cooperation with external devices: barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems.

    Scale operation requires use of a dedicated PM01.EX power supply, which is not a standard scale component.
    To operate the scale, order a selected type of the dedicated intrinsically safe power supply.
    Power supply types:
    • PM01.EX-1 - power supply  for operation in ATEX area. Used when it is required to connect the power supply to voltage source placed in hazardous area.
    • PM01.EX-2 - power supply  for operation outside ATEX area. Used when power supply connection to voltage source is carried out outside hazardous area.
    Complex software enables carrying out many tasks connected with mass measurement, e.g. parts counting, checkweighing and statistics.
    The scales feature user-friendly graphic interface, which can be customized using widgets. This and the large colour display of high resolution guarantee easy and clear transmission of data on current process.
    Colour bar graph significantly influences performance by signalling whether the weighing result is within declared thresholds or not.

    The frame for recessing (foundation) is part of the set – you will receive it with the ordered scale.
    CE
    CE
    Verification
    Verification
    2 years warranty
    2 years warranty
    Scales with ATEX certificate
    Scales with ATEX certificate
    Scales with IECEx certificate
    Scales with IECEx certificate

    Datasheet

    Maximum capacity [Max]
    300 kg
    Minimum load
    2 kg
    Readability [d]
    100 g
    Tare range
    -300 kg
    Display
    5” graphic colour
    Cable length
    3 m
    Protection class
    IP 68 construction, IP 66/68 indicator
    ATEX Certification
    II 2G Ex ib IIB T4 Gb
    IECEx Certification
    Ex ib IIB T4 Gb
    Communication interface
    2×RS232, RS485
    Power supply
    100 – 240 V AC 50/60 Hz
    Power consumption max.
    15 W
    Operating temperature
    -10 ÷ +40 °C
    Relative humidity
    10% ÷ 85% RH no condensation
    Indicator
    PUE HX5.EX-1
    Construction
    Stainless steel AISI304
    Weighing pan dimensions
    1200×1500 mm
    Packaging dimensions
    1700×1400×550 mm
    Net weight
    157,8 kg
    Gross weight
    158 kg
    HX5.EX-1.4.300.H8/Z 4 Load Cell Platform Scale, Pit Version
    This image is for reference only.
    close Exit
    This image is for reference only.
    Availability:
    In stock
    Estimated shipping date :
    10 working days
    Price:
    10712.40
     GBP
    with 20% VAT, shipping cost not included
    Choose a variant:
    HX5.EX-1.4.300.H8/Z 4 Load Cell Platform Scale, Pit Versionkeyboard_arrow_down
    • HX5.EX-1.4.150.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.150.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.1500.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.300.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.3000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.60.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 60kg | d: 20g
    • HX5.EX-1.4.600.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.6000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    • HX5.EX-1.4.6000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    Options:
  • Class III Verification (33.60 GBP)
  • Power Supply for EX Area (990.00 GBP)
  • Pcs.

    Add to basket
    We are near you.
    We have been manufacturing weighing devices since 1984.

    RADWAG UK Limited
    4 Maple Court, Davenport Street,
    Macclesfield SK10 1JE
    +44 01625 569569
    Code:
    WW-008-0034

    Buying from the producer is all about the pros


    ✓ Update as standard

    You always get the latest version of the device and software. We are constantly improving our products.

    ✓ This is priceless

    Technical support from the product developers. Who better to know the answers to your questions? Like our Facebooku profile – stay in touch with us.

    ✓ Smaller carbon footprint

    A solidly packaged shipment travels only one way – the one to you.

    ✓ Long life for your balance

    In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory.

    ✓ The important thing

    You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance.

    Overview


    The HX5.EX scale is a modern weighing instrument assuring fast and reliable measurement in hazardous areas classified as zones 1/21 and 2/22. To ensure precision and excellent measurement repeatability, high quality electronic components are used.
    The weighing platforms offered in wide range of dimensions and maximum capacities, this combined with excellent metrological parameters enables easy selection of an instrument that meets the most demanding requirements.
    Standard version of the scale is equipped with 2 serial, intrinsically safe RS232 communication interfaces, and with one RS485 interface. They facilitate cooperation with equipment intended for operation in hazardous areas. Possibility to add digital inputs/outputs extends the range of instruments compatible with the indicator by automatic elements compliant with ATEX directive.
    More demanding customers can use the IM01.EX module, installed in the safe area, which extends the available connectors by Ethernet, USB, 4-20mA/0- 10V analog outputs, Profibus DP and additional digital inputs/outputs. This enables cooperation with external devices: barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems.

    Scale operation requires use of a dedicated PM01.EX power supply, which is not a standard scale component.
    To operate the scale, order a selected type of the dedicated intrinsically safe power supply.
    Power supply types:
    • PM01.EX-1 - power supply  for operation in ATEX area. Used when it is required to connect the power supply to voltage source placed in hazardous area.
    • PM01.EX-2 - power supply  for operation outside ATEX area. Used when power supply connection to voltage source is carried out outside hazardous area.
    Complex software enables carrying out many tasks connected with mass measurement, e.g. parts counting, checkweighing and statistics.
    The scales feature user-friendly graphic interface, which can be customized using widgets. This and the large colour display of high resolution guarantee easy and clear transmission of data on current process.
    Colour bar graph significantly influences performance by signalling whether the weighing result is within declared thresholds or not.

    The frame for recessing (foundation) is part of the set – you will receive it with the ordered scale.
    CE
    CE
    Verification
    Verification
    2 years warranty
    2 years warranty
    Scales with ATEX certificate
    Scales with ATEX certificate
    Scales with IECEx certificate
    Scales with IECEx certificate

    Datasheet

    Maximum capacity [Max]
    300 kg
    Minimum load
    2 kg
    Readability [d]
    100 g
    Tare range
    -300 kg
    Display
    5” graphic colour
    Cable length
    3 m
    Protection class
    IP 68 construction, IP 66/68 indicator
    ATEX Certification
    II 2G Ex ib IIB T4 Gb
    IECEx Certification
    Ex ib IIB T4 Gb
    Communication interface
    2×RS232, RS485
    Power supply
    100 – 240 V AC 50/60 Hz
    Power consumption max.
    15 W
    Operating temperature
    -10 ÷ +40 °C
    Relative humidity
    10% ÷ 85% RH no condensation
    Indicator
    PUE HX5.EX-1
    Construction
    Stainless steel AISI304
    Weighing pan dimensions
    1200×1200 mm
    Packaging dimensions
    1400×1400×550 mm
    Net weight
    127,8 kg
    Gross weight
    128 kg
    HX5.EX-1.4.300.H9/Z 4 Load Cell Platform Scale, Pit Version
    This image is for reference only.
    close Exit
    This image is for reference only.
    Availability:
    In stock
    Estimated shipping date :
    10 working days
    Price:
    12486.00
     GBP
    with 20% VAT, shipping cost not included
    Choose a variant:
    HX5.EX-1.4.300.H9/Z 4 Load Cell Platform Scale, Pit Versionkeyboard_arrow_down
    • HX5.EX-1.4.150.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.150.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.1500.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.300.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.3000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.60.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 60kg | d: 20g
    • HX5.EX-1.4.600.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.6000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    • HX5.EX-1.4.6000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    Options:
  • Class III Verification (33.60 GBP)
  • Power Supply for EX Area (990.00 GBP)
  • Pcs.

    Add to basket
    We are near you.
    We have been manufacturing weighing devices since 1984.

    RADWAG UK Limited
    4 Maple Court, Davenport Street,
    Macclesfield SK10 1JE
    +44 01625 569569
    Code:
    WW-008-0042

    Buying from the producer is all about the pros


    ✓ Update as standard

    You always get the latest version of the device and software. We are constantly improving our products.

    ✓ This is priceless

    Technical support from the product developers. Who better to know the answers to your questions? Like our Facebooku profile – stay in touch with us.

    ✓ Smaller carbon footprint

    A solidly packaged shipment travels only one way – the one to you.

    ✓ Long life for your balance

    In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory.

    ✓ The important thing

    You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance.

    Overview


    The HX5.EX scale is a modern weighing instrument assuring fast and reliable measurement in hazardous areas classified as zones 1/21 and 2/22. To ensure precision and excellent measurement repeatability, high quality electronic components are used.
    The weighing platforms offered in wide range of dimensions and maximum capacities, this combined with excellent metrological parameters enables easy selection of an instrument that meets the most demanding requirements.
    Standard version of the scale is equipped with 2 serial, intrinsically safe RS232 communication interfaces, and with one RS485 interface. They facilitate cooperation with equipment intended for operation in hazardous areas. Possibility to add digital inputs/outputs extends the range of instruments compatible with the indicator by automatic elements compliant with ATEX directive.
    More demanding customers can use the IM01.EX module, installed in the safe area, which extends the available connectors by Ethernet, USB, 4-20mA/0- 10V analog outputs, Profibus DP and additional digital inputs/outputs. This enables cooperation with external devices: barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems.

    Scale operation requires use of a dedicated PM01.EX power supply, which is not a standard scale component.
    To operate the scale, order a selected type of the dedicated intrinsically safe power supply.
    Power supply types:
    • PM01.EX-1 - power supply  for operation in ATEX area. Used when it is required to connect the power supply to voltage source placed in hazardous area.
    • PM01.EX-2 - power supply  for operation outside ATEX area. Used when power supply connection to voltage source is carried out outside hazardous area.
    Complex software enables carrying out many tasks connected with mass measurement, e.g. parts counting, checkweighing and statistics.
    The scales feature user-friendly graphic interface, which can be customized using widgets. This and the large colour display of high resolution guarantee easy and clear transmission of data on current process.
    Colour bar graph significantly influences performance by signalling whether the weighing result is within declared thresholds or not.

    The frame for recessing (foundation) is part of the set – you will receive it with the ordered scale.
    CE
    CE
    Verification
    Verification
    2 years warranty
    2 years warranty
    Scales with ATEX certificate
    Scales with ATEX certificate
    Scales with IECEx certificate
    Scales with IECEx certificate

    Datasheet

    Maximum capacity [Max]
    300 kg
    Minimum load
    2 kg
    Readability [d]
    100 g
    Tare range
    -300 kg
    Display
    5” graphic colour
    Cable length
    3 m
    Protection class
    IP 68 construction, IP 66/68 indicator
    ATEX Certification
    II 2G Ex ib IIB T4 Gb
    IECEx Certification
    Ex ib IIB T4 Gb
    Communication interface
    2×RS232, RS485
    Power supply
    100 – 240 V AC 50/60 Hz
    Power consumption max.
    15 W
    Operating temperature
    -10 ÷ +40 °C
    Relative humidity
    10% ÷ 85% RH no condensation
    Indicator
    PUE HX5.EX-1
    Construction
    Stainless steel AISI304
    Weighing pan dimensions
    1500×1500 mm
    Net weight
    192,8 kg
    Gross weight
    193 kg
    HX5.EX-1.4.3000.H10/Z 4 Load Cell Platform Scale, Pit Version
    This image is for reference only.
    close Exit
    This image is for reference only.
    Availability:
    In stock
    Estimated shipping date :
    10 working days
    Price:
    15044.40
     GBP
    with 20% VAT, shipping cost not included
    Choose a variant:
    HX5.EX-1.4.3000.H10/Z 4 Load Cell Platform Scale, Pit Versionkeyboard_arrow_down
    • HX5.EX-1.4.150.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.150.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.1500.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.300.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.3000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.60.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 60kg | d: 20g
    • HX5.EX-1.4.600.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.6000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    • HX5.EX-1.4.6000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    Options:
  • Class III Verification (33.60 GBP)
  • Power Supply for EX Area (990.00 GBP)
  • Pcs.

    Add to basket
    We are near you.
    We have been manufacturing weighing devices since 1984.

    RADWAG UK Limited
    4 Maple Court, Davenport Street,
    Macclesfield SK10 1JE
    +44 01625 569569
    Code:
    WW-008-0049

    Buying from the producer is all about the pros


    ✓ Update as standard

    You always get the latest version of the device and software. We are constantly improving our products.

    ✓ This is priceless

    Technical support from the product developers. Who better to know the answers to your questions? Like our Facebooku profile – stay in touch with us.

    ✓ Smaller carbon footprint

    A solidly packaged shipment travels only one way – the one to you.

    ✓ Long life for your balance

    In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory.

    ✓ The important thing

    You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance.

    Overview


    The HX5.EX scale is a modern weighing instrument assuring fast and reliable measurement in hazardous areas classified as zones 1/21 and 2/22. To ensure precision and excellent measurement repeatability, high quality electronic components are used.
    The weighing platforms offered in wide range of dimensions and maximum capacities, this combined with excellent metrological parameters enables easy selection of an instrument that meets the most demanding requirements.
    Standard version of the scale is equipped with 2 serial, intrinsically safe RS232 communication interfaces, and with one RS485 interface. They facilitate cooperation with equipment intended for operation in hazardous areas. Possibility to add digital inputs/outputs extends the range of instruments compatible with the indicator by automatic elements compliant with ATEX directive.
    More demanding customers can use the IM01.EX module, installed in the safe area, which extends the available connectors by Ethernet, USB, 4-20mA/0- 10V analog outputs, Profibus DP and additional digital inputs/outputs. This enables cooperation with external devices: barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems.

    Scale operation requires use of a dedicated PM01.EX power supply, which is not a standard scale component.
    To operate the scale, order a selected type of the dedicated intrinsically safe power supply.
    Power supply types:
    • PM01.EX-1 - power supply  for operation in ATEX area. Used when it is required to connect the power supply to voltage source placed in hazardous area.
    • PM01.EX-2 - power supply  for operation outside ATEX area. Used when power supply connection to voltage source is carried out outside hazardous area.
    Complex software enables carrying out many tasks connected with mass measurement, e.g. parts counting, checkweighing and statistics.
    The scales feature user-friendly graphic interface, which can be customized using widgets. This and the large colour display of high resolution guarantee easy and clear transmission of data on current process.
    Colour bar graph significantly influences performance by signalling whether the weighing result is within declared thresholds or not.

    The frame for recessing (foundation) is part of the set – you will receive it with the ordered scale.
    CE
    CE
    Verification
    Verification
    2 years warranty
    2 years warranty
    Scales with ATEX certificate
    Scales with ATEX certificate
    Scales with IECEx certificate
    Scales with IECEx certificate

    Datasheet

    Maximum capacity [Max]
    3000 kg
    Minimum load
    20 kg
    Readability [d]
    1000 g
    Tare range
    -3000 kg
    Display
    5” graphic colour
    Cable length
    3 m
    Protection class
    IP 68 construction, IP 66/68 indicator
    ATEX Certification
    II 2G Ex ib IIB T4 Gb
    IECEx Certification
    Ex ib IIB T4 Gb
    Communication interface
    2×RS232, RS485
    Power supply
    100 – 240 V AC 50/60 Hz
    Power consumption max.
    15 W
    Operating temperature
    -10 ÷ +40 °C
    Relative humidity
    10% ÷ 85% RH no condensation
    Indicator
    PUE HX5.EX-1
    Construction
    Stainless steel AISI304
    Weighing pan dimensions
    1500×2000 mm
    Net weight
    287,8 kg
    Gross weight
    288 kg
    HX5.EX-1.4.3000.H8/9/Z 4 Load Cell Platform Scale, Pit Version
    This image is for reference only.
    close Exit
    This image is for reference only.
    Availability:
    In stock
    Estimated shipping date :
    10 working days
    Price:
    12262.80
     GBP
    with 20% VAT, shipping cost not included
    Choose a variant:
    HX5.EX-1.4.3000.H8/9/Z 4 Load Cell Platform Scale, Pit Versionkeyboard_arrow_down
    • HX5.EX-1.4.150.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.150.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.1500.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.300.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.3000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.60.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 60kg | d: 20g
    • HX5.EX-1.4.600.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.6000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    • HX5.EX-1.4.6000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    Options:
  • Class III Verification (33.60 GBP)
  • Power Supply for EX Area (990.00 GBP)
  • Pcs.

    Add to basket
    We are near you.
    We have been manufacturing weighing devices since 1984.

    RADWAG UK Limited
    4 Maple Court, Davenport Street,
    Macclesfield SK10 1JE
    +44 01625 569569
    Code:
    WW-008-0041

    Buying from the producer is all about the pros


    ✓ Update as standard

    You always get the latest version of the device and software. We are constantly improving our products.

    ✓ This is priceless

    Technical support from the product developers. Who better to know the answers to your questions? Like our Facebooku profile – stay in touch with us.

    ✓ Smaller carbon footprint

    A solidly packaged shipment travels only one way – the one to you.

    ✓ Long life for your balance

    In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory.

    ✓ The important thing

    You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance.

    Overview


    The HX5.EX scale is a modern weighing instrument assuring fast and reliable measurement in hazardous areas classified as zones 1/21 and 2/22. To ensure precision and excellent measurement repeatability, high quality electronic components are used.
    The weighing platforms offered in wide range of dimensions and maximum capacities, this combined with excellent metrological parameters enables easy selection of an instrument that meets the most demanding requirements.
    Standard version of the scale is equipped with 2 serial, intrinsically safe RS232 communication interfaces, and with one RS485 interface. They facilitate cooperation with equipment intended for operation in hazardous areas. Possibility to add digital inputs/outputs extends the range of instruments compatible with the indicator by automatic elements compliant with ATEX directive.
    More demanding customers can use the IM01.EX module, installed in the safe area, which extends the available connectors by Ethernet, USB, 4-20mA/0- 10V analog outputs, Profibus DP and additional digital inputs/outputs. This enables cooperation with external devices: barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems.

    Scale operation requires use of a dedicated PM01.EX power supply, which is not a standard scale component.
    To operate the scale, order a selected type of the dedicated intrinsically safe power supply.
    Power supply types:
    • PM01.EX-1 - power supply  for operation in ATEX area. Used when it is required to connect the power supply to voltage source placed in hazardous area.
    • PM01.EX-2 - power supply  for operation outside ATEX area. Used when power supply connection to voltage source is carried out outside hazardous area.
    Complex software enables carrying out many tasks connected with mass measurement, e.g. parts counting, checkweighing and statistics.
    The scales feature user-friendly graphic interface, which can be customized using widgets. This and the large colour display of high resolution guarantee easy and clear transmission of data on current process.
    Colour bar graph significantly influences performance by signalling whether the weighing result is within declared thresholds or not.

    The frame for recessing (foundation) is part of the set – you will receive it with the ordered scale.
    CE
    CE
    Verification
    Verification
    2 years warranty
    2 years warranty
    Scales with ATEX certificate
    Scales with ATEX certificate
    Scales with IECEx certificate
    Scales with IECEx certificate

    Datasheet

    Maximum capacity [Max]
    3000 kg
    Minimum load
    20 kg
    Readability [d]
    1000 g
    Tare range
    -3000 kg
    Display
    5” graphic colour
    Cable length
    3 m
    Protection class
    IP 68 construction, IP 66/68 indicator
    ATEX Certification
    II 2G Ex ib IIB T4 Gb
    IECEx Certification
    Ex ib IIB T4 Gb
    Communication interface
    2×RS232, RS485
    Power supply
    100 – 240 V AC 50/60 Hz
    Power consumption max.
    15 W
    Operating temperature
    -10 ÷ +40 °C
    Relative humidity
    10% ÷ 85% RH no condensation
    Indicator
    PUE HX5.EX-1
    Construction
    Stainless steel AISI304
    Weighing pan dimensions
    1200×1500 mm
    Packaging dimensions
    1700×1400×550 mm
    Net weight
    162,8 kg
    Gross weight
    163 kg
    HX5.EX-1.4.3000.H8/Z 4 Load Cell Platform Scale, Pit Version
    This image is for reference only.
    close Exit
    This image is for reference only.
    Availability:
    In stock
    Estimated shipping date :
    10 working days
    Price:
    10712.40
     GBP
    with 20% VAT, shipping cost not included
    Choose a variant:
    HX5.EX-1.4.3000.H8/Z 4 Load Cell Platform Scale, Pit Versionkeyboard_arrow_down
    • HX5.EX-1.4.150.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.150.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.1500.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.300.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.3000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.60.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 60kg | d: 20g
    • HX5.EX-1.4.600.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.6000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    • HX5.EX-1.4.6000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    Options:
  • Class III Verification (33.60 GBP)
  • Power Supply for EX Area (990.00 GBP)
  • Pcs.

    Add to basket
    We are near you.
    We have been manufacturing weighing devices since 1984.

    RADWAG UK Limited
    4 Maple Court, Davenport Street,
    Macclesfield SK10 1JE
    +44 01625 569569
    Code:
    WW-008-0037

    Buying from the producer is all about the pros


    ✓ Update as standard

    You always get the latest version of the device and software. We are constantly improving our products.

    ✓ This is priceless

    Technical support from the product developers. Who better to know the answers to your questions? Like our Facebooku profile – stay in touch with us.

    ✓ Smaller carbon footprint

    A solidly packaged shipment travels only one way – the one to you.

    ✓ Long life for your balance

    In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory.

    ✓ The important thing

    You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance.

    Overview


    The HX5.EX scale is a modern weighing instrument assuring fast and reliable measurement in hazardous areas classified as zones 1/21 and 2/22. To ensure precision and excellent measurement repeatability, high quality electronic components are used.
    The weighing platforms offered in wide range of dimensions and maximum capacities, this combined with excellent metrological parameters enables easy selection of an instrument that meets the most demanding requirements.
    Standard version of the scale is equipped with 2 serial, intrinsically safe RS232 communication interfaces, and with one RS485 interface. They facilitate cooperation with equipment intended for operation in hazardous areas. Possibility to add digital inputs/outputs extends the range of instruments compatible with the indicator by automatic elements compliant with ATEX directive.
    More demanding customers can use the IM01.EX module, installed in the safe area, which extends the available connectors by Ethernet, USB, 4-20mA/0- 10V analog outputs, Profibus DP and additional digital inputs/outputs. This enables cooperation with external devices: barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems.

    Scale operation requires use of a dedicated PM01.EX power supply, which is not a standard scale component.
    To operate the scale, order a selected type of the dedicated intrinsically safe power supply.
    Power supply types:
    • PM01.EX-1 - power supply  for operation in ATEX area. Used when it is required to connect the power supply to voltage source placed in hazardous area.
    • PM01.EX-2 - power supply  for operation outside ATEX area. Used when power supply connection to voltage source is carried out outside hazardous area.
    Complex software enables carrying out many tasks connected with mass measurement, e.g. parts counting, checkweighing and statistics.
    The scales feature user-friendly graphic interface, which can be customized using widgets. This and the large colour display of high resolution guarantee easy and clear transmission of data on current process.
    Colour bar graph significantly influences performance by signalling whether the weighing result is within declared thresholds or not.

    The frame for recessing (foundation) is part of the set – you will receive it with the ordered scale.
    CE
    CE
    Verification
    Verification
    2 years warranty
    2 years warranty
    Scales with ATEX certificate
    Scales with ATEX certificate
    Scales with IECEx certificate
    Scales with IECEx certificate

    Datasheet

    Maximum capacity [Max]
    3000 kg
    Minimum load
    20 kg
    Readability [d]
    1000 g
    Tare range
    -3000 kg
    Display
    5” graphic colour
    Cable length
    3 m
    Protection class
    IP 68 construction, IP 66/68 indicator
    ATEX Certification
    II 2G Ex ib IIB T4 Gb
    IECEx Certification
    Ex ib IIB T4 Gb
    Communication interface
    2×RS232, RS485
    Power supply
    100 – 240 V AC 50/60 Hz
    Power consumption max.
    15 W
    Operating temperature
    -10 ÷ +40 °C
    Relative humidity
    10% ÷ 85% RH no condensation
    Indicator
    PUE HX5.EX-1
    Construction
    Stainless steel AISI304
    Weighing pan dimensions
    1200×1200 mm
    Packaging dimensions
    1400×1400×550 mm
    Net weight
    127,8 kg
    Gross weight
    128 kg
    HX5.EX-1.4.3000.H9/Z 4 Load Cell Platform Scale, Pit Version
    This image is for reference only.
    close Exit
    This image is for reference only.
    Availability:
    In stock
    Estimated shipping date :
    10 working days
    Price:
    13132.80
     GBP
    with 20% VAT, shipping cost not included
    Choose a variant:
    HX5.EX-1.4.3000.H9/Z 4 Load Cell Platform Scale, Pit Versionkeyboard_arrow_down
    • HX5.EX-1.4.150.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.150.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.1500.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.300.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.3000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.60.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 60kg | d: 20g
    • HX5.EX-1.4.600.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.6000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    • HX5.EX-1.4.6000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    Options:
  • Class III Verification (33.60 GBP)
  • Power Supply for EX Area (990.00 GBP)
  • Pcs.

    Add to basket
    We are near you.
    We have been manufacturing weighing devices since 1984.

    RADWAG UK Limited
    4 Maple Court, Davenport Street,
    Macclesfield SK10 1JE
    +44 01625 569569
    Code:
    WW-008-0045

    Buying from the producer is all about the pros


    ✓ Update as standard

    You always get the latest version of the device and software. We are constantly improving our products.

    ✓ This is priceless

    Technical support from the product developers. Who better to know the answers to your questions? Like our Facebooku profile – stay in touch with us.

    ✓ Smaller carbon footprint

    A solidly packaged shipment travels only one way – the one to you.

    ✓ Long life for your balance

    In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory.

    ✓ The important thing

    You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance.

    Overview


    The HX5.EX scale is a modern weighing instrument assuring fast and reliable measurement in hazardous areas classified as zones 1/21 and 2/22. To ensure precision and excellent measurement repeatability, high quality electronic components are used.
    The weighing platforms offered in wide range of dimensions and maximum capacities, this combined with excellent metrological parameters enables easy selection of an instrument that meets the most demanding requirements.
    Standard version of the scale is equipped with 2 serial, intrinsically safe RS232 communication interfaces, and with one RS485 interface. They facilitate cooperation with equipment intended for operation in hazardous areas. Possibility to add digital inputs/outputs extends the range of instruments compatible with the indicator by automatic elements compliant with ATEX directive.
    More demanding customers can use the IM01.EX module, installed in the safe area, which extends the available connectors by Ethernet, USB, 4-20mA/0- 10V analog outputs, Profibus DP and additional digital inputs/outputs. This enables cooperation with external devices: barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems.

    Scale operation requires use of a dedicated PM01.EX power supply, which is not a standard scale component.
    To operate the scale, order a selected type of the dedicated intrinsically safe power supply.
    Power supply types:
    • PM01.EX-1 - power supply  for operation in ATEX area. Used when it is required to connect the power supply to voltage source placed in hazardous area.
    • PM01.EX-2 - power supply  for operation outside ATEX area. Used when power supply connection to voltage source is carried out outside hazardous area.
    Complex software enables carrying out many tasks connected with mass measurement, e.g. parts counting, checkweighing and statistics.
    The scales feature user-friendly graphic interface, which can be customized using widgets. This and the large colour display of high resolution guarantee easy and clear transmission of data on current process.
    Colour bar graph significantly influences performance by signalling whether the weighing result is within declared thresholds or not.

    The frame for recessing (foundation) is part of the set – you will receive it with the ordered scale.
    CE
    CE
    Verification
    Verification
    2 years warranty
    2 years warranty
    Scales with ATEX certificate
    Scales with ATEX certificate
    Scales with IECEx certificate
    Scales with IECEx certificate

    Datasheet

    Maximum capacity [Max]
    3000 kg
    Minimum load
    20 kg
    Readability [d]
    1000 g
    Tare range
    -3000 kg
    Display
    5” graphic colour
    Cable length
    3 m
    Protection class
    IP 68 construction, IP 66/68 indicator
    ATEX Certification
    II 2G Ex ib IIB T4 Gb
    IECEx Certification
    Ex ib IIB T4 Gb
    Communication interface
    2×RS232, RS485
    Power supply
    100 – 240 V AC 50/60 Hz
    Power consumption max.
    15 W
    Operating temperature
    -10 ÷ +40 °C
    Relative humidity
    10% ÷ 85% RH no condensation
    Indicator
    PUE HX5.EX-1
    Construction
    Stainless steel AISI304
    Weighing pan dimensions
    1500×1500 mm
    Net weight
    202,8 kg
    Gross weight
    304 kg
    HX5.EX-1.4.60.H6/Z 4 Load Cell Platform Scale, Pit Version
    This image is for reference only.
    close Exit
    This image is for reference only.
    Availability:
    In stock
    Estimated shipping date :
    10 working days
    Price:
    9416.40
     GBP
    with 20% VAT, shipping cost not included
    Choose a variant:
    HX5.EX-1.4.60.H6/Z 4 Load Cell Platform Scale, Pit Versionkeyboard_arrow_down
    • HX5.EX-1.4.150.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.150.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.1500.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.300.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.3000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.60.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 60kg | d: 20g
    • HX5.EX-1.4.600.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.6000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    • HX5.EX-1.4.6000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    Options:
  • Class III Verification (33.60 GBP)
  • Power Supply for EX Area (990.00 GBP)
  • Pcs.

    Add to basket
    We are near you.
    We have been manufacturing weighing devices since 1984.

    RADWAG UK Limited
    4 Maple Court, Davenport Street,
    Macclesfield SK10 1JE
    +44 01625 569569
    Code:
    WW-008-0026

    Buying from the producer is all about the pros


    ✓ Update as standard

    You always get the latest version of the device and software. We are constantly improving our products.

    ✓ This is priceless

    Technical support from the product developers. Who better to know the answers to your questions? Like our Facebooku profile – stay in touch with us.

    ✓ Smaller carbon footprint

    A solidly packaged shipment travels only one way – the one to you.

    ✓ Long life for your balance

    In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory.

    ✓ The important thing

    You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance.

    Overview


    The HX5.EX scale is a modern weighing instrument assuring fast and reliable measurement in hazardous areas classified as zones 1/21 and 2/22. To ensure precision and excellent measurement repeatability, high quality electronic components are used.
    The weighing platforms offered in wide range of dimensions and maximum capacities, this combined with excellent metrological parameters enables easy selection of an instrument that meets the most demanding requirements.
    Standard version of the scale is equipped with 2 serial, intrinsically safe RS232 communication interfaces, and with one RS485 interface. They facilitate cooperation with equipment intended for operation in hazardous areas. Possibility to add digital inputs/outputs extends the range of instruments compatible with the indicator by automatic elements compliant with ATEX directive.
    More demanding customers can use the IM01.EX module, installed in the safe area, which extends the available connectors by Ethernet, USB, 4-20mA/0- 10V analog outputs, Profibus DP and additional digital inputs/outputs. This enables cooperation with external devices: barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems.

    Scale operation requires use of a dedicated PM01.EX power supply, which is not a standard scale component.
    To operate the scale, order a selected type of the dedicated intrinsically safe power supply.
    Power supply types:
    • PM01.EX-1 - power supply  for operation in ATEX area. Used when it is required to connect the power supply to voltage source placed in hazardous area.
    • PM01.EX-2 - power supply  for operation outside ATEX area. Used when power supply connection to voltage source is carried out outside hazardous area.
    Complex software enables carrying out many tasks connected with mass measurement, e.g. parts counting, checkweighing and statistics.
    The scales feature user-friendly graphic interface, which can be customized using widgets. This and the large colour display of high resolution guarantee easy and clear transmission of data on current process.
    Colour bar graph significantly influences performance by signalling whether the weighing result is within declared thresholds or not.

    The frame for recessing (foundation) is part of the set – you will receive it with the ordered scale.
    CE
    CE
    Verification
    Verification
    2 years warranty
    2 years warranty
    Scales with ATEX certificate
    Scales with ATEX certificate
    Scales with IECEx certificate
    Scales with IECEx certificate

    Datasheet

    Maximum capacity [Max]
    60 kg
    Minimum load
    400 g
    Readability [d]
    20 g
    Tare range
    -60 kg
    Display
    5” graphic colour
    Cable length
    3 m
    Protection class
    IP 67 construction, IP 66/68 indicator
    ATEX Certification
    II 2G Ex ib IIB T4 Gb
    IECEx Certification
    Ex ib IIB T4 Gb
    Communication interface
    2×RS232, RS485
    Power supply
    100 – 240 V AC 50/60 Hz
    Power consumption max.
    15 W
    Operating temperature
    -10 ÷ +40 °C
    Relative humidity
    10% ÷ 85% RH no condensation
    Indicator
    PUE HX5.EX-1
    Construction
    Stainless steel AISI304
    Weighing pan dimensions
    800×800 mm
    Packaging dimensions
    1000×1000×530 mm
    Net weight
    62,8 kg
    Gross weight
    63 kg
    HX5.EX-1.4.600.H10/Z 4 Load Cell Platform Scale, Pit Version
    This image is for reference only.
    close Exit
    This image is for reference only.
    Availability:
    In stock
    Estimated shipping date :
    10 working days
    Price:
    15044.40
     GBP
    with 20% VAT, shipping cost not included
    Choose a variant:
    HX5.EX-1.4.600.H10/Z 4 Load Cell Platform Scale, Pit Versionkeyboard_arrow_down
    • HX5.EX-1.4.150.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.150.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.1500.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.300.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.3000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.60.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 60kg | d: 20g
    • HX5.EX-1.4.600.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.6000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    • HX5.EX-1.4.6000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    Options:
  • Class III Verification (33.60 GBP)
  • Power Supply for EX Area (990.00 GBP)
  • Pcs.

    Add to basket
    We are near you.
    We have been manufacturing weighing devices since 1984.

    RADWAG UK Limited
    4 Maple Court, Davenport Street,
    Macclesfield SK10 1JE
    +44 01625 569569
    Code:
    WW-008-0047

    Buying from the producer is all about the pros


    ✓ Update as standard

    You always get the latest version of the device and software. We are constantly improving our products.

    ✓ This is priceless

    Technical support from the product developers. Who better to know the answers to your questions? Like our Facebooku profile – stay in touch with us.

    ✓ Smaller carbon footprint

    A solidly packaged shipment travels only one way – the one to you.

    ✓ Long life for your balance

    In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory.

    ✓ The important thing

    You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance.

    Overview


    The HX5.EX scale is a modern weighing instrument assuring fast and reliable measurement in hazardous areas classified as zones 1/21 and 2/22. To ensure precision and excellent measurement repeatability, high quality electronic components are used.
    The weighing platforms offered in wide range of dimensions and maximum capacities, this combined with excellent metrological parameters enables easy selection of an instrument that meets the most demanding requirements.
    Standard version of the scale is equipped with 2 serial, intrinsically safe RS232 communication interfaces, and with one RS485 interface. They facilitate cooperation with equipment intended for operation in hazardous areas. Possibility to add digital inputs/outputs extends the range of instruments compatible with the indicator by automatic elements compliant with ATEX directive.
    More demanding customers can use the IM01.EX module, installed in the safe area, which extends the available connectors by Ethernet, USB, 4-20mA/0- 10V analog outputs, Profibus DP and additional digital inputs/outputs. This enables cooperation with external devices: barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems.

    Scale operation requires use of a dedicated PM01.EX power supply, which is not a standard scale component.
    To operate the scale, order a selected type of the dedicated intrinsically safe power supply.
    Power supply types:
    • PM01.EX-1 - power supply  for operation in ATEX area. Used when it is required to connect the power supply to voltage source placed in hazardous area.
    • PM01.EX-2 - power supply  for operation outside ATEX area. Used when power supply connection to voltage source is carried out outside hazardous area.
    Complex software enables carrying out many tasks connected with mass measurement, e.g. parts counting, checkweighing and statistics.
    The scales feature user-friendly graphic interface, which can be customized using widgets. This and the large colour display of high resolution guarantee easy and clear transmission of data on current process.
    Colour bar graph significantly influences performance by signalling whether the weighing result is within declared thresholds or not.

    The frame for recessing (foundation) is part of the set – you will receive it with the ordered scale.
    CE
    CE
    Verification
    Verification
    2 years warranty
    2 years warranty
    Scales with ATEX certificate
    Scales with ATEX certificate
    Scales with IECEx certificate
    Scales with IECEx certificate

    Datasheet

    Maximum capacity [Max]
    600 kg
    Minimum load
    4 kg
    Readability [d]
    200 g
    Tare range
    -600 kg
    Display
    5” graphic colour
    Cable length
    3 m
    Protection class
    IP 68 construction, IP 66/68 indicator
    ATEX Certification
    II 2G Ex ib IIB T4 Gb
    IECEx Certification
    Ex ib IIB T4 Gb
    Communication interface
    2×RS232, RS485
    Power supply
    100 – 240 V AC 50/60 Hz
    Power consumption max.
    15 W
    Operating temperature
    -10 ÷ +40 °C
    Relative humidity
    10% ÷ 85% RH no condensation
    Indicator
    PUE HX5.EX-1
    Construction
    Stainless steel AISI304
    Weighing pan dimensions
    1500×2000 mm
    Net weight
    287,8 kg
    Gross weight
    288 kg
    HX5.EX-1.4.600.H6/Z 4 Load Cell Platform Scale, Pit Version
    This image is for reference only.
    close Exit
    This image is for reference only.
    Availability:
    In stock
    Estimated shipping date :
    10 working days
    Price:
    9416.40
     GBP
    with 20% VAT, shipping cost not included
    Choose a variant:
    HX5.EX-1.4.600.H6/Z 4 Load Cell Platform Scale, Pit Versionkeyboard_arrow_down
    • HX5.EX-1.4.150.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.150.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.1500.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.300.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.3000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.60.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 60kg | d: 20g
    • HX5.EX-1.4.600.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.6000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    • HX5.EX-1.4.6000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    Options:
  • Class III Verification (33.60 GBP)
  • Power Supply for EX Area (990.00 GBP)
  • Pcs.

    Add to basket
    We are near you.
    We have been manufacturing weighing devices since 1984.

    RADWAG UK Limited
    4 Maple Court, Davenport Street,
    Macclesfield SK10 1JE
    +44 01625 569569
    Code:
    WW-008-0029

    Buying from the producer is all about the pros


    ✓ Update as standard

    You always get the latest version of the device and software. We are constantly improving our products.

    ✓ This is priceless

    Technical support from the product developers. Who better to know the answers to your questions? Like our Facebooku profile – stay in touch with us.

    ✓ Smaller carbon footprint

    A solidly packaged shipment travels only one way – the one to you.

    ✓ Long life for your balance

    In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory.

    ✓ The important thing

    You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance.

    Overview


    The HX5.EX scale is a modern weighing instrument assuring fast and reliable measurement in hazardous areas classified as zones 1/21 and 2/22. To ensure precision and excellent measurement repeatability, high quality electronic components are used.
    The weighing platforms offered in wide range of dimensions and maximum capacities, this combined with excellent metrological parameters enables easy selection of an instrument that meets the most demanding requirements.
    Standard version of the scale is equipped with 2 serial, intrinsically safe RS232 communication interfaces, and with one RS485 interface. They facilitate cooperation with equipment intended for operation in hazardous areas. Possibility to add digital inputs/outputs extends the range of instruments compatible with the indicator by automatic elements compliant with ATEX directive.
    More demanding customers can use the IM01.EX module, installed in the safe area, which extends the available connectors by Ethernet, USB, 4-20mA/0- 10V analog outputs, Profibus DP and additional digital inputs/outputs. This enables cooperation with external devices: barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems.

    Scale operation requires use of a dedicated PM01.EX power supply, which is not a standard scale component.
    To operate the scale, order a selected type of the dedicated intrinsically safe power supply.
    Power supply types:
    • PM01.EX-1 - power supply  for operation in ATEX area. Used when it is required to connect the power supply to voltage source placed in hazardous area.
    • PM01.EX-2 - power supply  for operation outside ATEX area. Used when power supply connection to voltage source is carried out outside hazardous area.
    Complex software enables carrying out many tasks connected with mass measurement, e.g. parts counting, checkweighing and statistics.
    The scales feature user-friendly graphic interface, which can be customized using widgets. This and the large colour display of high resolution guarantee easy and clear transmission of data on current process.
    Colour bar graph significantly influences performance by signalling whether the weighing result is within declared thresholds or not.

    The frame for recessing (foundation) is part of the set – you will receive it with the ordered scale.
    CE
    CE
    Verification
    Verification
    2 years warranty
    2 years warranty
    Scales with ATEX certificate
    Scales with ATEX certificate
    Scales with IECEx certificate
    Scales with IECEx certificate

    Datasheet

    Maximum capacity [Max]
    600 kg
    Minimum load
    4 kg
    Readability [d]
    200 g
    Tare range
    -600 kg
    Display
    5” graphic colour
    Cable length
    3 m
    Protection class
    IP 68 construction, IP 66/68 indicator
    ATEX Certification
    II 2G Ex ib IIB T4 Gb
    IECEx Certification
    Ex ib IIB T4 Gb
    Communication interface
    2×RS232, RS485
    Power supply
    100 – 240 V AC 50/60 Hz
    Power consumption max.
    15 W
    Operating temperature
    -10 ÷ +40 °C
    Relative humidity
    10% ÷ 85% RH no condensation
    Indicator
    PUE HX5.EX-1
    Construction
    Stainless steel AISI304
    Weighing pan dimensions
    800×800 mm
    Packaging dimensions
    1000×1000×530 mm
    Net weight
    62,8 kg
    Gross weight
    63 kg
    HX5.EX-1.4.600.H7/Z 4 Load Cell Platform Scale, Pit Version
    This image is for reference only.
    close Exit
    This image is for reference only.
    Availability:
    In stock
    Estimated shipping date :
    10 working days
    Price:
    9932.40
     GBP
    with 20% VAT, shipping cost not included
    Choose a variant:
    HX5.EX-1.4.600.H7/Z 4 Load Cell Platform Scale, Pit Versionkeyboard_arrow_down
    • HX5.EX-1.4.150.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.150.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.1500.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.300.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.3000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.60.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 60kg | d: 20g
    • HX5.EX-1.4.600.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.6000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    • HX5.EX-1.4.6000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    Options:
  • Class III Verification (33.60 GBP)
  • Power Supply for EX Area (990.00 GBP)
  • Pcs.

    Add to basket
    We are near you.
    We have been manufacturing weighing devices since 1984.

    RADWAG UK Limited
    4 Maple Court, Davenport Street,
    Macclesfield SK10 1JE
    +44 01625 569569
    Code:
    WW-008-0032

    Buying from the producer is all about the pros


    ✓ Update as standard

    You always get the latest version of the device and software. We are constantly improving our products.

    ✓ This is priceless

    Technical support from the product developers. Who better to know the answers to your questions? Like our Facebooku profile – stay in touch with us.

    ✓ Smaller carbon footprint

    A solidly packaged shipment travels only one way – the one to you.

    ✓ Long life for your balance

    In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory.

    ✓ The important thing

    You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance.

    Overview


    The HX5.EX scale is a modern weighing instrument assuring fast and reliable measurement in hazardous areas classified as zones 1/21 and 2/22. To ensure precision and excellent measurement repeatability, high quality electronic components are used.
    The weighing platforms offered in wide range of dimensions and maximum capacities, this combined with excellent metrological parameters enables easy selection of an instrument that meets the most demanding requirements.
    Standard version of the scale is equipped with 2 serial, intrinsically safe RS232 communication interfaces, and with one RS485 interface. They facilitate cooperation with equipment intended for operation in hazardous areas. Possibility to add digital inputs/outputs extends the range of instruments compatible with the indicator by automatic elements compliant with ATEX directive.
    More demanding customers can use the IM01.EX module, installed in the safe area, which extends the available connectors by Ethernet, USB, 4-20mA/0- 10V analog outputs, Profibus DP and additional digital inputs/outputs. This enables cooperation with external devices: barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems.

    Scale operation requires use of a dedicated PM01.EX power supply, which is not a standard scale component.
    To operate the scale, order a selected type of the dedicated intrinsically safe power supply.
    Power supply types:
    • PM01.EX-1 - power supply  for operation in ATEX area. Used when it is required to connect the power supply to voltage source placed in hazardous area.
    • PM01.EX-2 - power supply  for operation outside ATEX area. Used when power supply connection to voltage source is carried out outside hazardous area.
    Complex software enables carrying out many tasks connected with mass measurement, e.g. parts counting, checkweighing and statistics.
    The scales feature user-friendly graphic interface, which can be customized using widgets. This and the large colour display of high resolution guarantee easy and clear transmission of data on current process.
    Colour bar graph significantly influences performance by signalling whether the weighing result is within declared thresholds or not.

    The frame for recessing (foundation) is part of the set – you will receive it with the ordered scale.
    CE
    CE
    Verification
    Verification
    2 years warranty
    2 years warranty
    Scales with ATEX certificate
    Scales with ATEX certificate
    Scales with IECEx certificate
    Scales with IECEx certificate

    Datasheet

    Maximum capacity [Max]
    600 kg
    Minimum load
    4 kg
    Readability [d]
    200 g
    Tare range
    -600 kg
    Display
    5” graphic colour
    Cable length
    3 m
    Protection class
    IP 68 construction, IP 66/68 indicator
    ATEX Certification
    II 2G Ex ib IIB T4 Gb
    IECEx Certification
    Ex ib IIB T4 Gb
    Communication interface
    2×RS232, RS485
    Power supply
    100 – 240 V AC 50/60 Hz
    Power consumption max.
    15 W
    Operating temperature
    -10 ÷ +40 °C
    Relative humidity
    10% ÷ 85% RH no condensation
    Indicator
    PUE HX5.EX-1
    Construction
    Stainless steel AISI304
    Weighing pan dimensions
    1000×1000 mm
    Packaging dimensions
    1200×1200×530 mm
    Net weight
    87,8 kg
    Gross weight
    68 kg
    HX5.EX-1.4.600.H8/9/Z 4 Load Cell Platform Scale, Pit Version
    This image is for reference only.
    close Exit
    This image is for reference only.
    Availability:
    In stock
    Estimated shipping date :
    10 working days
    Price:
    11385.60
     GBP
    with 20% VAT, shipping cost not included
    Choose a variant:
    HX5.EX-1.4.600.H8/9/Z 4 Load Cell Platform Scale, Pit Versionkeyboard_arrow_down
    • HX5.EX-1.4.150.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.150.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.1500.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.300.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.3000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.60.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 60kg | d: 20g
    • HX5.EX-1.4.600.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.6000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    • HX5.EX-1.4.6000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    Options:
  • Class III Verification (33.60 GBP)
  • Power Supply for EX Area (990.00 GBP)
  • Pcs.

    Add to basket
    We are near you.
    We have been manufacturing weighing devices since 1984.

    RADWAG UK Limited
    4 Maple Court, Davenport Street,
    Macclesfield SK10 1JE
    +44 01625 569569
    Code:
    WW-008-0039

    Buying from the producer is all about the pros


    ✓ Update as standard

    You always get the latest version of the device and software. We are constantly improving our products.

    ✓ This is priceless

    Technical support from the product developers. Who better to know the answers to your questions? Like our Facebooku profile – stay in touch with us.

    ✓ Smaller carbon footprint

    A solidly packaged shipment travels only one way – the one to you.

    ✓ Long life for your balance

    In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory.

    ✓ The important thing

    You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance.

    Overview


    The HX5.EX scale is a modern weighing instrument assuring fast and reliable measurement in hazardous areas classified as zones 1/21 and 2/22. To ensure precision and excellent measurement repeatability, high quality electronic components are used.
    The weighing platforms offered in wide range of dimensions and maximum capacities, this combined with excellent metrological parameters enables easy selection of an instrument that meets the most demanding requirements.
    Standard version of the scale is equipped with 2 serial, intrinsically safe RS232 communication interfaces, and with one RS485 interface. They facilitate cooperation with equipment intended for operation in hazardous areas. Possibility to add digital inputs/outputs extends the range of instruments compatible with the indicator by automatic elements compliant with ATEX directive.
    More demanding customers can use the IM01.EX module, installed in the safe area, which extends the available connectors by Ethernet, USB, 4-20mA/0- 10V analog outputs, Profibus DP and additional digital inputs/outputs. This enables cooperation with external devices: barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems.

    Scale operation requires use of a dedicated PM01.EX power supply, which is not a standard scale component.
    To operate the scale, order a selected type of the dedicated intrinsically safe power supply.
    Power supply types:
    • PM01.EX-1 - power supply  for operation in ATEX area. Used when it is required to connect the power supply to voltage source placed in hazardous area.
    • PM01.EX-2 - power supply  for operation outside ATEX area. Used when power supply connection to voltage source is carried out outside hazardous area.
    Complex software enables carrying out many tasks connected with mass measurement, e.g. parts counting, checkweighing and statistics.
    The scales feature user-friendly graphic interface, which can be customized using widgets. This and the large colour display of high resolution guarantee easy and clear transmission of data on current process.
    Colour bar graph significantly influences performance by signalling whether the weighing result is within declared thresholds or not.

    The frame for recessing (foundation) is part of the set – you will receive it with the ordered scale.
    CE
    CE
    Verification
    Verification
    2 years warranty
    2 years warranty
    Scales with ATEX certificate
    Scales with ATEX certificate
    Scales with IECEx certificate
    Scales with IECEx certificate

    Datasheet

    Maximum capacity [Max]
    600 kg
    Minimum load
    4 kg
    Readability [d]
    200 g
    Tare range
    -600 kg
    Display
    5” graphic colour
    Cable length
    3 m
    Protection class
    IP 68 construction, IP 66/68 indicator
    ATEX Certification
    II 2G Ex ib IIB T4 Gb
    IECEx Certification
    Ex ib IIB T4 Gb
    Communication interface
    2×RS232, RS485
    Power supply
    100 – 240 V AC 50/60 Hz
    Power consumption max.
    15 W
    Operating temperature
    -10 ÷ +40 °C
    Relative humidity
    10% ÷ 85% RH no condensation
    Indicator
    PUE HX5.EX-1
    Construction
    Stainless steel AISI304
    Weighing pan dimensions
    1200×1500 mm
    Packaging dimensions
    1700×1400×550 mm
    Net weight
    157,8 kg
    Gross weight
    158 kg
    HX5.EX-1.4.600.H8/Z 4 Load Cell Platform Scale, Pit Version
    This image is for reference only.
    HX5.EX-1.4.600.H8/Z 4 Load Cell Platform Scale, Pit VersionHX5.EX-1.4.600.H8/Z 4 Load Cell Platform Scale, Pit Version
    close Exit
    This image is for reference only.
    HX5.EX-1.4.600.H8/Z 4 Load Cell Platform Scale, Pit VersionHX5.EX-1.4.600.H8/Z 4 Load Cell Platform Scale, Pit Version
    Availability:
    In stock
    Estimated shipping date :
    10 working days
    Price:
    10712.40
     GBP
    with 20% VAT, shipping cost not included
    Choose a variant:
    HX5.EX-1.4.600.H8/Z 4 Load Cell Platform Scale, Pit Versionkeyboard_arrow_down
    • HX5.EX-1.4.150.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.150.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.1500.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.300.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.3000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.60.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 60kg | d: 20g
    • HX5.EX-1.4.600.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.6000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    • HX5.EX-1.4.6000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    Options:
  • Class III Verification (33.60 GBP)
  • Power Supply for EX Area (990.00 GBP)
  • Pcs.

    Add to basket
    We are near you.
    We have been manufacturing weighing devices since 1984.

    RADWAG UK Limited
    4 Maple Court, Davenport Street,
    Macclesfield SK10 1JE
    +44 01625 569569
    Code:
    WW-008-0035

    Buying from the producer is all about the pros


    ✓ Update as standard

    You always get the latest version of the device and software. We are constantly improving our products.

    ✓ This is priceless

    Technical support from the product developers. Who better to know the answers to your questions? Like our Facebooku profile – stay in touch with us.

    ✓ Smaller carbon footprint

    A solidly packaged shipment travels only one way – the one to you.

    ✓ Long life for your balance

    In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory.

    ✓ The important thing

    You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance.

    Overview


    The HX5.EX scale is a modern weighing instrument assuring fast and reliable measurement in hazardous areas classified as zones 1/21 and 2/22. To ensure precision and excellent measurement repeatability, high quality electronic components are used.
    The weighing platforms offered in wide range of dimensions and maximum capacities, this combined with excellent metrological parameters enables easy selection of an instrument that meets the most demanding requirements.
    Standard version of the scale is equipped with 2 serial, intrinsically safe RS232 communication interfaces, and with one RS485 interface. They facilitate cooperation with equipment intended for operation in hazardous areas. Possibility to add digital inputs/outputs extends the range of instruments compatible with the indicator by automatic elements compliant with ATEX directive.
    More demanding customers can use the IM01.EX module, installed in the safe area, which extends the available connectors by Ethernet, USB, 4-20mA/0- 10V analog outputs, Profibus DP and additional digital inputs/outputs. This enables cooperation with external devices: barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems.

    Scale operation requires use of a dedicated PM01.EX power supply, which is not a standard scale component.
    To operate the scale, order a selected type of the dedicated intrinsically safe power supply.
    Power supply types:
    • PM01.EX-1 - power supply  for operation in ATEX area. Used when it is required to connect the power supply to voltage source placed in hazardous area.
    • PM01.EX-2 - power supply  for operation outside ATEX area. Used when power supply connection to voltage source is carried out outside hazardous area.
    Complex software enables carrying out many tasks connected with mass measurement, e.g. parts counting, checkweighing and statistics.
    The scales feature user-friendly graphic interface, which can be customized using widgets. This and the large colour display of high resolution guarantee easy and clear transmission of data on current process.
    Colour bar graph significantly influences performance by signalling whether the weighing result is within declared thresholds or not.

    The frame for recessing (foundation) is part of the set – you will receive it with the ordered scale.
    CE
    CE
    Verification
    Verification
    2 years warranty
    2 years warranty
    Scales with ATEX certificate
    Scales with ATEX certificate
    Scales with IECEx certificate
    Scales with IECEx certificate

    Datasheet

    Maximum capacity [Max]
    600 kg
    Minimum load
    4 kg
    Readability [d]
    200 g
    Tare range
    -600 kg
    Display
    5” graphic colour
    Cable length
    3 m
    Protection class
    IP 68 construction, IP 66/68 indicator
    ATEX Certification
    II 2G Ex ib IIB T4 Gb
    IECEx Certification
    Ex ib IIB T4 Gb
    Communication interface
    2×RS232, RS485
    Power supply
    100 – 240 V AC 50/60 Hz
    Power consumption max.
    15 W
    Operating temperature
    -10 ÷ +40 °C
    Relative humidity
    10% ÷ 85% RH no condensation
    Indicator
    PUE HX5.EX-1
    Construction
    Stainless steel AISI304
    Weighing pan dimensions
    1200×1200 mm
    Packaging dimensions
    1400×1400×550 mm
    Net weight
    127,8 kg
    Gross weight
    128 kg
    HX5.EX-1.4.600.H9/Z 4 Load Cell Platform Scale, Pit Version
    This image is for reference only.
    close Exit
    This image is for reference only.
    Availability:
    In stock
    Estimated shipping date :
    10 working days
    Price:
    12486.00
     GBP
    with 20% VAT, shipping cost not included
    Choose a variant:
    HX5.EX-1.4.600.H9/Z 4 Load Cell Platform Scale, Pit Versionkeyboard_arrow_down
    • HX5.EX-1.4.150.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.150.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.1500.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.300.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.3000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.60.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 60kg | d: 20g
    • HX5.EX-1.4.600.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.6000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    • HX5.EX-1.4.6000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    Options:
  • Class III Verification (33.60 GBP)
  • Power Supply for EX Area (990.00 GBP)
  • Pcs.

    Add to basket
    We are near you.
    We have been manufacturing weighing devices since 1984.

    RADWAG UK Limited
    4 Maple Court, Davenport Street,
    Macclesfield SK10 1JE
    +44 01625 569569
    Code:
    WW-008-0043

    Buying from the producer is all about the pros


    ✓ Update as standard

    You always get the latest version of the device and software. We are constantly improving our products.

    ✓ This is priceless

    Technical support from the product developers. Who better to know the answers to your questions? Like our Facebooku profile – stay in touch with us.

    ✓ Smaller carbon footprint

    A solidly packaged shipment travels only one way – the one to you.

    ✓ Long life for your balance

    In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory.

    ✓ The important thing

    You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance.

    Overview


    The HX5.EX scale is a modern weighing instrument assuring fast and reliable measurement in hazardous areas classified as zones 1/21 and 2/22. To ensure precision and excellent measurement repeatability, high quality electronic components are used.
    The weighing platforms offered in wide range of dimensions and maximum capacities, this combined with excellent metrological parameters enables easy selection of an instrument that meets the most demanding requirements.
    Standard version of the scale is equipped with 2 serial, intrinsically safe RS232 communication interfaces, and with one RS485 interface. They facilitate cooperation with equipment intended for operation in hazardous areas. Possibility to add digital inputs/outputs extends the range of instruments compatible with the indicator by automatic elements compliant with ATEX directive.
    More demanding customers can use the IM01.EX module, installed in the safe area, which extends the available connectors by Ethernet, USB, 4-20mA/0- 10V analog outputs, Profibus DP and additional digital inputs/outputs. This enables cooperation with external devices: barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems.

    Scale operation requires use of a dedicated PM01.EX power supply, which is not a standard scale component.
    To operate the scale, order a selected type of the dedicated intrinsically safe power supply.
    Power supply types:
    • PM01.EX-1 - power supply  for operation in ATEX area. Used when it is required to connect the power supply to voltage source placed in hazardous area.
    • PM01.EX-2 - power supply  for operation outside ATEX area. Used when power supply connection to voltage source is carried out outside hazardous area.
    Complex software enables carrying out many tasks connected with mass measurement, e.g. parts counting, checkweighing and statistics.
    The scales feature user-friendly graphic interface, which can be customized using widgets. This and the large colour display of high resolution guarantee easy and clear transmission of data on current process.
    Colour bar graph significantly influences performance by signalling whether the weighing result is within declared thresholds or not.

    The frame for recessing (foundation) is part of the set – you will receive it with the ordered scale.
    CE
    CE
    Verification
    Verification
    2 years warranty
    2 years warranty
    Scales with ATEX certificate
    Scales with ATEX certificate
    Scales with IECEx certificate
    Scales with IECEx certificate

    Datasheet

    Maximum capacity [Max]
    600 kg
    Minimum load
    4 kg
    Readability [d]
    200 g
    Tare range
    -600 kg
    Display
    5” graphic colour
    Cable length
    3 m
    Protection class
    IP 68 construction, IP 66/68 indicator
    ATEX Certification
    II 2G Ex ib IIB T4 Gb
    IECEx Certification
    Ex ib IIB T4 Gb
    Communication interface
    2×RS232, RS485
    Power supply
    100 – 240 V AC 50/60 Hz
    Power consumption max.
    15 W
    Operating temperature
    -10 ÷ +40 °C
    Relative humidity
    10% ÷ 85% RH no condensation
    Indicator
    PUE HX5.EX-1
    Construction
    Stainless steel AISI304
    Weighing pan dimensions
    1500×1500 mm
    Net weight
    192,8 kg
    Gross weight
    193 kg
    HX5.EX-1.4.6000.H10/Z 4 Load Cell Platform Scale, Pit Version
    This image is for reference only.
    close Exit
    This image is for reference only.
    Availability:
    In stock
    Estimated shipping date :
    10 working days
    Price:
    17142.00
     GBP
    with 20% VAT, shipping cost not included
    Choose a variant:
    HX5.EX-1.4.6000.H10/Z 4 Load Cell Platform Scale, Pit Versionkeyboard_arrow_down
    • HX5.EX-1.4.150.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.150.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.1500.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.300.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.3000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.60.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 60kg | d: 20g
    • HX5.EX-1.4.600.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.6000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    • HX5.EX-1.4.6000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    Options:
  • Class III Verification (33.60 GBP)
  • Power Supply for EX Area (990.00 GBP)
  • Pcs.

    Add to basket
    We are near you.
    We have been manufacturing weighing devices since 1984.

    RADWAG UK Limited
    4 Maple Court, Davenport Street,
    Macclesfield SK10 1JE
    +44 01625 569569
    Code:
    WW-008-0050

    Buying from the producer is all about the pros


    ✓ Update as standard

    You always get the latest version of the device and software. We are constantly improving our products.

    ✓ This is priceless

    Technical support from the product developers. Who better to know the answers to your questions? Like our Facebooku profile – stay in touch with us.

    ✓ Smaller carbon footprint

    A solidly packaged shipment travels only one way – the one to you.

    ✓ Long life for your balance

    In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory.

    ✓ The important thing

    You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance.

    Overview


    The HX5.EX scale is a modern weighing instrument assuring fast and reliable measurement in hazardous areas classified as zones 1/21 and 2/22. To ensure precision and excellent measurement repeatability, high quality electronic components are used.
    The weighing platforms offered in wide range of dimensions and maximum capacities, this combined with excellent metrological parameters enables easy selection of an instrument that meets the most demanding requirements.
    Standard version of the scale is equipped with 2 serial, intrinsically safe RS232 communication interfaces, and with one RS485 interface. They facilitate cooperation with equipment intended for operation in hazardous areas. Possibility to add digital inputs/outputs extends the range of instruments compatible with the indicator by automatic elements compliant with ATEX directive.
    More demanding customers can use the IM01.EX module, installed in the safe area, which extends the available connectors by Ethernet, USB, 4-20mA/0- 10V analog outputs, Profibus DP and additional digital inputs/outputs. This enables cooperation with external devices: barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems.

    Scale operation requires use of a dedicated PM01.EX power supply, which is not a standard scale component.
    To operate the scale, order a selected type of the dedicated intrinsically safe power supply.
    Power supply types:
    • PM01.EX-1 - power supply  for operation in ATEX area. Used when it is required to connect the power supply to voltage source placed in hazardous area.
    • PM01.EX-2 - power supply  for operation outside ATEX area. Used when power supply connection to voltage source is carried out outside hazardous area.
    Complex software enables carrying out many tasks connected with mass measurement, e.g. parts counting, checkweighing and statistics.
    The scales feature user-friendly graphic interface, which can be customized using widgets. This and the large colour display of high resolution guarantee easy and clear transmission of data on current process.
    Colour bar graph significantly influences performance by signalling whether the weighing result is within declared thresholds or not.

    The frame for recessing (foundation) is part of the set – you will receive it with the ordered scale.
    CE
    CE
    Verification
    Verification
    2 years warranty
    2 years warranty
    Scales with ATEX certificate
    Scales with ATEX certificate
    Scales with IECEx certificate
    Scales with IECEx certificate

    Datasheet

    Maximum capacity [Max]
    6000 kg
    Minimum load
    40 kg
    Readability [d]
    2000 g
    Tare range
    -6000 kg
    Display
    5” graphic colour
    Cable length
    3 m
    Protection class
    IP 68 construction, IP 66/68 indicator
    ATEX Certification
    II 2G Ex ib IIB T4 Gb
    IECEx Certification
    Ex ib IIB T4 Gb
    Communication interface
    2×RS232, RS485
    Power supply
    100 – 240 V AC 50/60 Hz
    Power consumption max.
    15 W
    Operating temperature
    -10 ÷ +40 °C
    Relative humidity
    10% ÷ 85% RH no condensation
    Indicator
    PUE HX5.EX-1
    Construction
    Stainless steel AISI304
    Weighing pan dimensions
    1500×2000 mm
    Net weight
    287,8 kg
    Gross weight
    288 kg
    HX5.EX-1.4.6000.H9/Z 4 Load Cell Platform Scale, Pit Version
    This image is for reference only.
    close Exit
    This image is for reference only.
    Availability:
    In stock
    Estimated shipping date :
    10 working days
    Price:
    16497.60
     GBP
    with 20% VAT, shipping cost not included
    Choose a variant:
    HX5.EX-1.4.6000.H9/Z 4 Load Cell Platform Scale, Pit Versionkeyboard_arrow_down
    • HX5.EX-1.4.150.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.150.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 150kg | d: 50g
    • HX5.EX-1.4.1500.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.1500.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 1500kg | d: 500g
    • HX5.EX-1.4.300.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.300.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 300kg | d: 100g
    • HX5.EX-1.4.3000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.3000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 3000kg | d: 1000g
    • HX5.EX-1.4.60.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 60kg | d: 20g
    • HX5.EX-1.4.600.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H6/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H7/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H8/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.600.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 600kg | d: 200g
    • HX5.EX-1.4.6000.H10/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    • HX5.EX-1.4.6000.H9/Z 4 Load Cell Platform Scale, Pit Version
      Max: 6000kg | d: 2000g
    Options:
  • Class III Verification (33.60 GBP)
  • Power Supply for EX Area (990.00 GBP)
  • Pcs.

    Add to basket
    We are near you.
    We have been manufacturing weighing devices since 1984.

    RADWAG UK Limited
    4 Maple Court, Davenport Street,
    Macclesfield SK10 1JE
    +44 01625 569569
    Code:
    WW-008-0046

    Buying from the producer is all about the pros


    ✓ Update as standard

    You always get the latest version of the device and software. We are constantly improving our products.

    ✓ This is priceless

    Technical support from the product developers. Who better to know the answers to your questions? Like our Facebooku profile – stay in touch with us.

    ✓ Smaller carbon footprint

    A solidly packaged shipment travels only one way – the one to you.

    ✓ Long life for your balance

    In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory.

    ✓ The important thing

    You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance.

    Overview


    The HX5.EX scale is a modern weighing instrument assuring fast and reliable measurement in hazardous areas classified as zones 1/21 and 2/22. To ensure precision and excellent measurement repeatability, high quality electronic components are used.
    The weighing platforms offered in wide range of dimensions and maximum capacities, this combined with excellent metrological parameters enables easy selection of an instrument that meets the most demanding requirements.
    Standard version of the scale is equipped with 2 serial, intrinsically safe RS232 communication interfaces, and with one RS485 interface. They facilitate cooperation with equipment intended for operation in hazardous areas. Possibility to add digital inputs/outputs extends the range of instruments compatible with the indicator by automatic elements compliant with ATEX directive.
    More demanding customers can use the IM01.EX module, installed in the safe area, which extends the available connectors by Ethernet, USB, 4-20mA/0- 10V analog outputs, Profibus DP and additional digital inputs/outputs. This enables cooperation with external devices: barcode scanners, printers, external displays, control buttons, light signalling towers, other controlling/signalling devices, systems for automatic process control and superior IT systems.

    Scale operation requires use of a dedicated PM01.EX power supply, which is not a standard scale component.
    To operate the scale, order a selected type of the dedicated intrinsically safe power supply.
    Power supply types:
    • PM01.EX-1 - power supply  for operation in ATEX area. Used when it is required to connect the power supply to voltage source placed in hazardous area.
    • PM01.EX-2 - power supply  for operation outside ATEX area. Used when power supply connection to voltage source is carried out outside hazardous area.
    Complex software enables carrying out many tasks connected with mass measurement, e.g. parts counting, checkweighing and statistics.
    The scales feature user-friendly graphic interface, which can be customized using widgets. This and the large colour display of high resolution guarantee easy and clear transmission of data on current process.
    Colour bar graph significantly influences performance by signalling whether the weighing result is within declared thresholds or not.

    The frame for recessing (foundation) is part of the set – you will receive it with the ordered scale.
    CE
    CE
    Verification
    Verification
    2 years warranty
    2 years warranty
    Scales with ATEX certificate
    Scales with ATEX certificate
    Scales with IECEx certificate
    Scales with IECEx certificate

    Datasheet

    Maximum capacity [Max]
    6000 kg
    Minimum load
    40 kg
    Readability [d]
    2000 g
    Tare range
    -6000 kg
    Display
    5” graphic colour
    Cable length
    3 m
    Protection class
    IP 68 construction, IP 66/68 indicator
    ATEX Certification
    II 2G Ex ib IIB T4 Gb
    IECEx Certification
    Ex ib IIB T4 Gb
    Communication interface
    2×RS232, RS485
    Power supply
    100 – 240 V AC 50/60 Hz
    Power consumption max.
    15 W
    Operating temperature
    -10 ÷ +40 °C
    Relative humidity
    10% ÷ 85% RH no condensation
    Indicator
    PUE HX5.EX-1
    Construction
    Stainless steel AISI304
    Weighing pan dimensions
    1500×1500 mm
