HRP Platforms High Capacity

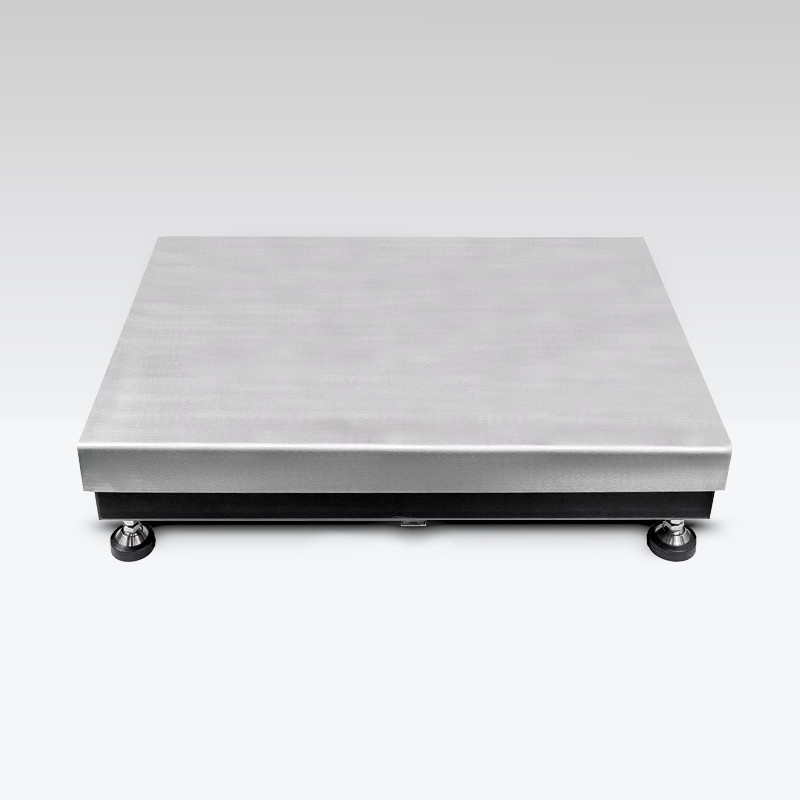

High Resolution Platforms PL.150.HRP
This image is for reference only.
High Resolution Platforms PL.150.HRP
close Exit
This image is for reference only.
High Resolution Platforms PL.150.HRP
Availability:
In stock
Estimated shipping date :
15 working days

Need it urgently? Call us to check real-time stock availability: +44 (0)1625 569569

Price:
7166.40
 GBP
with 20% VAT, shipping cost not included
Choose a variant:
High Resolution Platforms PL.150.HRPkeyboard_arrow_down
  • High Resolution Platforms PL.1100.HRP
    Max: 1100kg | d: 10g
  • High Resolution Platforms PL.120.HRP
    Max: 120kg | d: 1g
  • High Resolution Platforms PL.150.1.HRP
    Max: 150kg | d: 1g
  • High Resolution Platforms PL.16.HRP
    Max: 16kg | d: 0,1g
  • High Resolution Platforms PL.300.1.HRP
    Max: 300kg | d: 1g
  • High Resolution Platforms PL.300.HRP
    Max: 300kg | d: 1g
  • High Resolution Platforms PL.32.HRP
    Max: 32kg | d: 0,1g
  • High Resolution Platforms PL.600.HRP
    Max: 600kg | d: 5g
  • High Resolution Platforms PL.62.HRP
    Max: 62kg | d: 0,1g
  • High Resolution Platforms PL.150.HRP
    Max: 150kg | d: 1g
  • High Resolution Platforms PL.120.2.HRP
    Max: 120kg | d: 0,5g
  • High Resolution Platforms PL.62.2.HRP
    Max: 62kg | d: 0,1g
  • High Resolution Platforms PL.150.2.HRP
    Max: 150kg | d: 1g
  • High Resolution Platforms PL.10.HRP
    Max: 10kg | d: 0,02g
  • 4IN/4OUT Module (493.20 GBP)

    • Pcs.

    Add to basket
    We are near you.
    We have been manufacturing weighing devices since 1984.

    RADWAG UK Limited
    16 Macon Court, Herald Drive, Crewe, CW1 6EA
    +44 01625 569569

    Delivery only on the territory of United Kingdom
    Optional paid installation and training service available - please contact us for details and pricing.
    Datasheet - High Resolution Platforms PL.150.HRPDatasheet - High Resolution Platforms PL.150.HRP
    Code:
    WX-009-0331
    CE
    CE
    2 years warranty
    2 years warranty

    Datasheet

    Maximum capacity [Max]
    150 kg
    Preload range
    30 kg
    Readability [d]
    1 g
    Tare range
    -150 kg
    Repeatability
    0,6 g
    Linearity
    ±3 g
    Adjustment
    internal (automatic)
    Protection class
    IP 67
    Communication interface
    RS232, RS485, Ethernet
    Power supply
    100 – 240 V AC 50/60 Hz
    Operating temperature
    +10 – +40 °C
    Relative humidity
    15% – 80%
    Construction
    mild steel St3S
    Weighing pan material
    Stainless steel AISI304
    Weighing pan dimensions
    500×400 mm
    Packaging dimensions W x D x H
    610×710×275 mm
    Net weight
    37 kg
    Gross weight
    47 kg

    Overview


    High Capacity HRP Platform


    Wherever high readability and precision are important. Wherever good repeatability in harsh industrial conditions matters.
    High Capacity HRP Platforms are the ideal solution for any type of industry.





    Repeatability that cannot be repeated by others

    High Capacity HRP Platforms have a built-in internal adjustment system. Automatic internal adjustment guarantees the best quality of work and repeatability of results. You save time and avoid the inconvenience of manual adjustment.









    Unbreakable

    High Capacity HRP Platforms feature a modern electromagnetic mechanism design in a sealed steel housing and overload protection. The use of stainless steel for the pan guarantees you a long life of the platform. Fearless of its contact with moist objects or accidental splashing. High Capacity HRP Platforms are distinguished by a high degree of protection IP 67.







    For an additional charge we will make HRP platforms in Ex version, but in order for the device to work in explosive areas, you need to supply the PUE HX5.EX terminal.









    Use the potential

    High Capacity HRP Platforms work with one of two weighing terminals:
    PUE 7.1 or PUE HY10. The terminals’ software enables you to archive your work results, ensures data safety, and allows the platforms to work with powerbanks from our offer. In turn, you will select appropriate antivibration tables for the platforms, and thus increase the readability of your measurements.
