Name: H315.4.300.H8/9/Z Stainless Steel Platform Scale, pit version
Brand: RADWAG
SKU: WP-233-0012
Price: 12150.00 GBP
Availability: InStock

This image is for reference only.

close Exit

This image is for reference only.

Availability:

In stock

Estimated shipping date :

15 working days

Need it urgently? Call us to check real-time stock availability: +44 (0)1625 569569

Price:

12150.00

GBP

with 20% VAT, shipping cost not included

Choose a variant:

H315.4.300.H8/9/Z Stainless Steel Platform Scale, pit versionkeyboard_arrow_down

H315.4.150.H6/Z Stainless Steel Platform Scale, pit version
Max: 150kg | d: 50g
H315.4.150.H7/Z Stainless Steel Platform Scale, pit version
Max: 150kg | d: 50g
H315.4.150/300.H6/Z Stainless Steel Platform Scale, Pit Version
Max: 150/300kg | d: 50/100g
H315.4.1500.H10/Z Stainless Steel Platform Scale, pit version
Max: 1500kg | d: 500g
H315.4.1500.H7/Z Stainless Steel Platform Scale, Pit Version
Max: 1500kg | d: 500g
H315.4.1500.H8/9/Z Stainless Steel Platform Scale, Pit Version
Max: 1500kg | d: 500g
H315.4.1500.H8/Z Stainless Steel Platform Scale, Pit Version
Max: 1500kg | d: 500g
H315.4.1500.H9/Z Stainless Steel Platform Scale, Pit Version
Max: 1500kg | d: 500g
H315.4.1500/3000.H10/Z Stainless Steel Platform Scale, Pit Version
Max: 1500/3000kg | d: 0,5/1kg
H315.4.1500/3000.H8/9/Z Stainless Steel Platform Scale, Pit Version
Max: 1500/3000kg | d: 0,5/1kg
H315.4.1500/3000.H8/Z Stainless Steel Platform Scale, Pit Version
Max: 1500/3000kg | d: 0,5/1kg
H315.4.1500/3000.H9/Z Stainless Steel Platform Scale, Pit Version
Max: 1500/3000kg | d: 0,5/1kg
H315.4.300.H6/Z Stainless Steel Platform Scale, Pit Version
Max: 300kg | d: 100g
H315.4.300.H7/Z Stainless Steel Platform Scale, Pit Version
Max: 300kg | d: 100g
H315.4.300.H8/9/Z Stainless Steel Platform Scale, pit version
Max: 300kg | d: 100g
H315.4.300.H8/Z Stainless Steel Platform Scale, pit version
Max: 300kg | d: 100g
H315.4.300.H9/Z Stainless Steel Platform Scale, pit version
Max: 300kg | d: 100g
H315.4.300/600.H6/Z Stainless Steel Platform Scale, Pit Version
Max: 300/600kg | d: 100/200g
H315.4.300/600.H7/Z Stainless Steel Platform Scale, Pit Version
Max: 300/600kg | d: 100/200g
H315.4.3000.H10/Z Stainless Steel Platform Scale, Pit Version
Max: 3000kg | d: 1kg
H315.4.3000.H8/9/Z Stainless Steel Platform Scale, Pit Version
Max: 3000kg | d: 1kg
H315.4.3000.H8/Z Stainless Steel Platform Scale, Pit Version
Max: 3000kg | d: 1kg
H315.4.3000.H9/Z Stainless Steel Platform Scale, Pit Version
Max: 3000kg | d: 1kg
H315.4.3000/6000.H10/Z Stainless Steel Platform Scale, Pit Version
Max: 3000/6000kg | d: 1/2kg
H315.4.3000/6000.H9/Z Stainless Steel Platform Scale, pit version
Max: 3000/6000kg | d: 1/2kg
H315.4.600.H10/Z Stainless Steel Platform Scale, pit version
Max: 600kg | d: 200g
H315.4.600.H6/Z Stainless Steel Platform Scale, Pit Version
Max: 600kg | d: 200g
H315.4.600.H7/Z Stainless Steel Platform Scale, Pit Version
Max: 600kg | d: 200g
H315.4.600.H8/9/Z Stainless Steel Platform Scale, pit version
Max: 600kg | d: 200g
H315.4.600.H8/Z Stainless Steel Platform Scale, pit version
Max: 600kg | d: 200g
H315.4.600.H9/Z Stainless Steel Platform Scale, pit version
Max: 600kg | d: 200g
H315.4.600/1500.H7/Z Stainless Steel Platform Scale, Pit Version
Max: 600/1500kg | d: 200/500g
H315.4.600/1500.H8/9/Z Stainless Steel Platform Scale, Pit Version
Max: 600/1500kg | d: 200/500g
H315.4.600/1500.H8/Z Stainless Steel Platform Scale, Pit Version
Max: 600/1500kg | d: 200/500g
H315.4.600/1500.H9/Z Stainless Steel Platform Scale, Pit Version
Max: 600/1500kg | d: 200/500g
H315.4.6000.H10/Z Stainless Steel Platform Scale, Pit Version
Max: 6000kg | d: 2kg
H315.4.6000.H9/Z Stainless Steel Platform Scale, pit version
Max: 6000kg | d: 2kg

Extra charge for Internal battery (91.20 GBP)

Choose one of the modules: RS232 Module (61.20 GBP)

RS485 Module (272.40 GBP)

Ethernet Module (222.00 GBP)

4IN/4OUT Module (164.40 GBP)

Class III Verification (43.20 GBP)

Extra charge for dual range 4 Load Cell Platform Scales (642.00 GBP)

AN 4-20mA Analogue Output Module (132.00 GBP)

Calibration new precision balances / industrial scales 121kg-300kg (285.60 GBP)

Pcs.Pcs.

Add to basket

We are near you.
We have been manufacturing weighing devices since 1984.

RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569

Delivery only on the territory of United Kingdom

Optional paid installation and training service available - please contact us for details and pricing.

Datasheet - H315.4.300.H8/9/Z Stainless Steel Platform Scale, pit version

Code:

WP-233-0012

2 years warranty

Verification

Datasheet

Maximum capacity [Max]

300 kg

Minimum load

2 kg

Readability [d]

100 g

Verification unit [e]

100 g

Tare range

-300 kg

Max readability for non-verified scale

50 g

OIML Class

III

Display

4,3” LCD (backlit)

Cable length

3 m

Protection class

IP 66 / 69 construction, IP 66 / 67 / 69 terminal

Communication interface

RS232, USB

Optional interfaces

RS232 or RS485 or 4IN/4OUT or Ethernet or analog output 4-20 mA

Power supply

100 – 240 V AC 50/60 Hz

Optional power supply

internal rechargeable battery

Operation time on batteries

max 7h

Operating temperature

-10 – +40 °C

Relative humidity

10% – 85% RH no condensation

Weighing pan dimensions

1200×1500 mm

Weighing platform height

111 mm

Packaging dimensions W x D x H

1700×1400×550 mm

Scale mass with indicator and frame

195 kg

Overview

H315.4.300.H8/9/Z Stainless Steel Platform Scale, pit version

Measurement with application of 4 load cells is a guarantee of precise mass reading, regardless of load positioning on weighing platform.

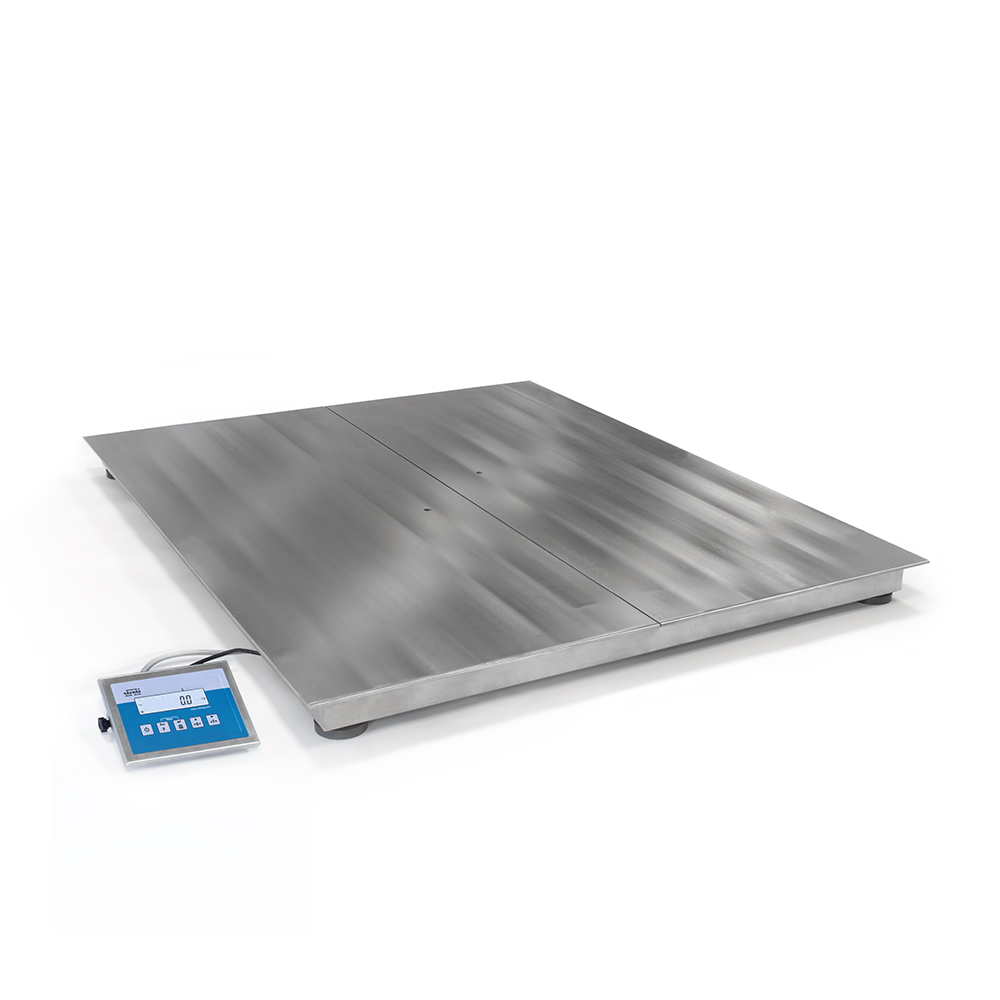

H315.4 H/Z

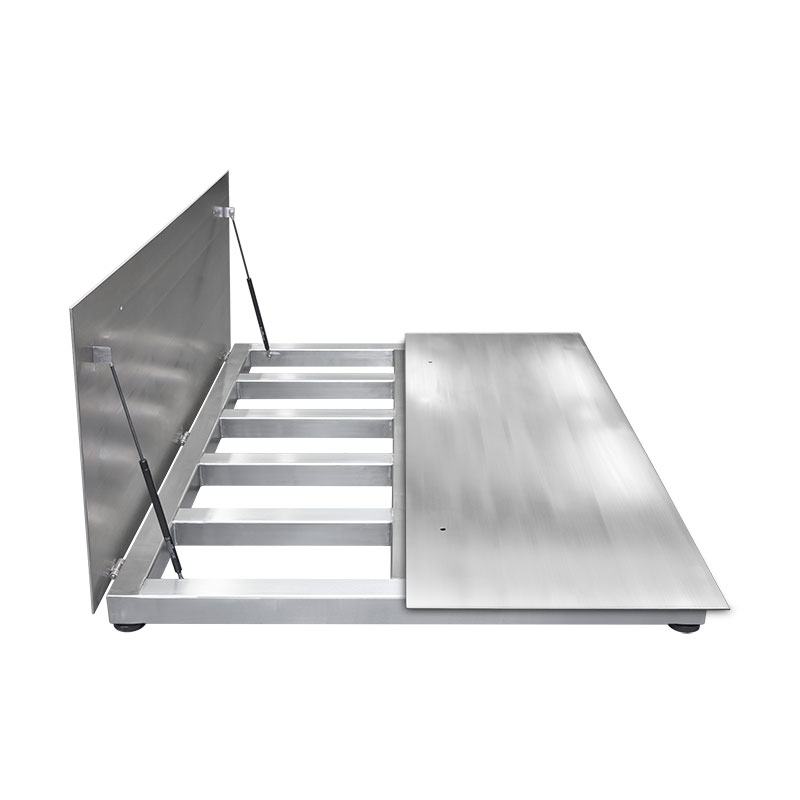

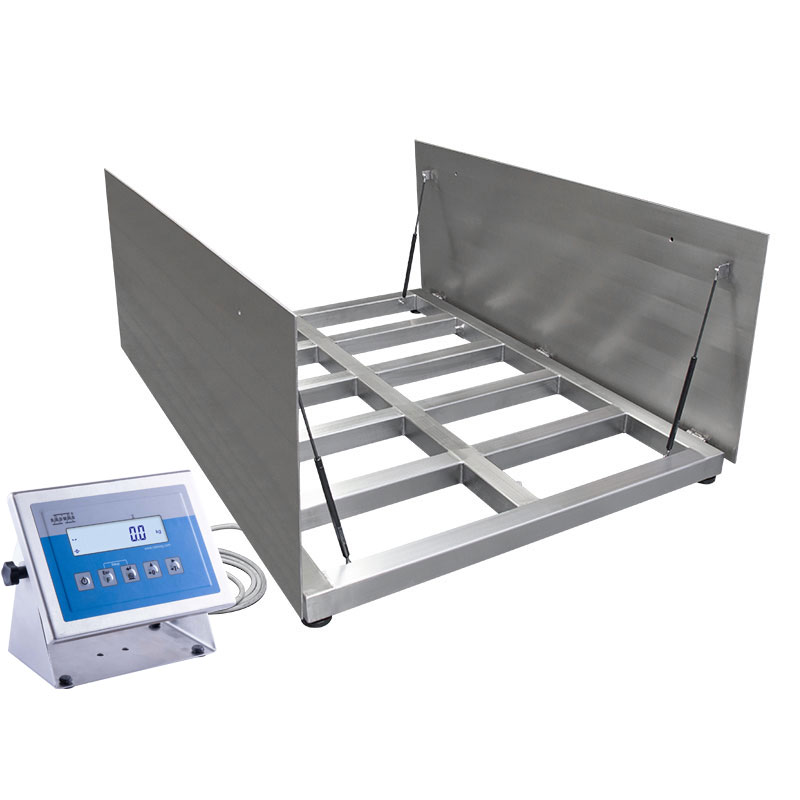

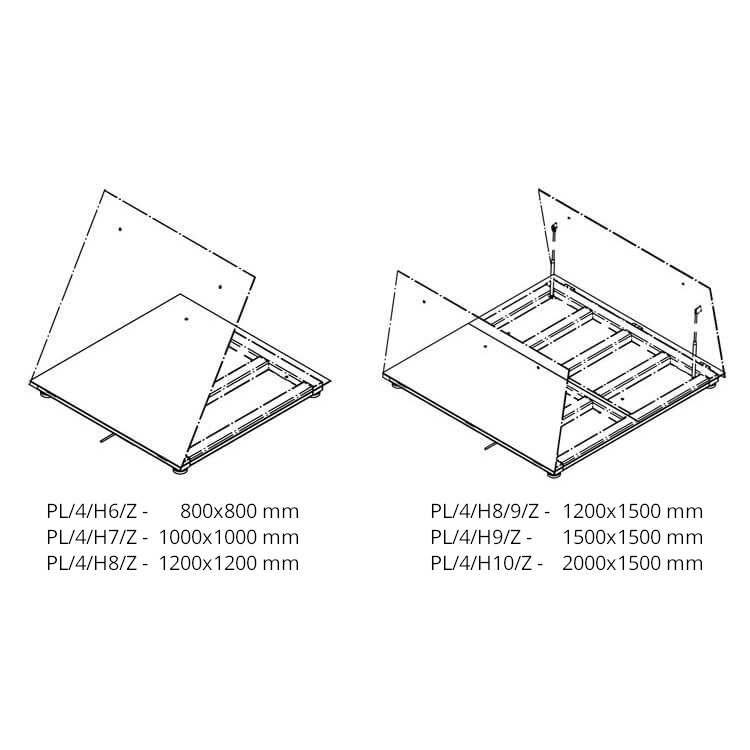

The platform scales H315.4 H/Z series is fully made of stainless steel profiles with stainless steel weighing platform. The scale features 4 load cells, and it is prepared for mounting as a pit version. The device comes standard with opening weighing platform enabling easy cleaning the area beneath the platform.

The H315.4 H/Z series features a stainless steel terminal PUE H315 series with backlit LCD display and function buttons. The terminal is installed on a long cable for easy mounting it on a wall.
