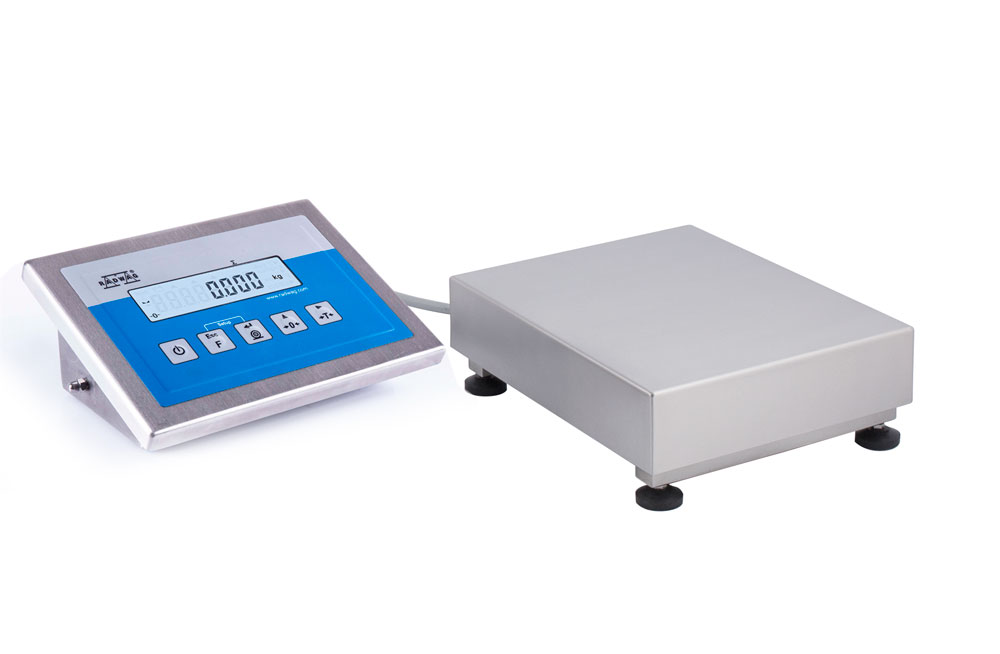

Name: H315.3.HR2.K Waterproof Scale With Stainless Steel Load Cell
Brand: RADWAG
SKU: WP-124-0060
Price: 2384.40 GBP
Availability: InStock

This image is for reference only.

close Exit

This image is for reference only.

Availability:

In stock

Estimated shipping date :

15 working days

Need it urgently? Call us to check real-time stock availability: +44 (0)1625 569569

Price:

2384.40

GBP

with 20% VAT, shipping cost not included

Choose a variant:

H315.3.HR2.K Waterproof Scale With Stainless Steel Load Cellkeyboard_arrow_down

H315.3.HR2.M Waterproof Scale With Stainless Steel Load Cell
Max: 3kg | d: 1g
H315.6.HR2.M Waterproof Scale With Stainless Steel Load Cell
Max: 6kg | d: 2g
H315.15.HR2.M Waterproof Scale With Stainless Steel Load Cell
Max: 15kg | d: 5g
H315.15.HR3.M Waterproof Scale With Stainless Steel Load Cell
Max: 15kg | d: 5g
H315.30.HR3.M Waterproof Scale With Stainless Steel Load Cell
Max: 30kg | d: 10g
H315.60.HR3.M Waterproof Scale With Stainless Steel Load Cell
Max: 60kg | d: 20g
H315.150.HR3.M Waterproof Scale With Stainless Steel Load Cell
Max: 150kg | d: 50g
H315.60.HR4.M Waterproof Scale With Stainless Steel Load Cell
Max: 60kg | d: 20g
H315.150.HR4.M Waterproof Scale With Stainless Steel Load Cell
Max: 150kg | d: 50g
H315.60.HR5.M Waterproof Scale With Stainless Steel Load Cell
Max: 60kg | d: 20g
H315.150.HR5.M Waterproof Scale With Stainless Steel Load Cell
Max: 150kg | d: 50g
H315.3.HR2.K Waterproof Scale With Stainless Steel Load Cell
Max: 3kg | d: 1g
H315.6.HR2.K Waterproof Scale With Stainless Steel Load Cell
Max: 6kg | d: 2g
H315.15.HR2.K Waterproof Scale With Stainless Steel Load Cell
Max: 15kg | d: 5g
H315.15.HR3.K Waterproof Scale With Stainless Steel Load Cell
Max: 15kg | d: 5g
H315.30.HR3.K Waterproof Scale With Stainless Steel Load Cell
Max: 30kg | d: 10g
H315.60.HR3.K Waterproof Scale With Stainless Steel Load Cell
Max: 60kg | d: 20g
H315.150.HR3.K Waterproof Scale With Stainless Steel Load Cell
Max: 150kg | d: 50g
H315.60.HR4.K Waterproof Scale With Stainless Steel Load Cell
Max: 60kg | d: 20g
H315.150.HR4.K Waterproof Scale With Stainless Steel Load Cell
Max: 150kg | d: 50g
H315.60.HR5.K Waterproof Scale With Stainless Steel Load Cell
Max: 60kg | d: 20g
H315.150.HR5.K Waterproof Scale With Stainless Steel Load Cell
Max: 150kg | d: 50g
H315.60.HR3/5.M Waterproof Scale With Stainless Steel Load Cell
Max: 60kg | d: 20g
H315.150.HR3/5.M Waterproof Scale With Stainless Steel Load Cell
Max: 150kg | d: 50g
H315.60.HR3/5.K Waterproof Scale With Stainless Steel Load Cell
Max: 60kg | d: 20g
H315.150.HR3/5.K Waterproof Scale With Stainless Steel Load Cell
Max: 150kg | d: 50g
H315.30.HR2.M Waterproof Scale With Stainless Steel Load Cell
Max: 30kg | d: 10g
H315.30.HR2.K Waterproof Scale With Stainless Steel Load Cell
Max: 30kg | d: 10g
H315.6.HR3.M Waterproof Scale With Stainless Steel Load Cell
Max: 6kg | d: 2g
H315.6.HR3.K Waterproof Scale With Stainless Steel Load Cell
Max: 6kg | d: 2g
H315.30.HR4.M Waterproof Scale With Stainless Steel Load Cell
Max: 30kg | d: 10g
H315.30.HR4.K Waterproof Scale With Stainless Steel Load Cell
Max: 30kg | d: 10g
H315.15.HR4.M Waterproof Scale With Stainless Steel Load Cell
Max: 15kg | d: 5g
H315.15.HR4.K Waterproof Scale With Stainless Steel Load Cell
Max: 15kg | d: 5g
H315.30.HR3/5.M Waterproof Scale With Stainless Steel Load Cell
Max: 30kg | d: 10g
H315.30.HR3/5.K Waterproof Scale With Stainless Steel Load Cell
Max: 30kg | d: 10g
H315.15.HR3/5.M Waterproof Scale With Stainless Steel Load Cell
Max: 15kg | d: 5g
H315.15.HR3/5.K Waterproof Scale With Stainless Steel Load Cell
Max: 15kg | d: 5g
H315.30.HR5.M Waterproof Scale With Stainless Steel Load Cell
Max: 30kg | d: 10g
H315.30.HR5.K Waterproof Scale With Stainless Steel Load Cell
Max: 30kg | d: 10g
H315.15.HR5.M Waterproof Scale With Stainless Steel Load Cell
Max: 15kg | d: 5g
H315.15.HR5.K Waterproof Scale With Stainless Steel Load Cell
Max: 15kg | d: 5g
H315.15/30.HR2.M Waterproof Scale With Stainless Steel Load Cell
Max: 15/30kg | d: 5/10g
H315.15/30.HR2.K Waterproof Scale With Stainless Steel Load Cell
Max: 15/30kg | d: 5/10g
H315.15/30.HR3.M Waterproof Scale With Stainless Steel Load Cell
Max: 15/30kg | d: 5/10g
H315.15/30.HR3.K Waterproof Scale With Stainless Steel Load Cell
Max: 15/30kg | d: 5/10g
H315.3/6.HR2.M Waterproof Scale With Stainless Steel Load Cell
Max: 3/6kg | d: 1/2g
H315.30/60.HR3.M Waterproof Scale With Stainless Steel Load Cell
Max: 30/60kg | d: 10/20g
H315.30/60.HR3.K Waterproof Scale With Stainless Steel Load Cell
Max: 30/60kg | d: 10/20g
H315.30/60.HR3/5.M Waterproof Scale With Stainless Steel Load Cell
Max: 30/60kg | d: 10/20g
H315.30/60.HR3/5.K Waterproof Scale With Stainless Steel Load Cell
Max: 30/60kg | d: 10/20g
H315.30/60.HR4.M Waterproof Scale With Stainless Steel Load Cell
Max: 30/60kg | d: 10/20g
H315.30/60.HR4.K Waterproof Scale With Stainless Steel Load Cell
Max: 30/60kg | d: 10/20g
H315.30/60.HR5.M Waterproof Scale With Stainless Steel Load Cell
Max: 30/60kg | d: 10/20g
H315.30/60.HR5.K Waterproof Scale With Stainless Steel Load Cell
Max: 30/60kg | d: 10/20g
H315.6/15.HR2.M Waterproof Scale With Stainless Steel Load Cell
Max: 6/15kg | d: 2/5g
H315.6/15.HR2.K Waterproof Scale With Stainless Steel Load Cell
Max: 6/15kg | d: 2/5g
H315.60/150.HR3.M Waterproof Scale With Stainless Steel Load Cell
Max: 60/150kg | d: 20/50g
H315.60/150.HR3.K Waterproof Scale With Stainless Steel Load Cell
Max: 60/150kg | d: 20/50g
H315.60/150.HR3/5.M Waterproof Scale With Stainless Steel Load Cell
Max: 60/150kg | d: 20/50g
H315.60/150.HR3/5.K Waterproof Scale With Stainless Steel Load Cell
Max: 60/150kg | d: 20/50g
H315.60/150.HR4.M Waterproof Scale With Stainless Steel Load Cell
Max: 60/150kg | d: 20/50g
H315.60/150.HR4.K Waterproof Scale With Stainless Steel Load Cell
Max: 60/150kg | d: 20/50g
H315.60/150.HR5.M Waterproof Scale With Stainless Steel Load Cell
Max: 60/150kg | d: 20/50g
H315.60/150.HR5.K Waterproof Scale With Stainless Steel Load Cell
Max: 60/150kg | d: 20/50g

Choose one of the modules: RS232 Module (61.20 GBP)

RS485 Module (272.40 GBP)

Ethernet Module (222.00 GBP)

4IN/4OUT Module (164.40 GBP)

Class III Verification (43.20 GBP)

Extra charge for dual range 1 Load Cell Platform Scales (322.80 GBP)

AN 4-20mA Analogue Output Module (132.00 GBP)

Extra charge for Internal battery (91.20 GBP)

Calibration new precision balances / industrial scales 0kg-60kg (189.60 GBP)

Pcs.Pcs.

Add to basket

We are near you.
We have been manufacturing weighing devices since 1984.

RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569

Delivery only on the territory of United Kingdom

Optional paid installation and training service available - please contact us for details and pricing.

Datasheet - H315.3.HR2.K Waterproof Scale With Stainless Steel Load Cell

Code:

WP-124-0060

2 years warranty

Verification

Datasheet

Maximum capacity [Max]

3 kg

Minimum load

20 g

Readability [d]

1 g

Verification unit [e]

1 g

Tare range

-3 kg

Max readability for non-verified scale

0,2 g

OIML Class

III

Display

4,3” LCD (backlit)

Cable length

1,5 m

Protection class

IP 66 / 67 / 69 construction, IP 68 / 69 cell, IP 66 / 67 / 69 terminal

Communication interface

RS232, USB

Optional interfaces

RS232 or RS485 or 4IN/4OUT or Ethernet or analog output 4-20 mA

Power supply

100 – 240 V AC 50/60 Hz

Optional power supply

internal rechargeable battery

Operation time on batteries

max 7h

Operating temperature

-10 – +40 °C

Storage temperature

-25 – +70 °C

Relative humidity

10% – 85% RH no condensation

Construction

Stainless steel AISI316

Weighing pan dimensions

250×300 mm

Packaging dimensions W x D x H

560×310×270 mm

Net weight

9 kg

Gross weight

10,3 kg

Overview

H315.3.HR2.K Waterproof Scale With Stainless Steel Load Cell

Waterproof platform scales H315/HR series is designed for operation in locations with high humidity or direct contact with water. It can also be used in locations without access to mains power, as it can optionally be fitted with an internal battery.

Design

Single load cell stainless steel platform scales H315 HR series is based on a terminal PUE H315 series. The terminal features large backlit LCD display and function buttons for easy operation. The terminal is installed on a pillar for easy readout of measurement result. Optionally, the scales is offered with indicator installed on a cable for mounting it on a wall.

The weighing platform structure is made of stainless steel class AISI 316 with a stainless steel load cell providing the highest IP rating of 68 / 69.

The scales features RS 232 interface, and optionally an additional display socket. The scales is powered from mains or internal rechargeable accumulator.

Optionally, the scales can be powered from mains - 110÷120VAC 60Hz (non-standard factory option).
