H315 4P.H Stainless Steel Pallet Scales

H315.4P.1500.H Stainless Steel Pallet Scale
This image is for reference only.

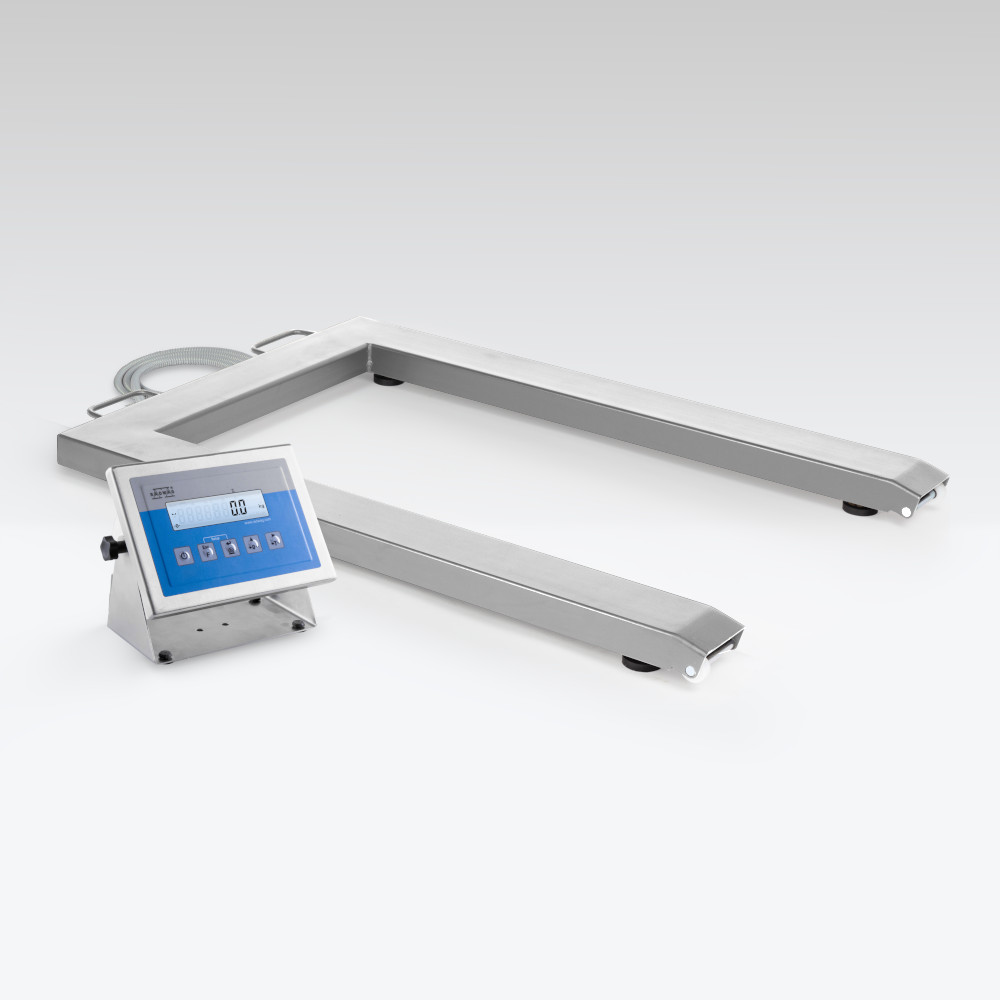

H315.4P.1500.H Stainless Steel Pallet Scale
close Exit
This image is for reference only.
H315.4P.1500.H Stainless Steel Pallet Scale
Availability:
In stock
Estimated shipping date :
15 working days

Need it urgently? Call us to check real-time stock availability: +44 (0)1625 569569

Price:
3813.60
 GBP
with 20% VAT, shipping cost not included
Choose a variant:
H315.4P.1500.H Stainless Steel Pallet Scalekeyboard_arrow_down
  • H315.4P.600.H Stainless Steel Pallet Scale
    Max: 600kg | d: 200g
  • H315.4P.1500.H Stainless Steel Pallet Scale
    Max: 1500kg | d: 500g
  • H315.4P.3000.H Stainless Steel Pallet Scale
    Max: 3000kg | d: 1kg
  • Choose one of the modules: RS232 Module (61.20 GBP)
  • RS485 Module (272.40 GBP)
  • Ethernet Module (222.00 GBP)
  • 4IN/4OUT Module (164.40 GBP)
  • Class III Verification (43.20 GBP)
  • Extra charge for dual range 4 Load Cell Platform Scales (642.00 GBP)
  • AN 4-20mA Analogue Output Module (132.00 GBP)
  • Extra charge for Internal battery (91.20 GBP)
  • Calibration new industrial scales 301kg-3000kg (589.20 GBP)

    • Pcs.

    Add to basket
    We are near you.
    We have been manufacturing weighing devices since 1984.

    RADWAG UK Limited
    16 Macon Court, Herald Drive, Crewe, CW1 6EA
    +44 01625 569569

    Delivery only on the territory of United Kingdom
    Optional paid installation and training service available - please contact us for details and pricing.
    Datasheet - H315.4P.1500.H Stainless Steel Pallet ScaleDatasheet - H315.4P.1500.H Stainless Steel Pallet Scale
    Code:
    WP-235-0002
    2 years warranty
    2 years warranty
    Verification
    Verification
    CE
    CE

    Datasheet

    Maximum capacity [Max]
    1500 kg
    Minimum load
    10 kg
    Readability [d]
    500 g
    Verification unit [e]
    500 g
    Tare range
    -1500 kg
    Max readability for non-verified scale
    500 g
    OIML Class
    III
    Display
    4,3” LCD (backlit)
    Cable length
    3 m
    Protection class
    IP 66 / 69 construction, IP 66 / 67 / 69 terminal
    Communication interface
    RS232, USB
    Optional interfaces
    RS232 or RS485 or 4IN/4OUT or Ethernet or analog output 4-20 mA
    Power supply
    100 – 240 V AC 50/60 Hz
    Optional power supply
    internal rechargeable battery
    Operation time on batteries
    max 7h
    Operating temperature
    -10 – +40 °C
    Relative humidity
    10% – 85% RH no condensation
    Weighing pan dimensions
    860×1200 mm
    Device dimensions W x D x H
    1330×860×80 mm
    Packaging dimensions W x D x H
    1400×900×430 mm
    Scale mass with indicator
    46 kg

    Overview


    H315.4P.1500.H Stainless Steel Pallet Scale


    The H315 4P.H stainless steel pallet scale is stable and proved 4 load cell construction designed for weighing pallets. The load to be weighed can be placed on the platform by a standard fork-lift truck. The pallet scale has castors and handles for easy transport to the place of use. We can construct a dual-range version for an additional charge.







    Robust and Reliable

    The pallet scale is made of stainless steel. It has a PUE H315 weighing terminal with a backlit LCD display mounted on a cable (the length of the cable connecting the terminal to the platform is 3 m). You can easily read the weighing result from the backlit LCD display. An internal rechargeable battery, available as an option, will allow unplugged operation for up to 7 hours.

    Scales is available in dual range version on surcharge.
