H315 4P2.H Stainless steel Beam Scales

H315.4P2.3000.H Stainless Steel Beam Scale
This image is for reference only.
H315.4P2.3000.H Stainless Steel Beam ScaleH315.4P2.3000.H Stainless Steel Beam ScaleH315.4P2.3000.H Stainless Steel Beam ScaleH315.4P2.3000.H Stainless Steel Beam Scale
close Exit
This image is for reference only.
H315.4P2.3000.H Stainless Steel Beam ScaleH315.4P2.3000.H Stainless Steel Beam ScaleH315.4P2.3000.H Stainless Steel Beam ScaleH315.4P2.3000.H Stainless Steel Beam Scale
Availability:
In stock
Estimated shipping date :
15 working days

Need it urgently? Call us to check real-time stock availability: +44 (0)1625 569569

Price:
3726.00
 GBP
with 20% VAT, shipping cost not included
Choose a variant:
H315.4P2.3000.H Stainless Steel Beam Scalekeyboard_arrow_down
  • H315.4P2.600.H Stainless Steel Beam Scale
    Max: 600kg | d: 200g
  • H315.4P2.1500.H Stainless Steel Beam Scale
    Max: 1500kg | d: 500g
  • H315.4P2.3000.H Stainless Steel Beam Scale
    Max: 3000kg | d: 1kg
  • H315.4P2.2000.H1 Stainless Steel Beam Scale
    Max: 2000kg | d: 1kg
  • H315.4P2.4000.H1 Stainless Steel Beam Scale
    Max: 4000kg | d: 2kg
  • H315.4P2.6000.H1 Stainless Steel Beam Scale
    Max: 6000kg | d: 2kg
  • H315.4P2.2000.H2 Stainless Steel Beam Scale
    Max: 2000kg | d: 1kg
  • H315.4P2.4000.H2 Stainless Steel Beam Scale
    Max: 4000kg | d: 2kg
  • H315.4P2.6000.H2 Stainless Steel Beam Scale
    Max: 6000kg | d: 2kg
  • Choose one of the modules: RS232 Module (61.20 GBP)
  • RS485 Module (272.40 GBP)
  • Ethernet Module (222.00 GBP)
  • 4IN/4OUT Module (164.40 GBP)
  • Class III Verification (43.20 GBP)
  • Extra charge for dual range 4 Load Cell Platform Scales (642.00 GBP)
  • AN 4-20mA Analogue Output Module (132.00 GBP)
  • Extra charge for Internal battery (91.20 GBP)
  • Calibration new industrial scales 301kg-3000kg (589.20 GBP)

    • Pcs.

    Add to basket
    We are near you.
    We have been manufacturing weighing devices since 1984.

    RADWAG UK Limited
    16 Macon Court, Herald Drive, Crewe, CW1 6EA
    +44 01625 569569

    Delivery only on the territory of United Kingdom
    Optional paid installation and training service available - please contact us for details and pricing.
    Datasheet - H315.4P2.3000.H Stainless Steel Beam ScaleDatasheet - H315.4P2.3000.H Stainless Steel Beam Scale
    Code:
    WP-236-0003
    2 years warranty
    2 years warranty
    Verification
    Verification
    CE
    CE

    Datasheet

    Maximum capacity [Max]
    3000 kg
    Minimum load
    20 kg
    Readability [d]
    1 kg
    Verification unit [e]
    1 kg
    Tare range
    -3000 kg
    OIML Class
    III
    Display
    4,3” LCD (backlit)
    Cable length
    3 m + 5 m
    Protection class
    IP 66 / 69 construction, IP 66 / 67 / 69 terminal
    Communication interface
    RS232, USB
    Optional interfaces
    RS232 or RS485 or 4IN/4OUT or Ethernet or analog output 4-20 mA
    Power supply
    100 – 240 V AC 50/60 Hz
    Optional power supply
    internal rechargeable battery
    Operation time on batteries
    max 7h
    Operating temperature
    -10 – +40 °C
    Relative humidity
    10% – 85% RH no condensation
    Weighing pan dimensions
    2 pcs 1,2 m
    Device dimensions W x D x H
    1200×120×85 mm
    Packaging dimensions W x D x H
    1400×400×550 mm
    Scale mass with indicator
    40 kg

    Overview

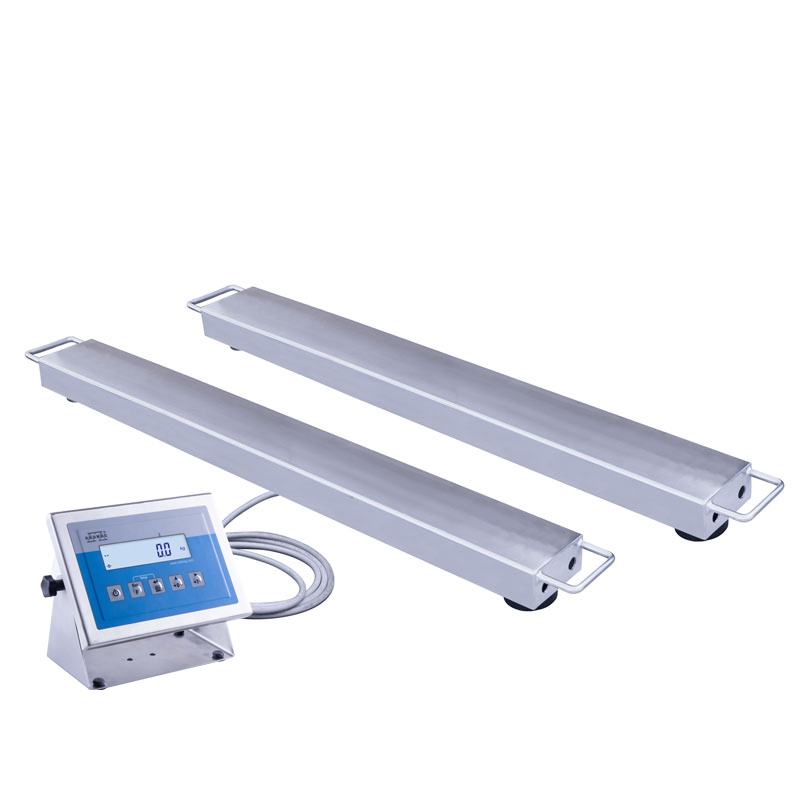

    Beam scales H315/4P2 series is stable and proved four load cells weighing solution with more versatile application than standard pallet scales. The adjustable distance between the beams (up to 5 meters) enables fitting the H315/4P2/H scales to different loads (cases, long bars, heavy sections). The load to be weighed can be placed on the beams by a standard fork-lift truck.

    Beam scales H315/4P2/H series is manufactured in stainless steel version. Optionally, the number of beams in a scale can be increased to 4. Beam scales features handles for easy transporting the scales to its place of use.

    The scales comes standard with an indicator PUE H315 in stainless steel housing, featuring backlit LCD display and function buttons. The indicator is installed on a long cable.
    The scale is powered from mains 230V AC, RS 232 interface comes standard.

    Scales is available in dual range version on surcharge.
