H315 4N.H.LD Stainless Steel Ramp Scale
This image is for reference only.
Exit
This image is for reference only.
Availability:
In stock
Estimated shipping date :
15 working days
Need it urgently? Call us to check real-time stock availability: +44 (0)1625 569569
Price:
14860.80
GBP
with 20% VAT, shipping cost not included
Choose a variant:
H315.4N.600.H2.LD Stainless Steel Ramp Scale
- H315.4N.150.H1.LD Stainless Steel Ramp ScaleMax: 150kg | d: 50g
- H315.4N.150.H2.LD Stainless Steel Ramp ScaleMax: 150kg | d: 50g
- H315.4N.1500.H2.LD Stainless Steel Ramp ScaleMax: 1500kg | d: 500g
- H315.4N.1500.H3.LD Stainless Steel Ramp ScaleMax: 1500kg | d: 500g
- H315.4N.1500.H4.LD Stainless Steel Ramp ScaleMax: 1500kg | d: 500g
- H315.4N.300.H1.LD Stainless Steel Ramp ScaleMax: 300kg | d: 100g
- H315.4N.300.H2.LD Stainless Steel Ramp ScaleMax: 300kg | d: 100g
- H315.4N.300.H3.LD Stainless Steel Ramp ScaleMax: 300kg | d: 100g
- H315.4N.300.H4.LD Stainless Steel Ramp ScaleMax: 300kg | d: 100g
- H315.4N.300/600.H1.LD Stainless Steel Ramp ScaleMax: 300/600kg | d: 100/200g
- H315.4N.300/600.H2.LD Stainless Steel Ramp ScaleMax: 300/600kg | d: 100/200g
- H315.4N.300/600.H3.LD Stainless Steel Ramp ScaleMax: 300/600kg | d: 100/200g
- H315.4N.300/600.H4.LD Stainless Steel Ramp ScaleMax: 300/600kg | d: 100/200g
- H315.4N.600.H1.LD Stainless Steel Ramp ScaleMax: 600kg | d: 200g
- H315.4N.600.H2.LD Stainless Steel Ramp ScaleMax: 600kg | d: 200g
- H315.4N.600.H3.LD Stainless Steel Ramp ScaleMax: 600kg | d: 200g
- H315.4N.600.H4.LD Stainless Steel Ramp ScaleMax: 600kg | d: 200g
- H315.4N.600/1500.H2.LD Stainless Steel Ramp ScaleMax: 600/1500kg | d: 200/500g
- H315.4N.600/1500.H3.LD Stainless Steel Ramp ScaleMax: 600/1500kg | d: 200/500g
- H315.4N.600/1500.H4.LD Stainless Steel Ramp ScaleMax: 600/1500kg | d: 200/500g
OSB box for H2.LD platform (1240.80 GBP)
Class III Verification (43.20 GBP)
Extra charge for dual range 4 Load Cell Platform Scales (642.00 GBP)
Extra charge for Internal battery (91.20 GBP)
Calibration new industrial scales 301kg-3000kg (589.20 GBP)
Pcs.
Add to basket
We are near you.
We have been manufacturing weighing devices since 1984.
RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569
Delivery only on the territory of United Kingdom
We have been manufacturing weighing devices since 1984.
RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569
Delivery only on the territory of United Kingdom
Optional paid installation and training service available - please contact us for details and pricing.
Datasheet - H315.4N.600.H2.LD Stainless Steel Ramp ScaleCode:
WP-234-0019
2 years warranty
Verification
CE
Datasheet
Maximum capacity [Max]
600 kg
Minimum load
4 kg
Readability [d]
200 g
Verification unit [e]
200 g
Tare range
-600 kg
Max readability for non-verified scale
100 g
OIML Class
III
Display
4,3” LCD (backlit)
Cable length
3 m
Protection class
IP 66 / 69 construction, IP 66 / 67 / 69 terminal
Communication interface
RS232, USB
Optional interfaces
RS232 or RS485 or 4IN/4OUT or Ethernet or analog output 4-20 mA
Power supply
100 – 240 V AC 50/60 Hz
Optional power supply
internal rechargeable battery
Operation time on batteries
max 7h
Operating temperature
-10 – +40 °C
Relative humidity
10% – 85% RH no condensation
Weighing pan dimensions
1100×1200 mm
Packaging dimensions W x D x H
1640×1590×580 mm
Net weight
175 kg
Gross weight
300 kg
Overview

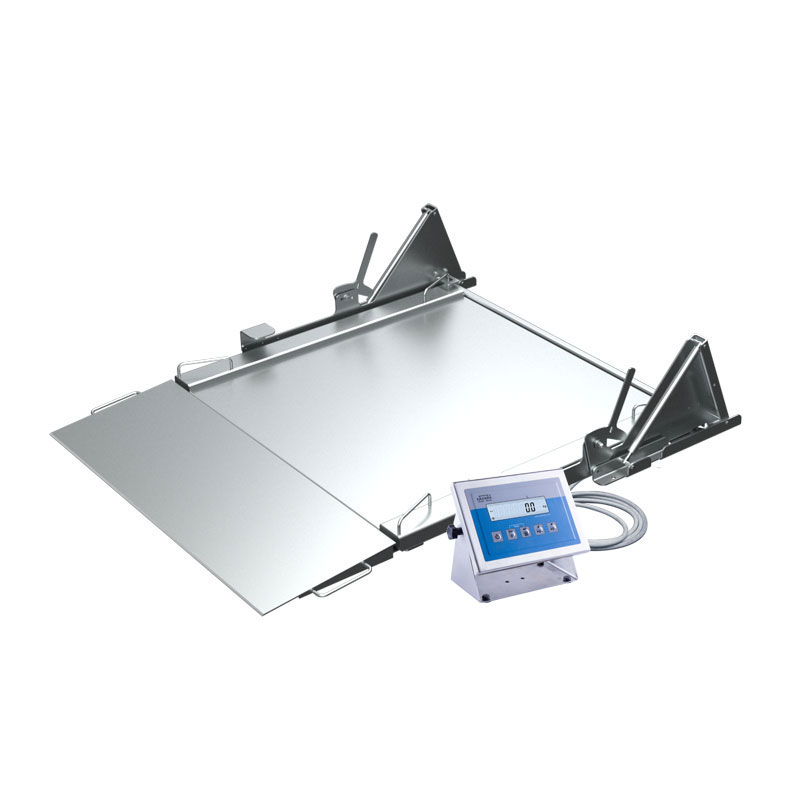

Ramp scale with stainless-steel load cells is intended for meat, fish, pharmaceutical, cosmetic and chemical industry.

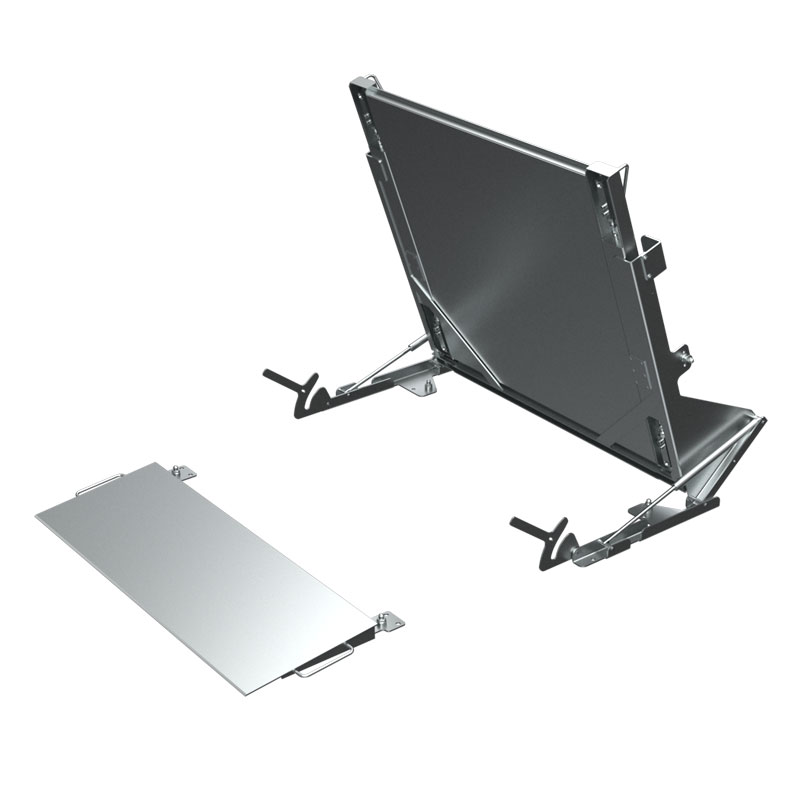

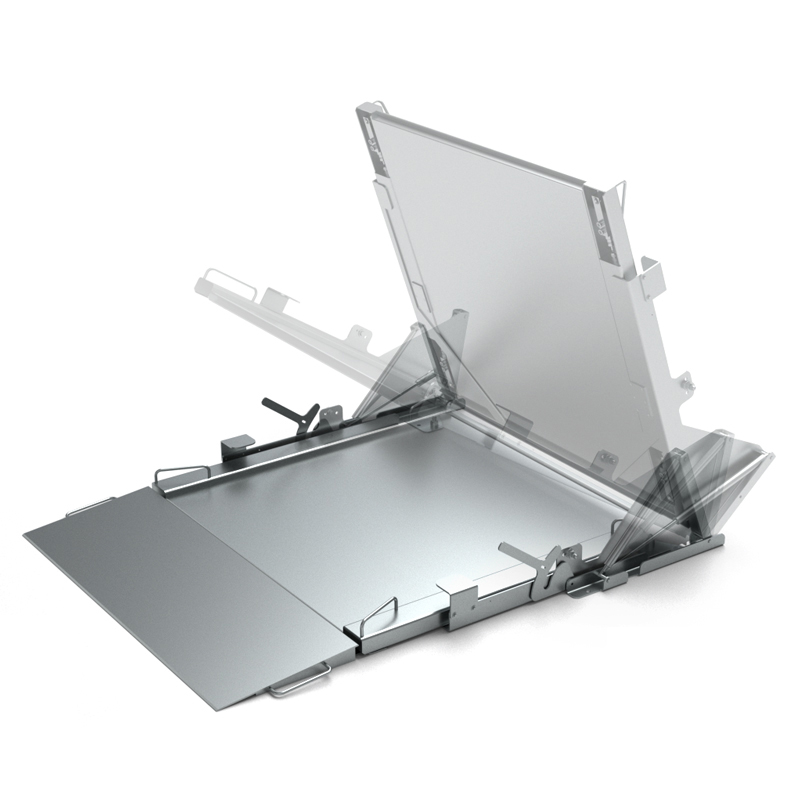

The scale is equipped with LD4N system allowing lifting the platform up, useful for maintenance purposes. The mechanism enables safe platform lifting and does not require physical exertion or additional equipment. Upon platform lowering, the scale is ready to carry out measurement. There is no need for recalibration.
The scale is made of OH18N9 stainless steel and is equipped with PUE H315 indicator. On a customer request the scale can be made of steel of increased anti-corrosion resistance.
The length of the cable for connecting the indicator to the platform - 3m.
Ramp scale with LD4N system is equipped with only one ramp.
Dual range weighing instrument for an additional charge.
The scale is equipped with LD4N system allowing lifting the platform up, useful for maintenance purposes. The mechanism enables safe platform lifting and does not require physical exertion or additional equipment. Upon platform lowering, the scale is ready to carry out measurement. There is no need for recalibration.
The scale is made of OH18N9 stainless steel and is equipped with PUE H315 indicator. On a customer request the scale can be made of steel of increased anti-corrosion resistance.
The length of the cable for connecting the indicator to the platform - 3m.
Ramp scale with LD4N system is equipped with only one ramp.
Dual range weighing instrument for an additional charge.
Since the scale is equipped with a platform lifting system, you are kindly requested to order a transport box (OSB box for the platform) for it. The transport box is necessary for the safe and efficient transport and storage of the ramp scale with the platform lifting system. Please take this item into consideration when planning and placing your order. If you have any questions, the Customer Service Department will be happy to assist you.
