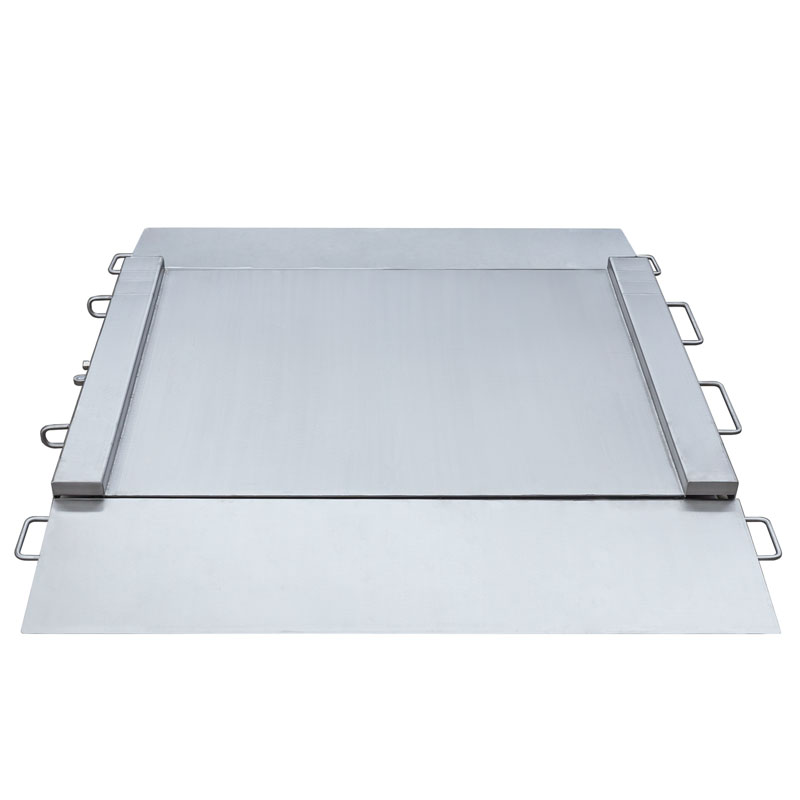

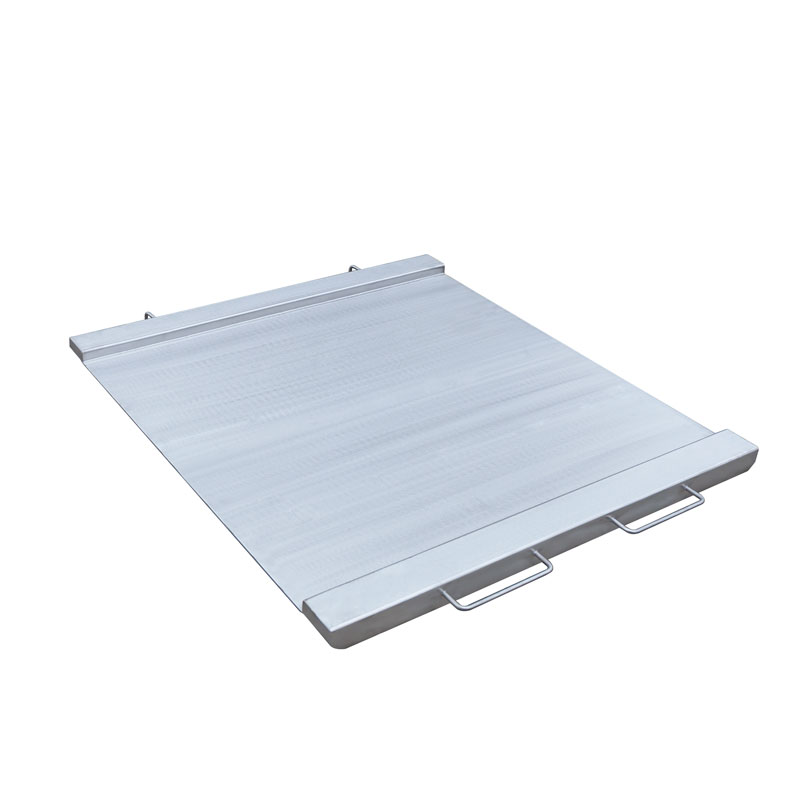

H315 4N.H Stainless Steel Ramp Scale

H315.4N.1500.H4 Stainless Steel Ramp Scale
This image is for reference only.
H315.4N.1500.H4 Stainless Steel Ramp ScaleH315.4N.1500.H4 Stainless Steel Ramp ScaleH315.4N.1500.H4 Stainless Steel Ramp ScaleH315.4N.1500.H4 Stainless Steel Ramp ScaleH315.4N.1500.H4 Stainless Steel Ramp Scale
close Exit
This image is for reference only.
H315.4N.1500.H4 Stainless Steel Ramp ScaleH315.4N.1500.H4 Stainless Steel Ramp ScaleH315.4N.1500.H4 Stainless Steel Ramp ScaleH315.4N.1500.H4 Stainless Steel Ramp ScaleH315.4N.1500.H4 Stainless Steel Ramp Scale
Availability:
In stock
Estimated shipping date :
15 working days

Need it urgently? Call us to check real-time stock availability: +44 (0)1625 569569

Price:
15288.00
 GBP
with 20% VAT, shipping cost not included
Choose a variant:
H315.4N.1500.H4 Stainless Steel Ramp Scalekeyboard_arrow_down
  • H315.4N.150.H1 Stainless Steel Ramp Scale
    Max: 150kg | d: 50g
  • H315.4N.150.H2 Stainless Steel Ramp Scale
    Max: 150kg | d: 50g
  • H315.4N.1500.H2 Stainless Steel Ramp Scale
    Max: 1500kg | d: 500g
  • H315.4N.1500.H3 Stainless Steel Ramp Scale
    Max: 1500kg | d: 500g
  • H315.4N.1500.H4 Stainless Steel Ramp Scale
    Max: 1500kg | d: 500g
  • H315.4N.300.H1 Stainless Steel Ramp Scale
    Max: 300kg | d: 100g
  • H315.4N.300.H2 Stainless Steel Ramp Scale
    Max: 300kg | d: 100g
  • H315.4N.300.H3 Stainless Steel Ramp Scale
    Max: 300kg | d: 100g
  • H315.4N.300.H4 Stainless Steel Ramp Scale
    Max: 300kg | d: 100g
  • H315.4N.300/600.H1 Stainless Steel Ramp Scale
    Max: 300/600kg | d: 100/200g
  • H315.4N.300/600.H2 Stainless Steel Ramp Scale
    Max: 300/600kg | d: 100/200g
  • H315.4N.300/600.H3 Stainless Steel Ramp Scale
    Max: 300/600kg | d: 100/200g
  • H315.4N.300/600.H4 Stainless Steel Ramp Scale
    Max: 300/600kg | d: 100/200g
  • H315.4N.600.H1 Stainless Steel Ramp Scale
    Max: 600kg | d: 200g
  • H315.4N.600.H2 Stainless Steel Ramp Scale
    Max: 600kg | d: 200g
  • H315.4N.600.H3 Stainless Steel Ramp Scale
    Max: 600kg | d: 200g
  • H315.4N.600.H4 Stainless Steel Ramp Scale
    Max: 600kg | d: 200g
  • H315.4N.600/1500.H2 Stainless Steel Ramp Scale
    Max: 600/1500kg | d: 200/500g
  • H315.4N.600/1500.H3 Stainless Steel Ramp Scale
    Max: 600/1500kg | d: 200/500g
  • H315.4N.600/1500.H4 Stainless Steel Ramp Scale
    Max: 600/1500kg | d: 200/500g
  • Extra charge for Internal battery (91.20 GBP)
  • Choose one of the modules: RS232 Module (61.20 GBP)
  • RS485 Module (272.40 GBP)
  • Ethernet Module (222.00 GBP)
  • 4IN/4OUT Module (164.40 GBP)
  • Class III Verification (43.20 GBP)
  • Extra charge for dual range 4 Load Cell Platform Scales (642.00 GBP)
  • AN 4-20mA Analogue Output Module (132.00 GBP)
  • Calibration new industrial scales 301kg-3000kg (589.20 GBP)

    • Pcs.

    Add to basket
    We are near you.
    We have been manufacturing weighing devices since 1984.

    RADWAG UK Limited
    16 Macon Court, Herald Drive, Crewe, CW1 6EA
    +44 01625 569569

    Delivery only on the territory of United Kingdom
    Optional paid installation and training service available - please contact us for details and pricing.
    Datasheet - H315.4N.1500.H4 Stainless Steel Ramp ScaleDatasheet - H315.4N.1500.H4 Stainless Steel Ramp Scale
    Code:
    WP-234-0013
    2 years warranty
    2 years warranty
    Verification
    Verification
    CE
    CE

    Datasheet

    Maximum capacity [Max]
    1500 kg
    Minimum load
    10 kg
    Readability [d]
    500 g
    Verification unit [e]
    500 g
    Tare range
    -1500 kg
    Max readability for non-verified scale
    200 g
    OIML Class
    III
    Display
    4,3” LCD (backlit)
    Cable length
    3 m
    Protection class
    IP 66 / 69 construction, IP 66 / 67 / 69 terminal
    Communication interface
    RS232, USB
    Optional interfaces
    RS232 or RS485 or 4IN/4OUT or Ethernet or analog output 4-20 mA
    Power supply
    100 – 240 V AC 50/60 Hz
    Optional power supply
    internal rechargeable battery
    Operation time on batteries
    max 7h
    Operating temperature
    -10 – +40 °C
    Relative humidity
    10% – 85% RH no condensation
    Weighing pan dimensions
    1500×1500 mm
    Packaging dimensions W x D x H
    1900×1600×600 mm
    Scale mass with indicator
    270 kg

    Overview


    Ramp scales with stainless steel load cells is widely applied in meat, fish, pharmaceutical, cosmetic and chemical industry.
    The H315/4N series is manufactured in complete stainless steel technology with stainless steel indicator PUE H315 series installed on a long cable.

    Ramp scales is manufactured from OH18N9 stainless steel with IP 66 / 69. On special order, it is possible to manufacture ramp scales in upgraded anti-corrosion stainless steel version.

    Scales is available in dual range version on surcharge.
