H315 2K Stainless Steel Overhead Track Scales

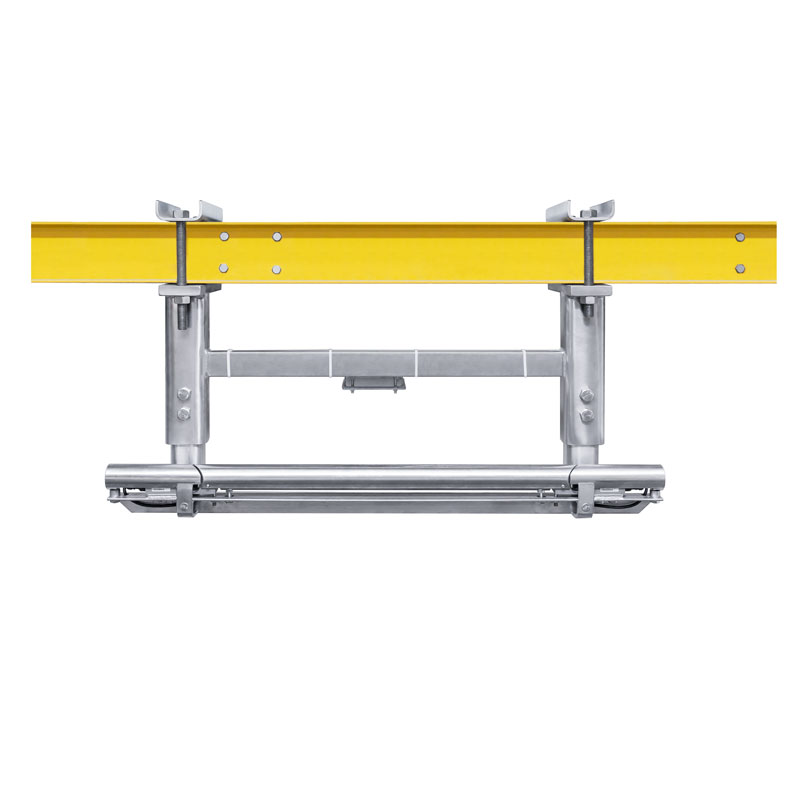

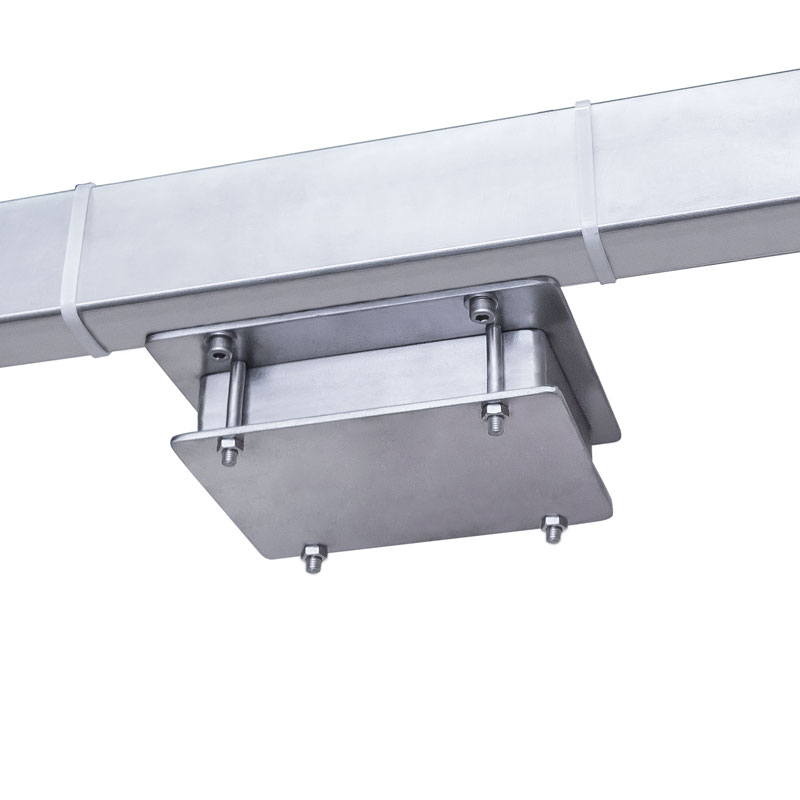

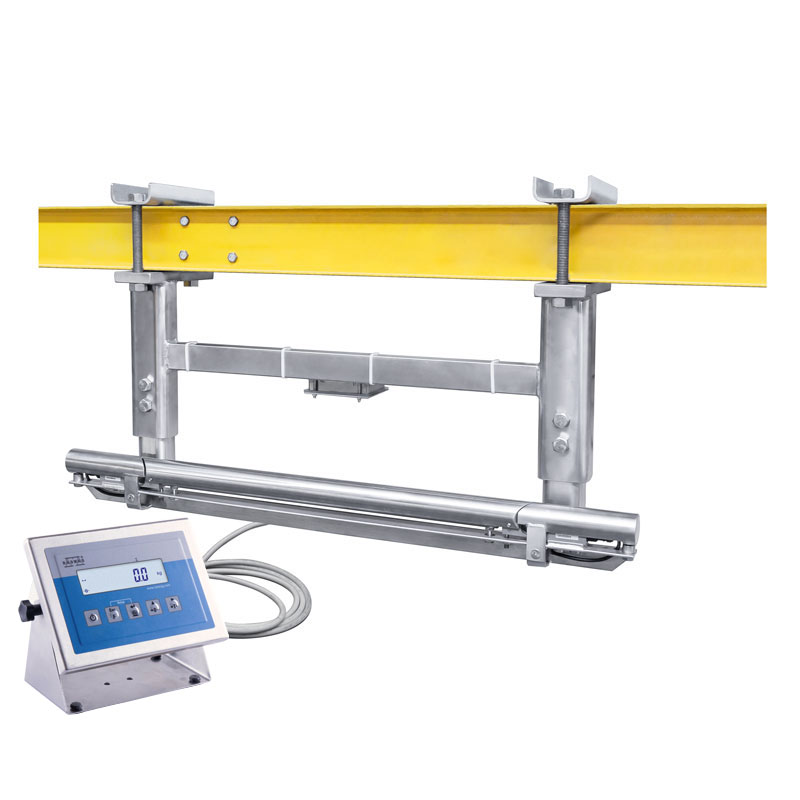

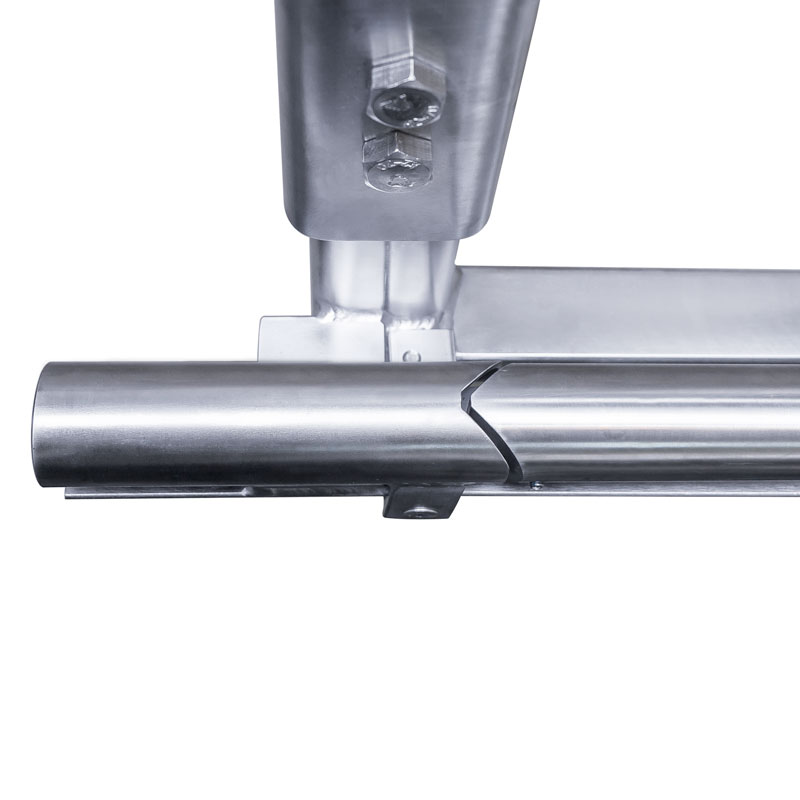

H315.2K.300/600H Overhead Track Scale
This image is for reference only.
H315.2K.300/600H Overhead Track ScaleH315.2K.300/600H Overhead Track ScaleH315.2K.300/600H Overhead Track ScaleH315.2K.300/600H Overhead Track Scale
close Exit
This image is for reference only.
H315.2K.300/600H Overhead Track ScaleH315.2K.300/600H Overhead Track ScaleH315.2K.300/600H Overhead Track ScaleH315.2K.300/600H Overhead Track Scale
Availability:
To order
Estimated shipping date :
15 working days

Need it urgently? Call us to check real-time stock availability: +44 (0)1625 569569

Price:
Individual pricing
Choose a variant:
H315.2K.300/600H Overhead Track Scalekeyboard_arrow_down
  • H315.2K.300/600H Overhead Track Scale
    Max: 300/600kg | d: 0,1/0,2kg
  • Calibration new industrial scales 301kg-3000kg (589.20 GBP)
  • Class III Verification (43.20 GBP)
    • We are near you.
    We have been manufacturing weighing devices since 1984.

    RADWAG UK Limited
    16 Macon Court, Herald Drive, Crewe, CW1 6EA
    +44 01625 569569

    Delivery only on the territory of United Kingdom
    Optional paid installation and training service available - please contact us for details and pricing.
    Datasheet - H315.2K.300/600H Overhead Track ScaleDatasheet - H315.2K.300/600H Overhead Track Scale
    Code:
    WP-238-1002
    CE
    CE
    Verification
    Verification
    1 year warranty
    1 year warranty

    Datasheet

    Maximum capacity [Max]
    300 / 600 kg
    Minimum load
    2 kg
    Readability [d]
    0,1 / 0,2 kg
    Verification unit [e]
    0,1 / 0,2 kg
    Tare range
    -600 kg
    OIML Class
    III
    Display
    4,3” LCD (backlit)
    Protection class
    IP 66 / 69 construction, IP 66 / 67 / 69 terminal
    Communication interface
    RS232, USB
    Optional interfaces
    RS232 or RS485 or 4IN/4OUT or Ethernet or analog output 4-20 mA
    Power supply
    100 – 240 V AC 50/60 Hz
    Optional power supply
    internal rechargeable battery
    Operation time on batteries
    max 7h
    Operating temperature
    -10 – +40 °C
    Relative humidity
    10% – 85% RH no condensation
    Construction
    Stainless steel AISI304
    Detection line span
    L= 800 mm (min. 200 mm)

    Overview


    Overhead track scale H315 series is designed for weighing half carcass and porkhalf which are transported on scale’s track. The weighing process starts when a roller with measured load enters a measuring section of the track. The load cells are installed lengthwise to the weighing track which is fixed with spherical mandrels. Such design eliminates tensions in the construction.

    Scales can cooperate with carcass grading equipment.

    The H315 series is manufactured either in galvanized or in stainless steel version, as dual range weighing instruments. They are equipped with a stainless steel backlit LCD indicator PUE H315 installed on a cable.
