Datasheet - Multi-Track DWM H2 Checkweigher

Code:

WK-105-005_

Automatic Scales verification

Packaged Goods Control

1 year warranty

Datasheet

Maximum capacity [Max]

750 – 7500 g

Readability [d]

0,1 – 5 g

Verification unit [e]

0,1 – 5 g

Max readability for non-verified scale

0,2 – 1 g

Expanded reading unit

0,01 – 0,5 g

OIML Class

XIII (1), Y (a)

Display

12” graphic colour touchscreen

Protection class

IP 55, IP 65

Communication interface

RS232, USB, Ethernet, IN/OUT

Optional interfaces

Profibus, Profinet, EtherNet/IP, Modbus

Power supply

100 – 240 V AC 50/60 Hz

Operating temperature

+5 – +40 °C

Keypad

touch screen

Construction

Stainless steel

Operating system

Microsoft Windows 11 IoT

Capacity

max 2 x 500 pcs/min

Conveyor velocity

1,6 m/s

Overview

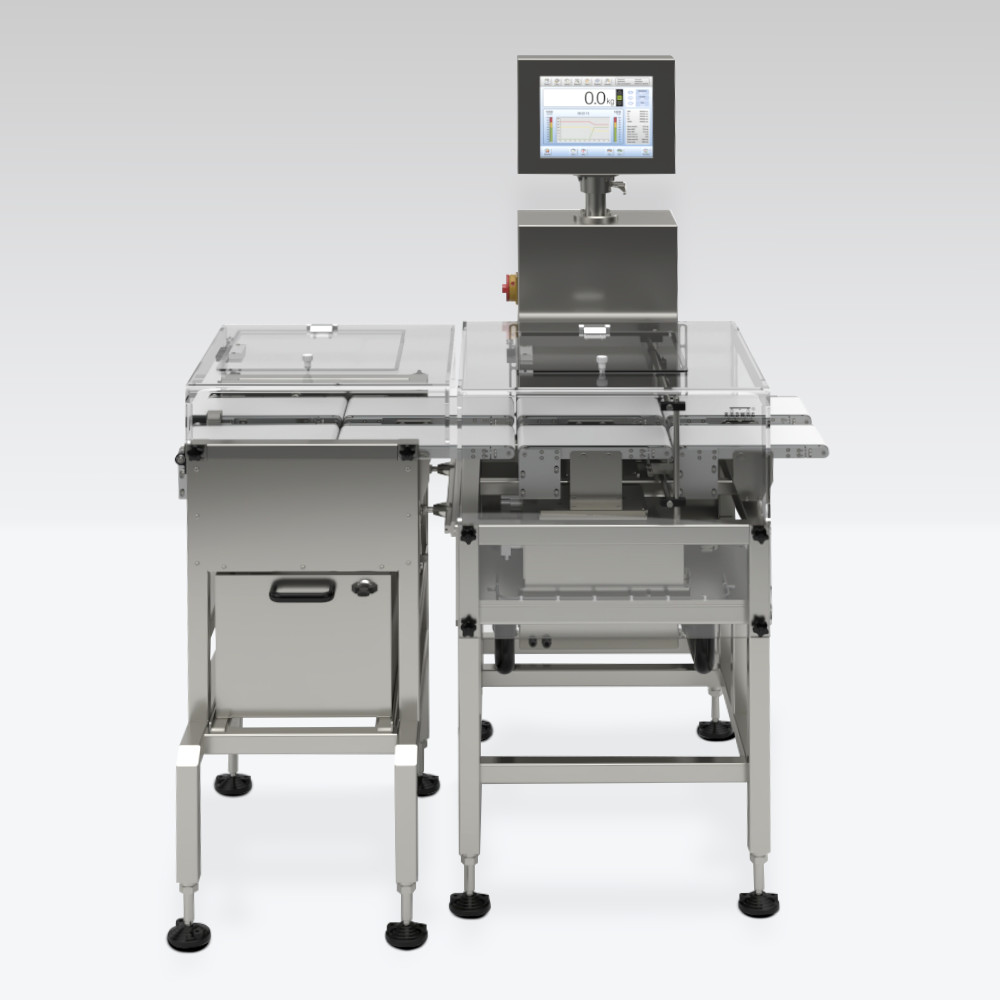

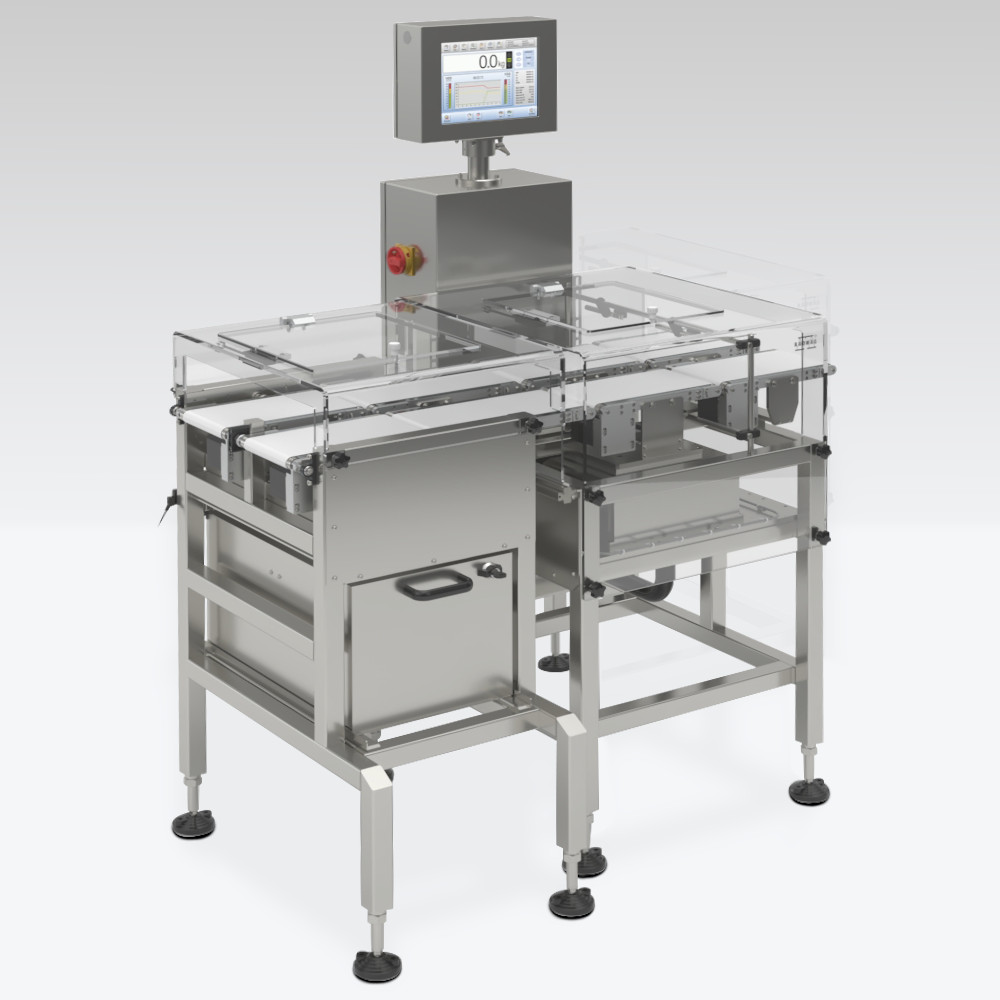

Multi-Track DWM H2 Checkweigher

DWM H2 checkweigher assures the highest quality and accuracy of weighing. It is intended for integration with multi-track packaging machines transporting products to the line using several parallel tracks. It is possible to integrate the DWM H2 checkweigher in systems which due to the required throughput demand use of multiple checkweighers. The scale is equipped with multiple tracks integrated into one construction, the tracks are operated via one operation panel. Each of the weighing tracks is an independent measuring system equipped with a weighing module and rejecters. The weighing tracks are placed next to each other. With this, products can be picked up directly from the packaging machine.

Your Production Under Full Control

Integrated electronics speed up determination of settings, facilitate operation and enable generating single report for a production batch.

The device features user-friendly and intuitive interface, integrated functions facilitating operation and statistics record. The scale enables precise control of pre-packaged goods in accordance with the PGC Regulation.

The complex communication modules ensure full integration of the scale with production line allowing for unattended operation of the device. Connecting the scale to an IT system enables online preview of the production process, record of weighings, and generating reports providing information on weighing statistics, quantity statistics, shutdown and line malfunction.

Remarkable Throughput, Versatility of Applications

DWM H2 scale is intended for control of a single load of mass up to 7500 g (depending on the model). Scale's software enables products control to be carried out either in accordance with user requirements or the Pre-Packaged Goods Control Regulation. A 'flexible limits' module is especially intended for pharmaceutical plants. The devices feature PZH food approval certificate.

Multi-track scale throughput: tracks quantity x single track throughput of 500 pcs.

Area of use:

Pre-packaged goods control (PGC) accordant with the regulation;
Comprehensive automatic control of the production process;
Supervision over dosing equipment;
Verification of product packaging correctness;
Weighing drugs, blisters, syrups, etc.

Features:

Static weighing;
Checkweighing;
Database of operators with various permissions;
Products database;
Weighings database;
Reports database;
+/- control;
Pre-packaged goods control mode according to the regulation;
Pre-packaged goods control mode according to user requirements;
Autodiagnostics;
Automatic correction of packaging mass;
Verification of rejecter operation;
Pressure control of the power supply installation;
Bin overload sensor;
Integration with feeders;
Compatibility with PLCs;
Reports;
Reports export to PDF files;
Control of products transport;
Product dimensions control;
Smooth regulation of conveyors speed.

Software

The scale is equipped with industry computer and Windows 11 IoT operating system. With such a solution, interaction of the operator and the device is intuitive and uncomplicated. The database module is based on Microsoft SQL Server, which guarantees stable and secure record of data generated by the scale and easy connection of the database with customer's IT system. Protection of data and weighing records is carried out by means of simultaneous record on two separate storage media.

All driver elements of the scale, such as drives, rejecters, emergency buttons, signalling devices are supervised by the real-time computing (RTC) guaranteeing fault-free operation and immediate reaction to incoming control system signals.

Checkweigher enables data exchange via Ethernet network. Implemented communication protocol facilitates automatic sending of weighing records, databases update, determining weighing settings and visualization of the checkweigher online operation.
