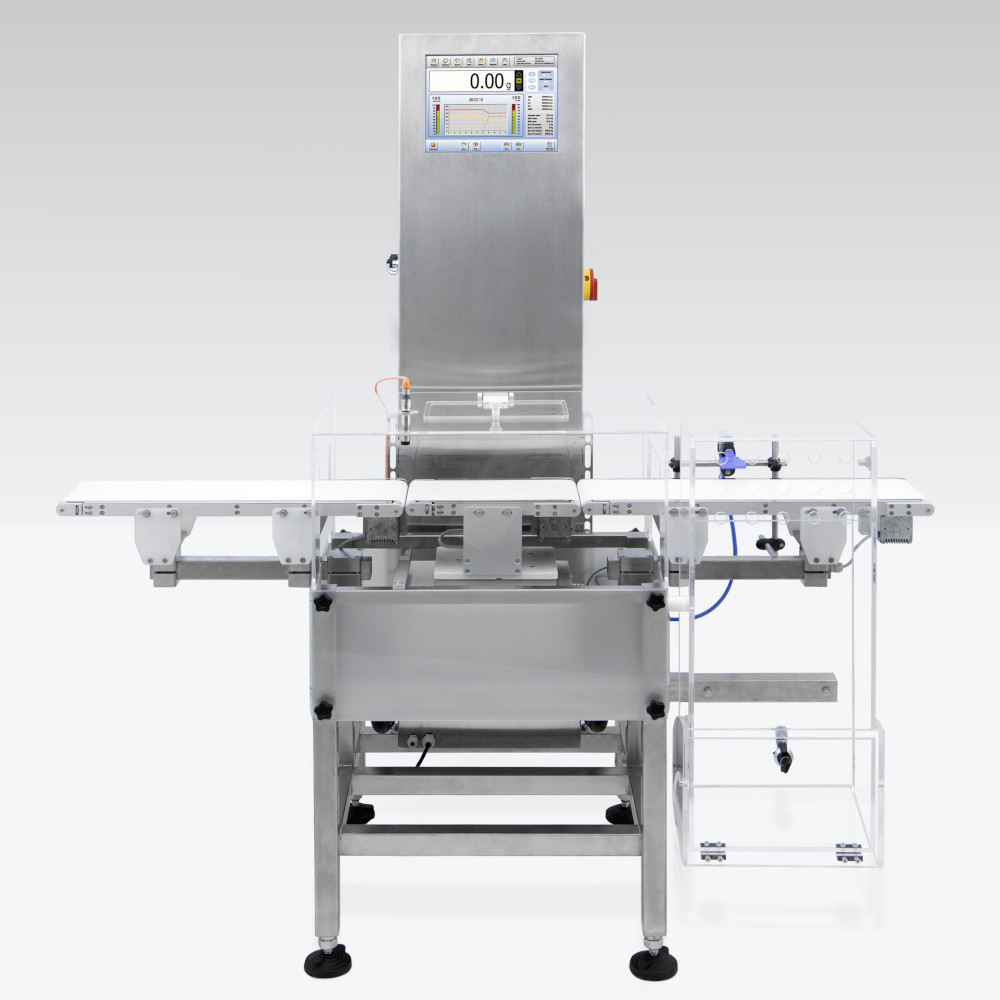

DWM Checkweighers

DWM Checkweigher
This image is for reference only.
DWM CheckweigherDWM CheckweigherDWM CheckweigherDWM CheckweigherDWM CheckweigherDWM CheckweigherDWM CheckweigherDWM Checkweigher
close Exit
This image is for reference only.
DWM CheckweigherDWM CheckweigherDWM CheckweigherDWM CheckweigherDWM CheckweigherDWM CheckweigherDWM CheckweigherDWM Checkweigher
Availability:
In stock
Estimated shipping date :
15 working days

Need it urgently? Call us to check real-time stock availability: +44 (0)1625 569569

Price:
Individual pricing
Choose a variant:
DWM Checkweigherkeyboard_arrow_down
  • DWM Checkweigher
    Max: 750 – 7500g | d: 0,1 – 5g
We are near you.
We have been manufacturing weighing devices since 1984.

RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569

Delivery only on the territory of United Kingdom
Optional paid installation and training service available - please contact us for details and pricing.
Datasheet - DWM CheckweigherDatasheet - DWM Checkweigher
Code:
WK-105-000_
Automatic Scales verification
Automatic Scales verification
Packaged Goods Control
Packaged Goods Control
1 year warranty
1 year warranty

Datasheet

Maximum capacity [Max]
750 – 7500 g
Readability [d]
0,1 – 5 g
Verification unit [e]
0,1 – 5 g
OIML Class
XIII (1)*, Y (a)
Display
12” graphic colour touchscreen
Protection class
IP 55, IP 65
Communication interface
Ethernet, USB, RS232, IN/OUT
Optional interfaces
Profibus, Profinet, EtherNet/IP, Modbus
Operating temperature
+5 – +40 °C
Keypad
touch screen
Construction
Stainless steel / aluminum anodised
Operating system
Microsoft Windows 11 IoT
Capacity
max 500 pcs/min
Conveyor velocity
1,6 m/s

Overview


Remarkable Throughput, Versatility of Applications

Food industry? Pharmaceutical industry? Cosmetic industry? Three questions and one answer only: DWM checkweighers.
These multifunctional devices have MID certificate, proving conformity with regulations on measures and weighing instruments
used in all the aforementioned branches of industry.









A Walking Ideal

Checkweighers are based on an electromagnetic mass converter which is a guarantee for speed and accuracy of the measurement. High resistance to overload means failure free operation, and your peaceful mind.











Do Not Set the Expectation Bar Low – This Device Will Adapt to Your Requirements

Checkweighers, due to their modular design, meet the requirements of any production line. A complete set of shields, rejecters, sensors, signalling and monitoring modules will come up to expectations of every single customer, and a vast range of transport solutions will allow one to adapt the device to the requirements of a particular product.









Convenience of Operation

Touch screen terminal, HIM, with multi-language menu, is more than just fast and easy access to all control and static functions of the device. It is also pure pleasure.









Take up the Challenges of the Future

ICommunication interfaces like Ethernet, Ethernet IP, Profinet, Profibus and access to the database system are the response to the requirements of Industry 4.0 concept.

We have equipped our scales with a special package of dedicated functions, like an extended access control module, and complete archiving of all scale states in the Audit Trail module. Thanks to this, all pharmaceutical processes you carry out are safe and accordant with GMP, and FDA 21 Part 11 requirements.













Complete Validation: IO, OQ and PQ

In order to be able to install any measuring device in the pharmaceutical industry you need validation.
A special equipment qualification package will guarantee a complete, documented validation for your checkweigher:
  • Installation Qualification (IQ),
  • Operational Qualification (OQ),
  • Performance Qualification (PQ)
– we provide all these.







Proved Effectiveness

With the special OEE module in E2R software, you can control the utilization rate of your machines and equipment.
