WWG-2/4 Large-Size Display
This image is for reference only.

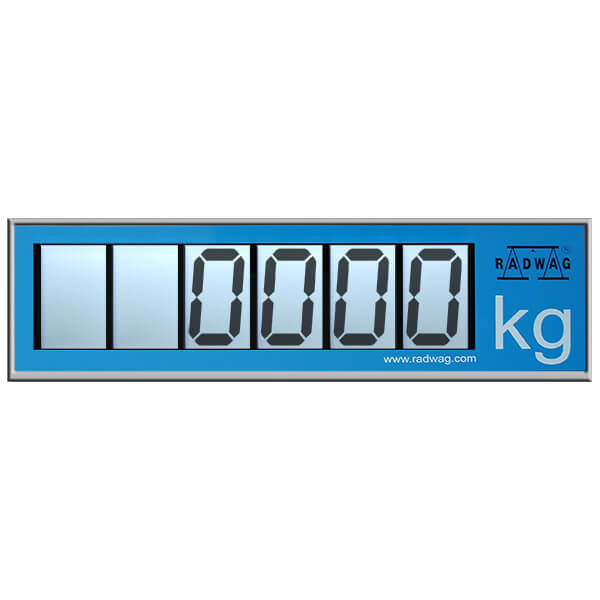

WWG-2/4 Large-Size Display
close Exit
This image is for reference only.
WWG-2/4 Large-Size Display
Availability:
In stock
Estimated shipping date :
15 working days

Need it urgently? Call us to check real-time stock availability: +44 (0)1625 569569

Price:
1496.40
 GBP
with 20% VAT, shipping cost not included
Choose a variant:
WWG-2/4 Large-Size Displaykeyboard_arrow_down
  • WD-4/3 Additional Display
  • WD-4/4 Additional Display
  • WD-4/5 Additional Display
  • WD-4/8 Additional Display
  • WD-6 LCD Display - Plastic Housing
  • WWG-2/4 Large-Size Display
  • WWG-2/5 Large-Size Display
  • WWG-2/6 Large-Size Display
  • WWG-2/7 Large-Size Display
  • WD-4/6 Additional Display

Pcs.

Add to basket
We are near you.
We have been manufacturing weighing devices since 1984.

RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569


Delivery only on the territory of United Kingdom
Optional paid installation and training service available - please contact us for details and pricing.
Code:
WX-004-0128

Datasheet

Cable length
3 (max 10) m
Protection class
IP 66 / IP 67
Character size
112 mm
Packaging dimensions W x D x H
750×280×120 mm
Net weight
5,5 kg
Gross weight
7 kg

Overview


WWG-2/4 Large-Size Display



Large-size additional display is an accessory of load-cell scales.
  • stainless steel housing
  • 6 digits of 4,5 inches in height (11,2cm)
  • white diode backlight
Features
Robust and Resistant Stainless Steel Housing

The WWG-2 LCD display is housed in a stainless steel housing, which enables its operation in harsh industry conditions. The display can be installed on the table top or mounted on the wall. The WWG-2 LCD features white diode backlight and clear display indicating digits of 4.5" (11.2cm) height.

Communication
Communication with indicators (weighing instruments) is carried out via RS22 or RS485 connectors. Depending on the installation option, the display is powered by 230VAC or 7-24VAC.
