AGV-8 1000.5Y Automatic Comparator for Determination of Mass standard's Density and Volume
- AGV-8 1000.5Y Automatic Comparator for Determination of Mass standard's Density and VolumeMax: 1110g | d: 0,01mg
- AGV-2 20.5Y Automatic Comparator for Determination of Mass standard's Density and VolumeMax: 26.1kg | d: 1mg
Pcs.
Add to basket
We are near you.
We have been manufacturing weighing devices since 1984.
RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569
Delivery only on the territory of United Kingdom
We have been manufacturing weighing devices since 1984.
RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569
Delivery only on the territory of United Kingdom
Optional paid installation and training service available - please contact us for details and pricing.
Datasheet - AGV-8 1000.5Y Automatic Comparator for Determination of Mass standard's Density and VolumeCode:
WL-418-0004
CE
2 years warranty
Datasheet
E0 Calibration Range
1 g – 1 kg *
E1 Calibration Range
1 g – 1 kg
Maximum capacity [Max]
1110 g
Readability [d]
0,01 mg
Standard repeatability [Max]
0,05 mg
Standard repeatability [5% Max]
0,04 mg
Permissible repeatability
0,08 mg
Linearity
±0,12 mg
Electric compensation range
-10 g – +110 g
Stabilization time
30 s
Adjustment
external
Display
10″ graphic colour touchscreen
Supplementary weights external
500 g, 300 g, 100 g, 100 g
Magazine
8
Power supply
100 – 240 V AC 50/60 Hz
Operating temperature
+15 – +30 °C
Storage temperature
-20 – +50 °C
Operating temperature change rate
±0,5 °C / 12 h (±0,3 °C / 4 h)
Relative humidity
40% – 60%
Relative humidity change rate
±5% / 12 h (3% / 4 h)
Weighing pan dimensions
ø60 mm
Object diameters
5 – 94 mm
Weighing device dimensions
690×710×1060 mm
Overview

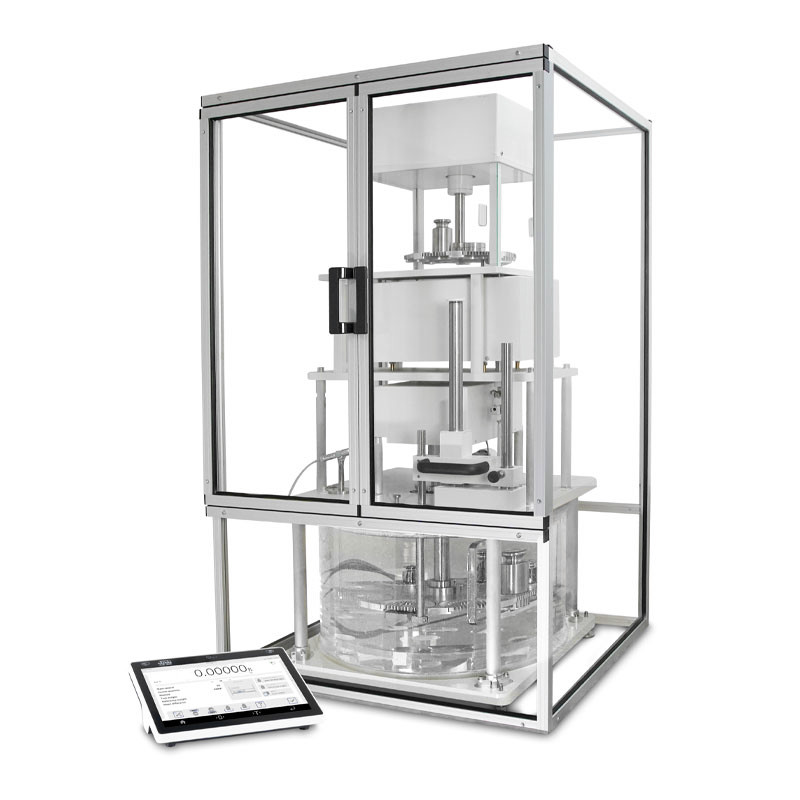

AGV-8 1000.5Y Automatic Comparator for Determination of Mass standard's Density and Volume
The AGV-8 1000.5Y Automatic Comparator for Determination of Mass Standard’s Density and Volume determines the density and volume of mass standards in class E1 in accordance with OIML R111. The highest readability and measurement stability in the range from 1 g to 1 kg are its assets.
8-Position Mass Standard Magazine
The instrument allows the density of up to seven test weights to be determined using a single reference standard. It is equipped with a circulator for eliminating air bubbles. The wire-suspended weighing pan minimises eccentricity error and the influence of liquid surface tension.
Weighing in Air and in Liquid
The AGV comparator uses the most accurate method for determining the density of mass standards, which involves weighing the mass standard “in air” and then in a liquid of known density.
Three-Point Temperature Measurement
The AGV comparator is equipped with a high-performance thermometer with a resolution of 0.001°C with three liquid temperature sensors. By measuring at three points in the container (at the bottom, middle and surface), you are able to see the difference and, if necessary, mix and equalise the temperature of the liquid in the container. Otherwise, there is a risk of obtaining incorrect density measurement results.
Anti-Draft Chamber
A component that insulates the measurement results from external influences (gusts, draughts) is the anti-draft chamber. It makes measurements more accurate and stable.
Density Determination Software
With the comparator, you receive a computer with density determination software installed. The software allows the density of mass standards to be determined and the uncertainty to be calculated using A method in accordance with OIML R111. In addition, it allows the density of liquids to be verified.
Ergonomic Operation
A 10’ colour touchscreen display makes the instrument comfortable to use. Easy access to numerous applications and weighing functions is guaranteed by the ability to personalise the home screen according to user needs. The terminal is equipped with two programmable proximity sensors to which you can assign any function.
