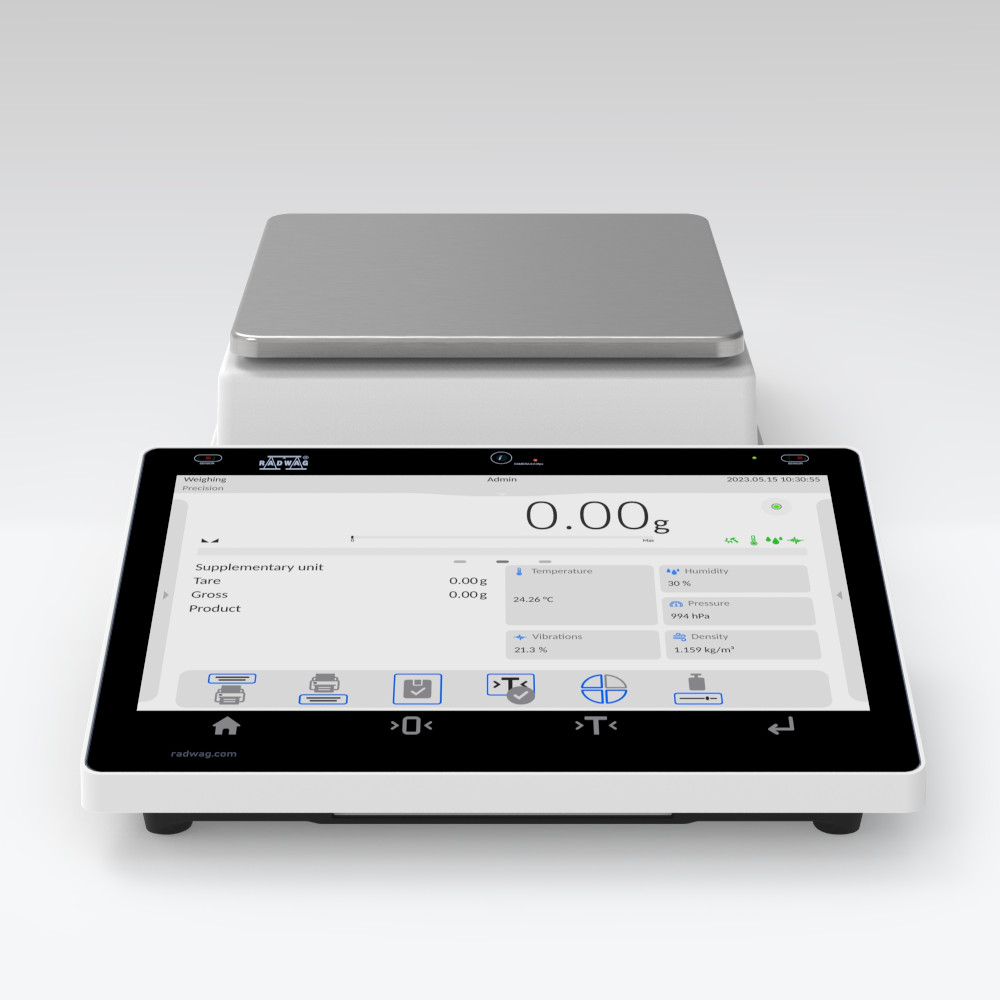

Datasheet - CY10.1.D2.K Precision Balance

Code:

WL-225-0001

2 years warranty

Datasheet

Maximum capacity [Max]

1 kg

Minimum load

Readability [d]

0,01 g

Verification unit [e]

Tare range

-1 kg

Repeatability

0,03 g

Linearity

±0,03 g

Stabilization time

3 s

Adjustment

external

Leveling system

manual

OIML Class

Display

10″ graphic colour touchscreen

Cable length

1 m

Protection class

IP 43

Communication interface

2×USB-A, USB-C, RS 232 (COM3), HDMI, Ethernet, Wi-Fi^®, Hotspot

Power supply

Adapter: 100 – 240V AC 50/60Hz 1A; 15V DC 2,4A
Balance: 12 – 15V DC 1,6A max; 10–19W*

Operating temperature

+15 – +30 °C

Storage temperature

-25 – +70 °C

Relative humidity

10% – 80% RH no condensation

Housing

steel + ABS

Weighing pan dimensions

195×195 mm

Packaging dimensions W x D x H

530×310×150 mm

Net weight

3,7 kg

Gross weight

4,6 kg

Overview

Precision in PRO version

The CY10 series precision balance is designed for fast, accurate and repeatable weight determination. It comes with an advanced PUE CY10 terminal, and that means working comfort with a 10-inch high-resolution display with a smooth and intuitive interface.

Software for special tasks

Thanks to the terminal advanced software, the CY10 series precision balance:

Cooperates with up to 2 weighing platforms
Continuously updates all statistical data after the next measurement is entered into the balance’s memory – either globally (regardless of the weighed commodity) or separately for each weighed commodity selected from the database
Has a Tare mode expanded to include End-product issue mode capability
Works with RFID tags* (accessing personal data as well as marking specific goods or recipe ingredients in the database).

Precision balance and labelling scale in one device

The CY10 series precision balance can operate as a labeling scale with a terminal that:

Cooperates with the computer program Label Editor R02
Is compatible with ZEBRA label printers
Supports single labels, bulk labels and bulk from bulk labels
Allows import/ export of label designs using a pendrive
Enables you to assign labels to goods or customers and print a global label.

Light or dark?

Which color theme will you set on your CY10 balance? Both are user-friendly and clear, but we are curious which one you like more.

Modbus TCP/IP

is one of the most popular communication protocols in industrial automation. Implementing it in the 5Y balances and CY10 scales makes the devices of this series friendly to automation integrators.

A balance or scale in a Modbus system is a slave device and performs tasks specified by the master device which is most often a PLC. Protocol Modbus TCP/IP in the 5Y balances and C10 scales enables, among other things, the realization of mass readout, zeroing and tare functions of the device, as well as tare settings and MIN and MAX thresholds.

* RFID ISO/IEC 14443 Type A, 13,56 MHz
