Communication modules

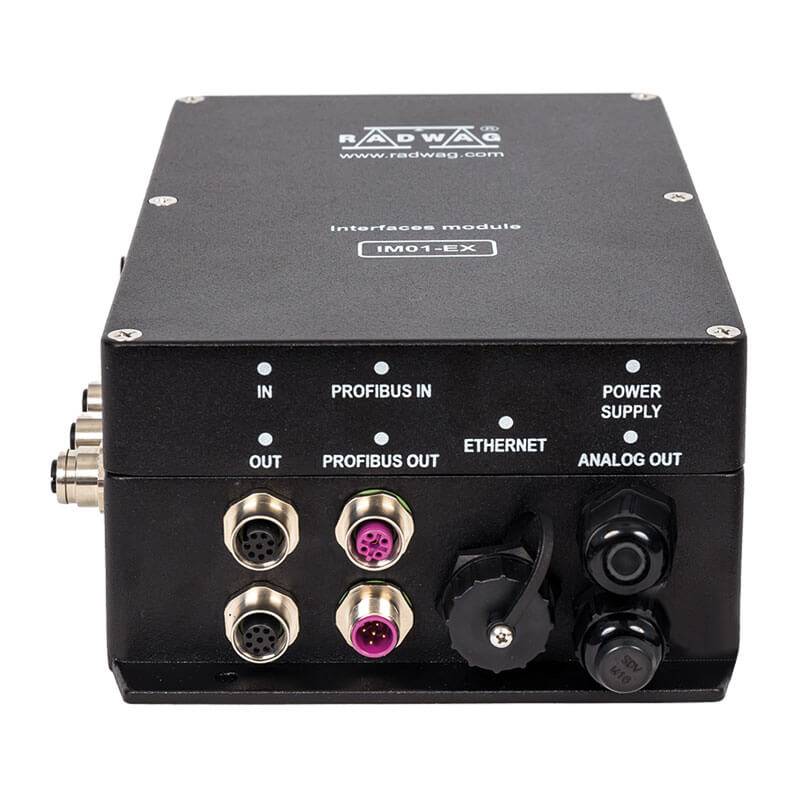

IM01.EX-9/2 Communication Module
This image is for reference only.
IM01.EX-9/2 Communication Module
close Exit
This image is for reference only.
IM01.EX-9/2 Communication Module
Availability:
In stock
Estimated shipping date :
15 working days

Need it urgently? Call us to check real-time stock availability: +44 (0)1625 569569

Price:
2371.20
 GBP
with 20% VAT, shipping cost not included
Choose a variant:
IM01.EX-9/2 Communication Modulekeyboard_arrow_down
  • IM01.EX-1 Communication Module
  • IM01.EX-2 Communication Module
  • IM01.EX-3 Communication Module
  • IM01.EX-4 Communication Module
  • IM01.EX-5 Communication Module
  • IM01.EX-8 Communication Module
  • IM01.EX-9 Communication Module
  • IM02.1 (MediaBox) Communication Module
  • IM01.EX-4/2 Communication Module
  • IM01.EX-4/3 Communication Module
  • IM01.EX-4/3/2 Communication Module
  • IM01.EX-5/2 Communication Module
  • IM01.EX-5/3 Communication Module
  • IM01.EX-5/3/2 Communication Module
  • IM01.EX-8/2 Communication Module
  • IM01.EX-8/3 Communication Module
  • IM01.EX-8/3/2 Communication Module
  • IM01.EX-9/2 Communication Module
  • IM01.EX-9/3 Communication Module
  • IM01.EX-9/3/2 Communication Module

Pcs.

Add to basket
We are near you.
We have been manufacturing weighing devices since 1984.

RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569

Delivery only on the territory of United Kingdom
Optional paid installation and training service available - please contact us for details and pricing.
Datasheet - IM01.EX-9/2 Communication ModuleDatasheet - IM01.EX-9/2 Communication Module
Code:
WX-016-0187
2 years warranty
2 years warranty
CE
CE

Datasheet

Protection class
IP 66 / 68 (1,5m)
ATEX Certification
II (2)G [Ex ib] IIC Gb
II (2)D [Ex ib] IIIC Db
Communication interface
2×RS232, USB, 4IN / 4OUT, EtherNet/IP, analog output 4-20 mA / 0-10 V
Power supply
100 – 240 V AC 50/60 Hz
Power consumption max.
10 W
Operating temperature
-10 – +40 °C
Storage temperature
-20 – +60 °C
Relative humidity
10% – 85% RH no condensation
Housing
aluminum
Device dimensions W x D x H
222×146×81 mm
Net weight
1,9 kg
Gross weight
2,5 kg

Overview


IM01.EX-9/2 Communication Module





With use of IM01.EX communication module it is possible to expand communication interfaces range of the HX5.EX indicator. The module is installed outside the hazardous area, and connected to the indicator using intrinsically safe interface. IM01.EX allows to establish communication between the scale and various accessories, e.g. barcode scanners, printers, displays, control buttons, light signalling towers, buzzers and other controlling/signalling devices. It also enables connection with systems of automatic adjustment and control of industrial processes, and with superior IT systems.







Module IM01.EX-9/2

has the following interfaces:
  • 2 x RS232,
  • USB,
  • 4 IN / 4 OUT (digital)
  • EtherNET IP,
  • Analog output 4-20mA/0-10V.
