Datasheet - C32.25.PM Precision Balance

Code:

WL-223-0025

Verification

2 years warranty

Datasheet

Maximum capacity [Max]

25 kg

Minimum load

5 g

Preload range

2,5 kg

Readability [d]

0,1 g

Verification unit [e]

1 g

Tare range

-25 kg

Minimum weight (USP)

82 g

Minimum weight (U=1%, k=2)

8,2 g

Repeatability (Max)

0,1 g

Repeatability (5% Max)

0,041 g

Linearity

±0,3 g

Stabilization time

1 s

Adjustment

internal (automatic)

Leveling system

manual

OIML Class

Display

5” graphic colour

Protection class

IP 43

Communication interface

2×RS232, USB-A, USB-B, Ethernet, 4 IN / 4 OUT (digital), Wi-Fi^®

Power supply

Adapter: 100 – 240V AC 50/60Hz 0,6A; 12V DC 1,2A
Balance: 10 – 12V DC 1A max

Operating temperature

+10 – +40 °C

Weighing pan dimensions

350×260 mm

Packaging dimensions W x D x H

520×520×280 mm

Net weight

11 kg

Gross weight

15,5 kg

Overview

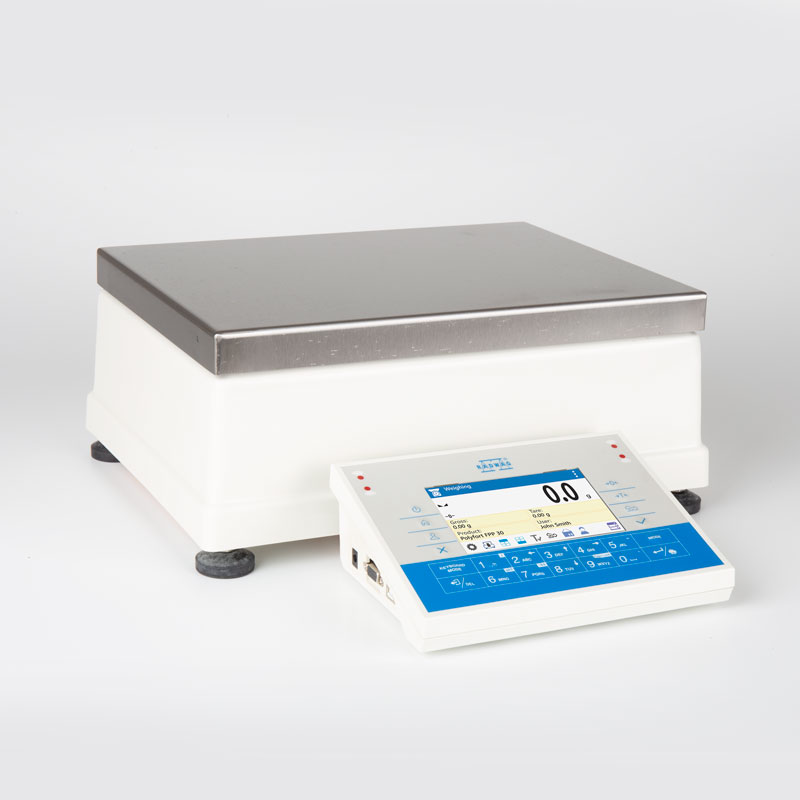

C32.25.PM Precision Balance

C32.PM series balances have been designed to enable precise determination of mass in laboratory. Dosing, formulation-making, and parts counting are just some of the possible applications of these multi-purpose devices. PM balances not only provide an accurate reading and quick measurement, but they are also versatile, allowing them to be used in a variety of industrial sectors.

Laboratory Precision Under Industrial Conditions

The ability to weigh loads up to 120 kg on a large weighing pan with high accuracy and good repeatability,
minimum eccentricity error over the entire range,
quick and stable measurement (achievable within 1 second),
parameter stability over time and during transport,
weighing pan dimensions adapted to the accuracy of the balance

are the distinguishing features of RADWAG PM balances. All of this is possible thanks to the use of a cutting-edge measuring system based on RADWAG’s enhanced

MONO

BLOCK^® technology.

The change in the design of the monoblock has made it possible to work with a readability of 0.01 g at a maximum capacity of 20 kg and 0.2 g at a maximum capacity of 120 kg, with a repeatability of 0.01 g, and resistance to changes in ambient conditions.

PM balances also include:

robust design based on a larger and taller Monoblock,
built-in 4-point overload protection system,
IP 43 ingress protection,
internal adjustment,
5" colour display,
easy start-up, intuitive operation, and ergonomics.

PM balances will find use wherever high-accuracy, high-load-capacity weighing equipment is required.

Communication Interfaces

Standard terminal has been equipped with RS 322, USB-A, USB-B, 4×IN, 4×OUT and Ethernet interfaces which facilitate both cooperation with peripherals such as printer or computer and data exchange using USB drives.

The terminal connects with wireless networks due to a Wireless Connection module, which comes standard.

Under-Pan Weighing

Weighing instruments purchased after 15th February 2023 will allow under-pan weighing at any time after the purchase. All you need to do is just to order a dedicated hook.

THBR 2.0 System

Cooperation with THBR 2.0 System for ambient conditions monitoring.

* RFID ISO/IEC 14443 Type A, 13,56 MHz
