C315.4P2 Beam Scales

C315.4P2.600.C Beam Scale
This image is for reference only.
C315.4P2.600.C Beam ScaleC315.4P2.600.C Beam ScaleC315.4P2.600.C Beam ScaleC315.4P2.600.C Beam Scale
close Exit
This image is for reference only.
C315.4P2.600.C Beam ScaleC315.4P2.600.C Beam ScaleC315.4P2.600.C Beam ScaleC315.4P2.600.C Beam Scale
Availability:
In stock
Estimated shipping date :
15 working days

Need it urgently? Call us to check real-time stock availability: +44 (0)1625 569569

Price:
2450.40
 GBP
with 20% VAT, shipping cost not included
Choose a variant:
C315.4P2.600.C Beam Scalekeyboard_arrow_down
  • C315.4P2.600.C Beam Scale
    Max: 600kg | d: 200g
  • C315.4P2.1500.C Beam Scale
    Max: 1500kg | d: 500g
  • C315.4P2.3000.C Beam Scale
    Max: 3000kg | d: 1kg
  • C315.4P2.2000.C1 Beam Scale
    Max: 2000kg | d: 1kg
  • C315.4P2.4000.C1 Beam Scale
    Max: 4000kg | d: 2kg
  • C315.4P2.6000.C1 Beam Scale
    Max: 6000kg | d: 2kg
  • C315.4P2.2000.C2 Beam Scale
    Max: 2000kg | d: 1kg
  • C315.4P2.4000.C2 Beam Scale
    Max: 4000kg | d: 2kg
  • C315.4P2.6000.C2 Beam Scale
    Max: 6000kg | d: 2kg

Pcs.

Add to basket
We are near you.
We have been manufacturing weighing devices since 1984.

RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569

Delivery only on the territory of United Kingdom
Optional paid installation and training service available - please contact us for details and pricing.
Datasheet - C315.4P2.600.C Beam ScaleDatasheet - C315.4P2.600.C Beam Scale
Code:
WP-240-0007
2 years warranty
2 years warranty
Verification
Verification
CE
CE

Datasheet

Maximum capacity [Max]
600 kg
Minimum load
4 kg
Readability [d]
200 g
Verification unit [e]
200 g
Tare range
-600 kg
Max readability for non-verified scale
200 g
OIML Class
III
Display
4,3” LCD (backlit)
Cable length
3 m + 5 m
Protection class
IP 65 construction, IP 67 cell, IP 43 terminal
Communication interface
RS232
Optional interfaces
RS232
Power supply
100 – 240 V AC 50/60 Hz and battery
Power consumption max.
5 W
Operation time on batteries
max 8h
Operating temperature
-10 – +40 °C
Relative humidity
10% – 85% RH no condensation
Weighing pan dimensions
2 pcs 1,2 m
Device dimensions W x D x H
1200×120×85 mm
Scale mass with indicator
37 kg

Overview

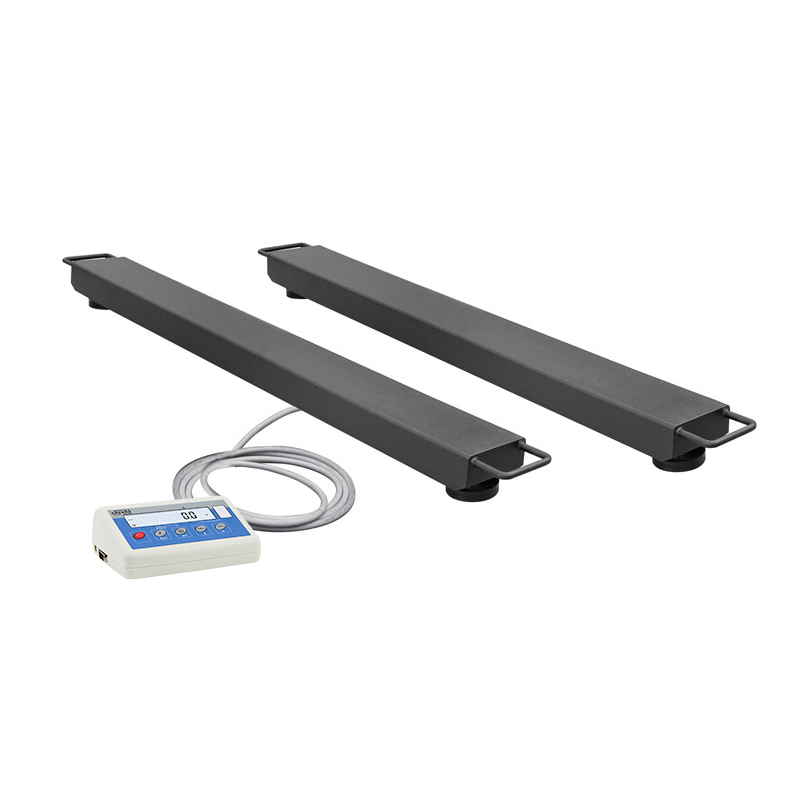

Beam scales C315.4P2 series is stable and proved four load cells weighing solution with more versatile application than standard pallet scales. The adjustable distance between the beams (up to 5 meters) enables fitting the C315.4P2 scales to different loads (cases, long bars, heavy sections). The load to be weighed can be placed on the beams by a standard fork-lift truck.

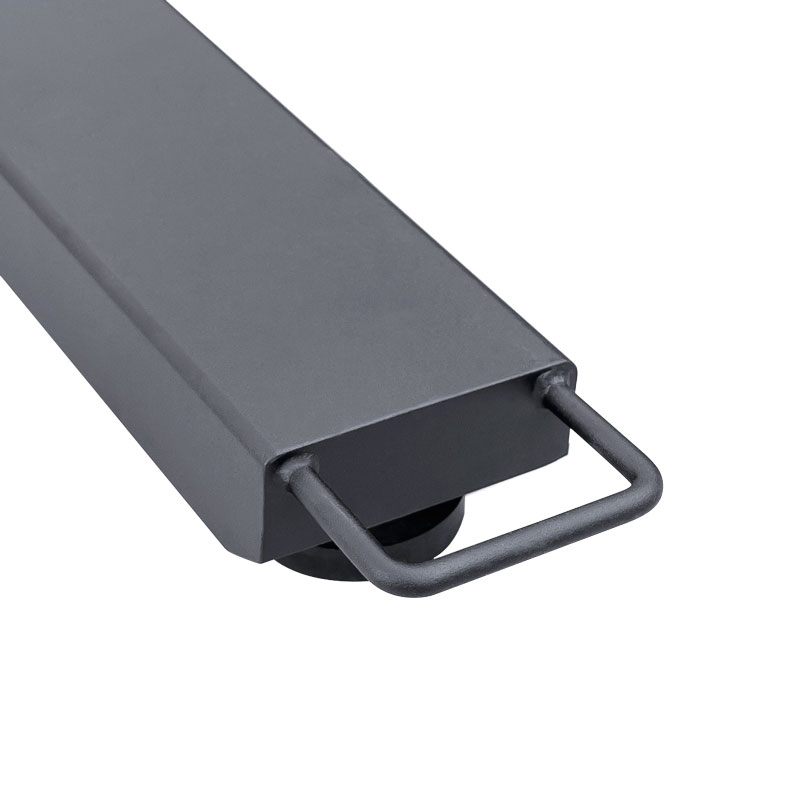

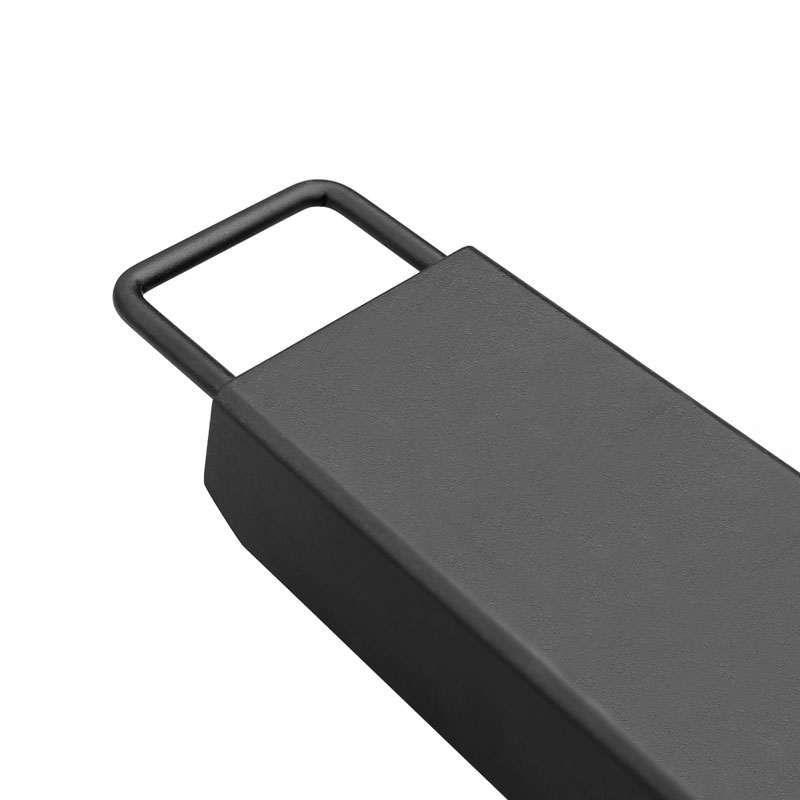

Beam scales C315.4P2 series is manufactured in mild steel powder coated version. Optionally, the number of beams in a scale can be increased to 4. Beam scales features handles for easy transporting the scales to its place of use.

The scales comes standard with an indicator PUE C315 series featuring backlit LCD display and function buttons. The indicator is installed on a long cable.
The scale is powered from mains 230V AC, RS 232 interface comes standard.

Scales is available in dual range version on surcharge.
