Automatic Vacuum Mass Comparators
This image is for reference only.
Exit
This image is for reference only.
Availability:
To order
Estimated shipping date :
Ask for delivery time
Need it urgently? Call us to check real-time stock availability: +44 (0)1625 569569
Price:
Individual pricing
Choose a variant:
AVK 1000.5Y.LLS Automatic Vacuum Mass Comparator equipped with pumps and Load-Lock System
- AVK 1000.5Y Automatic Vacuum Mass Comparator equipped with pumpsMax: 1002g | d: 0,1µg
- AVK 1000.5Y.CP Automatic Constant Pressure Mass ComparatorMax: 1002g | d: 0,1µg
- AVK 1000.5Y.LLS Automatic Vacuum Mass Comparator equipped with pumps and Load-Lock SystemMax: 1002g | d: 0,1µg
We are near you.
We have been manufacturing weighing devices since 1984.
RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569
Delivery only on the territory of United Kingdom
We have been manufacturing weighing devices since 1984.
RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569
Delivery only on the territory of United Kingdom
Optional paid installation and training service available - please contact us for details and pricing.
Datasheet - AVK 1000.5Y.LLS Automatic Vacuum Mass Comparator equipped with pumps and Load-Lock SystemCode:
WL-417-0005
CE
2 years warranty
Datasheet
E0 Calibration Range
100 g – 1 kg *
E1 Calibration Range
100 g – 1 kg
E2 Calibration Range
100 g – 1 kg
F1 Calibration Range
100 g – 1 kg
F2 Calibration Range
100 g – 1 kg
Maximum capacity [Max]
1002 g
Readability [d]
0,1 µg
Standard repeatability [Max]
1 µg **
Standard repeatability [5% Max]
0,8 µg **
Permissible repeatability
1,5 µg
Linearity
±2 µg
Electric compensation range
-1 g – +2 g
Stabilization time
60 s
Adjustment
internal / external
Display
10″ graphic colour touchscreen
Supplementary weights external
500 g, 800 g, 900 g
Magazine
6
Communication interface
2×USB-A, USB-C, RS 232 (COM3), HDMI, Ethernet, Wi-Fi®, Hotspot
Power supply
100 – 240 V AC 50/60 Hz
Operating temperature
+15 – +30 °C
Operating temperature change rate
±0,1 °C / 12 h
Relative humidity
45% – 60%
Relative humidity change rate
±2% / 4 h
Weighing pan dimensions
ø100 mm
Vacuum chamber dimensions
965×745×1150 mm
Pressure range
10(⁻⁶) mbar
Object diameters
cylindrical ø (22 – 95)x110; spherical ø (40 – 100) mm
Weighing device dimensions
965×745×1700 mm
Controling device dimensions
249×170×72 mm
Net weight (without table)
250 kg
Net weight (with table)
650 kg
Overview

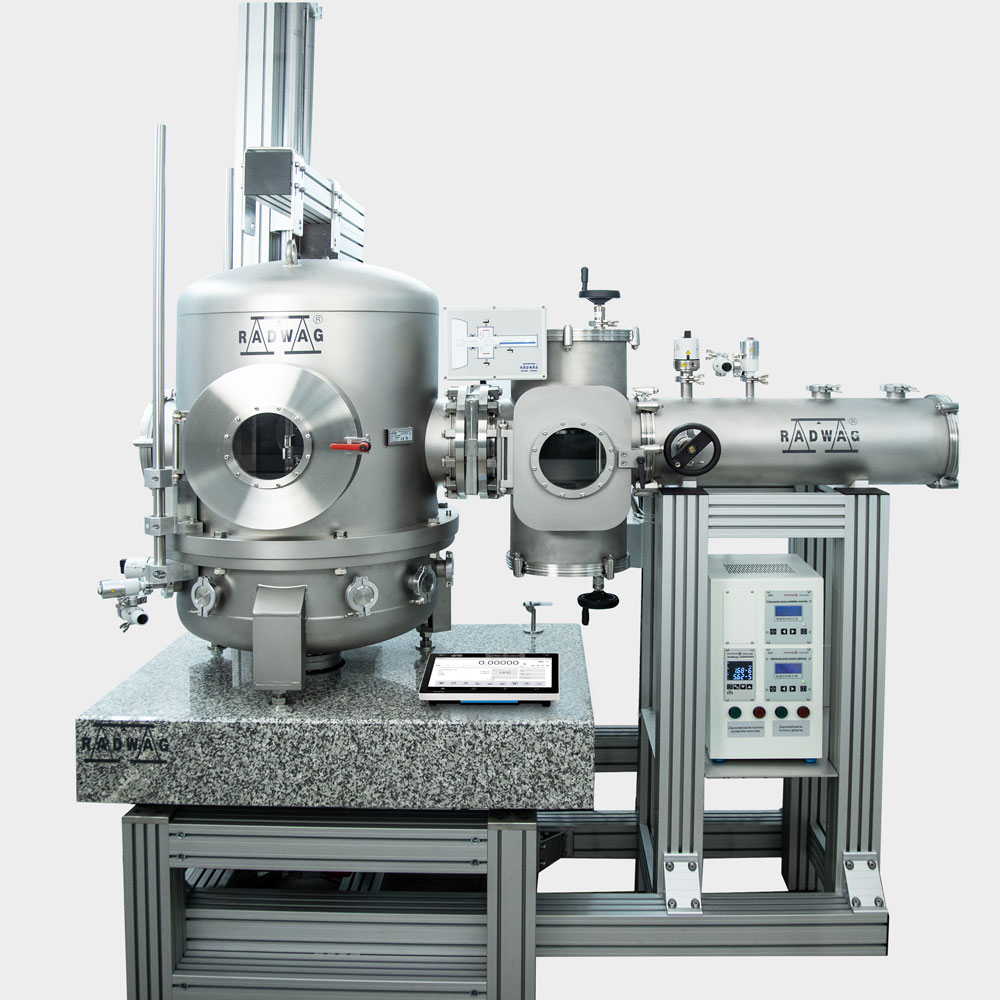

AVK 1000.5Y.LLS Automatic Vacuum Mass Comparator equipped with pumps and Load-Lock System

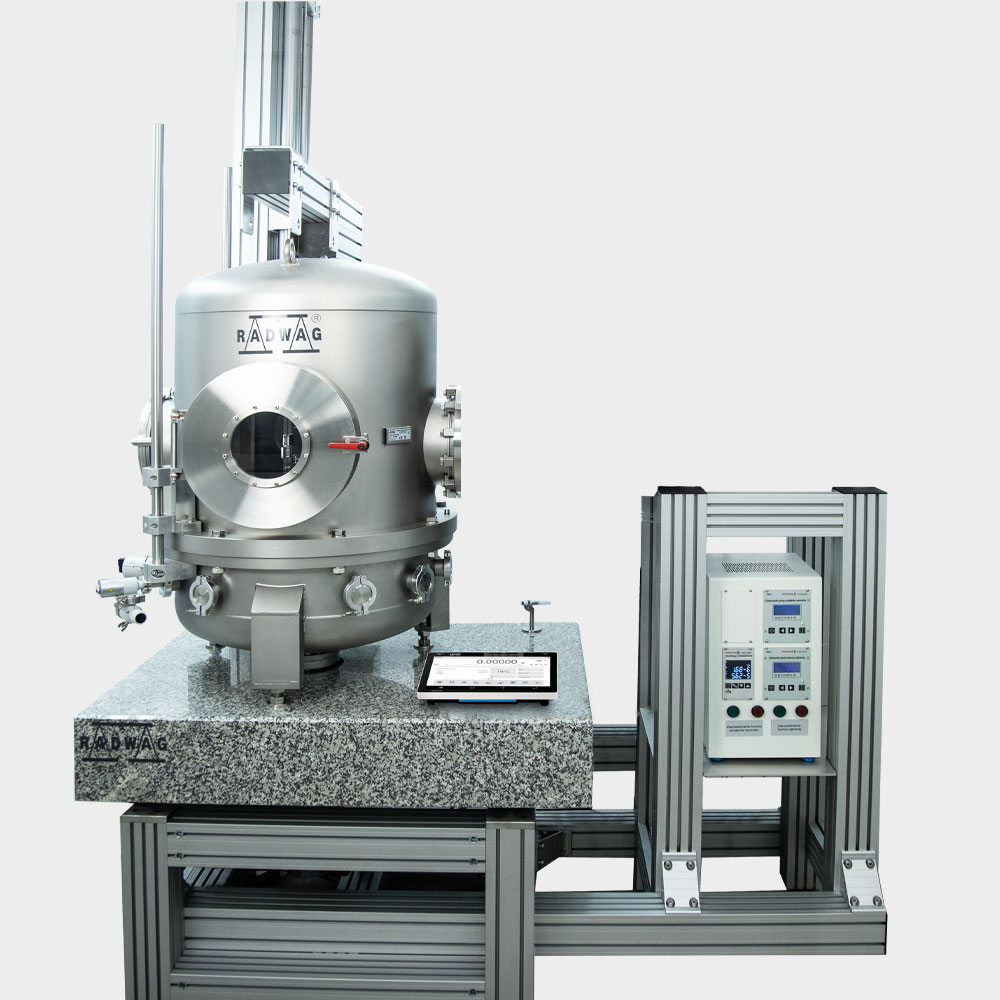

The AVK 1000.5Y.LLS Automatic Vacuum Mass Comparator equipped with pumps and Load-Lock System is an advanced device for precise mass measurement under vacuum conditions, equipped with a modern LOAD LOCK system. With built-in vacuum pumps, it ensures stable measuring conditions and minimises the influence of external factors on the results. The comparator supports full automation of the weighing process, allowing for maximum accuracy and repeatability.
What Makes the AVK-1000.5Y.LLS
Stand out from Other Models?
The AVK-1000.5Y.LLS can be used in laboratories where high-precision calibration of mass standards is required.
Revolutionary LOAD LOCK system

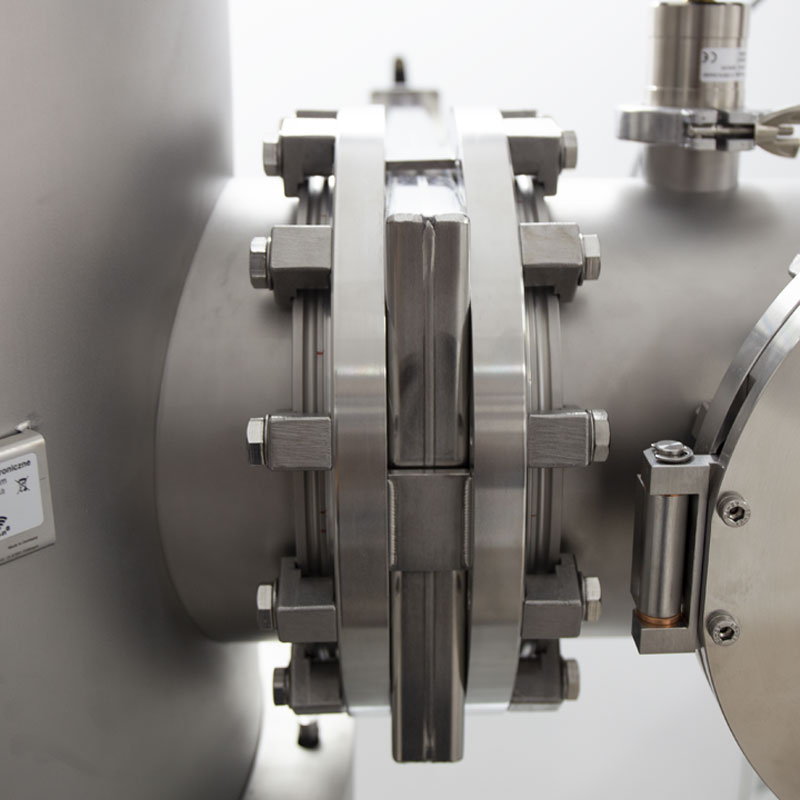

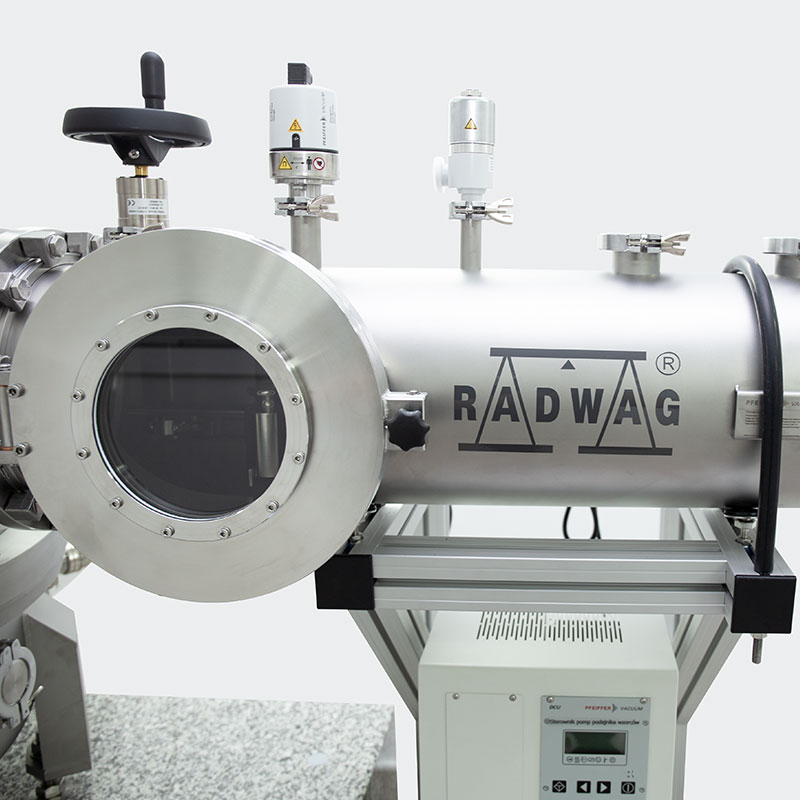

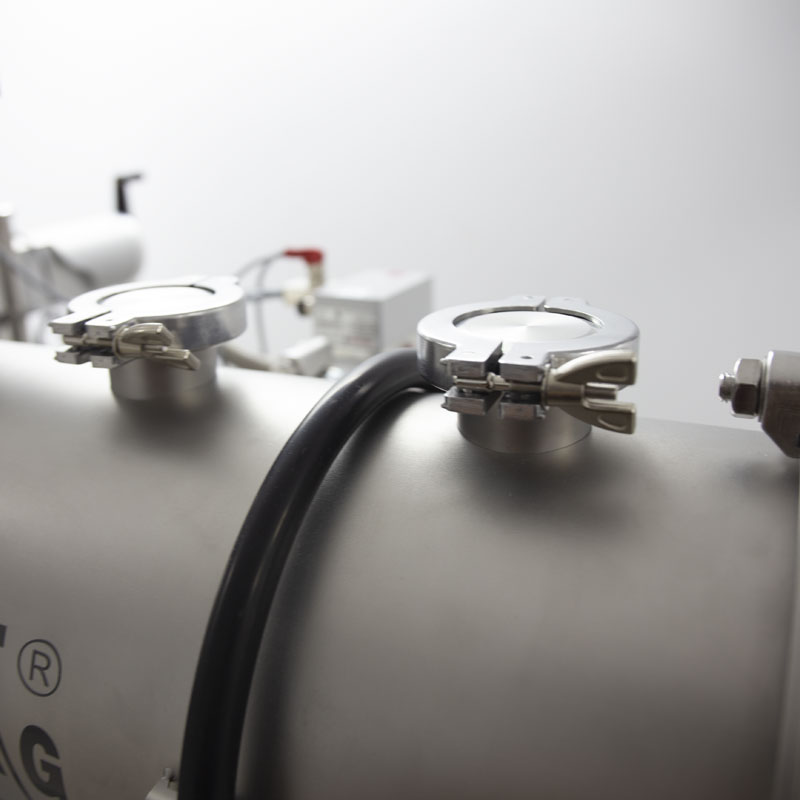

To further increase operating efficiency, the AVK-1000.5Y.LLS comparator is equipped with the innovative LOAD LOCK mass standard transfer system. It allows the exchange of mass standards without having to change the atmosphere in the main chamber, reducing the time for changing standards by up to 90%. LOAD LOCK has its own high-capacity pumping system, in which the time it takes for the air to be pumped out to reach a vacuum that allows the connecting valve to the main chamber to be opened is significantly reduced. The stabilisation time for the main chamber after replacing/ adding a mass standard and closing the connecting valve with the LOAD LOCK system is approximately 4 hours. This solution saves time and increases productivity, as well as minimising downtime associated with pumping out air again.
Vacuum suitcases
RADWAG’s LOAD LOCK system also enables the loading of the sample from the main chamber into a special vacuum suitcase and the transfer of the sample in a vacuum atmosphere. The suitcase maintains the vacuum for a long time without exposing the mass standards to the atmosphere.
The pre-pump
It works on the principle of mechanical suction of gases and their compression. Its main task is to reduce the pressure to a level where the turbomolecular pumps can operate effectively. These pumps are capable of producing a vacuum of 10-3 to 10-4 hPa.
The turbomolecular pump
It uses impellers rotating at very high speeds to accelerate gas molecules. These molecules are “pulled” into the pump by the action of centrifugal force. It allows much lower pressures (up to 10-10 hPa) to be achieved than pre-pumps.
Vacuum gauges

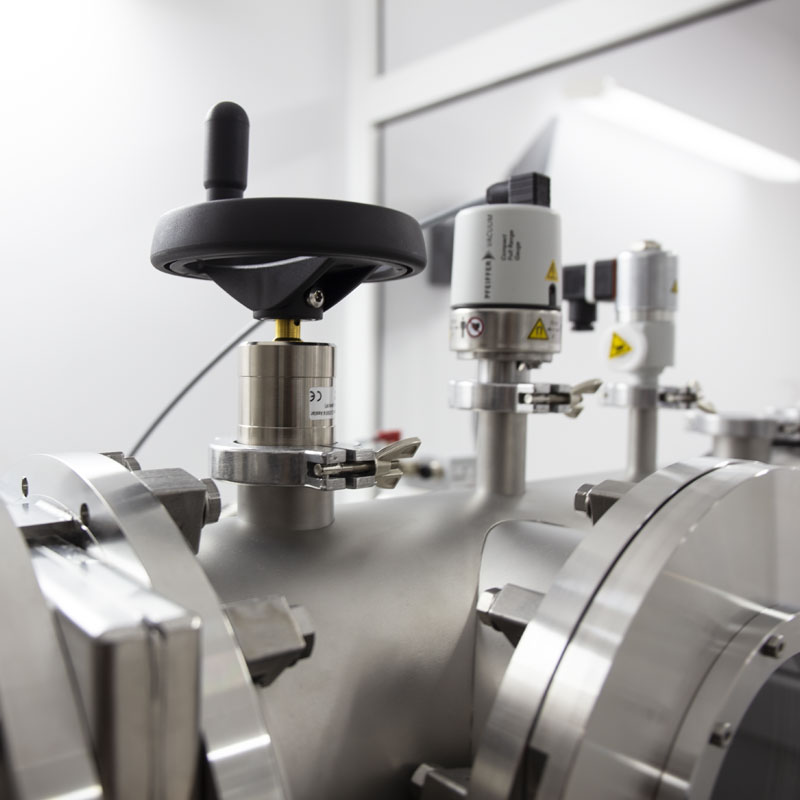

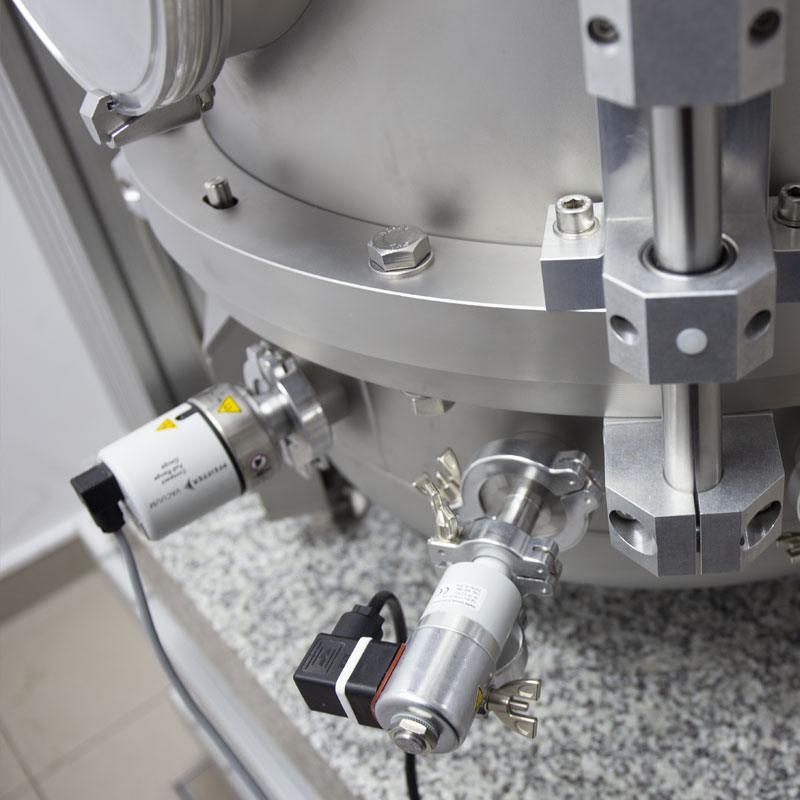

The high-performance vacuum gauges used allow monitoring and comparison of vacuum values to determine the point at which the valve can be opened and the gauge replaced. A specially manufactured viewfinder allows the entire process to be monitored.
What Are the Additional Advantages
of the AVK-1000.5Y.LLS Comparator?

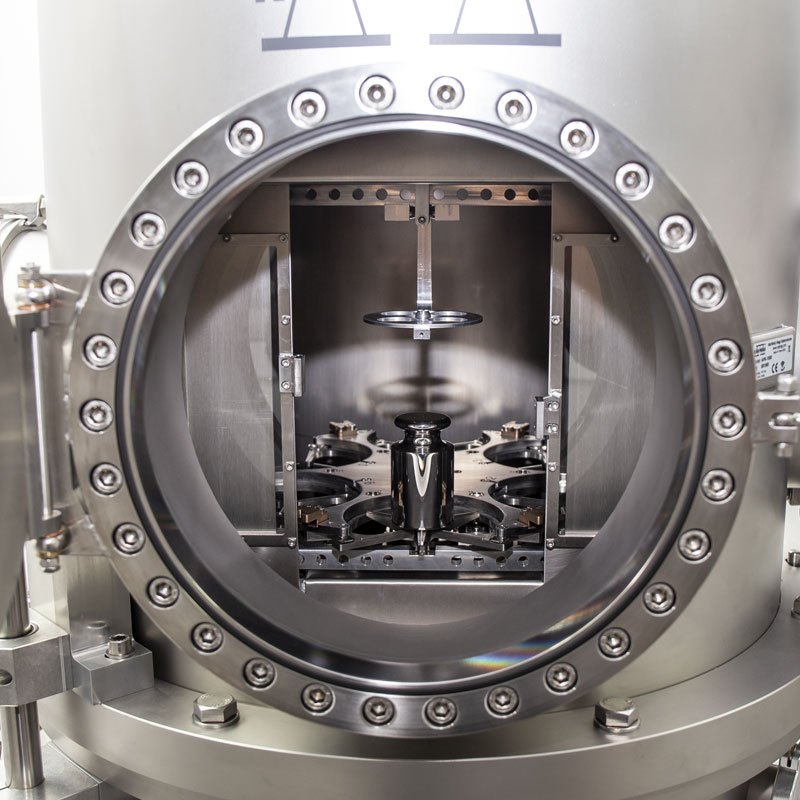

6-position mass standard magazine
It allows automatic exchange of mass standards during the measuring process.
Self-centring weighing pan
This is a component of the comparator which ensures that the mass standard is always in the centre of the pan, regardless of its initial position. It eliminates the problem of eccentricity.
Thermohygrobarometer
It exercises comprehensive control over the precision measurement environment, increasing accuracy and improving repeatability.
Anti-vibration table with granite top
It eliminates the effects of ambient vibration to keep measurements stable during weighing. You receive the table together with the comparator.
Intuitive operation
The device features an advanced 10’’ touchscreen display for intuitive operation and complete function management. Additional security features in the form of user authentication (RFID tags*, passwords) and full reporting ensure the highest level of security and control over the measurement process.
* RFID ISO/IEC 14443 Type A, 13,56 MHz
