Automatic susceptometers - Magnetization
This image is for reference only.
Exit
This image is for reference only.
Availability:
To order
Estimated shipping date :
Ask for delivery time
Need it urgently? Call us to check real-time stock availability: +44 (0)1625 569569
Price:
53714.40
GBP
with 20% VAT, shipping cost not included
Choose a variant:
SM 5Y.A Automatic Susceptometer
- SM 5Y.A Automatic SusceptometerMax: 50kg | d: 1µg
Pcs.
Add to basket
We are near you.
We have been manufacturing weighing devices since 1984.
RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569
Delivery only on the territory of United Kingdom
We have been manufacturing weighing devices since 1984.
RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569
Delivery only on the territory of United Kingdom
Optional paid installation and training service available - please contact us for details and pricing.
Datasheet - SM 5Y.A Automatic SusceptometerCode:
WL-101-0428
CE
2 years warranty
Datasheet
E1 Calibration Range
2 g – 50 kg
E2 Calibration Range
2 g – 50 kg
F1 Calibration Range
2 g – 50 kg
F2 Calibration Range
2 g – 50 kg
Maximum capacity [Max]
50 kg
Readability [d]
1 µg
Linearity
±3 µg
Stabilization time
10 s
Adjustment
internal (automatic)
Display
10″ graphic colour touchscreen
Weighing chamber doors
automatic
Communication interface
2×USB-A, USB-C, RS 232 (COM3), HDMI, Ethernet, Wi-Fi®, Hotspot
Operating temperature
+15 – +30 °C
Operating temperature change rate
±0,5 °C / 12 h
Relative humidity
40% – 60%
Relative humidity change rate
±2% / 4 h
Housing
ABS plastic
Processor
2×1 GHz
Memory
RAM 256 MB DDR2, 16GB – microSD
Weighing pan dimensions
ø300 mm
Device dimensions W x D x H
525×350×250 mm
Packaging dimensions W x D x H
950×750×750 mm
Net weight
26 kg
Gross weight
36 kg
Dipole moment of magnets
≤ 0,1 Am2
Calibration Range
2 g – 50 kg
Distance platform Z0
20; 27; 43 mm
Magnetizing field strenght
2000, 800, 200 A/m
Overview

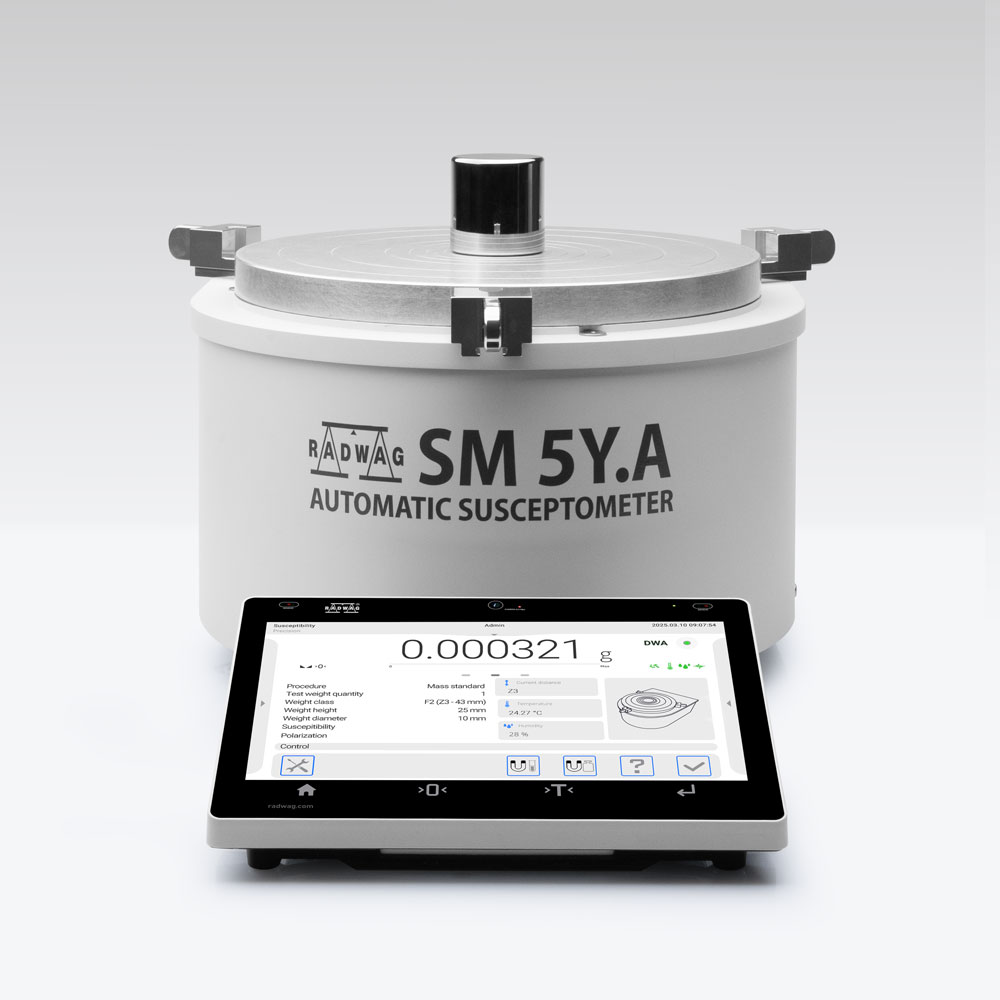

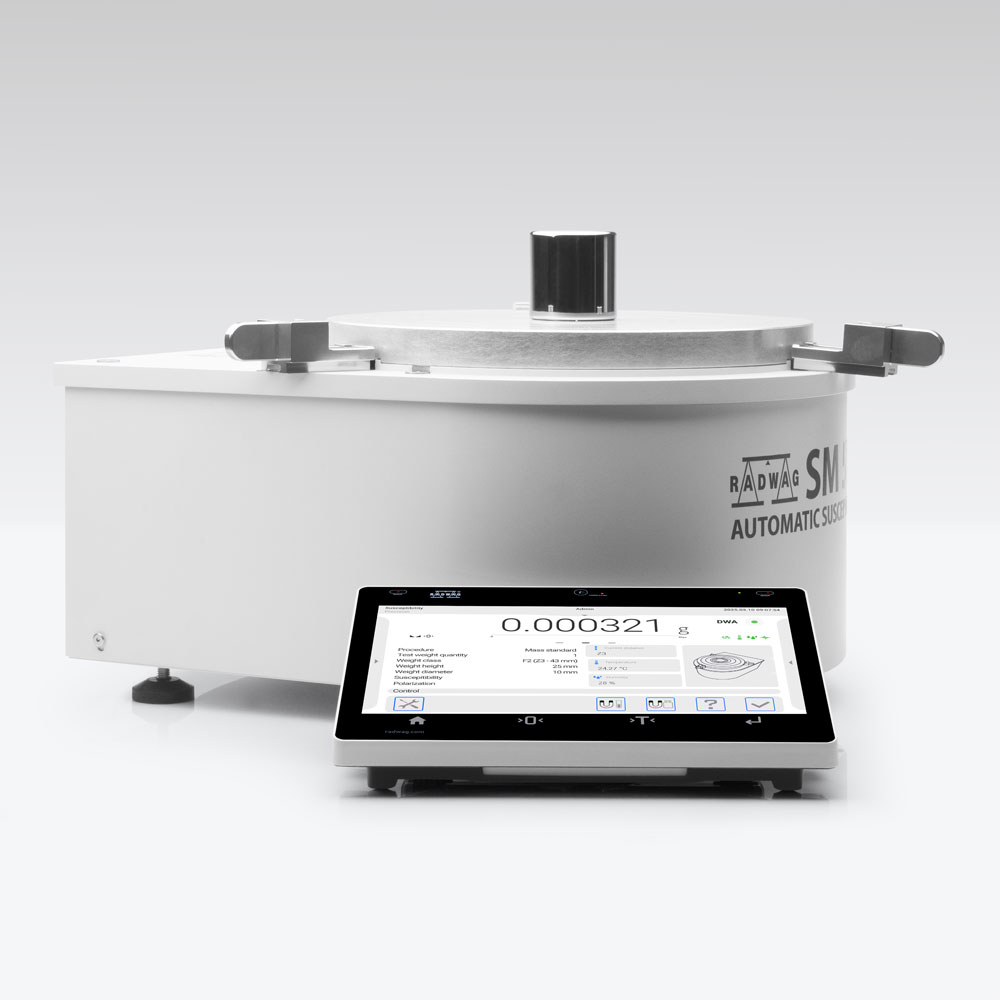

SM 5Y.A Automatic Susceptometer
What is the Automatic Susceptometer Used for?
The instrument is designed to measure the magnetic susceptibility and permanent magnetization of mass standards of class E1 and below with the readability [d] of 1 µg, in accordance with OIML R111. The SM 5Y.A allows automatic change of magnet polarity and pan level depending on the class of mass standard being tested. Any positive or negative information on the magnetic susceptibility and polarity of the tested mass standard is stored in the database.
Fully Automatic Change of Magnet Polarity
The program guides you through the process of checking the magnetic properties of the sample tested and then at the appropriate moment it will change the magnet’s polarity and finally display the test result.
Changing Measuring Ranges

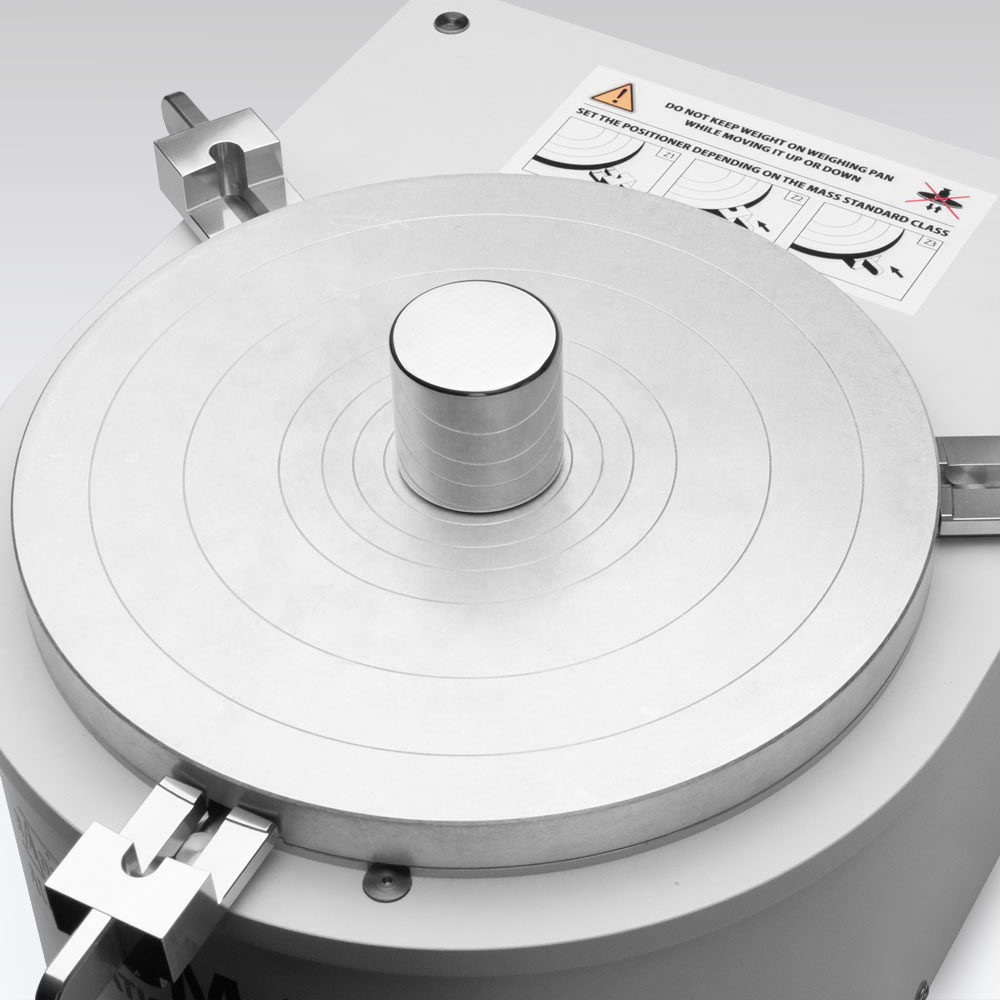

The device has three automatic height levels that determine the distance of the weighing platform from the centre of the magnet. It simultaneously defines the strength of the magnetic field which the mass standard is tested in.
On the Best Foundations: the 5Y Terminal
The automatic susceptometer was built on the foundation of the 5Y terminal, which stands out among other laboratory terminals because it provides:
- 21 CFR Part 11 compliance
- Digital Weighing Auditor
- 4+ login methods (password, fingerprint, face recognition, RFID* and combinations)
- Handy Library with measurement history always at the fingertips
- Live Notes
- Ambient Light
- Wide selection of widgets, databases, working modes and communication interfaces, including hotspot.
What Interfaces Does the Susceptometer Have? Peripherals You Can Easily Connect to
Thanks to the 5Y terminal, your susceptometer will connect to:
- Computer and laptop (Ethernet, Wi-Fi®, USB-A)
- Smartphone and tablet (hotspot)
- Printer (Ethernet, Wi-Fi®, USB-A)
- Barcode scanner (USB-A)
- Additional screen (HDMI)
- Any PC software (RADWAG communication protocol)
- Spreadsheet (USB-C, Free Link)
- Keyboard
- Mouse.
* RFID ISO/IEC 14443 Type A, 13.56 MHz
